Rich Solar Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 55 Amp | 4 Pole 2 Strings

Description

Rich Solar’s Solar PV DC Quick Disconnect Switch is a power-accessory designed to provide safe and reliable disconnection of DC power in solar arrays. Built for off-grid or on-grid use, it supports two PV strings and features a fast arc suppression time to protect your system.

Engineered for durability, this switch operates effectively across extreme temperatures and includes a lockout option for enhanced safety during maintenance or system changes.

Features

• Quickly disconnects DC power from your solar array to the charge controller, batteries and/or inverters.
• Outdoor rated.

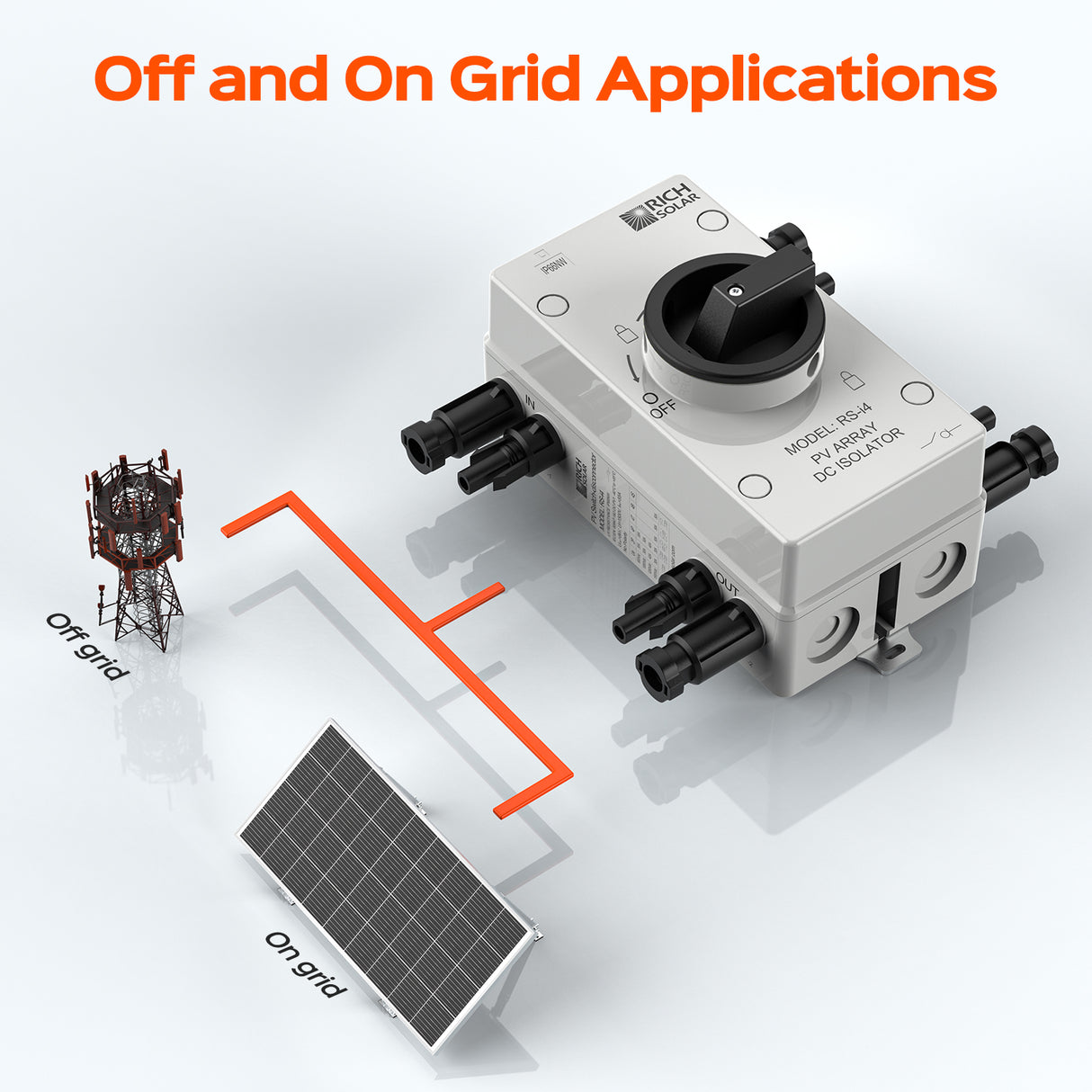

• Off and on-grid applications.
• Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
• 4-pole and 2-string.
• Ensures the disconnection of load circuits and suppression of the arc in under 3 milliseconds.
• Lockout option.
• Output and input connections are built for easy setup and installation.

Specifications

• Max. Rated Current: 55A
• Max. Rated Voltage: 1500VDC
• Poles / Circuit: 4P in series
• Supported PV Strings: 2 PV strings
• Impulse Withstand Voltage: 8 kV
• IP Rating: IP66NW
• Arc Suppression Time: <3ms
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Housing Material: Flame-retardant PC (UL94 V-0)
• Dimensions (HxWxD): 7.1x6.8x4.3 in (179.5x173.9x110 mm)
• Net Weight: 1.6lb (0.73kg)
• Certifications: CE
• Warranty: 3 years
