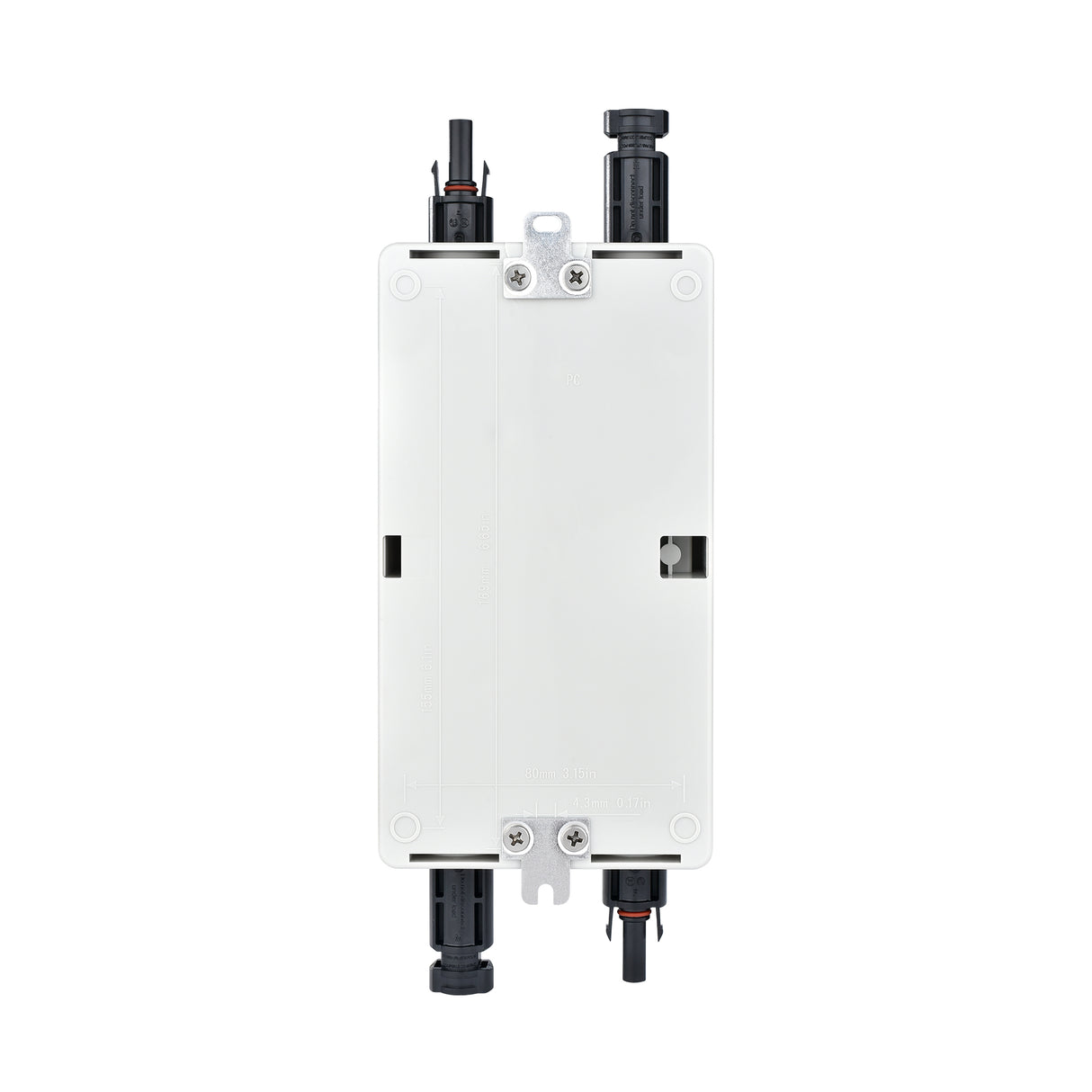

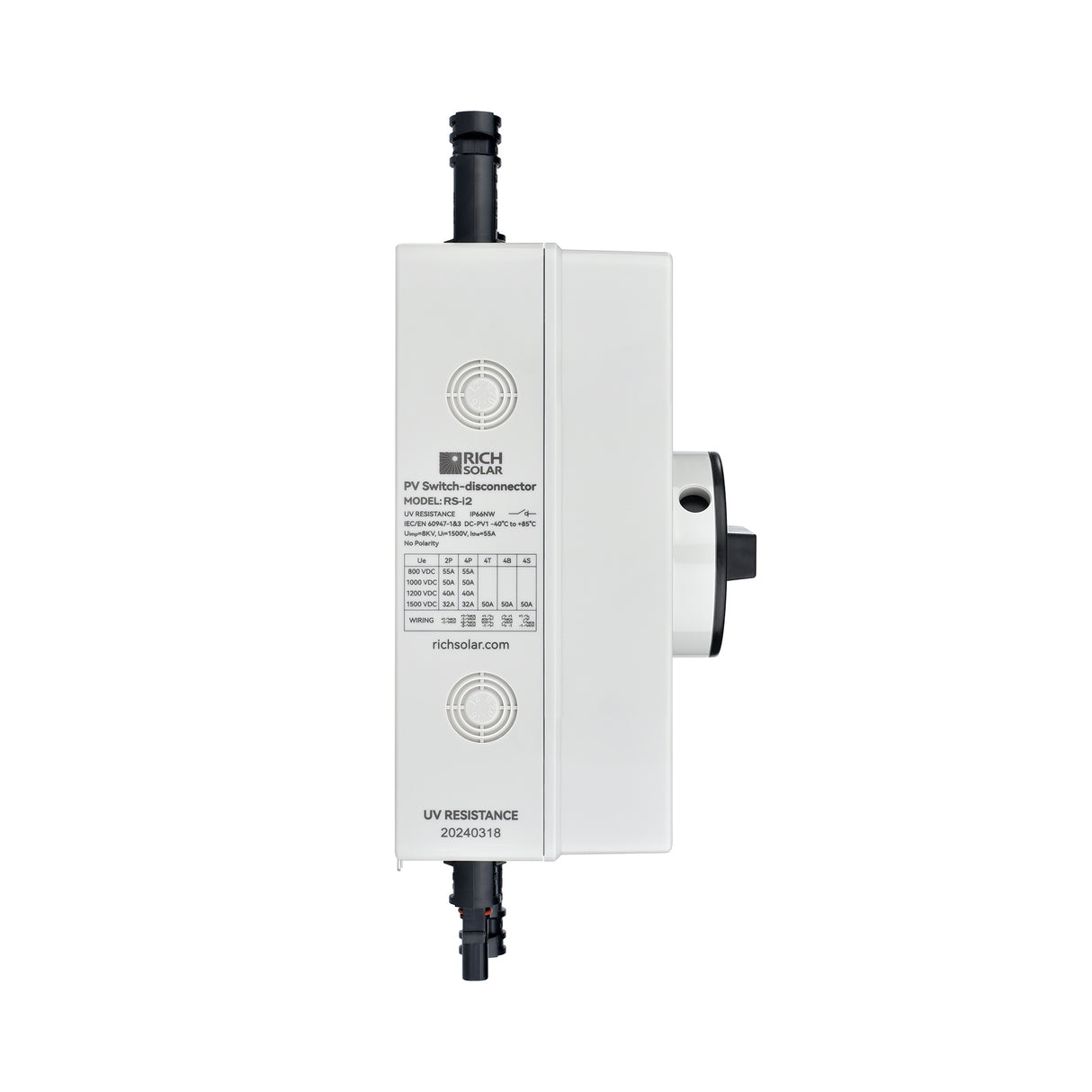

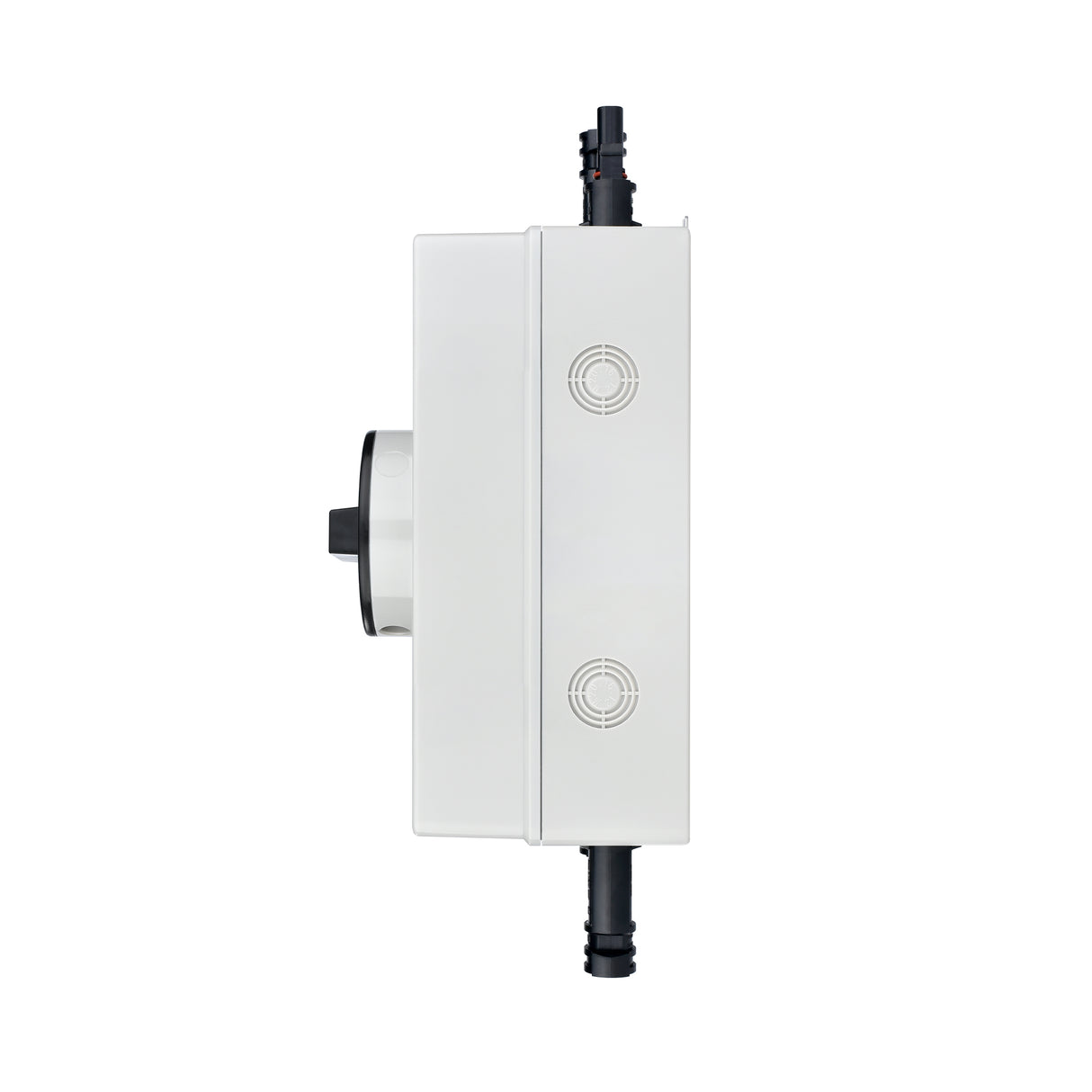

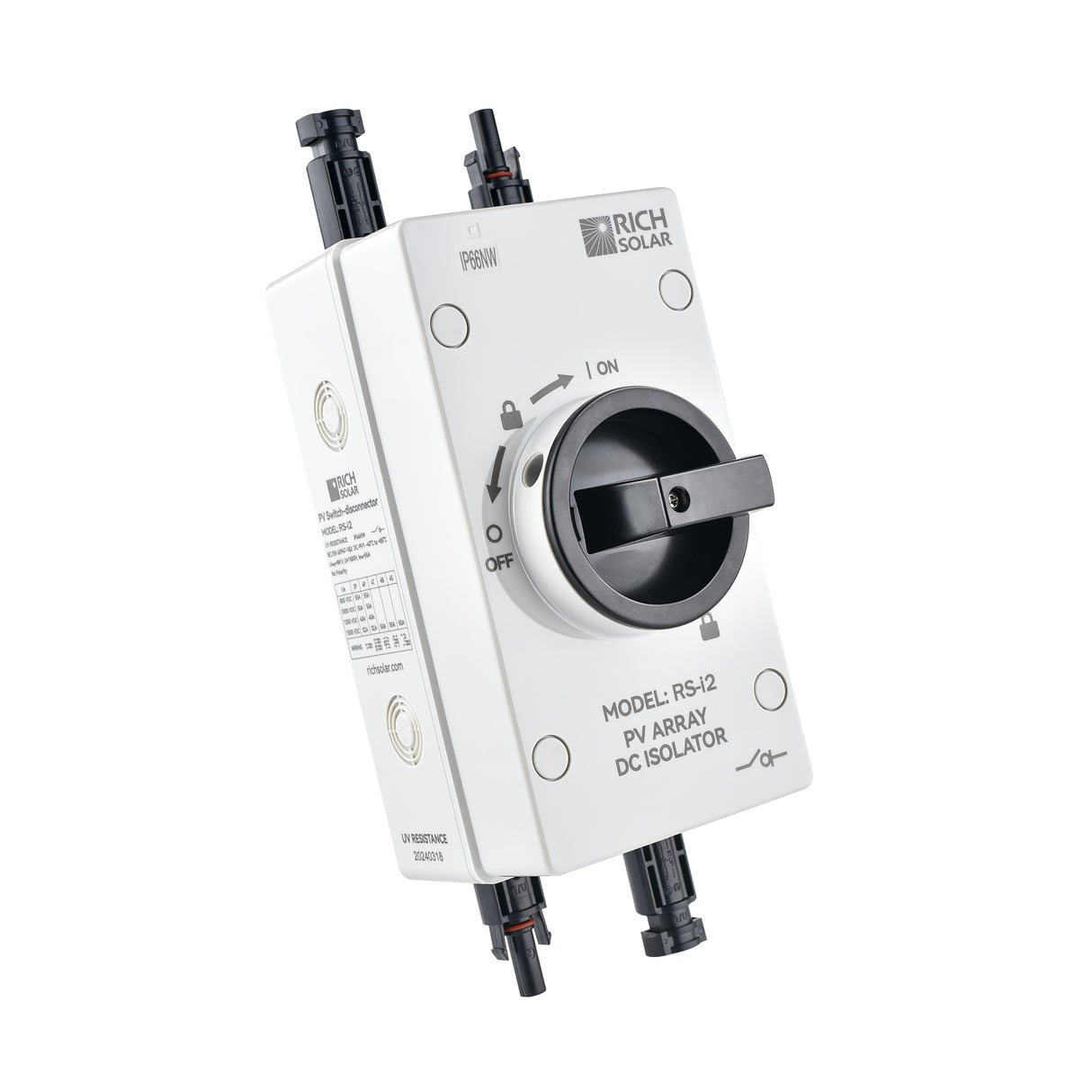

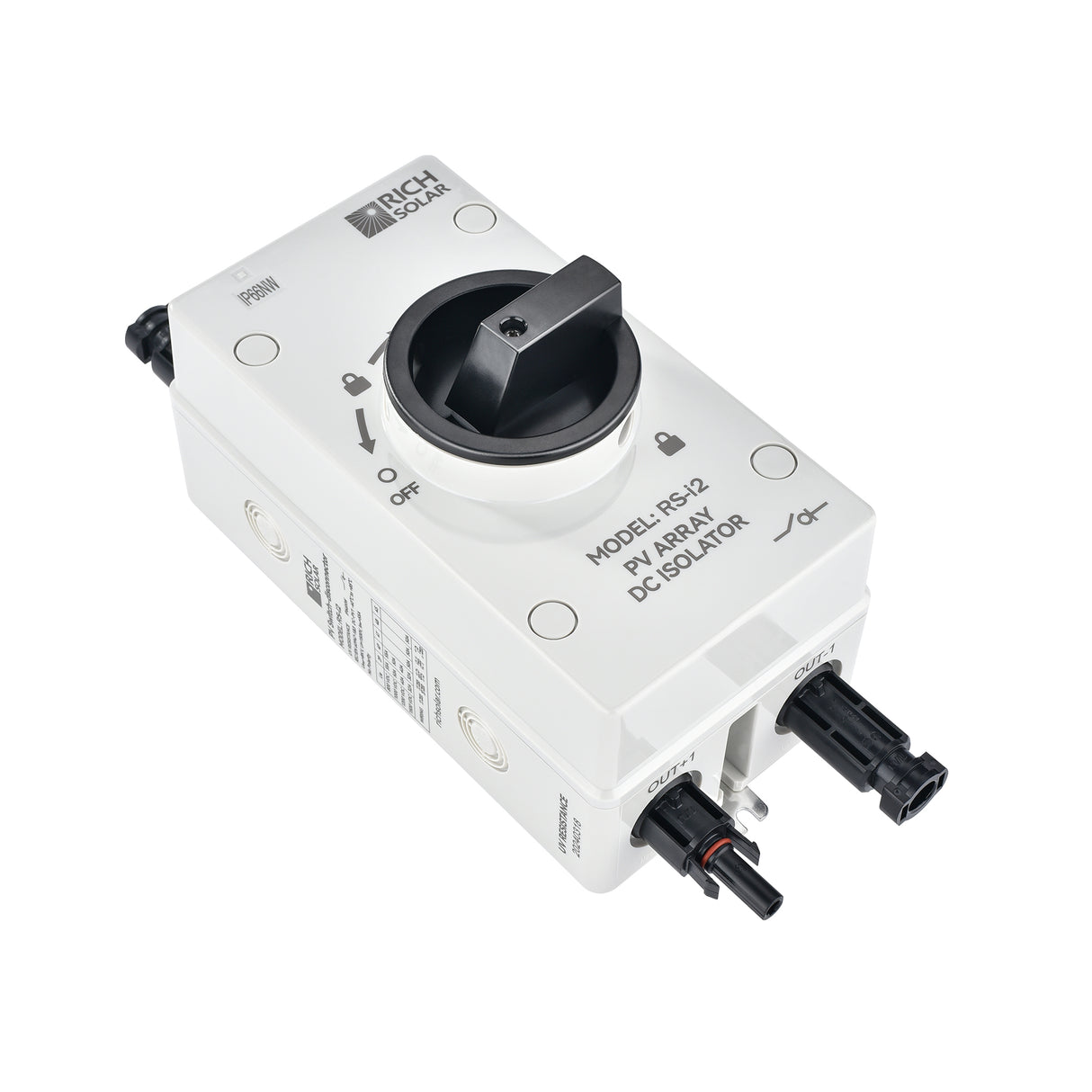

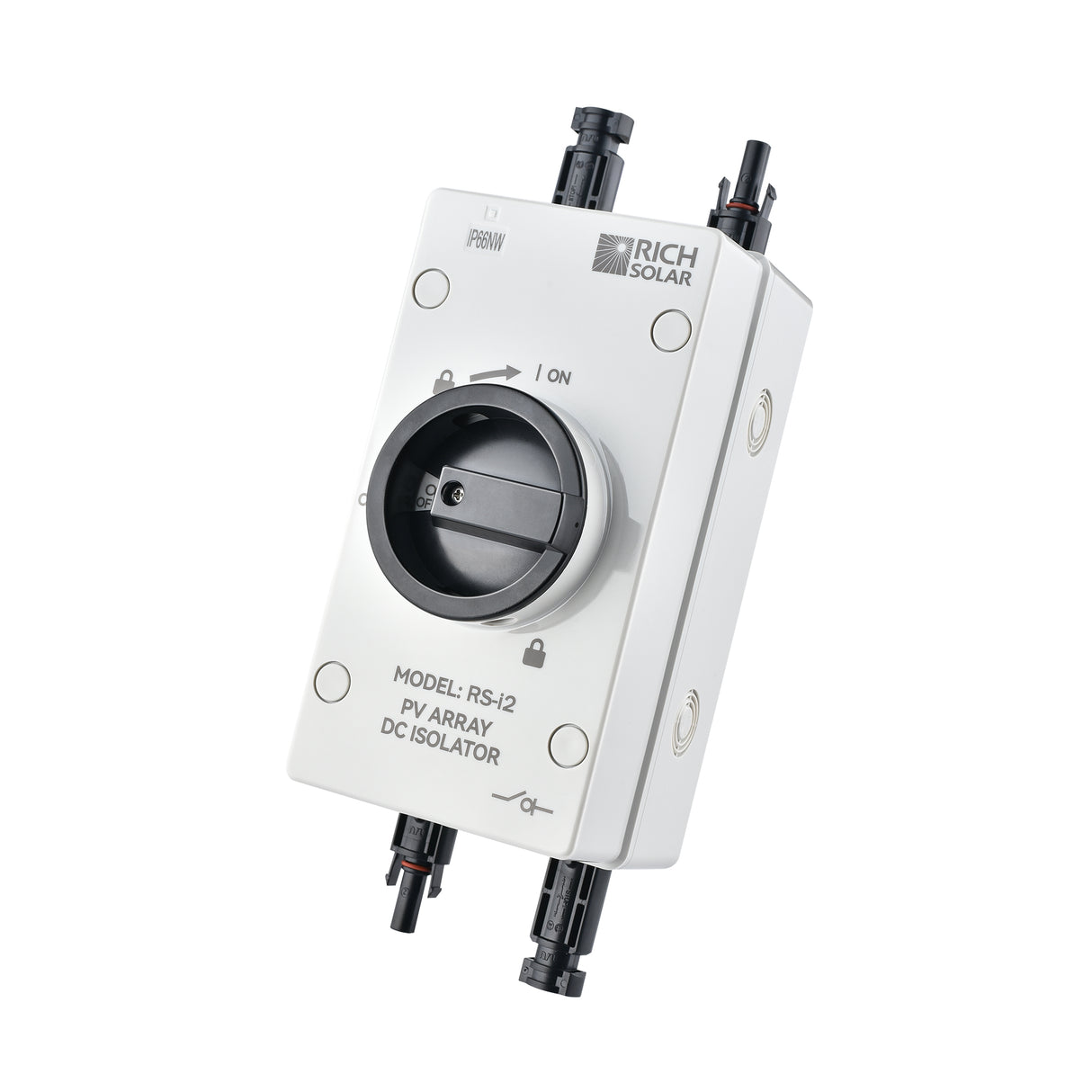

Rich Solar Solar PV DC Quick Disconnect Switch | Solar Array DC Quick Disconnect Switch | 1500 Volt 55 Amp | 2 Pole 1 String

Description

The Rich Solar Solar PV DC Quick Disconnect Switch is a power-accessory designed for safely isolating single solar panel strings in both off-grid and on-grid systems. It features a 55A current rating and supports up to 1500VDC, making it suitable for a broad range of solar arrays.

Built for durability and ease of installation, this disconnect switch offers fast arc suppression and a lockout option to enhance system safety and maintenance convenience for experienced users managing solar power setups.

Features

• Quickly disconnects DC power from your solar array to the charge controller, batteries and/or inverters.
• Outdoor rated.
• Off and on-grid applications.

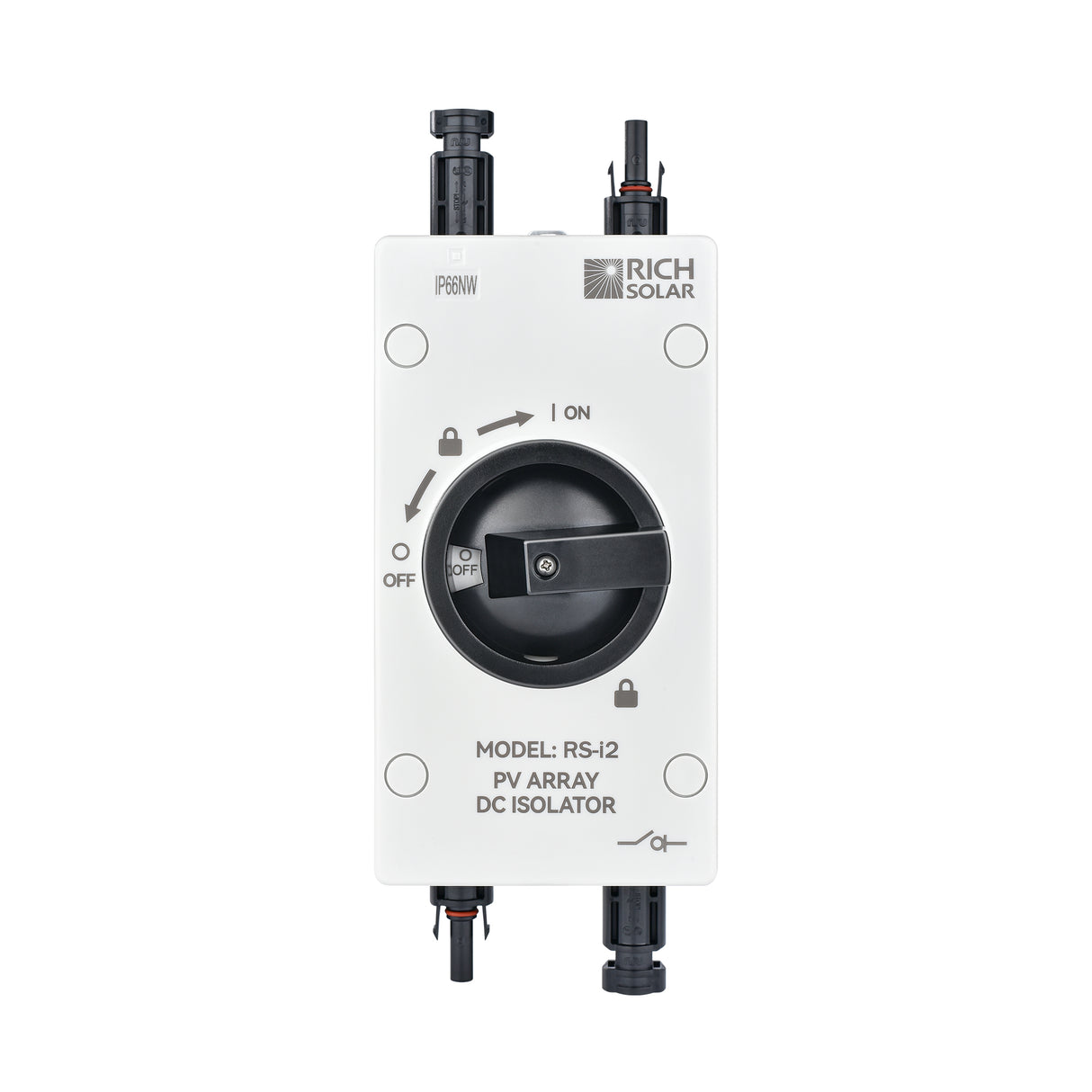

• Isolated SAFE-LOCK with three rotational positions, reducing the risk of tampering.
• 2 poles and 1 string.
• Ensures the disconnection of load circuits and suppression of the arc in under 3 milliseconds.
• Lockout option.

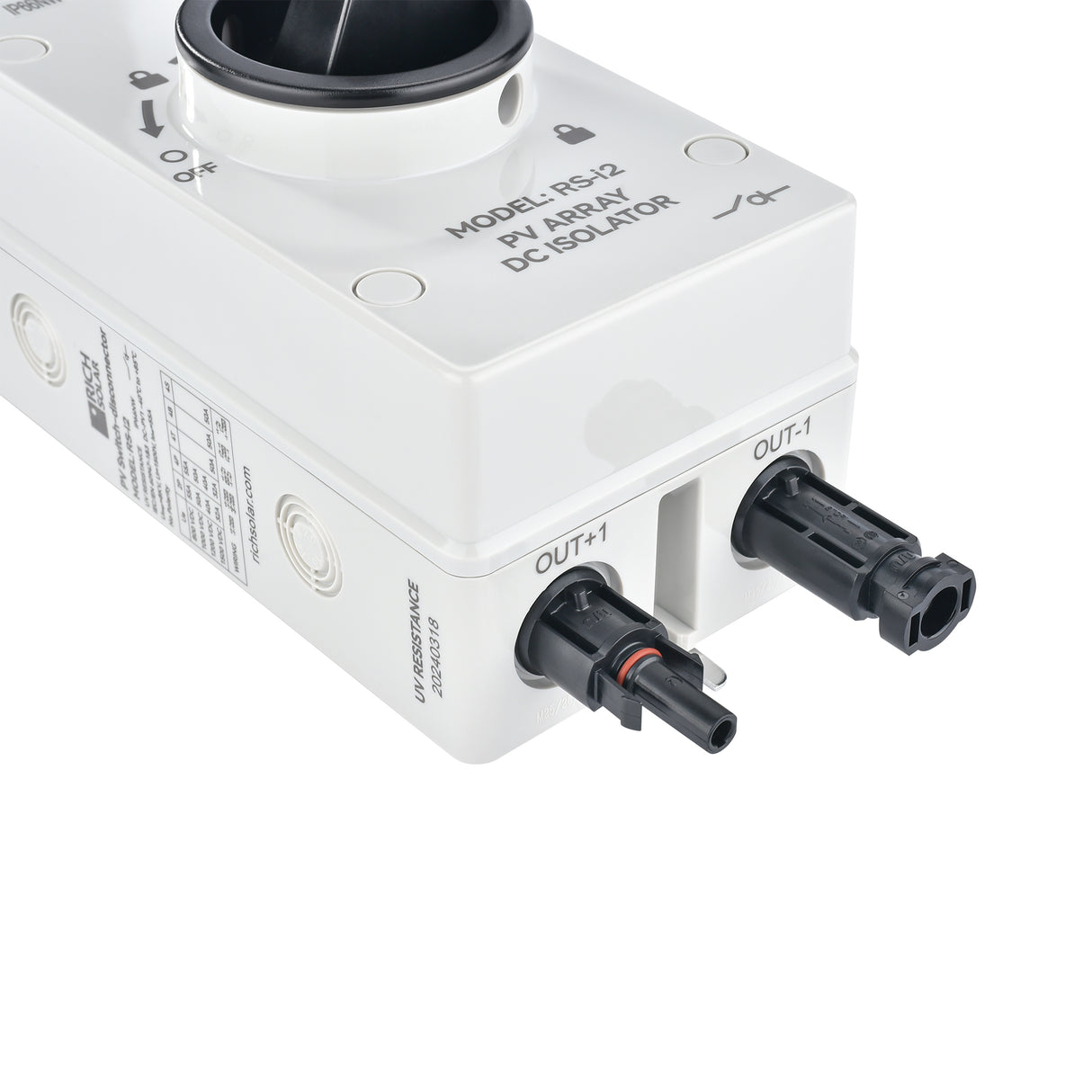

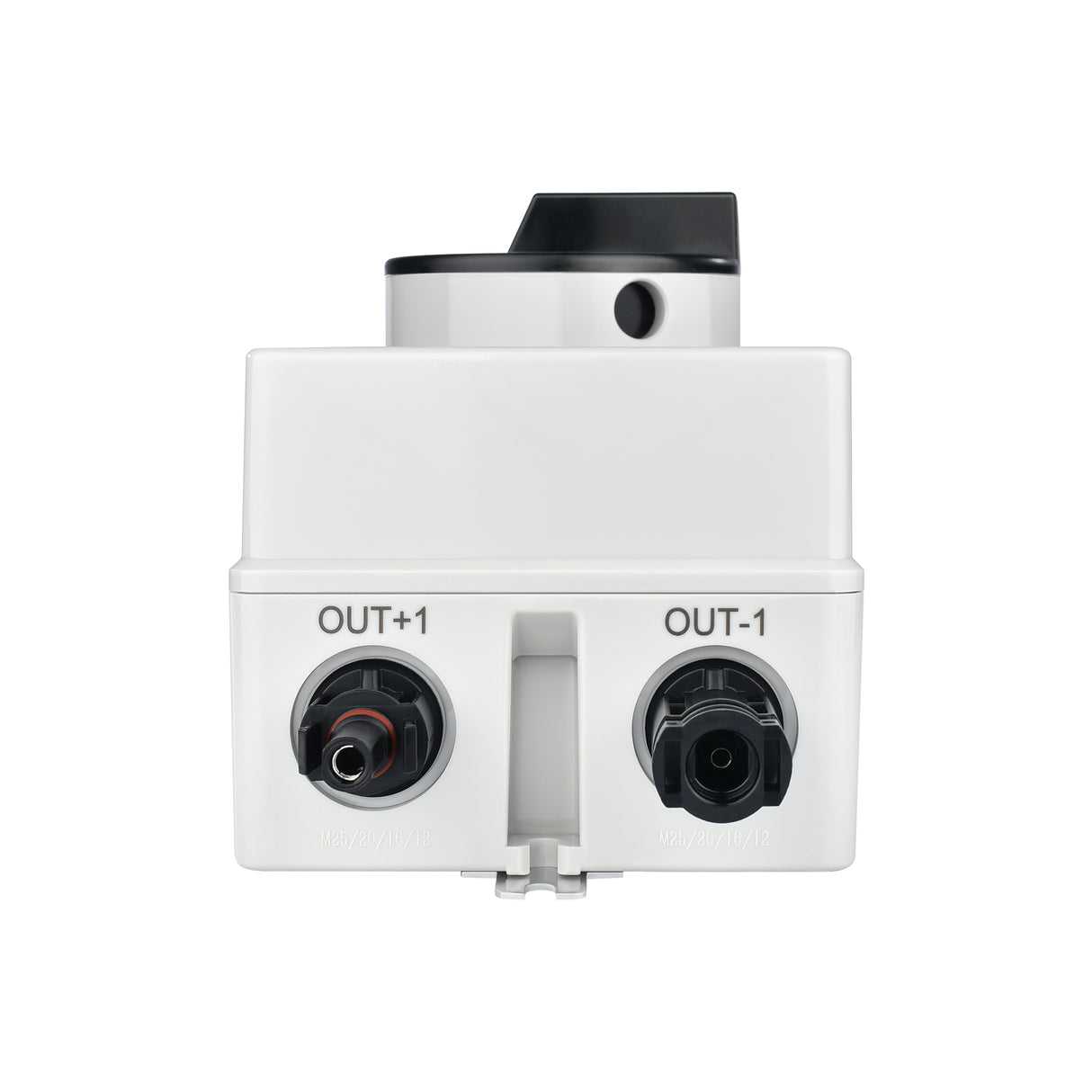

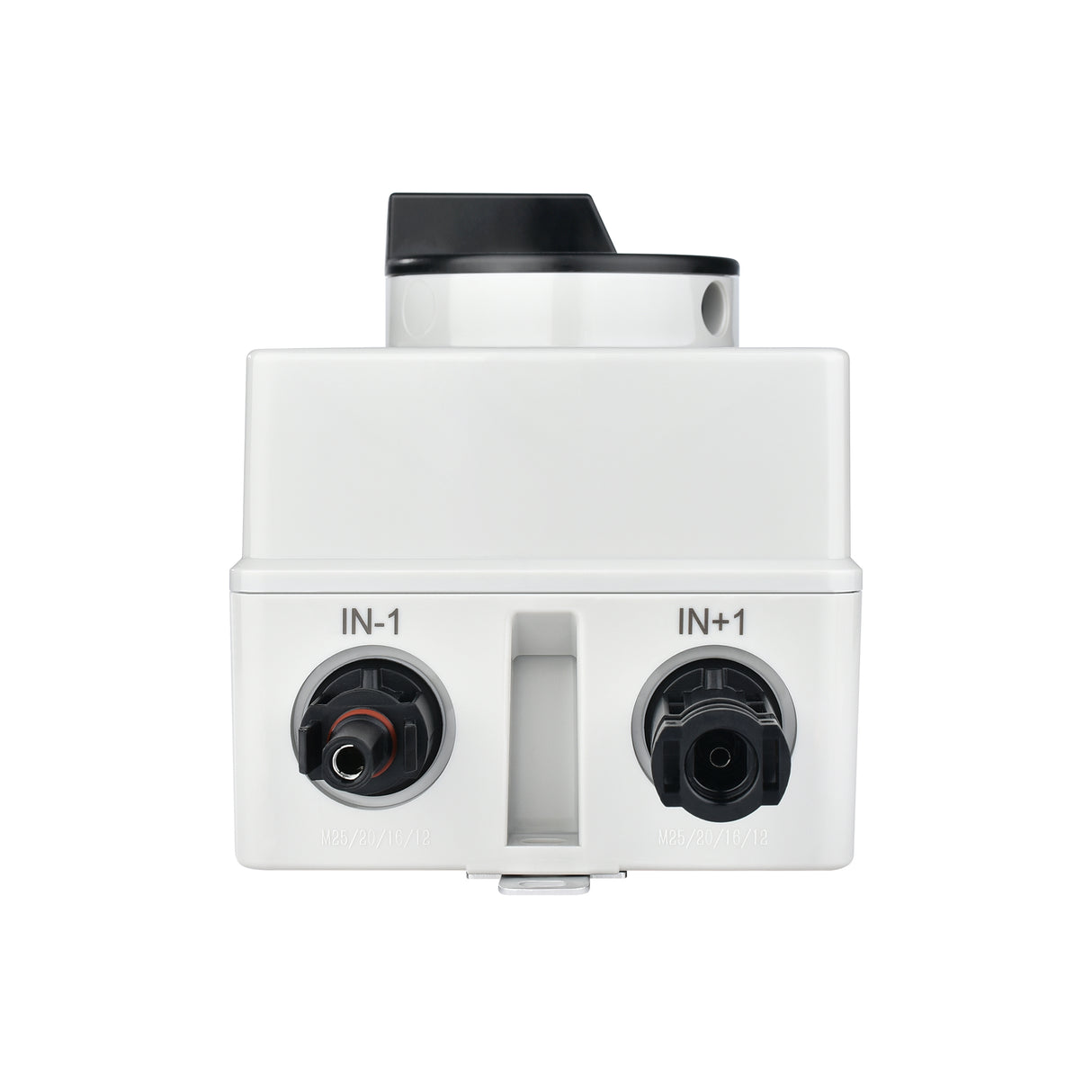

• Output and input connections are built for easy setup and installation.

Specifications

• Max. Rated Current: 55A
• Max. Rated Voltage: 1500VDC
• Poles / Circuit: 2P in series

• Supported PV Strings: 1 PV string
• Impulse Withstand Voltage: 8 kV
• Arc Suppression Time: <3ms
• IP Rating: IP66NW
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Housing Material: Flame-retardant PC (UL94 V-0)
• Dimensions (HxWxD): 9.8x3.8x4.3 in (249.4x97.6x110 mm)
• Weight: 1.3lb (0.57kg)
• Certifications: CE
• Warranty: 3 years
