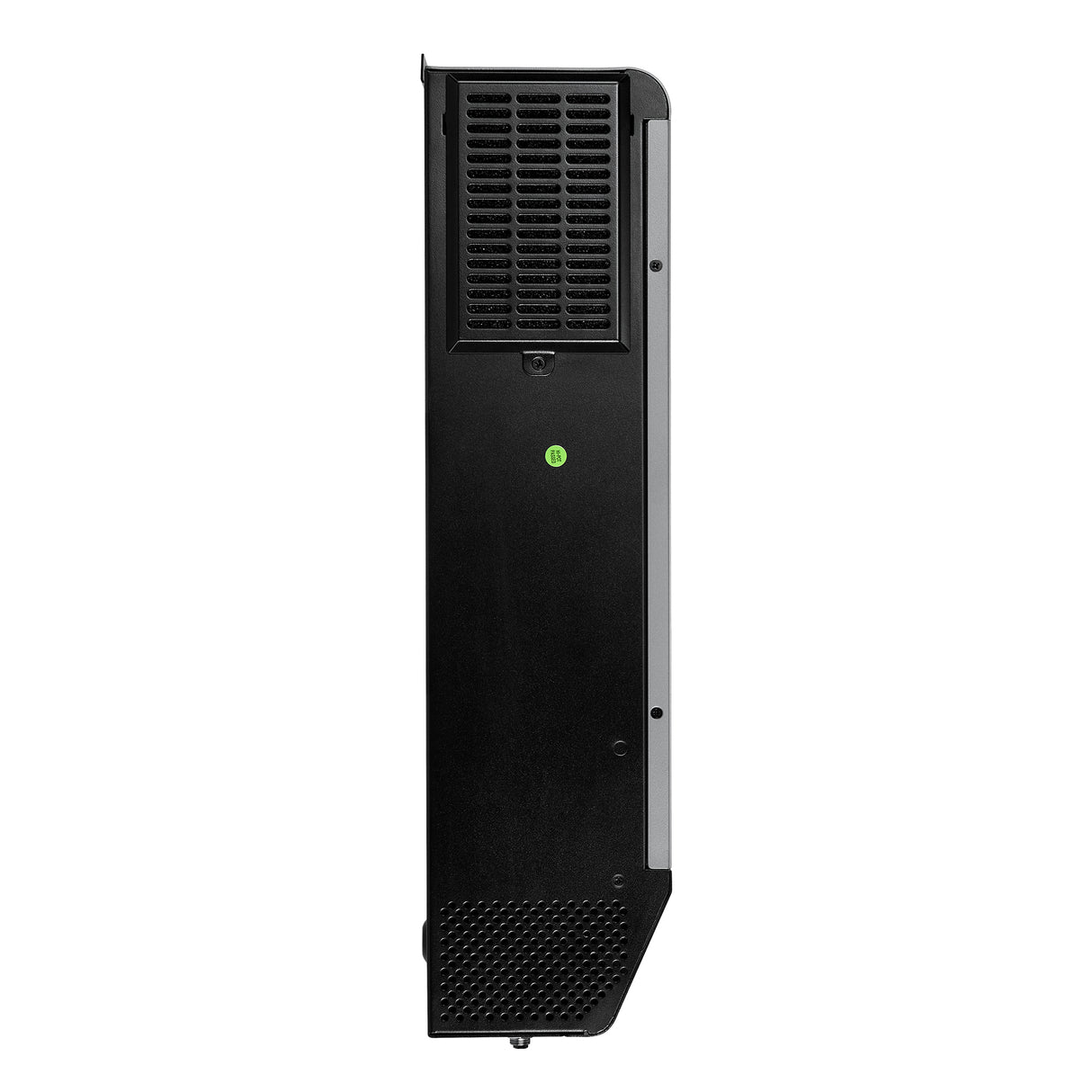

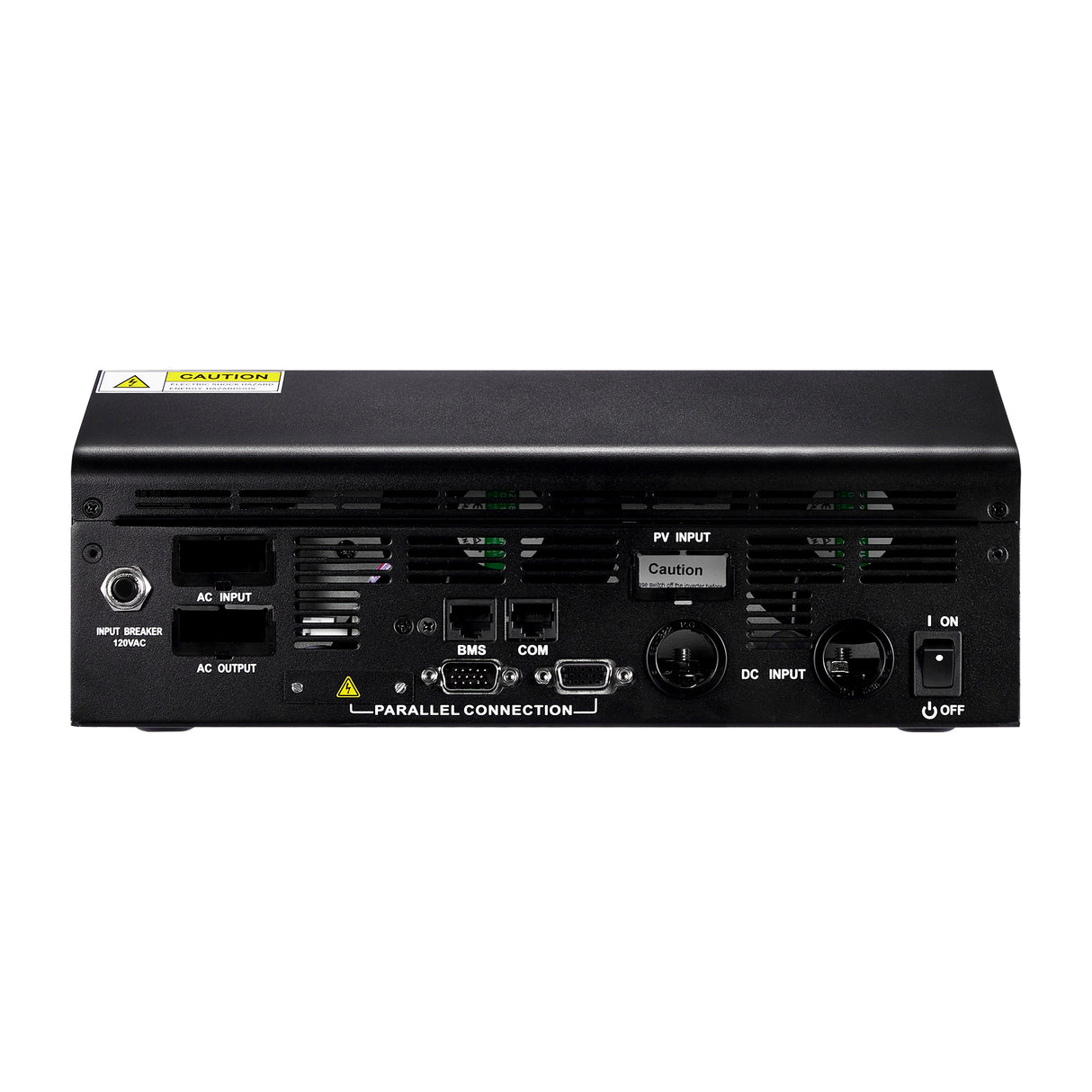

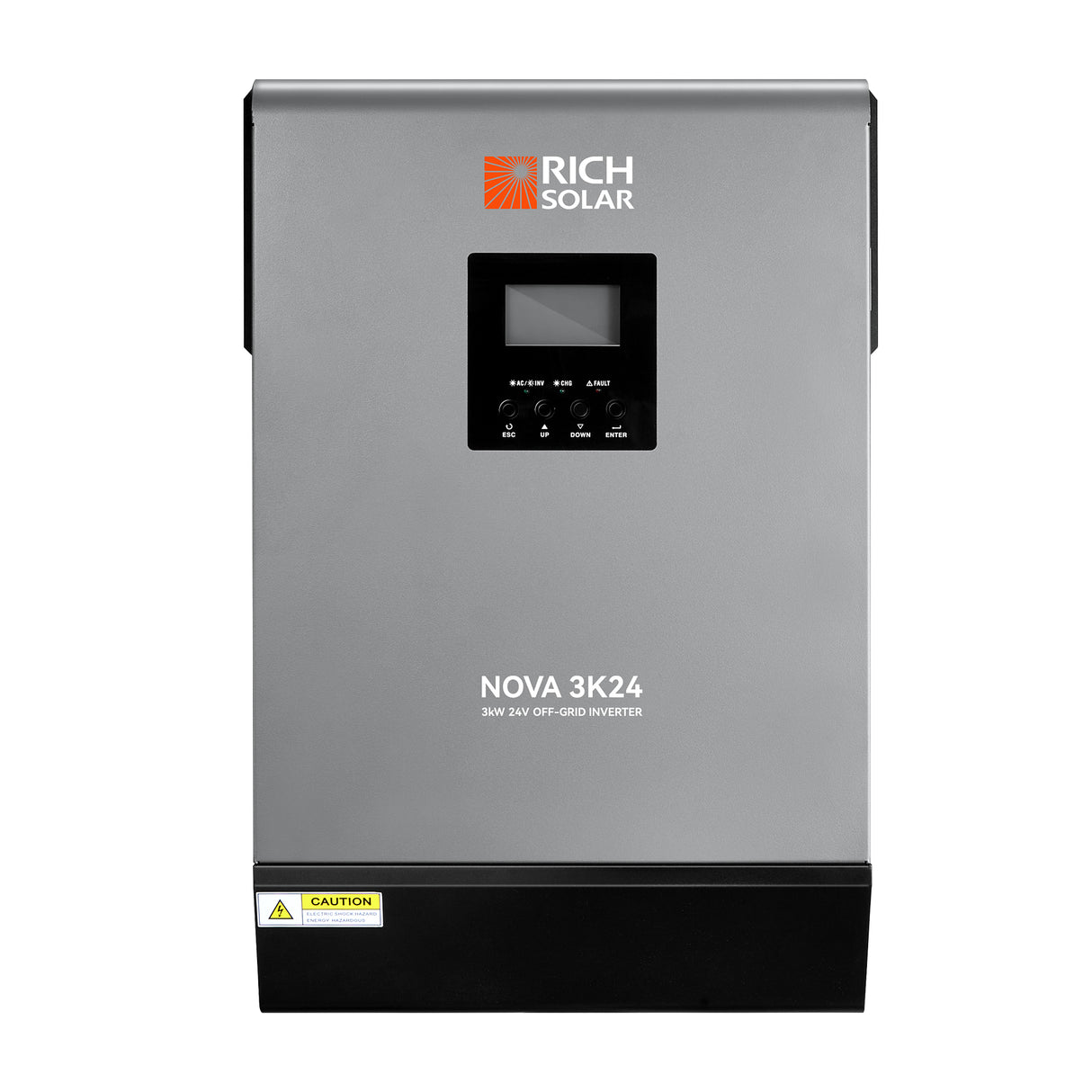

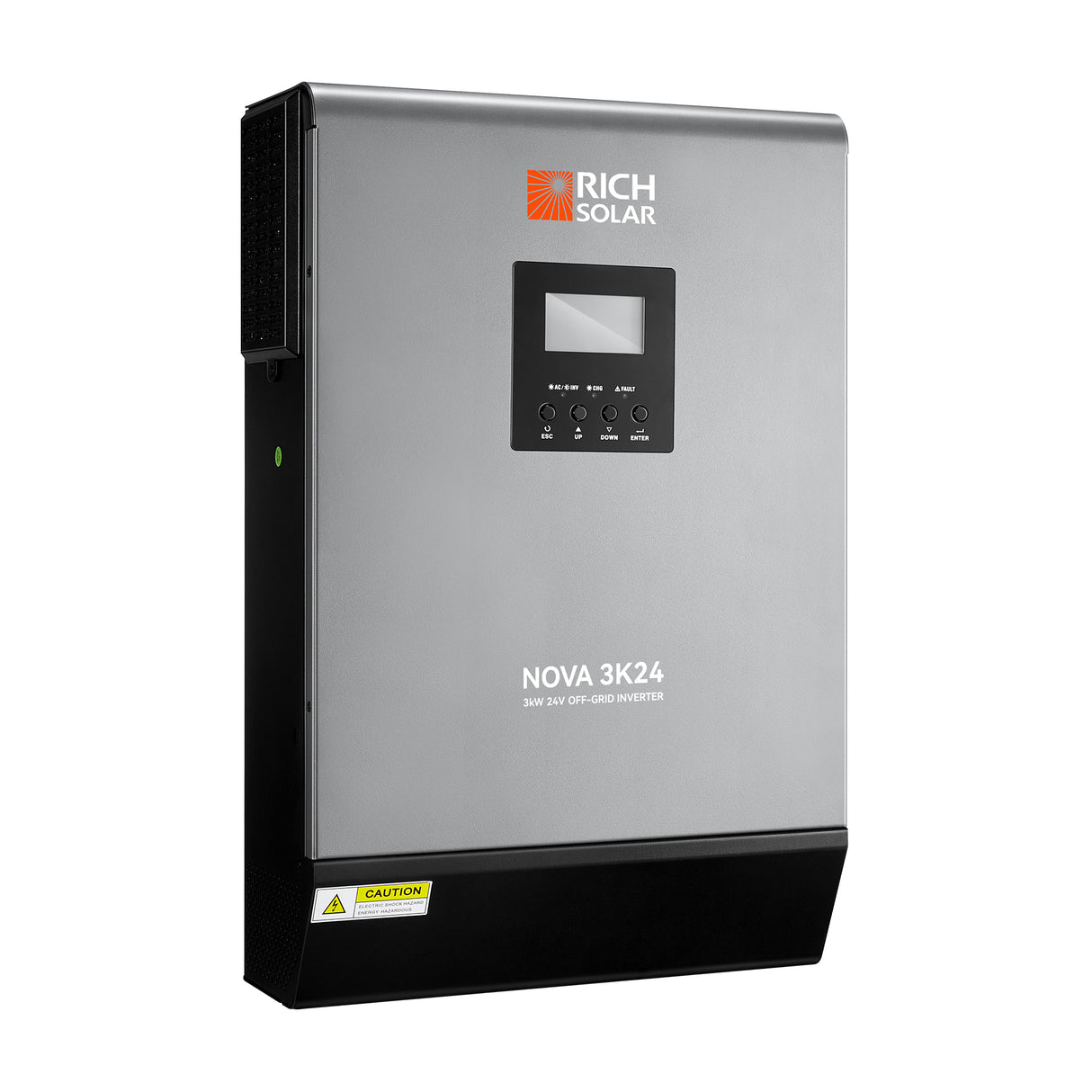

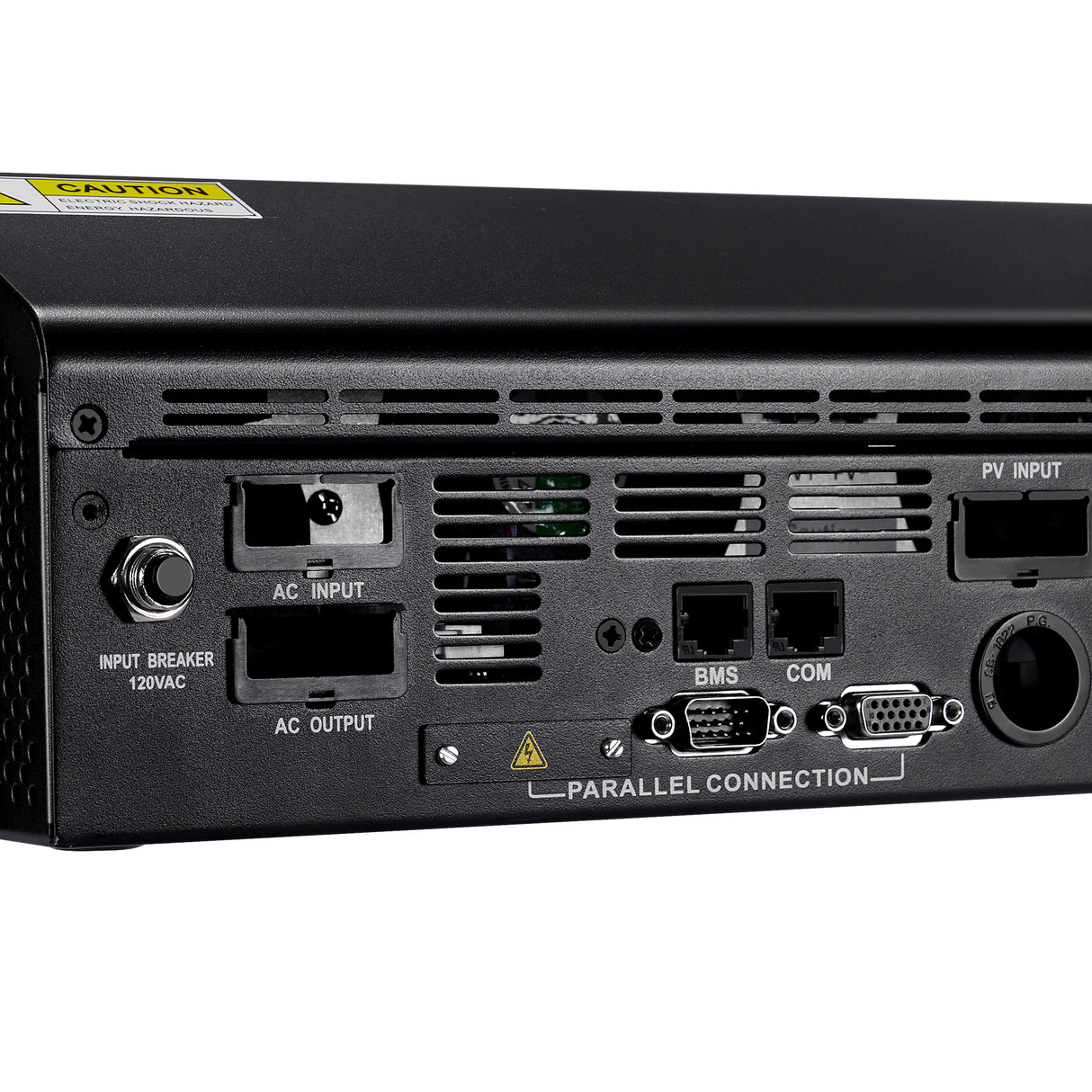

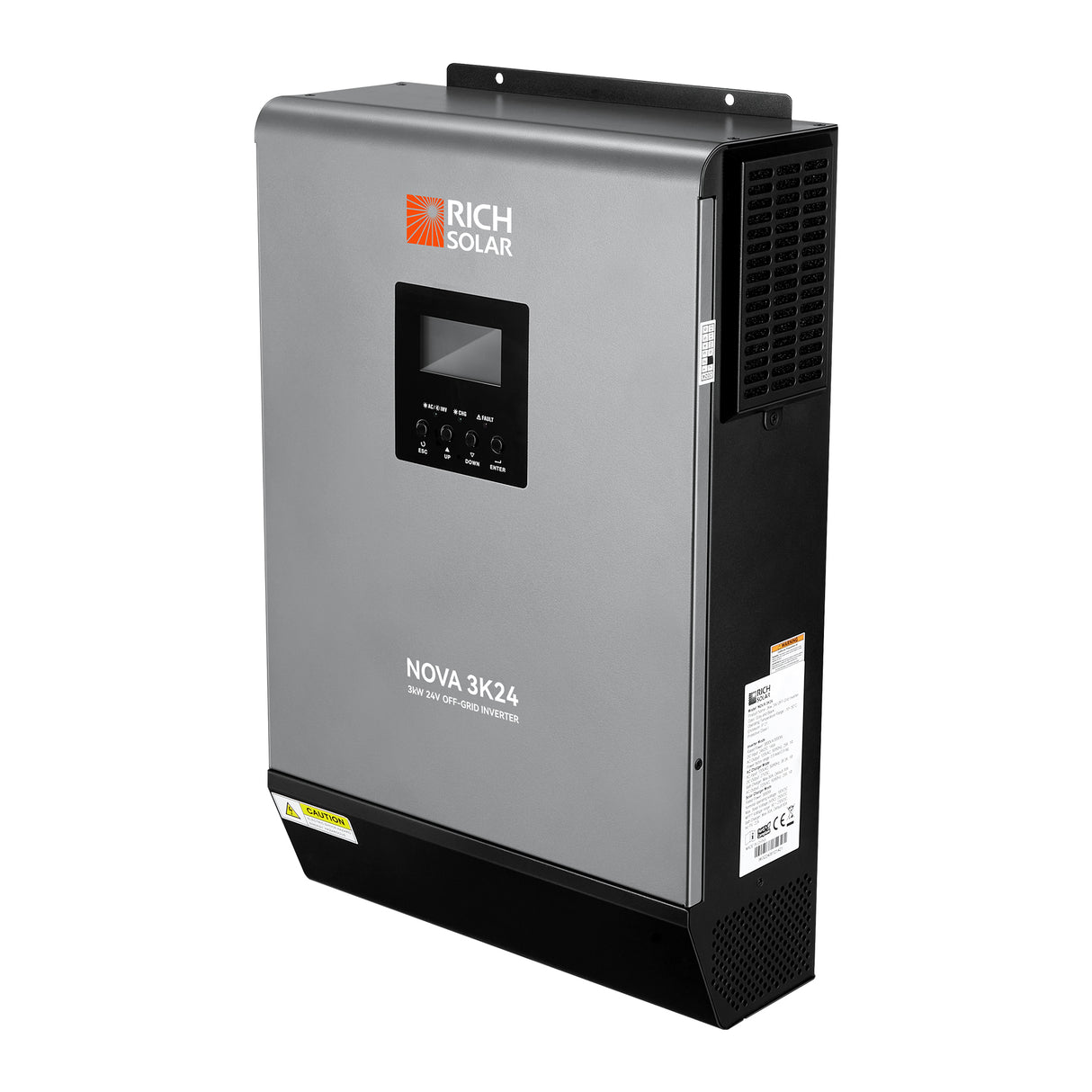

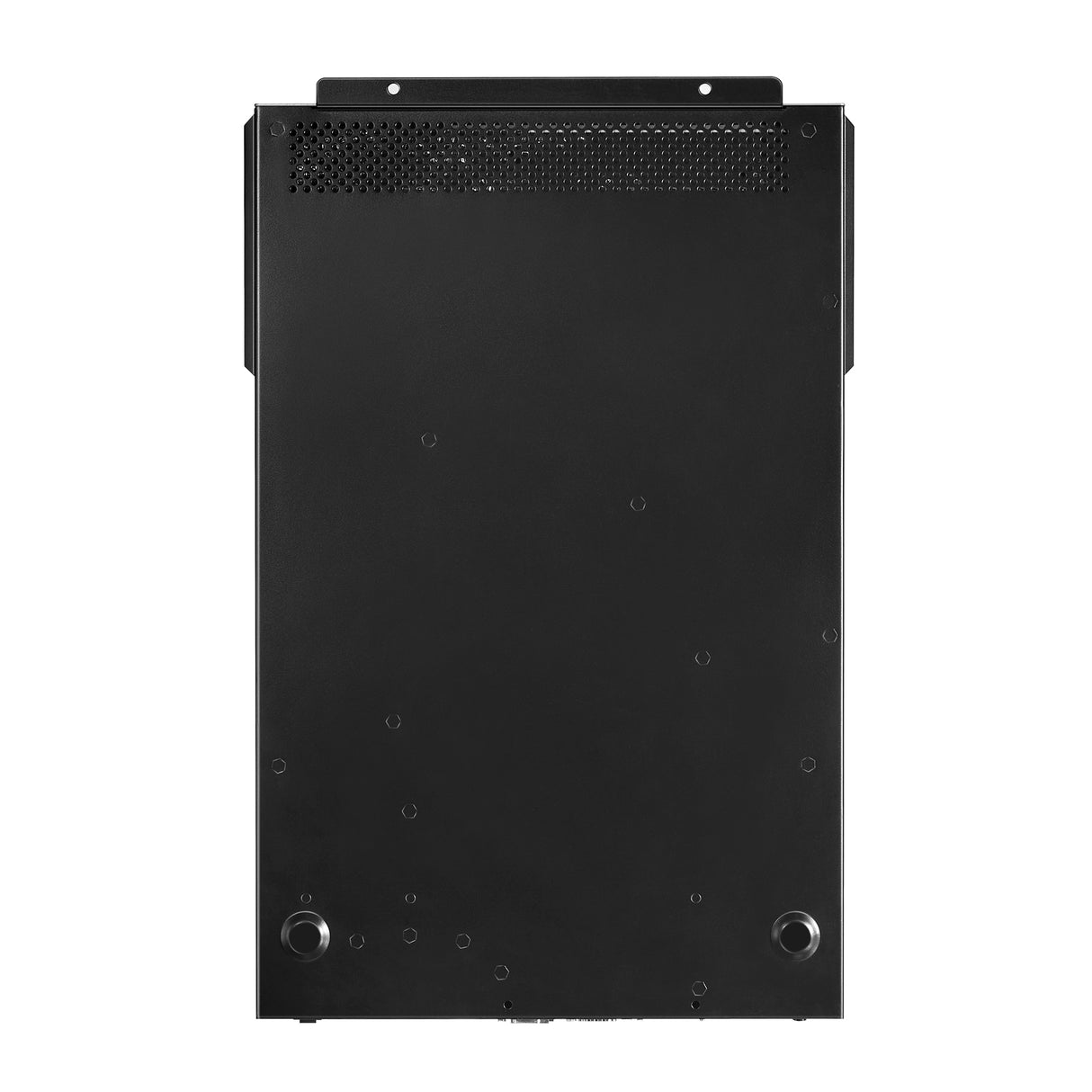

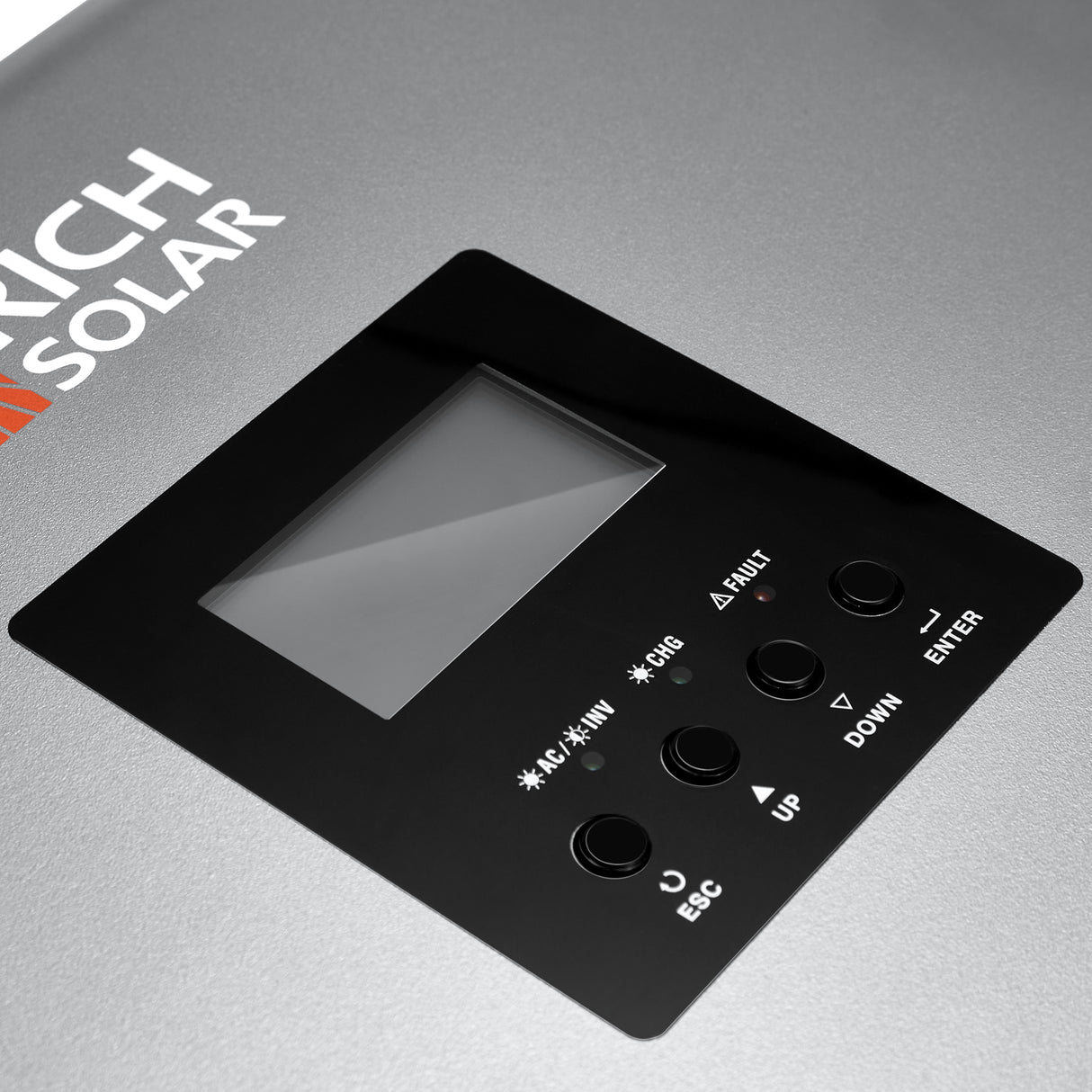

Rich Solar Nova Max 3K 24 Volt Hybrid Inverter (3kW)
Choose options
Rated Power3kW
System Voltage24V
Inverter TypeSolar Hybrid
Efficiency (Peak)91%
WaveformPure Sine Wave
Manufacturer Warranty3 Years
Description
Rich Solar’s NOVA MAX 3K is a 3kW off grid inverter designed to deliver reliable power for RVs, campers, and mobile applications. This 24-volt hybrid inverter features a pure sine wave output, ensuring clean, stable power suitable for sensitive electronics.
Built with an integrated MPPT solar charge controller, the NOVA MAX 3K supports efficient solar input while allowing configurable settings to optimize battery charging and power source priorities. It is a practical choice for users seeking flexible, off-grid power with dependable performance.
Features
- Pure Sine Wave Inverter
- Built-in MPPT solar charge controller
- Configurable input voltage range for home appliances and personal computers via LCD setting
- Configurable battery charging current based on applications via LCD setting
- Configurable AC/Solar Charger priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload / Over temperature / short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
Specifications
Inverter
| Model | NOVA 3K24 |
| Rated Output Power | 3KVA / 3KW |
| Output Voltage Waveform | Pure Sine Wave |
| Output Voltage Regulation | 120 VAC±5% |
| Output Frequency | 60Hz / 50Hz |
| Peak Efficiency | 91% |
| Surge Capacity | 2* rated power for 5s |
| Nominal DC Voltage | 24 VDC |
Solar Input
| Max. PV Array Open Circuit Voltage | 250 VDC |
| PV Array MPPT Voltage Range | 90 VDC~230 VDC |
| Max. Input Current | 18A |
Physical
| Operation Temperature Range | 14°F ~ 104°F |
| Dimension (D*W*H) | 5.6*12.1*18.8in (142.4*307.8*477.6mm) |
| Net Weight | 26.5lb (12kg) |
