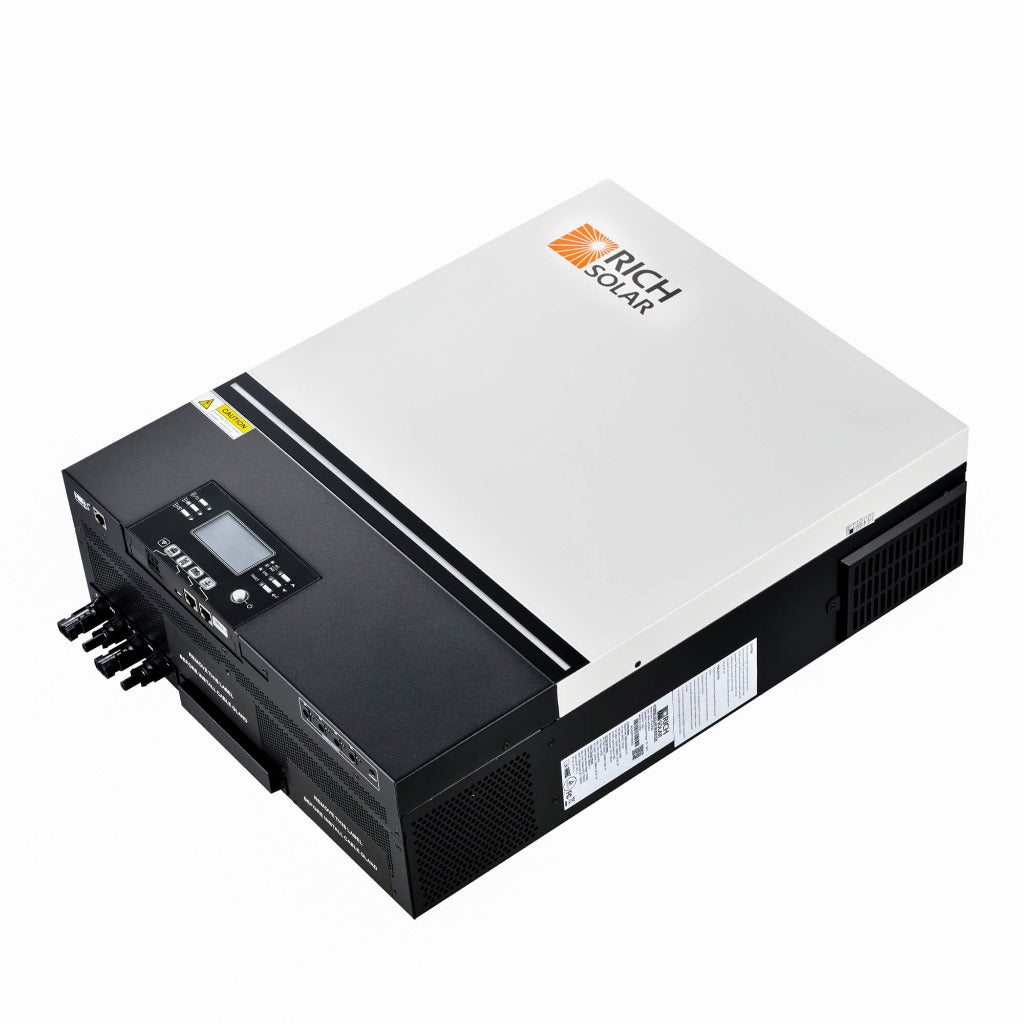

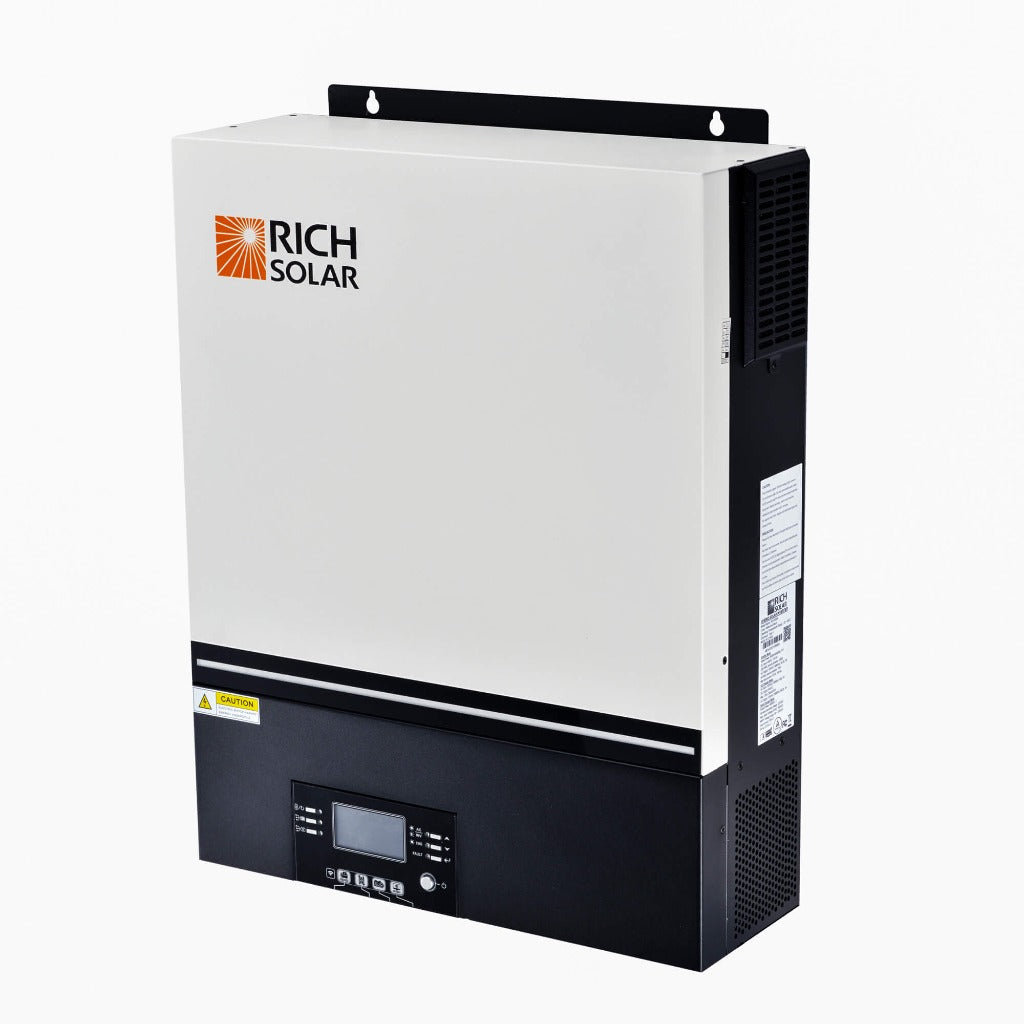

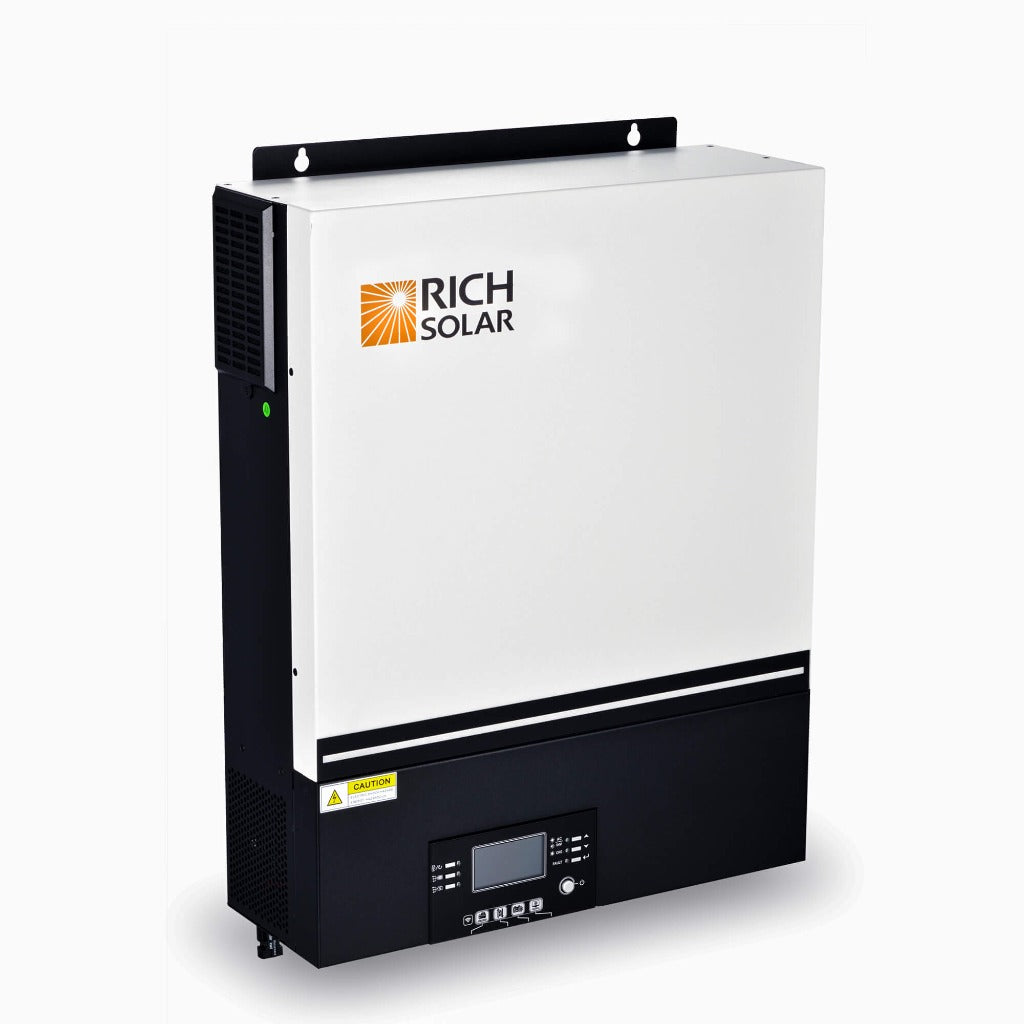

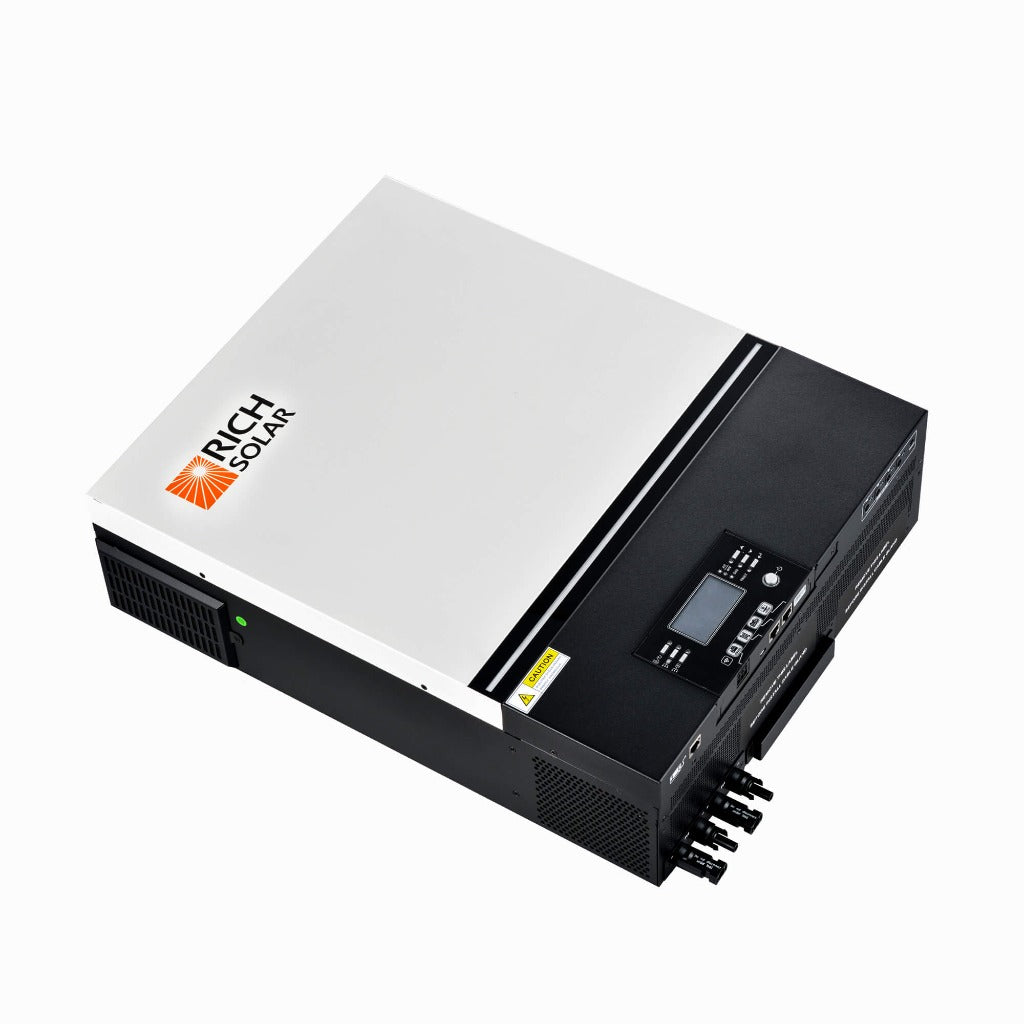

Rich Solar Nova 6548 48 Volt Hybrid Inverter (6.5kW)
Choose options
Rated Power6.5kW
System Voltage48V
Inverter TypeSolar Hybrid
Efficiency (Peak)91%
WaveformPure Sine Wave
Manufacturer Warranty3 Year
Description
The Rich Solar NOVA 6548 is a 6.5kW off grid inverter designed for reliable off-grid and backup power in cabins, campers, tiny homes, and ADUs. It delivers clean pure sine wave output with a 6.5kW continuous rating, supporting stable power for sensitive electronics and household appliances.
This hybrid inverter integrates a high-capacity MPPT solar charger with an 8kW max array input, enabling efficient solar energy harvest while allowing AC charging. It suits users seeking a robust, UL certified solution for consistent off-grid power.
Features
- Pure Sine Wave Inverter
- Configurable color with the built-in RGB LED bar
- Built-in Wi-Fi for mobile monitoring (APP is required)
- Supports USB On-the-Go function
- Built-in anti-dusk kit
- Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
- Configurable input voltage ranges for home appliances and personal computers via LCD control panel
- Configurable AC/PV output usage timer and prioritization
- Configurable AC/Solar charger priority via LCD control panel
- Configurable battery charging current based on applications via LCD control panel
- Compatible with utility mains or generator power
- Auto restart while AC is recovering
- Overload/over temperature/short circuit protection
- Parallel operation with 6 units
- Smart battery charger design for optimized battery performance
- Cold start function
How to Set up 6548 Hybrid Inverter in Split-Phase or Parallel Operation
Specifications
| Model | RS-H6548 |
| Rated Inverter Power | 6500VA/6500W |
| Parallel Capability | Yes, 6 units |
Input
| Voltage | 120 VAC |
| Selectable Voltage Range | 90–140 VAC (For Computers), 80–140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
Output
| AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| Surge Power | 2* rated power for 5 seconds |
| Efficiency (Peak) | 91% |
| Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| Optional DC Voltage | 12 VDC ± 7%, 100W |
Battery
| Battery Voltage | 48 VDC |
| Float Charging Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
Solar Charger & AC Charger
| Solar Charger Type | MPPT |
| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
Physical
| Dimensions (D X W X H) | 5.8 x 17.0 x 21.8 in |
| Net Weight | 40.6 lb |
| Communication Interface | USB/RS232/RS485/WiFi/Dry-contact |
Operating Environment
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -14°F to 104°F |
| Storage Temperature | 5°F to 140°F |
Standard
| Compliance Safety | UL 1741 by TUV |
