Rated Power6.5kW
System Voltage48V
Inverter TypeSolar Hybrid
Efficiency (Peak)91%
WaveformPure Sine Wave
Manufacturer Warranty3 Year

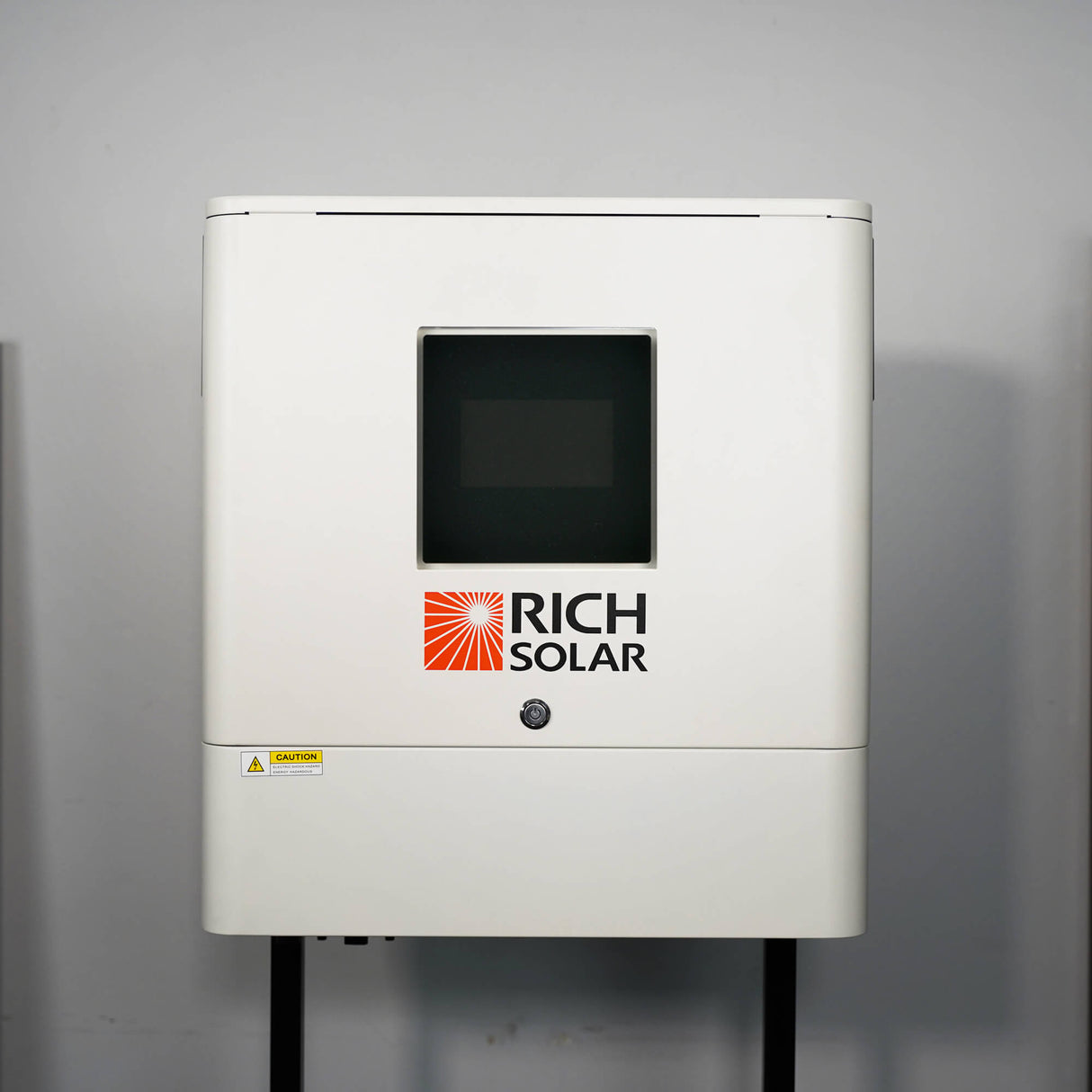

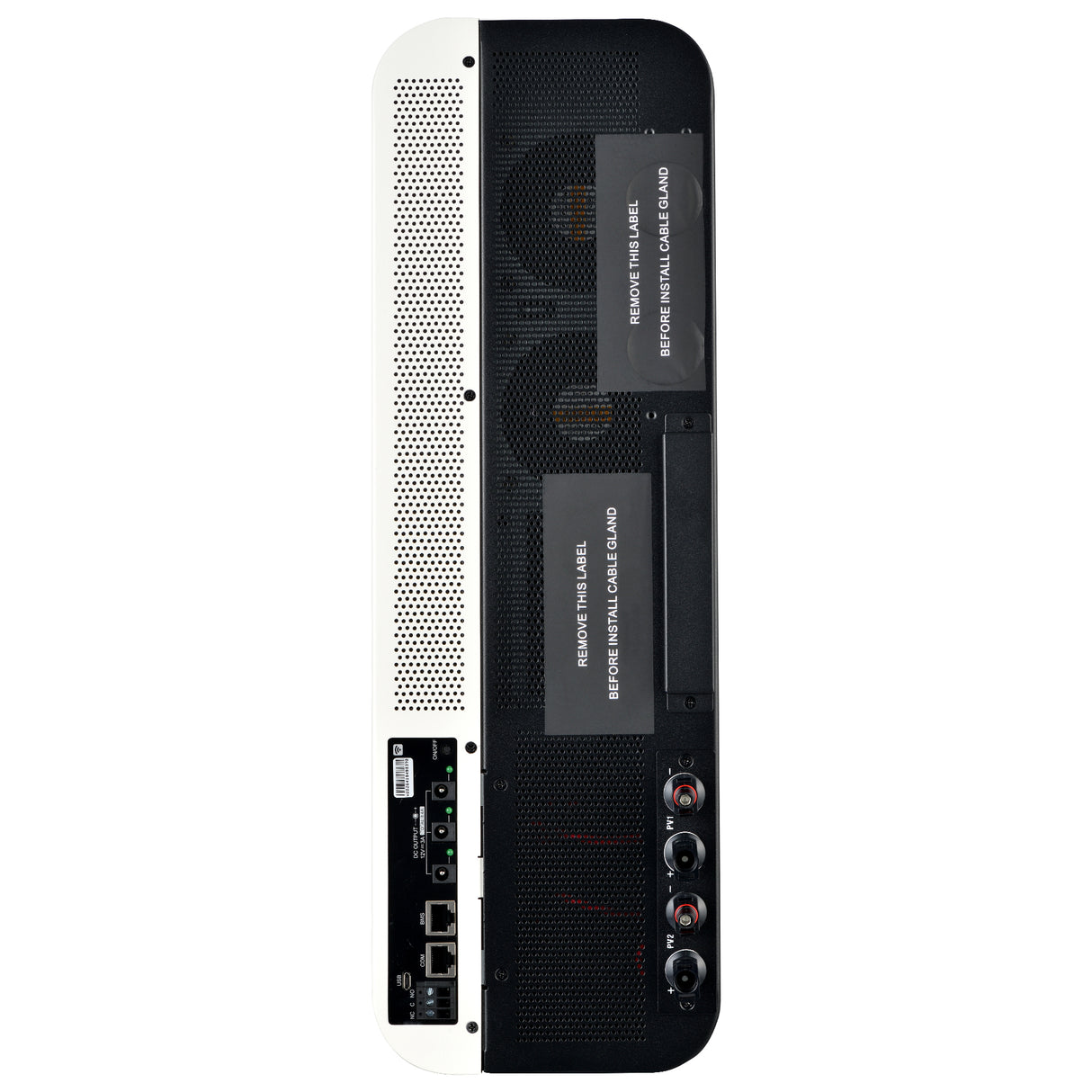

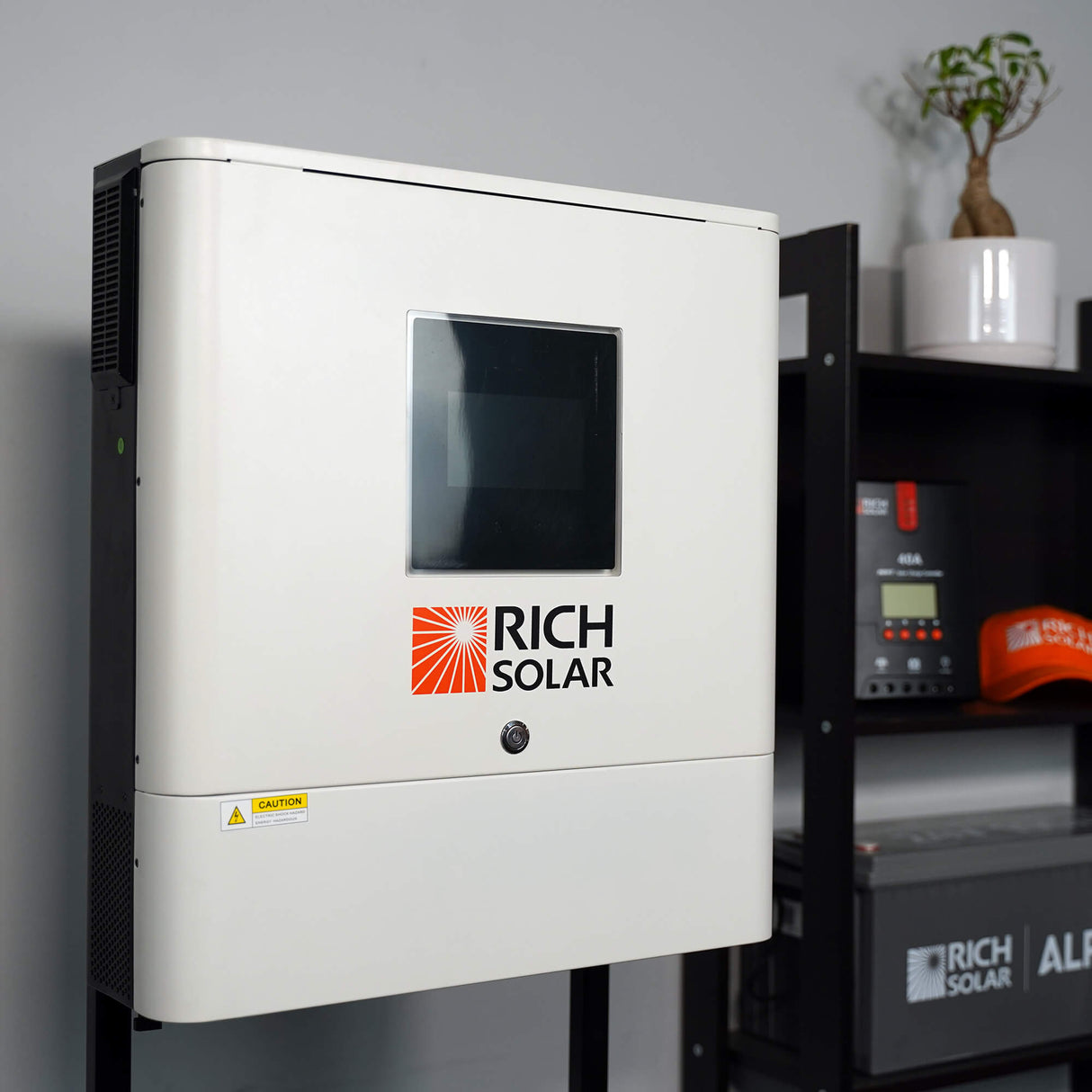

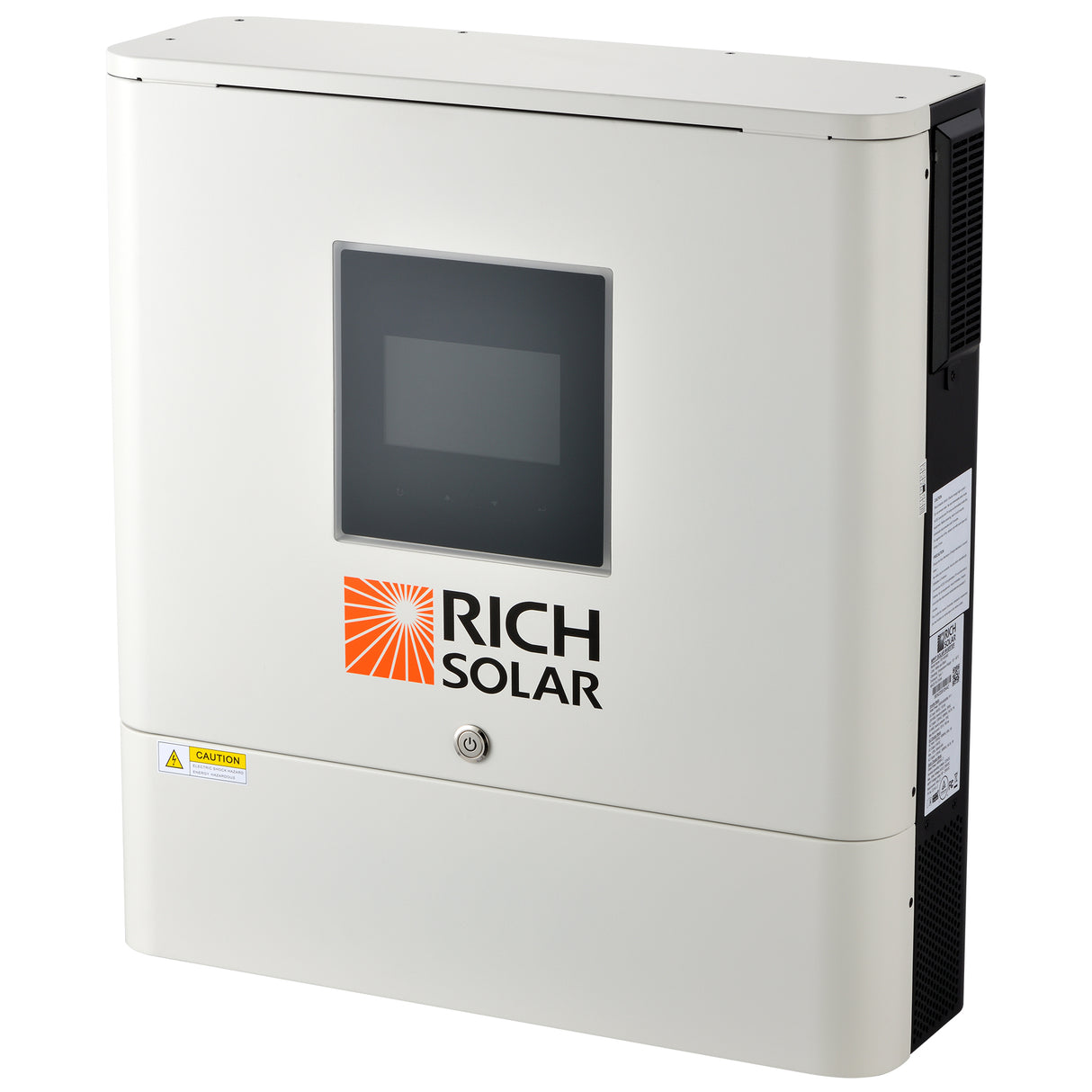

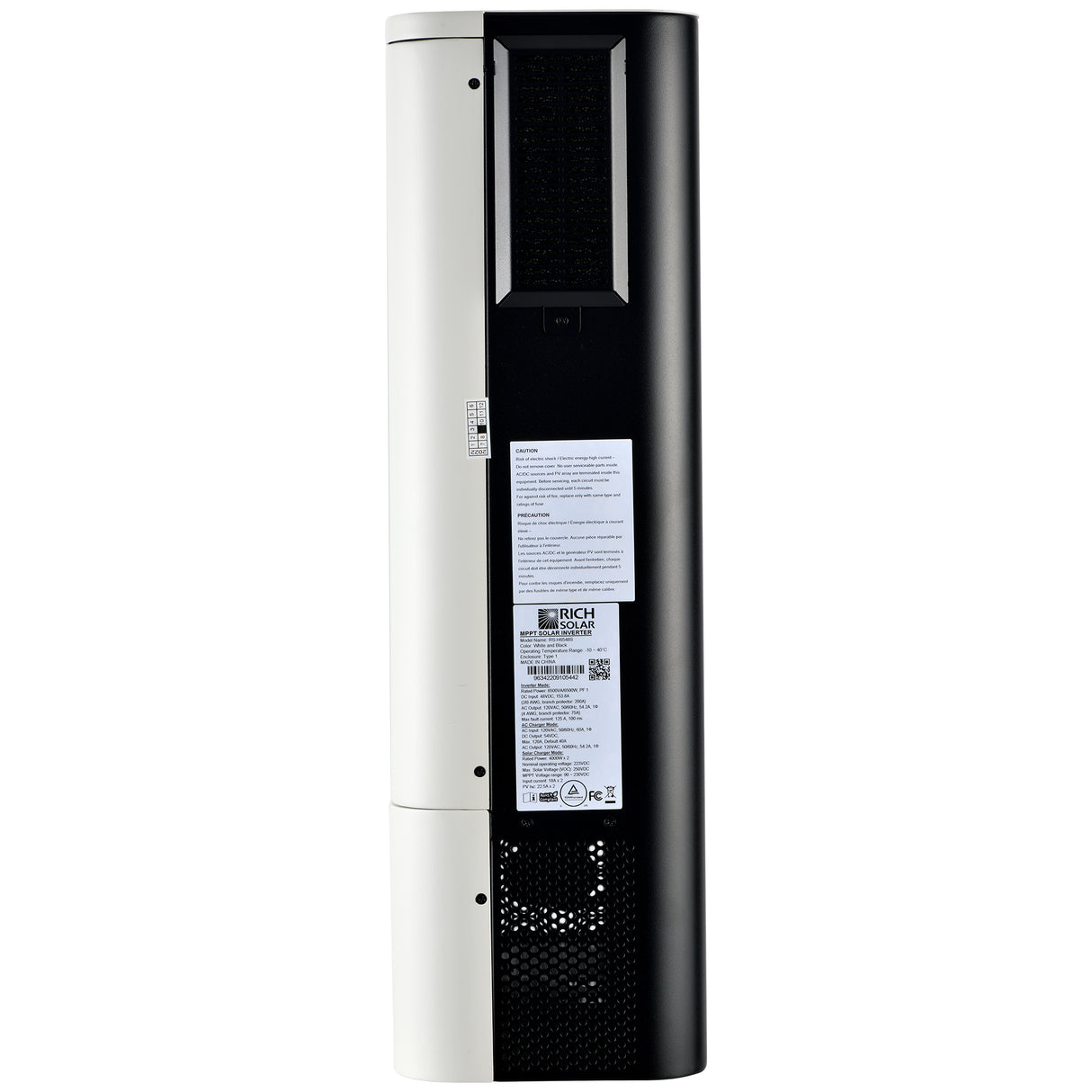

Rich Solar Nova 6500S 48 Volt Hybrid Inverter (6.5kW)
Choose options
Rated Power6.5kW
System Voltage48V
Inverter TypeSolar Hybrid
Efficiency (Peak)91%
WaveformPure Sine Wave
Manufacturer Warranty3 Year
Description
Rich Solar's NOVA 6500S is a 6.5kW off grid inverter designed for reliable power in campers, cabins, tiny homes, and ADUs. It combines a powerful 6.5kW pure sine wave inverter with an advanced MPPT solar charger to optimize off-grid solar performance.
This inverter suits users who need stable, clean power with flexible charging support for both solar and AC sources, enhancing energy independence and system integration in remote or self-reliant settings.
Features
- UL Certification
- Status indication with RGB lights
- Built-in Wi-Fi for mobile monitoring (Android/iOS)
- Supports USB on-the-go function
- Data log events stored in the inverter
- Reserved communication port for BMS (RS485, CAN-BUS or RS232)

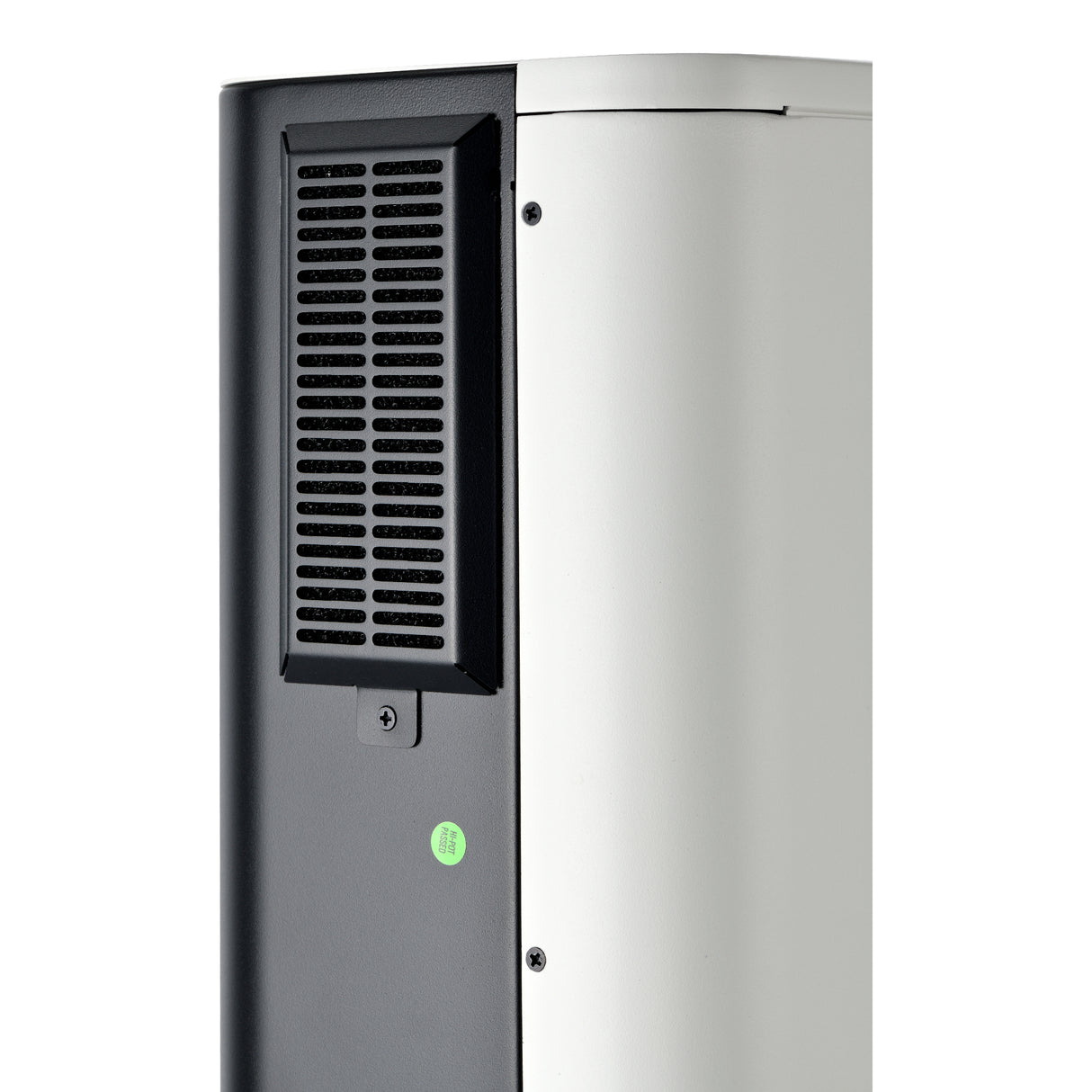

- Replaceable fan design for ease of maintenance
- Battery independent design
- Configurable AC/PV output usage timer and prioritization
- Adjustable high-power charging current
- Adjustable input voltage range for home appliances and personal computers
- Compatible with Utility Mains or generator input
- Built-in anti-dust kit

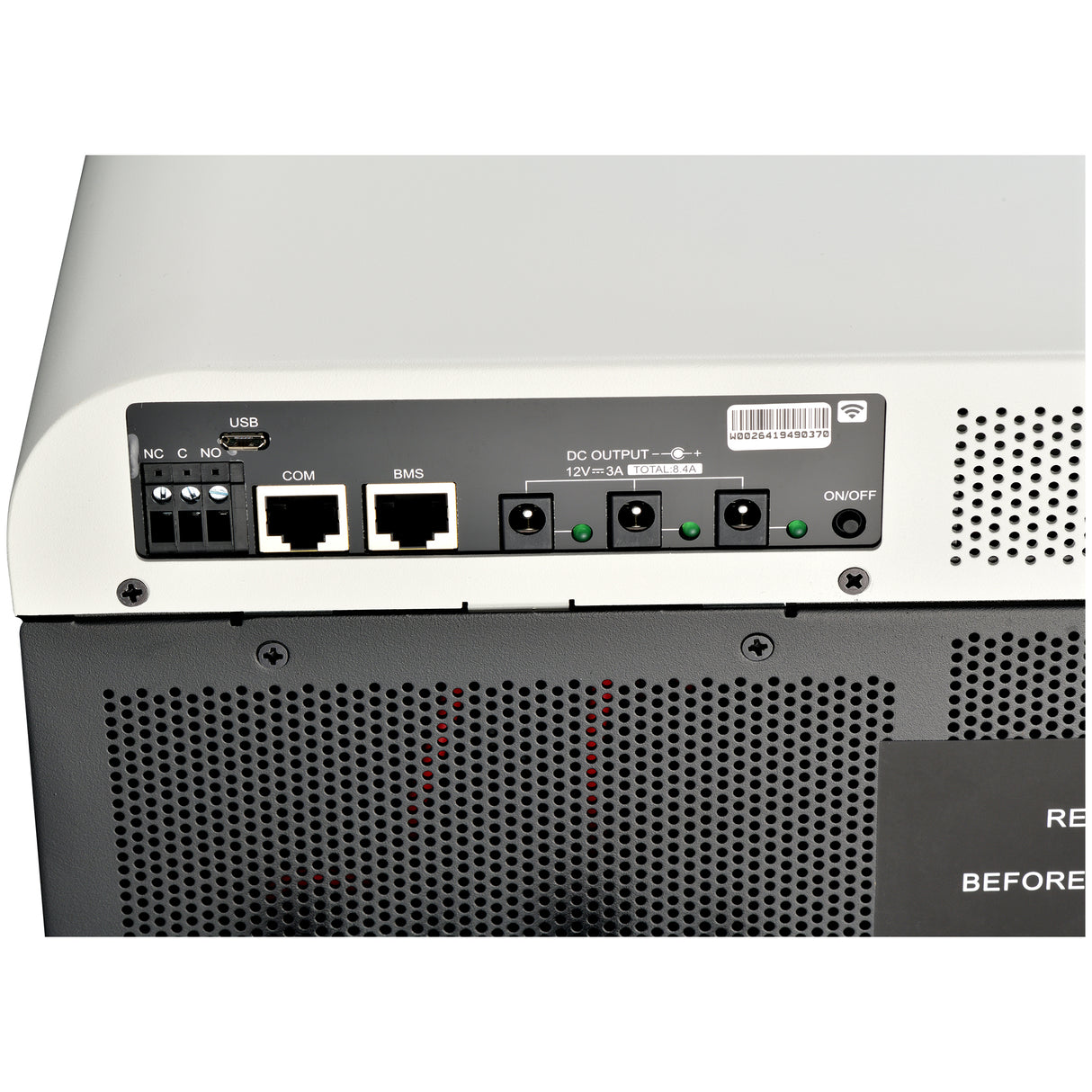

- Optional DC output for DC fan, LED bulb, router, etc.
- 6-unit parallel operation capabilities
Installation Video
Specifications
| Model | RS-H6548S |
| Rated Inverter Power | 6500VA/6500W |
| Parallel Capability | Yes, 6 units |
Input
| Voltage | 120 VAC |
| Selectable Voltage Range | 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances) |
| Frequency Range | 50 Hz/60 Hz (Auto Sensing) |
Output
| AC Voltage Regulation (Batt. Mode) | 120 VAC ± 5% |
| Surge Power | 13000VA |
| Efficiency (Peak) | 91% |
| Transfer Time | 10 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| No Load Power Consumption | <75W |
| DC Voltage | 12 VDC ± 5%, 100W |
Battery
| Battery Voltage | 48 VDC |
| Float Charging Voltage | 54 VDC |
| Overcharge Protection | 66 VDC |
Solar Charger & AC Charger
| Solar Charger Type | MPPT |

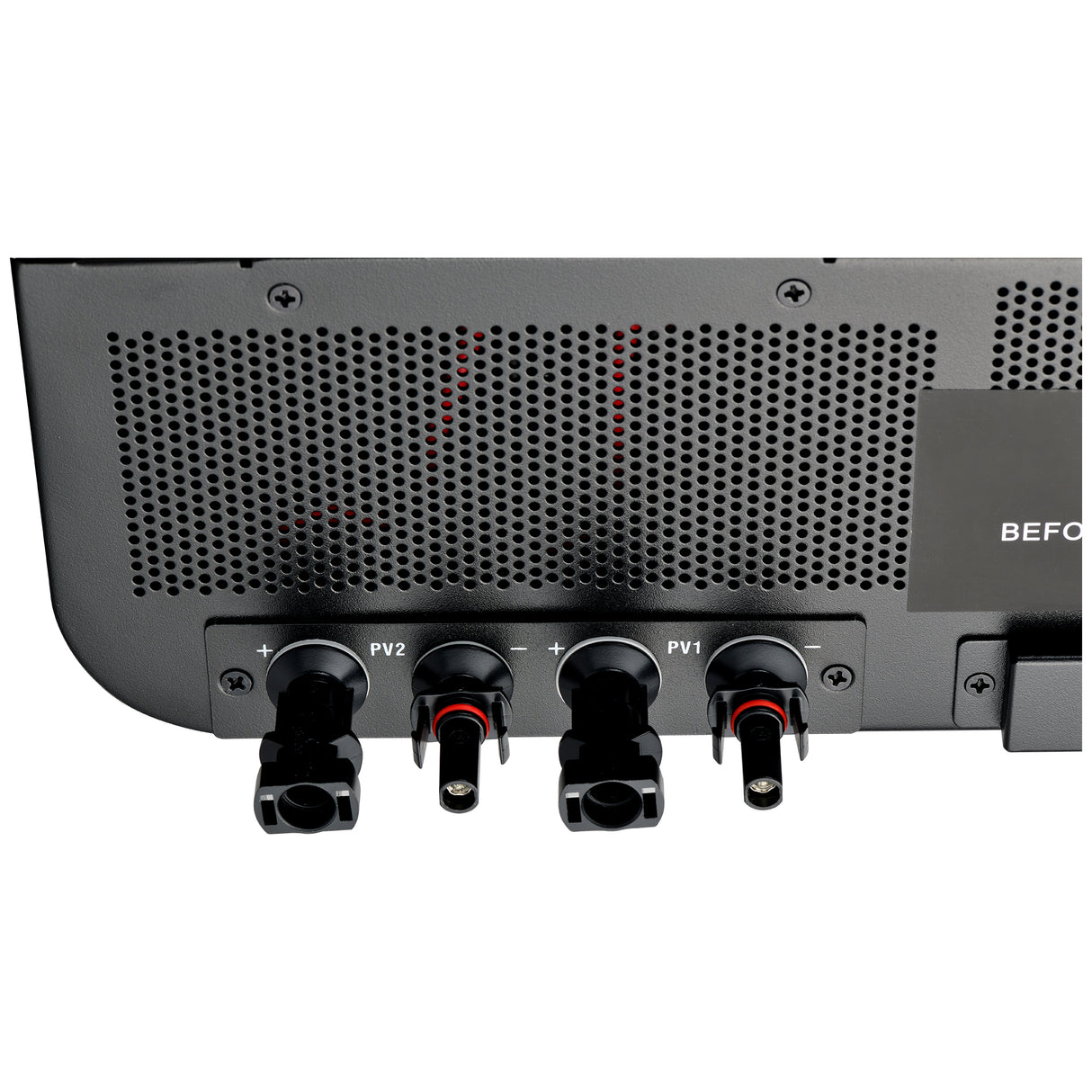

| Maximum PV Array Power | 8000W (4000W x 2) |
| MPPT Operating Voltage Range | 90 ~ 230 VDC |
| Maximum PV Array Open Circuit Voltage | 250 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
Physical
| Dimension (D x W x H) | 6.2 x 19.8 x 20.9 in |
| Net Weight | 44 lb |
| Communication Interface | USB/RS232/RS485/Wi-Fi/Dry-contact |
Operating Environment
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | 14°F to 104°F |
| Storage Temperature | 5°F to 140°F |
Standard
| Compliance Safety | UL |
