Rated Power12kW
System Voltage48V
Inverter TypeSplit Phase Hybrid
Efficiency (Peak)91%
WaveformPure Sine Wave
Manufacturer Warranty3 Years

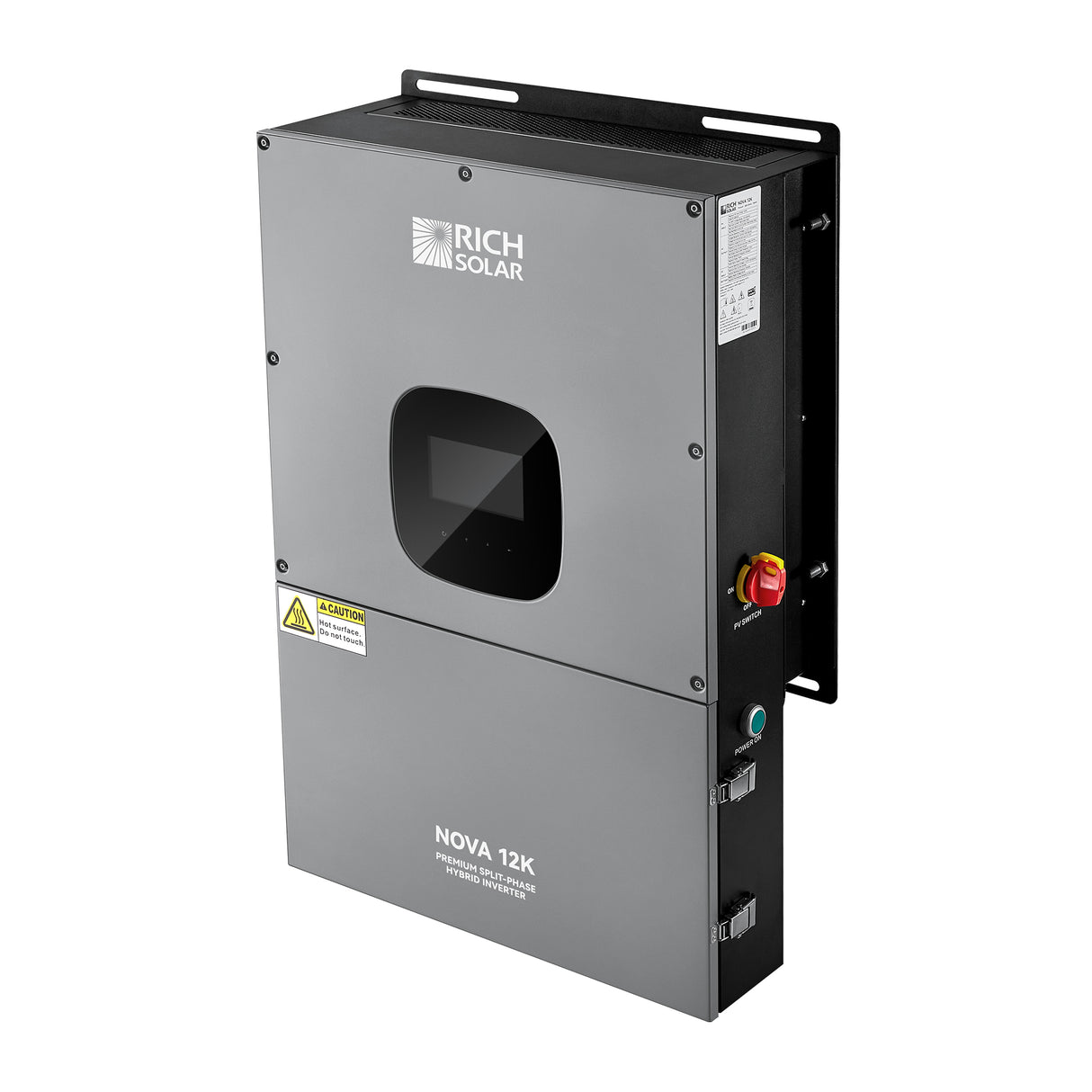

Rich Solar Nova 12K 48 Volt Hybrid Inverter (12kW)
Choose options
Rated Power12kW
System Voltage48V
Inverter TypeSplit Phase Hybrid
Efficiency (Peak)91%
WaveformPure Sine Wave
Manufacturer Warranty3 Years
Description
Rich Solar's NOVA 12K is a versatile 12kW off grid inverter designed for cabins, tiny homes, and residential applications requiring reliable split-phase power. Its hybrid design supports 120/240V output and integrates solar input up to 12,000 watts, facilitating off grid or grid-tied setups.
This inverter suits users who need stable, continuous power with flexible battery voltage support at 48 volts and broad temperature tolerance for varied environments.
Features
Power Flexibility
- 120/240V split-phase or 120/208V split-phase
- Supports generator input & AC coupling
- Scalable to 6 parallel units
Intelligent Control
- Real-time monitoring via WiFi & mobile app
- BMS integration through RS485 interface
- External CT sensor for 100% self-consumption
Advanced Safety

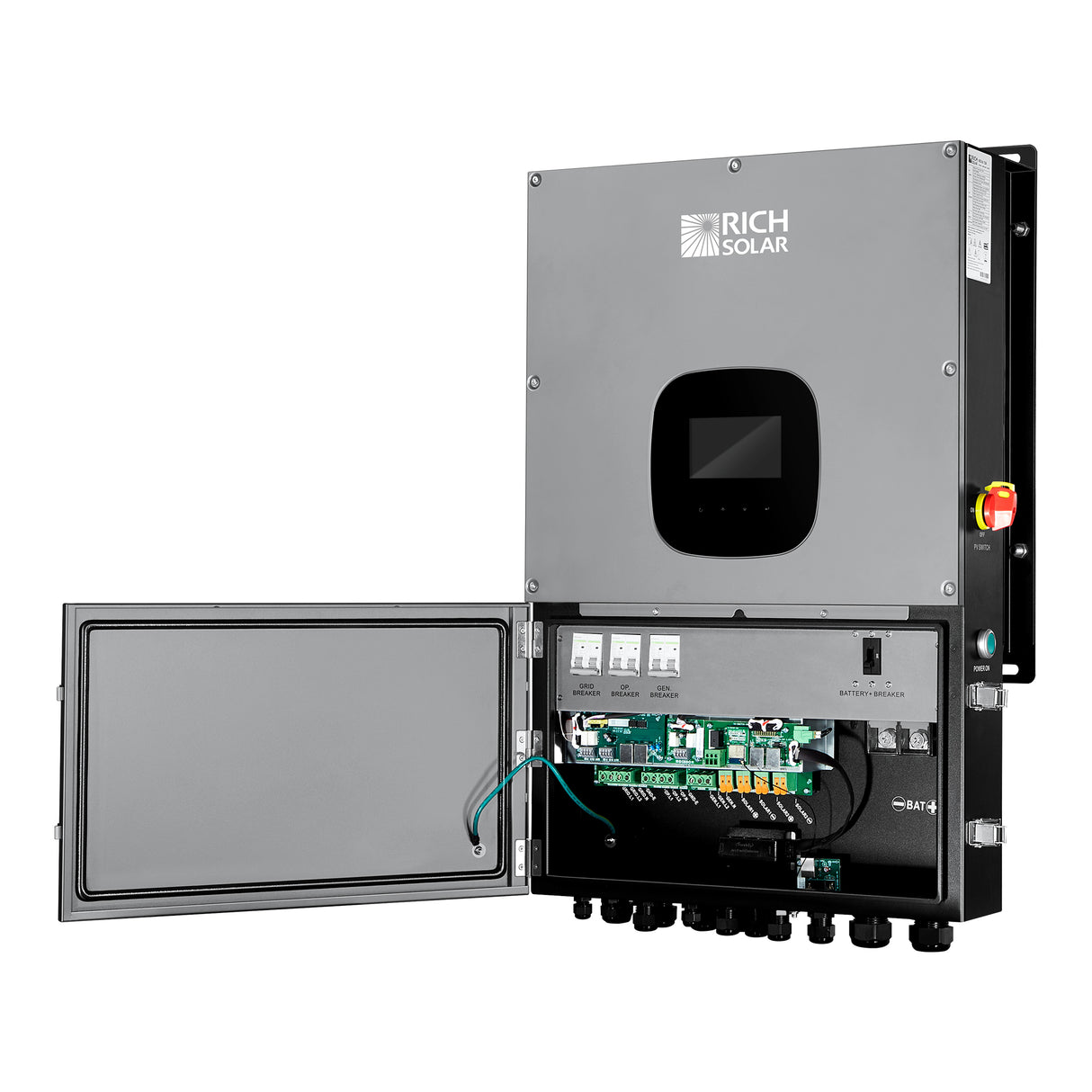

- 300A DC + 60A AC Integrated breaker
- AFD/RSD (NEC 690.11/690.12)
- Ground fault detection (NEC 690.5)
- PV input lightning protection
Premium Performance
- 91% DC-to-AC efficiency | Pure sine wave
- Multi-mode operation: Grid-tie/Off-grid/Hybrid
Specifications
Input
| Maximum PV input power | 12000W |
| Voltage range | 120–550VDC |
| Startup voltage | 125V |
| Mppt | Dual inputs — 2 × 18A (30A peak) |
Output
| Rated output power | 10000VA/10000W |
| Nominal output voltage | 120VAC(P-N)/208VAC(P-P)/240VAC(P-P) |
| Output voltage range | 105.5–132VAC per phase |
| Nominal output current | 41.7A per phase |
Battery
| Battery DC voltage range | 40–62VDC/48VDC |
| Maximum solar charging current | 200A |
| Maximum AC charging current | 200A |
| Maximum charging current | 200A |
Operating Environment
| Operating temperature range | -13°F to 140°F(>113°F derating) |
| Protection degree | IP65 |
| Communication port | RS232, RS485, Wi-Fi, USB |
Physical

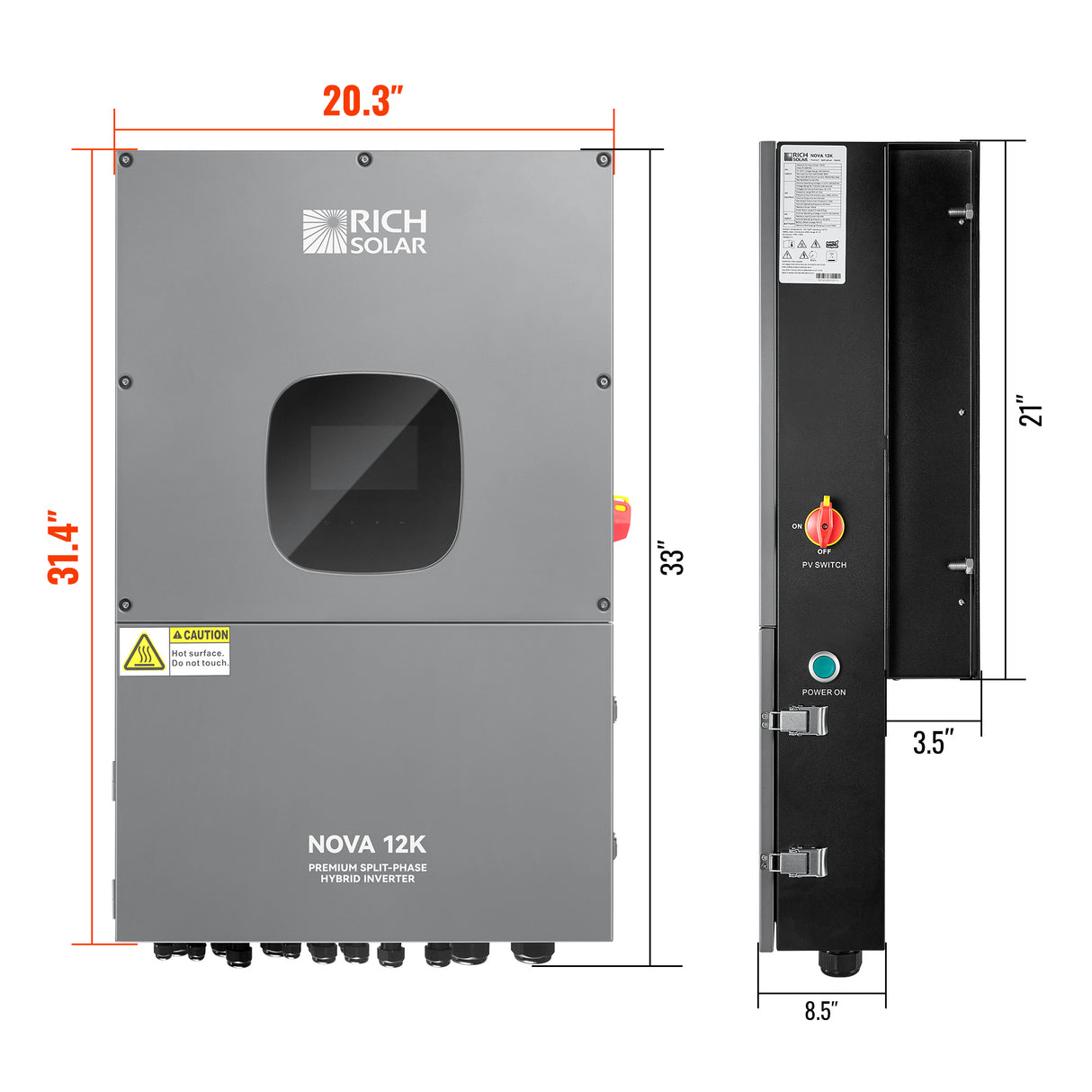

| Dimension (LxWxH) | 8.5x20.3x28.1in/215x516x714mm |
| Net weight | 112lb/51kg |
