Rich Solar MEGA 580 - 580W 24V Bifacial Solar Panels (8)

Description

Rich Solar MEGA 580 BIFACIAL is a premium 580W solar panel designed for both grid-tie and off-grid applications where efficiency and durability matter. Its high 22.5% module efficiency enhances power output from limited space, making it well suited for residential and commercial solar setups.

This bifacial panel is built to perform reliably in diverse conditions, supporting agriculture and outdoor systems with robust construction and advanced TOPCON technology. It enables long-term energy independence with a 25-year output warranty backing sustained performance.

Features

• 16 busbar solar cell configuration
• TOPCON technology
• Lightweight anodized aluminum frame
• High transmission, AR (anti-reflective) coated tempered glass
• Plug-and-play junction box
• Industry-standard quick-connect cables (Solar Connectors) work in series or parallel
• Excellent low-light performance on cloudy days, mornings, and evenings
• Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
• Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)

Specifications

• Maximum Power(PMAX): 580 W
• Maximum Power Voltage(VMP): 42.7 V
• Maximum Power Current(IMP): 13.6 A
• Open Circuit Voltage(VOC): 51.4 V
• Short Circuit Current(ISC): 14.3 A
• Maximum System Voltage: 1500 VDC
• Module Efficiency η m (%): 22.5%
• Max Series Fuse Rating: 30 A
• Weight: 68.8 lb (31.2 kg)

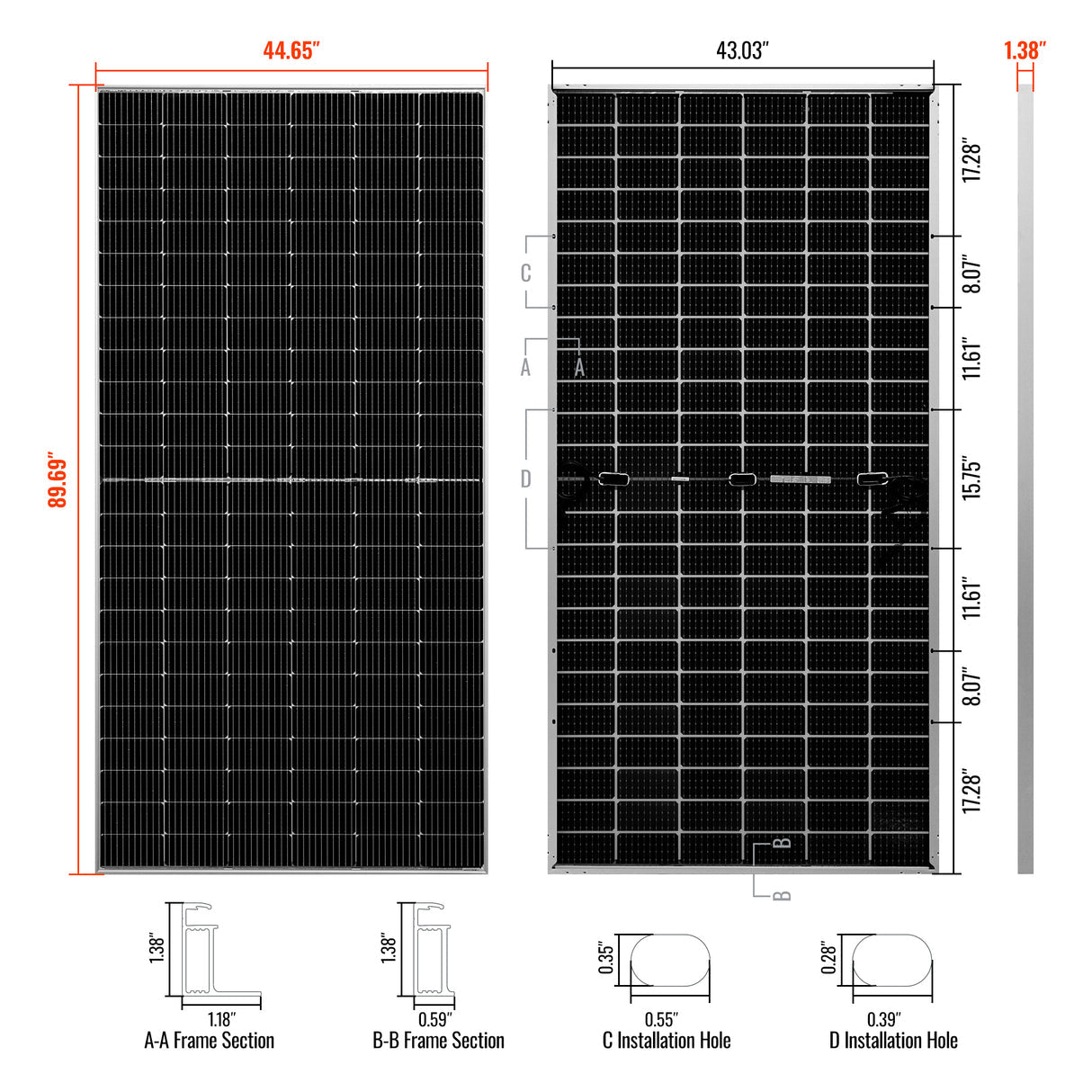

• Dimensions: 89.7 × 44.7 × 1.2 in

Downloads

• Download Manual (PDF)
