Description
Rich Solar’s Energy Storage Connector is a power-accessory designed for secure, high-current DC connections in off-grid and backup systems. It features a snap-lock, tool-free installation and supports up to 120A at 1500V DC to ensure reliable performance.
Built for installers and system integrators needing a rugged, weather-resistant connector, it maintains connection integrity with IP67 protection and a flame-retardant housing for demanding environments.
Features
- 1500V DC / 120A rated: Supports high-power DC applications safely.
- Dual-size contacts: Different positive and negative pin sizes prevent reverse connection.
- IP67 protection when mated: Ideal for harsh outdoor environments.
- Wide temperature range: Reliable operation from -40°F to 257°F.
- Flame-retardant housing: Strong, impact-resistant, and fire-safe design.
- Low-resistance copper contacts: Efficient, durable, and oxidation-resistant performance.
- Snap-lock, tool-free installation: Fast, simple, and convenient setup.
- Certified UL, CE, RoHS: Ensures international safety and reliability standards.
Specifications
Model: RS-8001 / RS-8002
Electrical:
- Rated Voltage: 1500 V DC
- Rated Current: 120 A
- Contact Resistance: ≤ 0.5 mΩ
- Insulation Resistance: ≥ 5000 MΩ (Dry)
- Dielectric Withstand Voltage: 6800 V/min

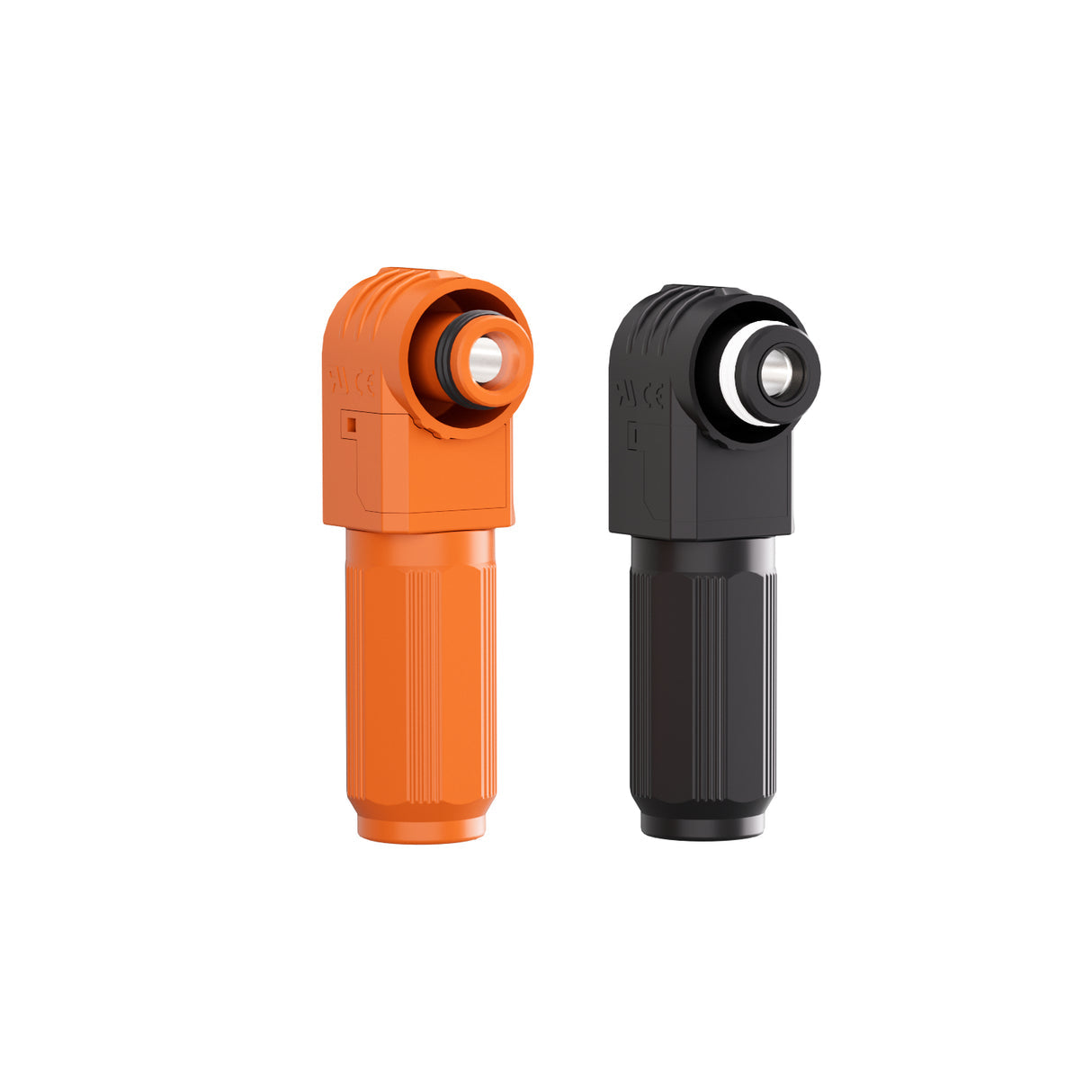

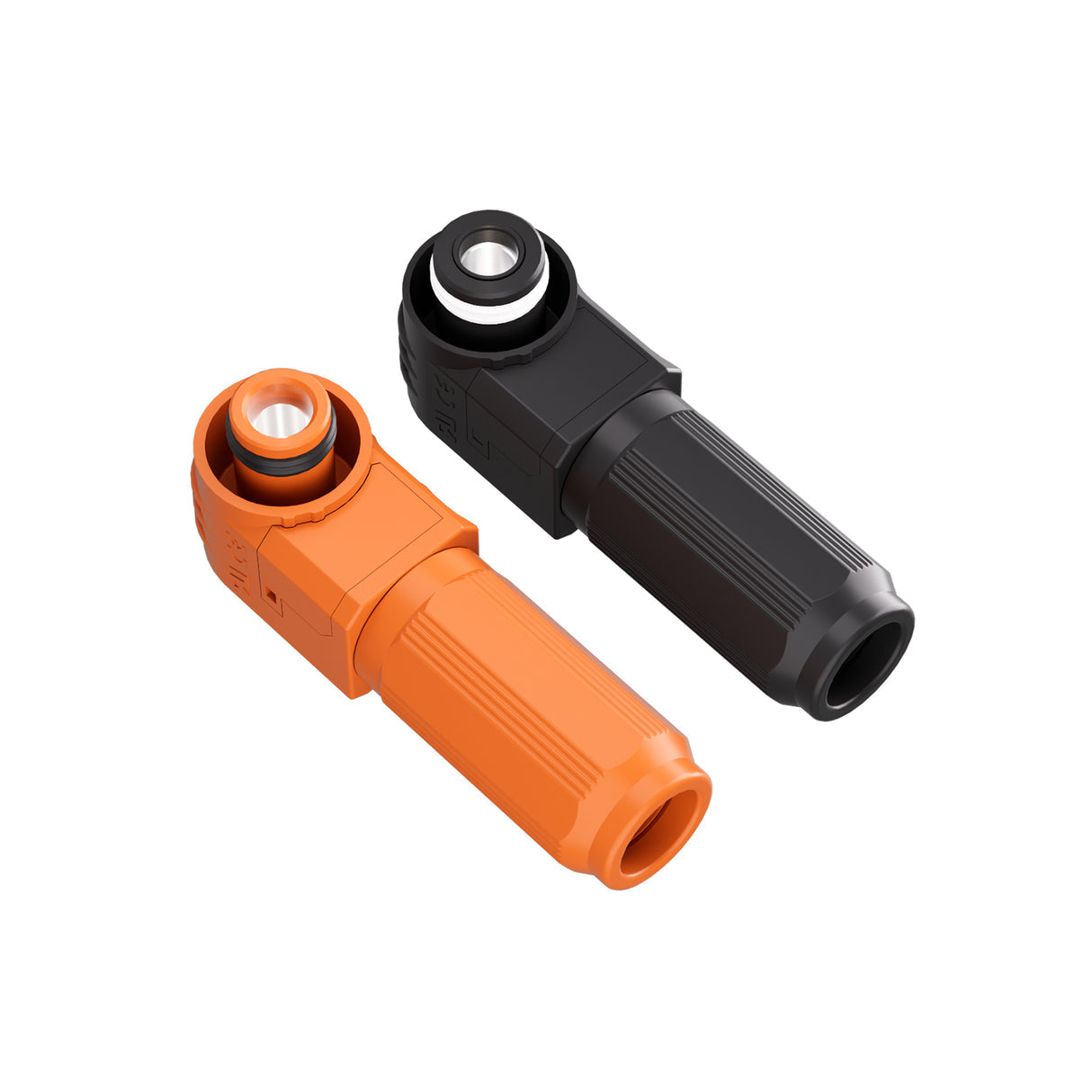

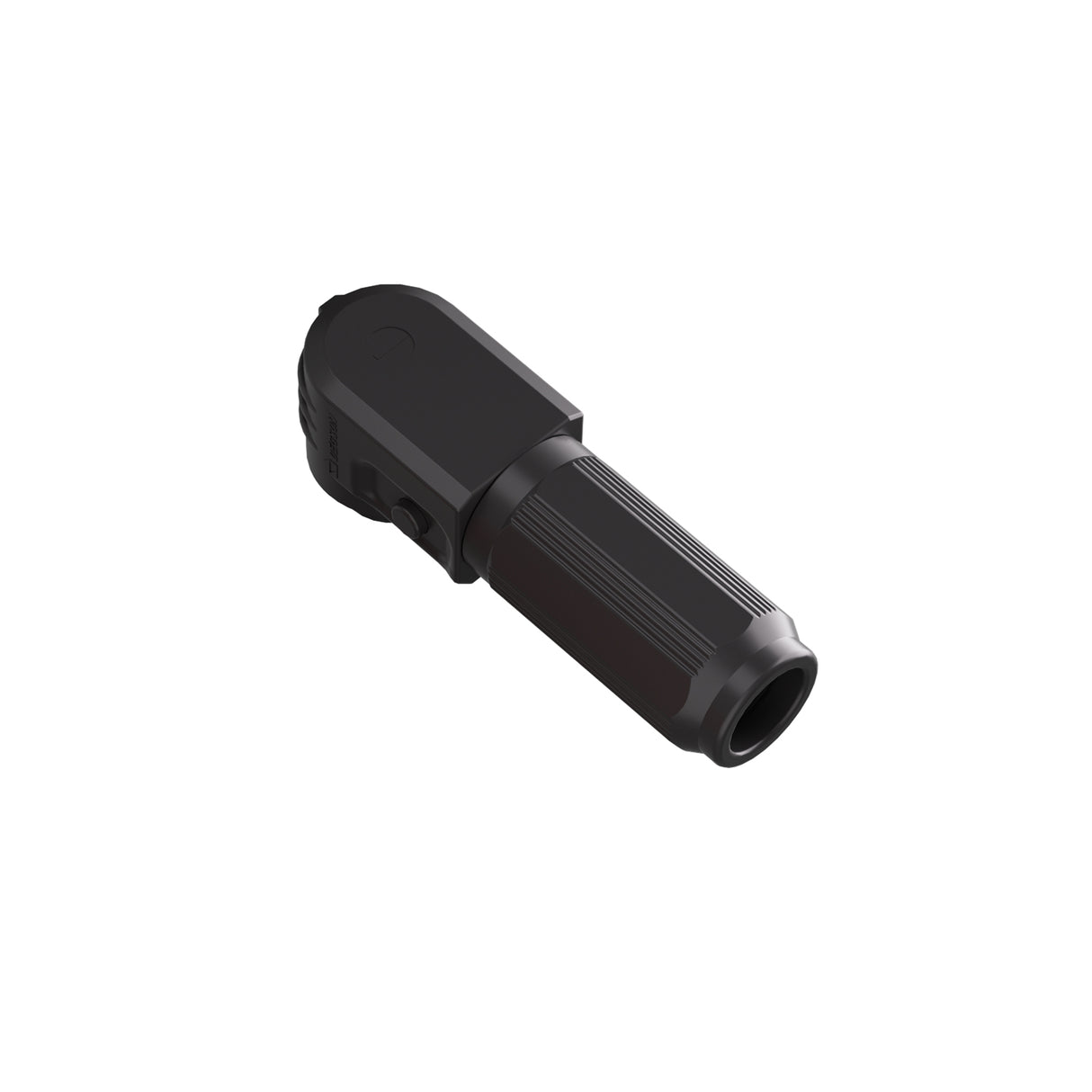

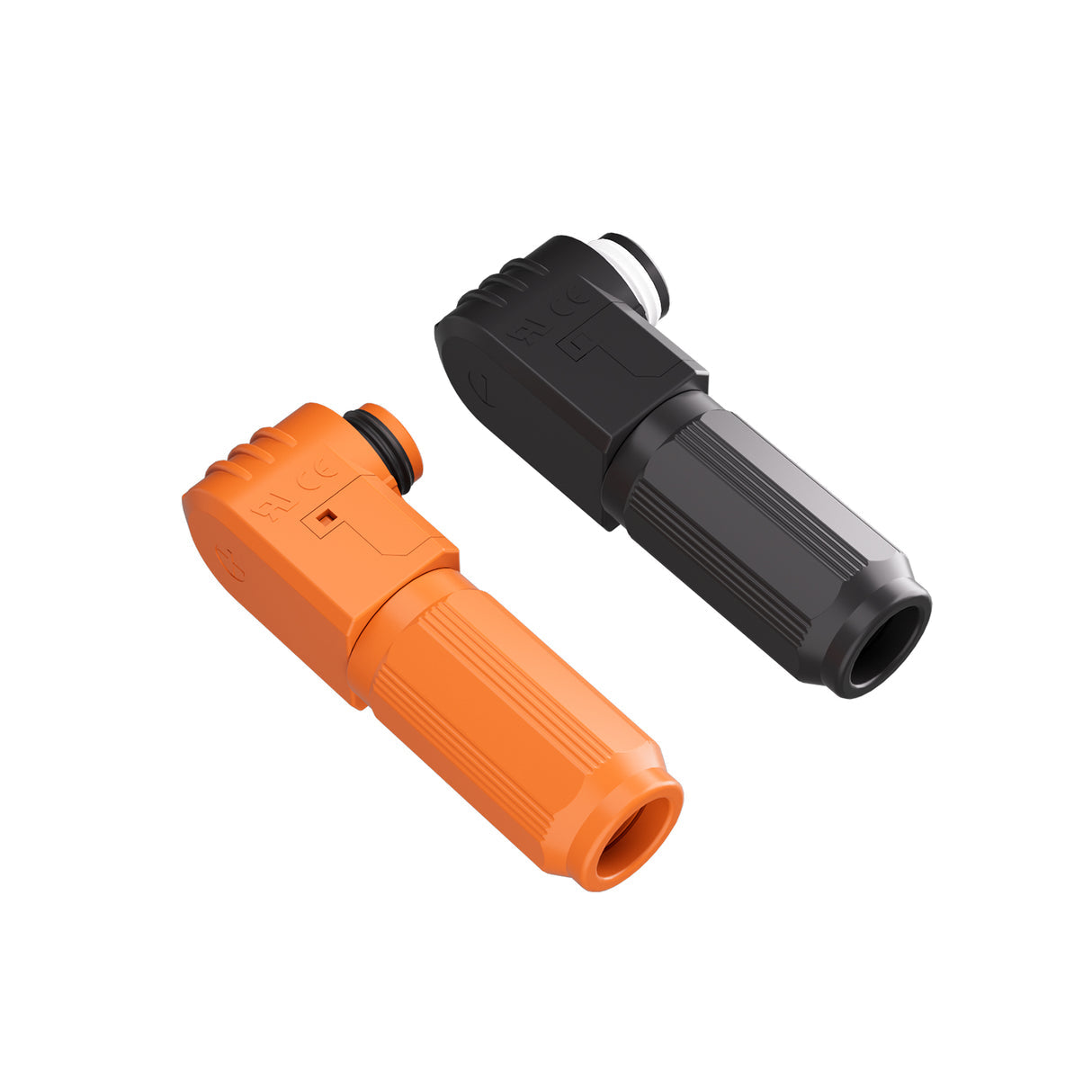

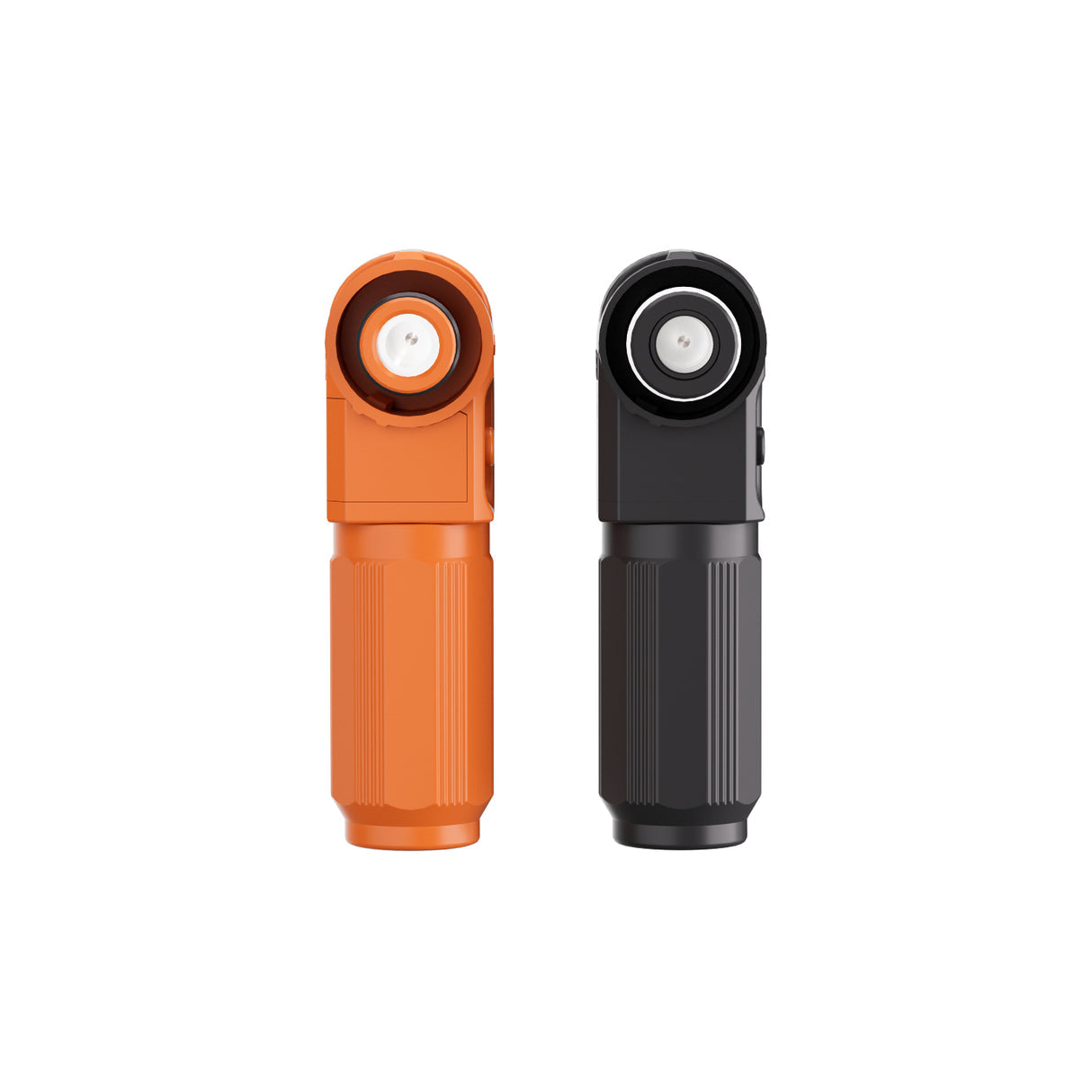

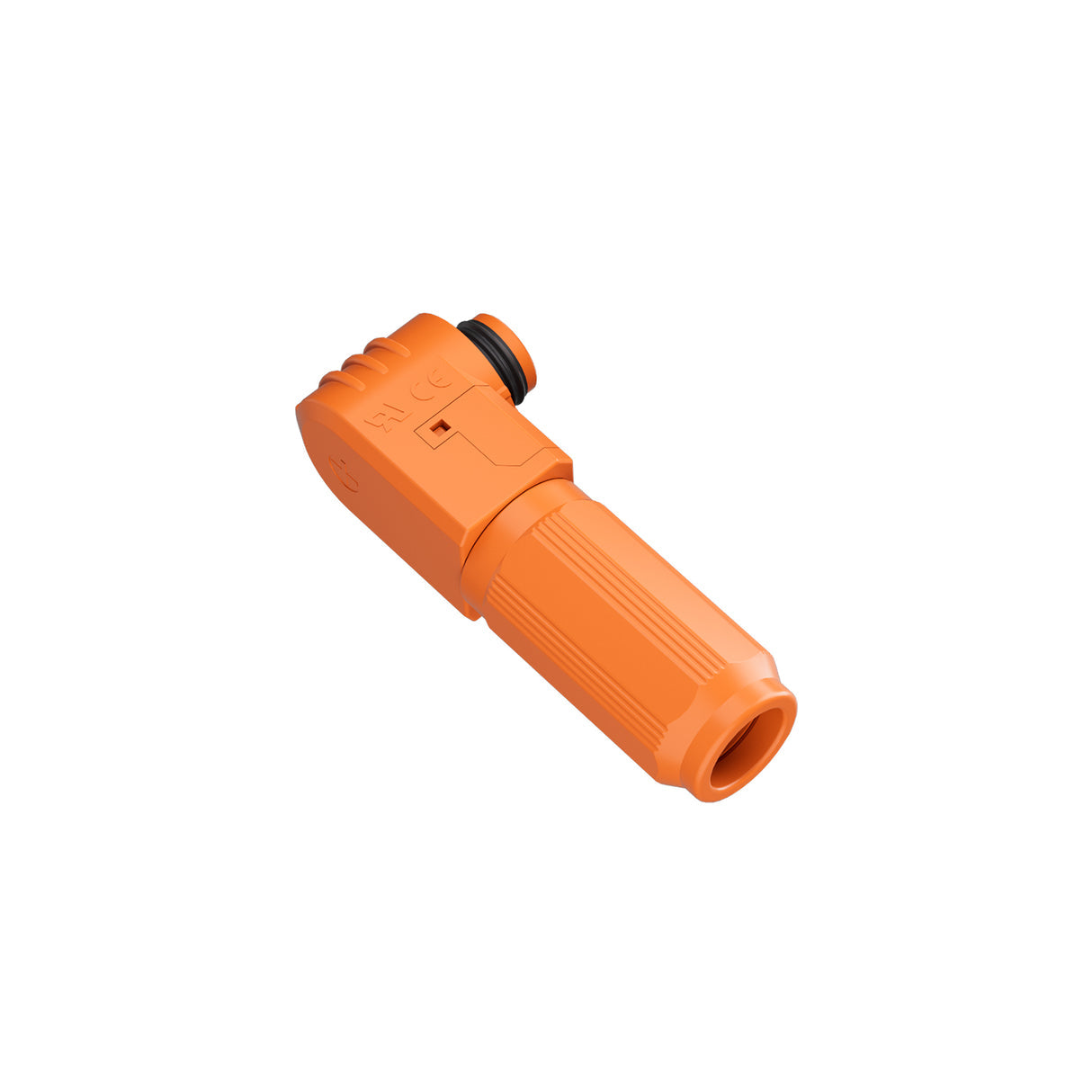

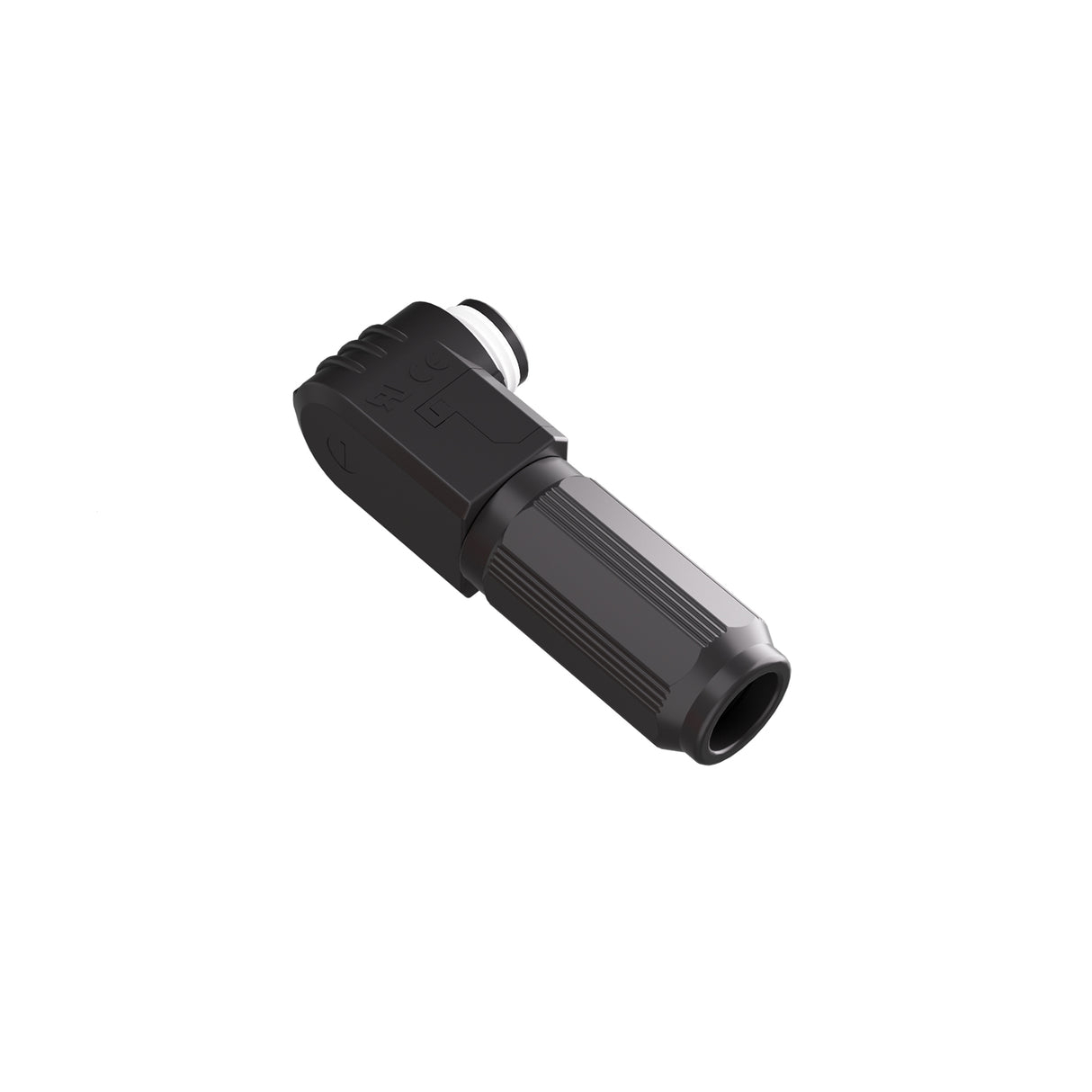

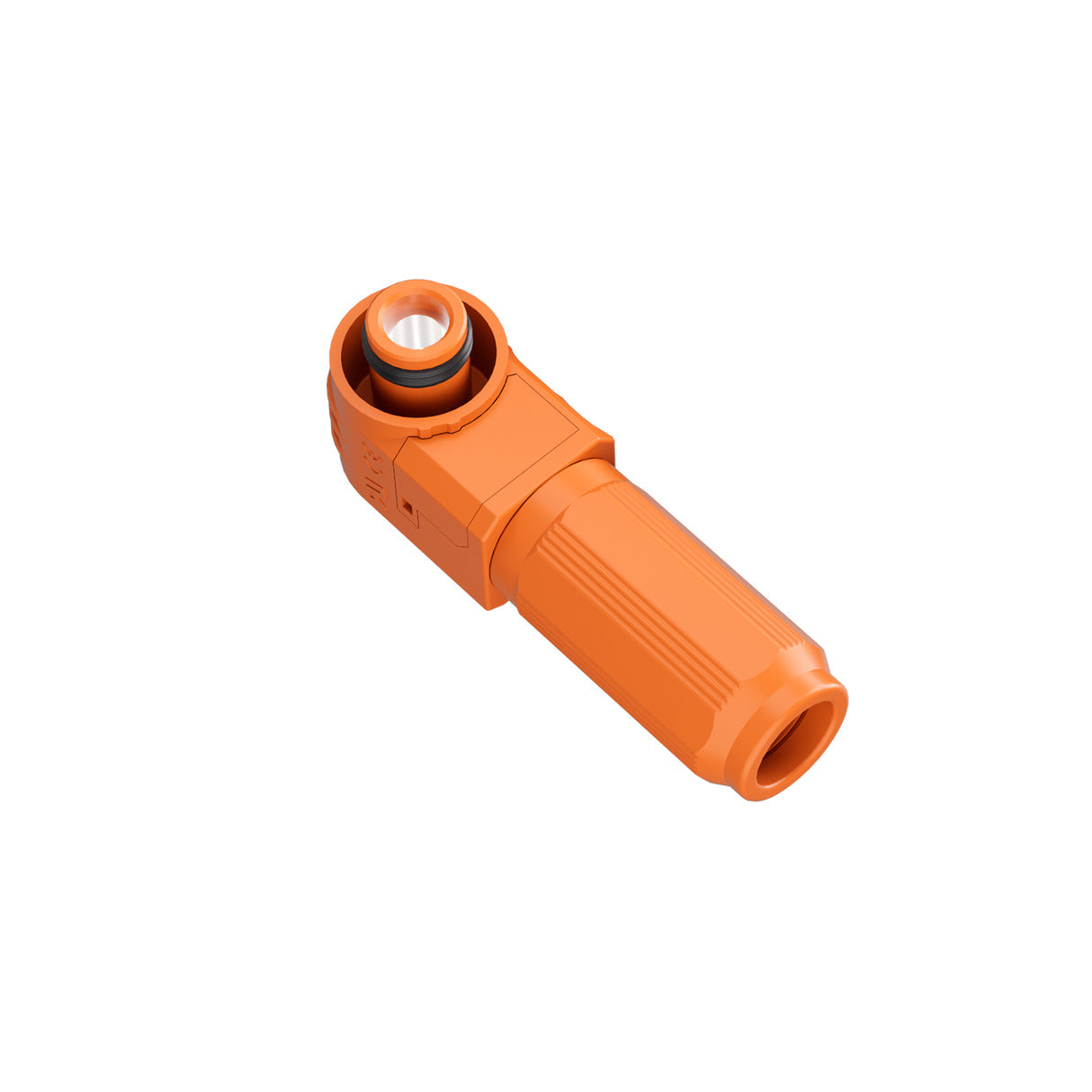

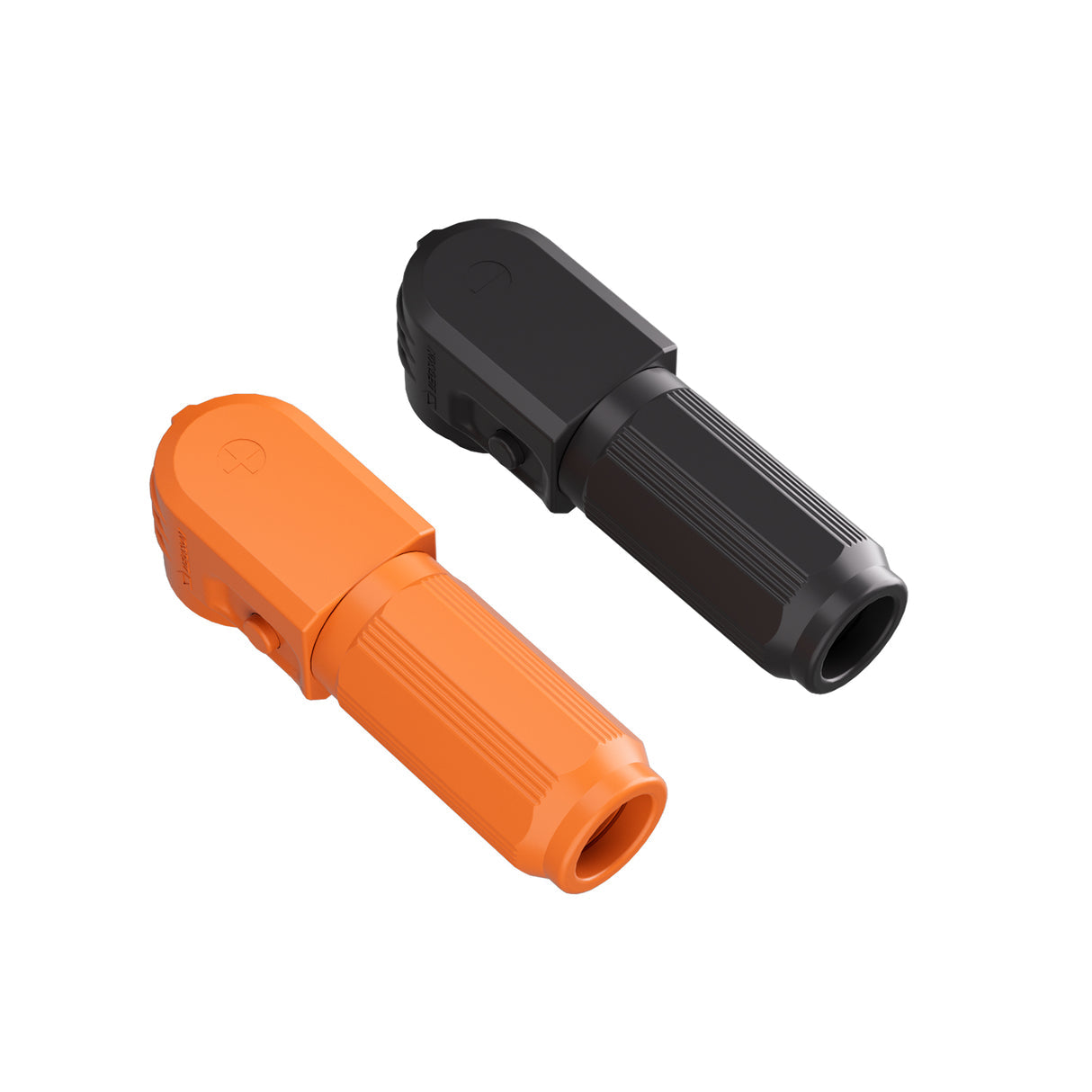

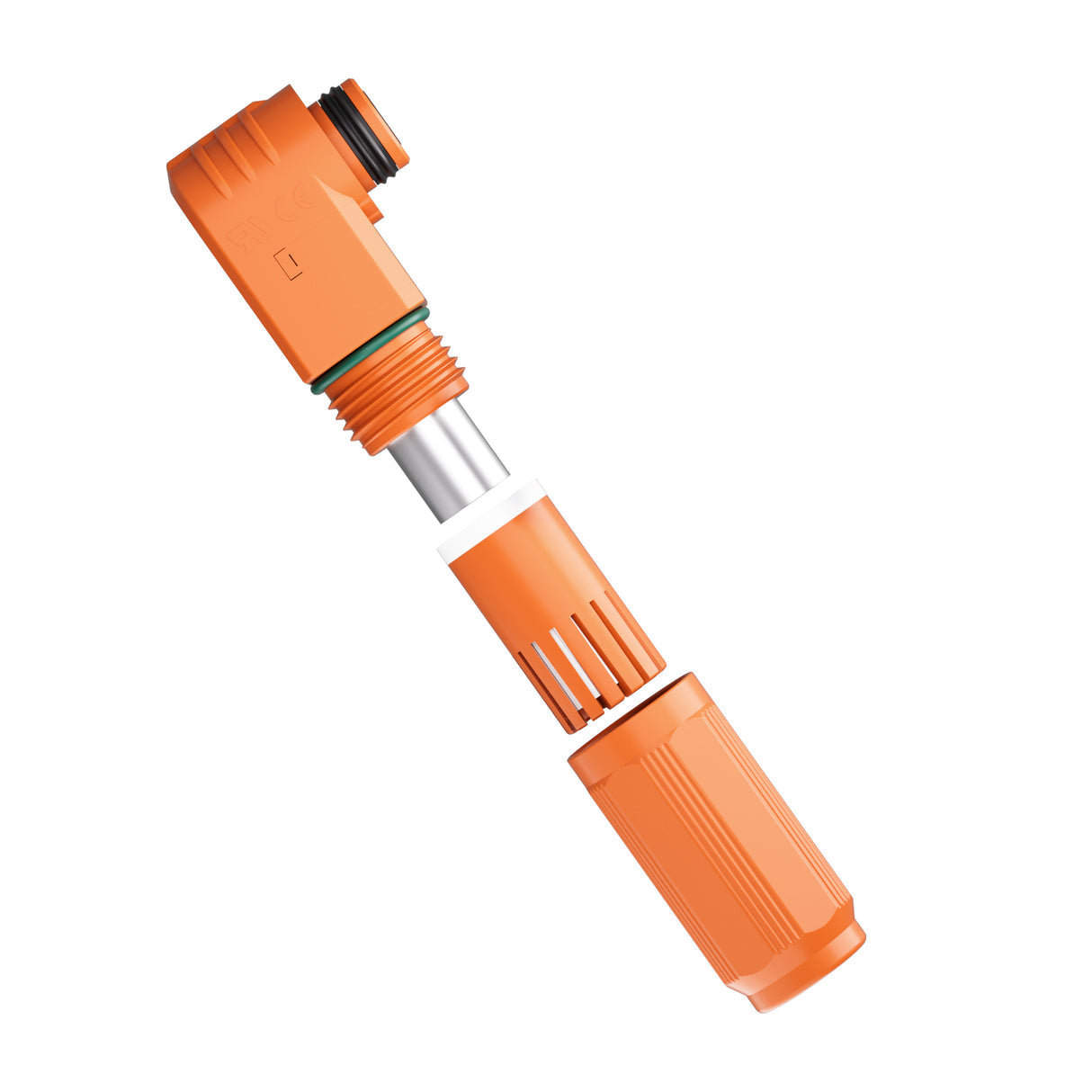

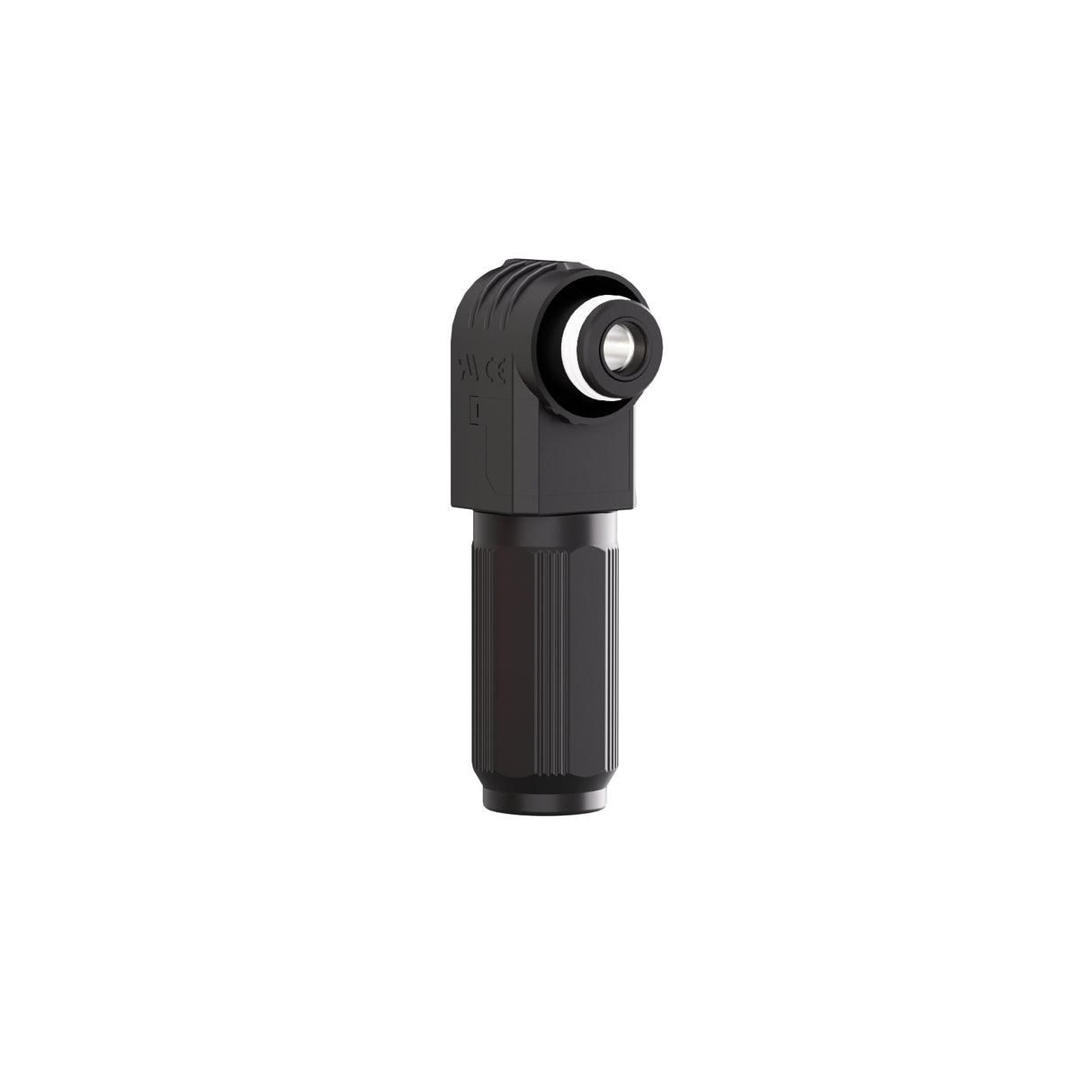

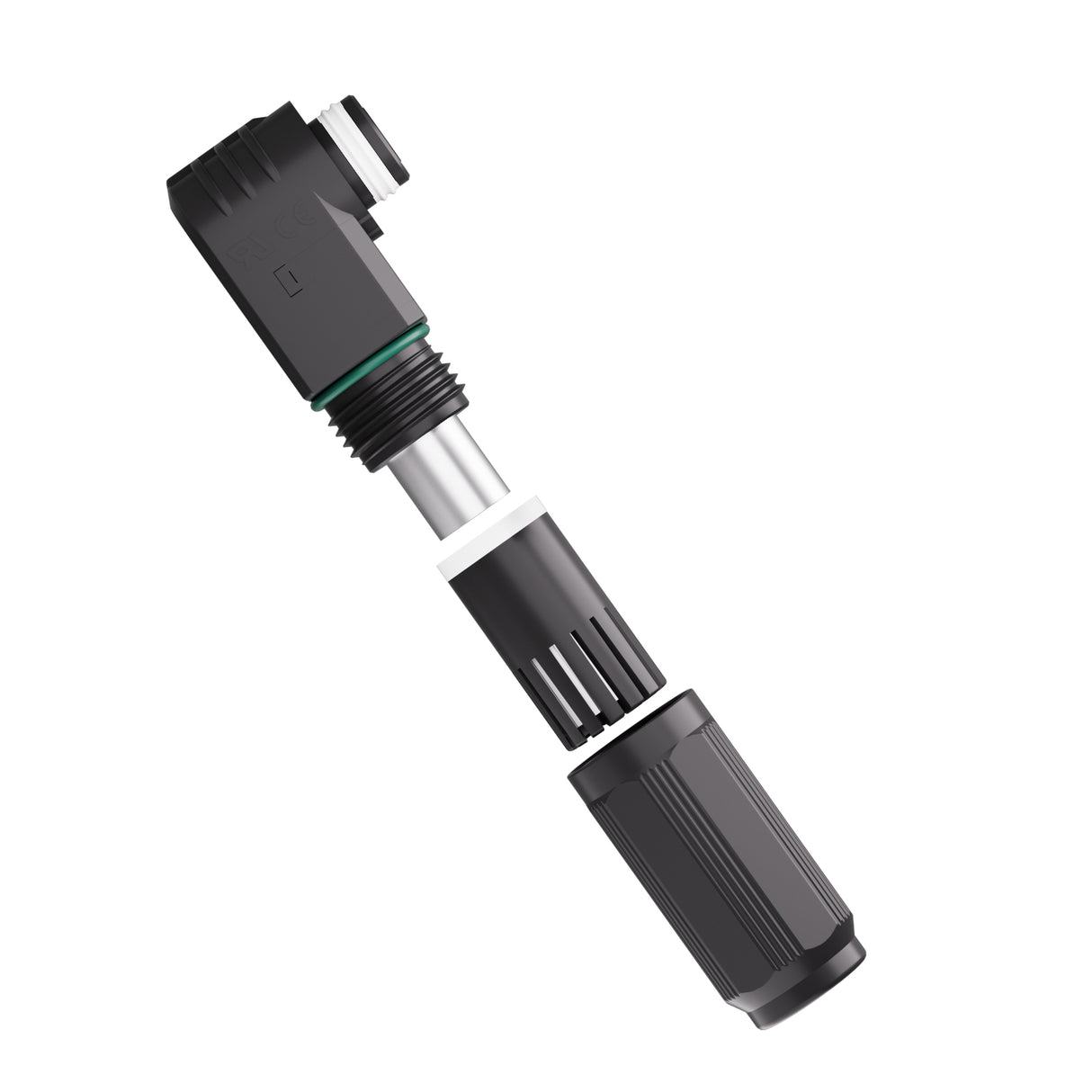

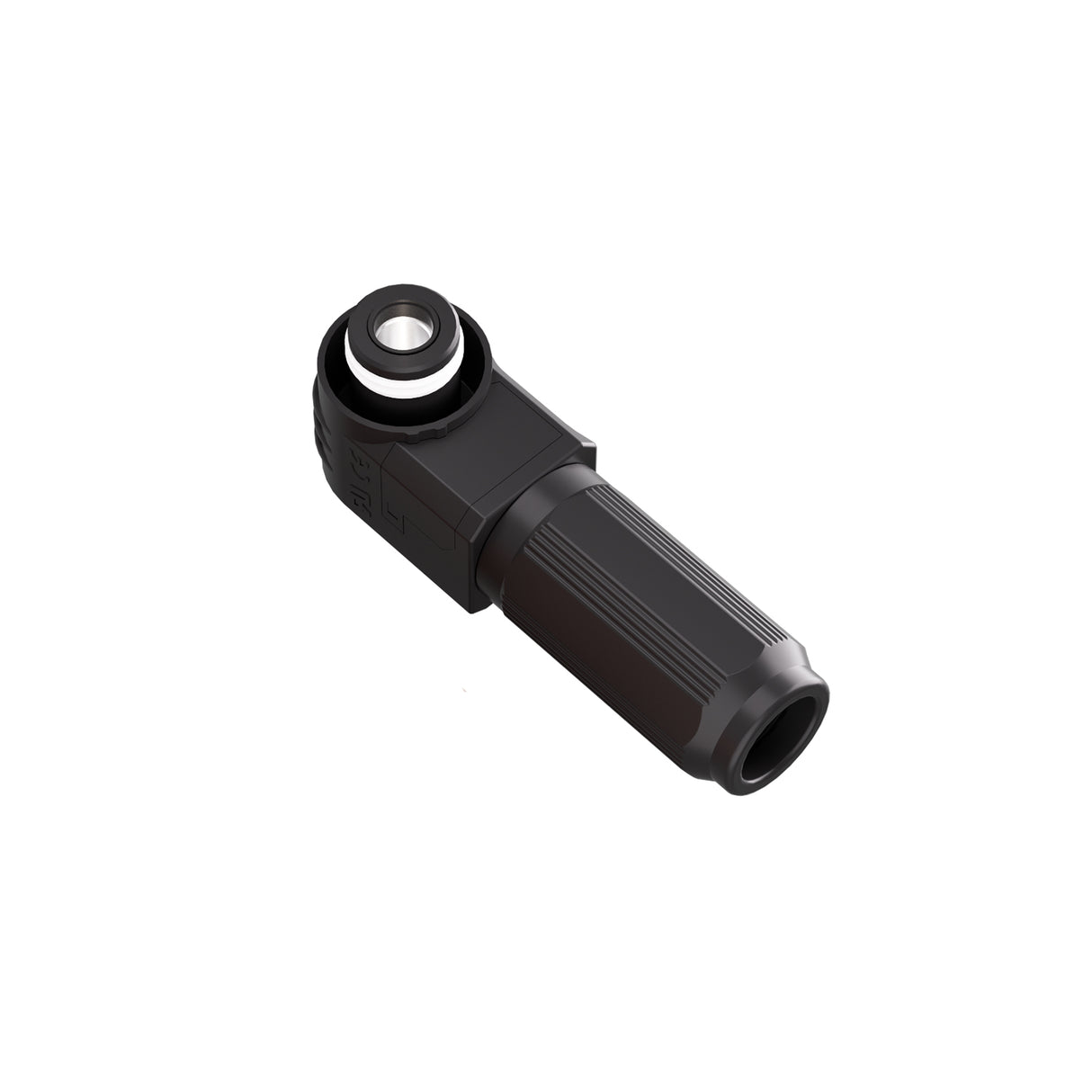

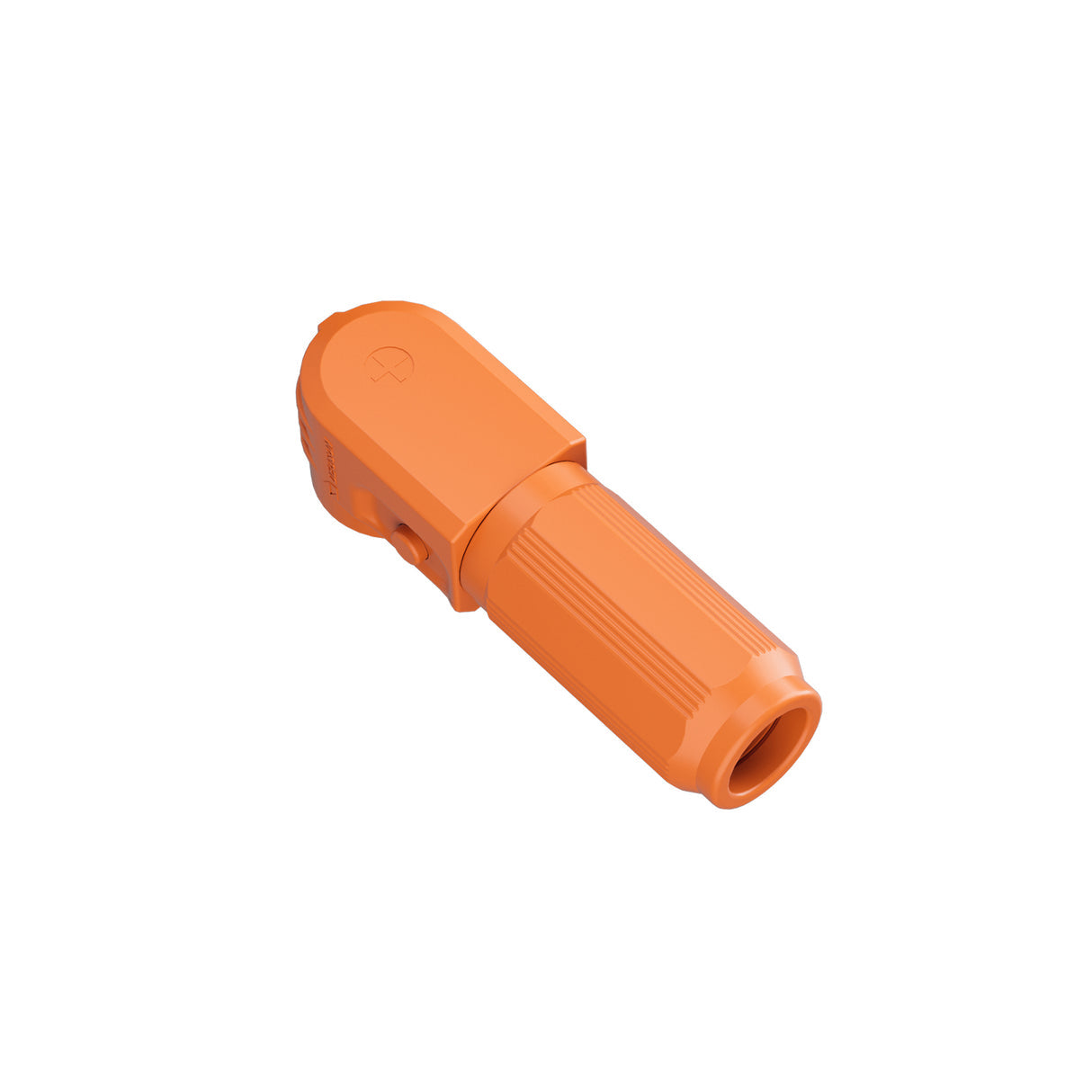

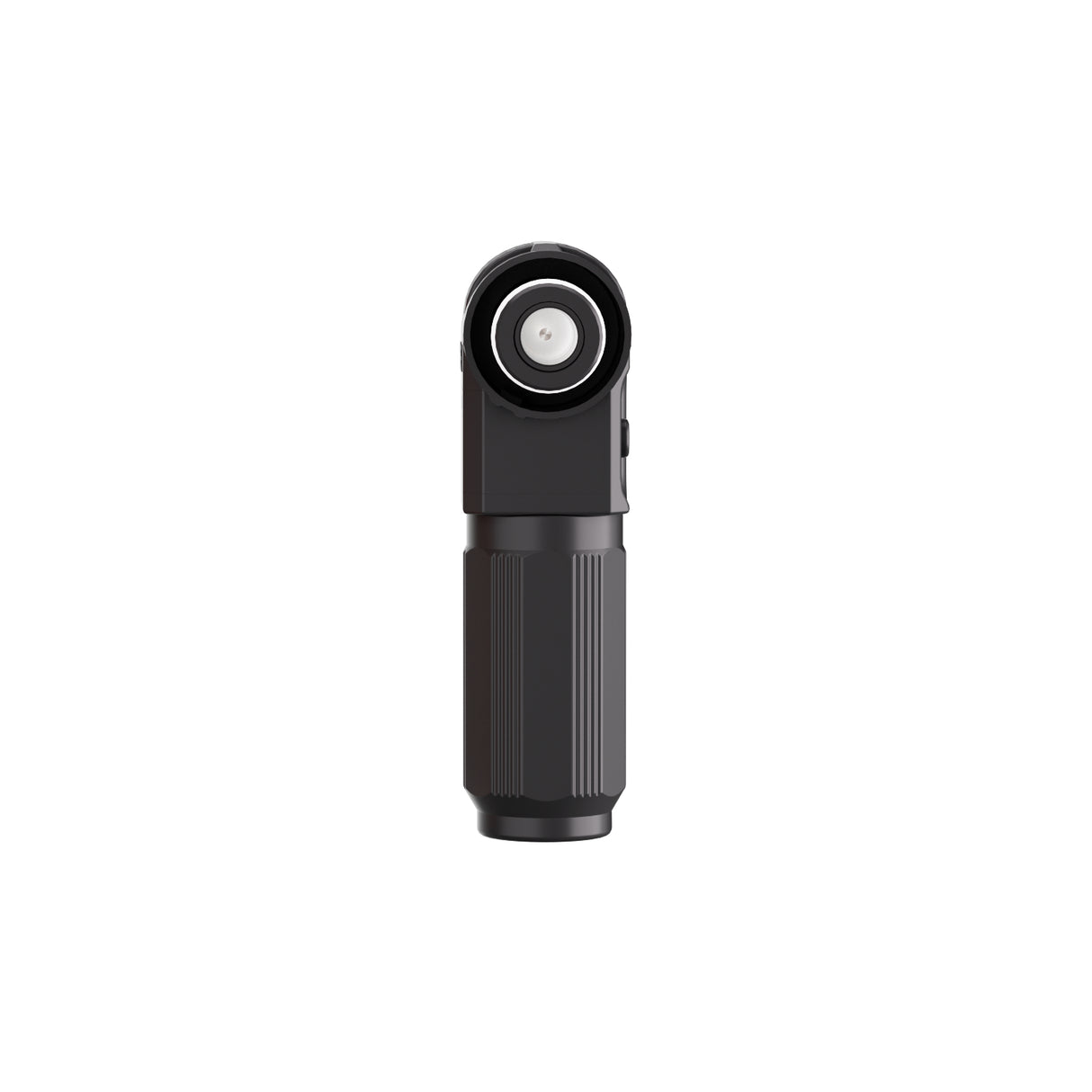

- Polarity: Positive (Orange) / Negative (Black)
Mechanical:
- Locking Mechanism: Snap-Fit
- Mounting Type: Wall Mount
- Terminal Type: Crimp
- Compatible Cable: 4AWG / 25 mm²
- Recommended Strip Length: 13-14 mm
- Mating Cycles: 100 times
- Insertion / Withdrawal Force: ≤ 60 N / > 10 N
Environmental & Physical:
- IP Rating: IP67 (Mated)
- Operating Temperature: -40°F to 257°F (-40°C to +125°C)
- Flammability: UL94 V-0
- Dimensions: 2.60 × 0.63 in (66 × 16 mm)
- Net Weight: 1.31 oz (37g)
Certifications & Compliance:
- Safety: UL, CE
- Environmental: RoHS
