Rich Solar Cable Entry Plate | IP68 Waterproof Polypropylene Housing with UL 10AWG Wires and Solar Connectors

Description

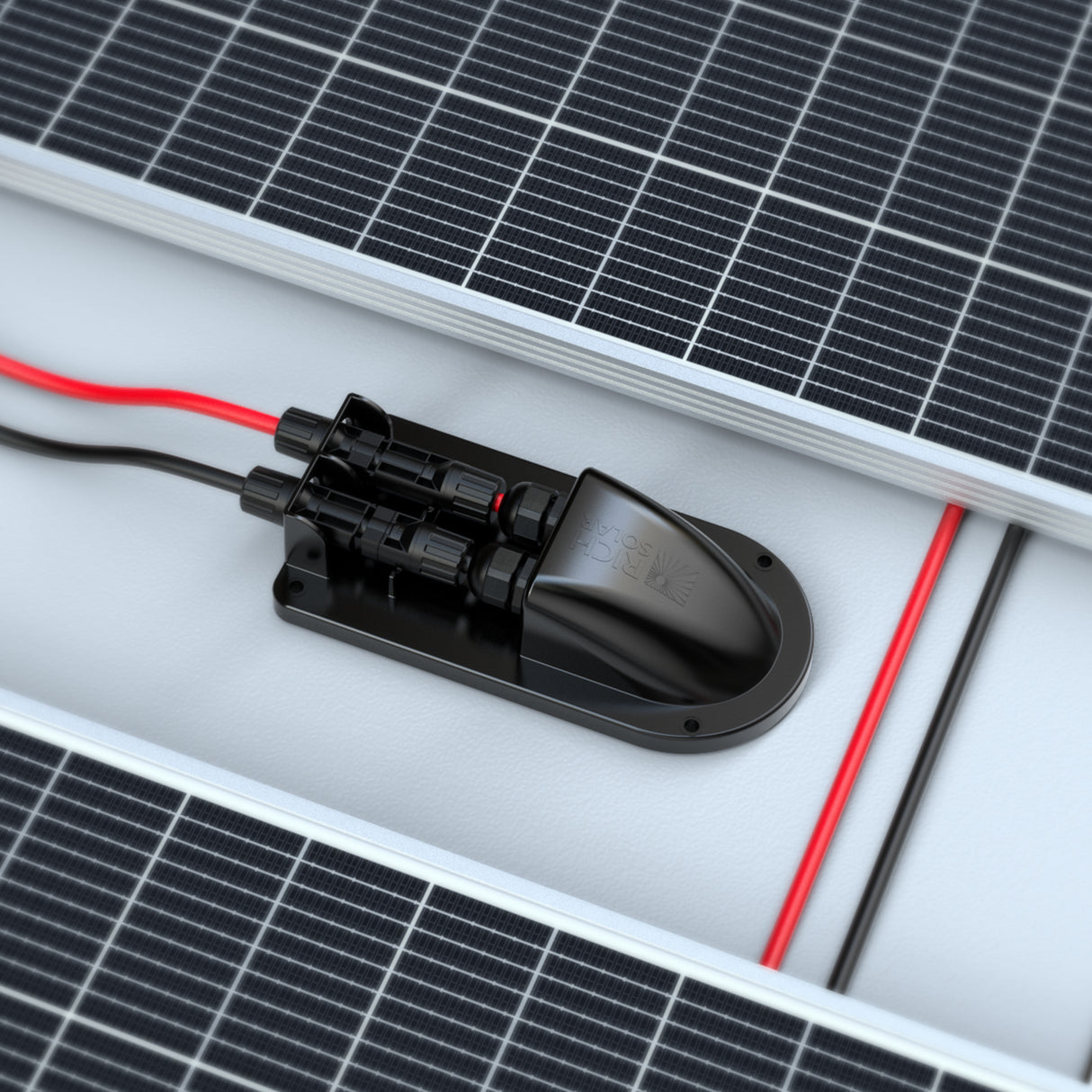

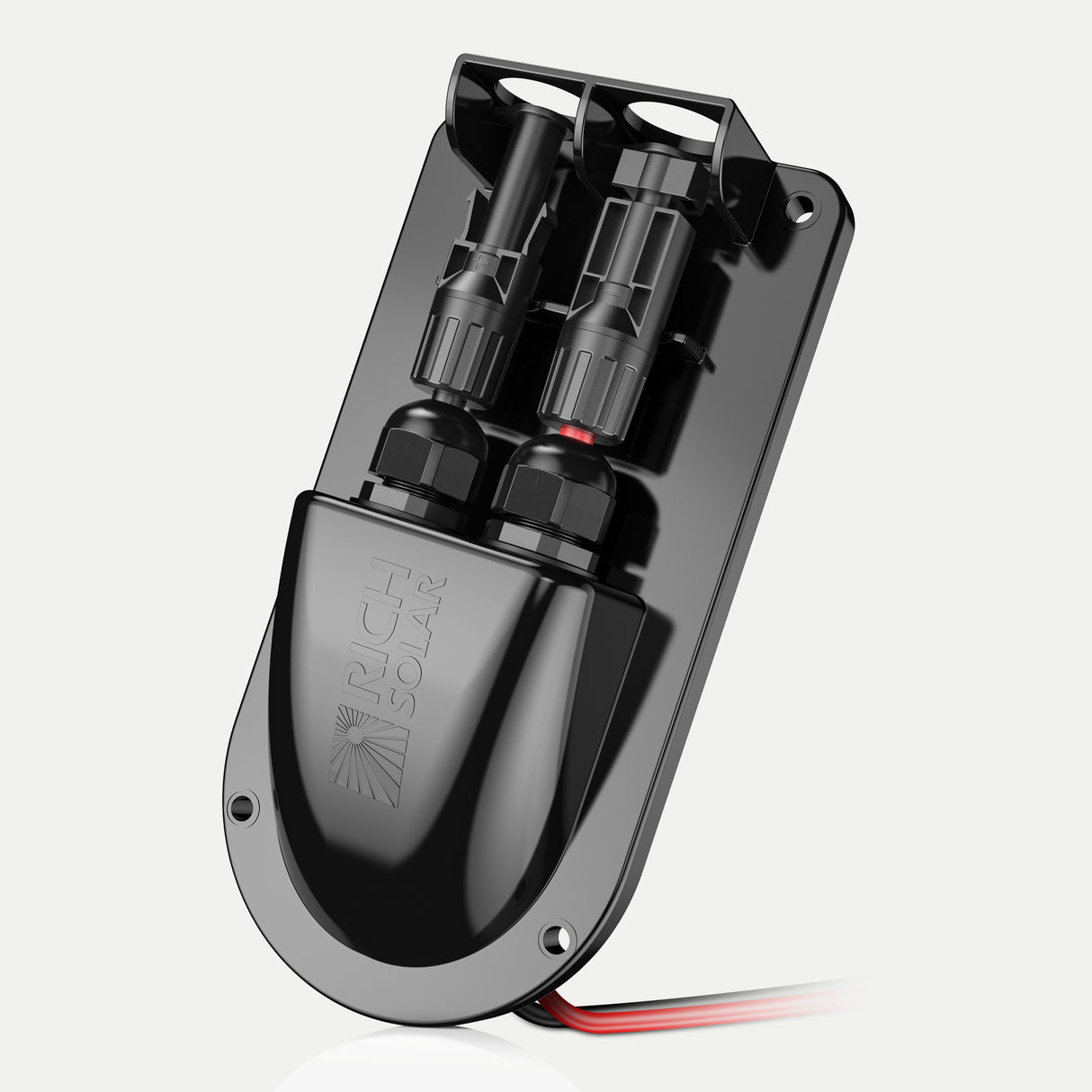

The Rich Solar RS-G02 is a durable power accessory designed to provide secure cable entry for off-grid and backup solar systems. Rated for 0.1kW power-accessory use, it features an IP68 waterproof housing ensuring reliable protection in harsh environments.

Built to withstand extreme temperatures from -40°F to 185°F, this cable entry plate is suited for outdoor setups requiring long-lasting and safe electrical connections.

Features

• IP68 waterproof rating offers dependable sealing against dust and water ingress in challenging environments.
• Polypropylene junction box with flame retardant properties enhances safety and durability for extended outdoor use.
• Supports continuous current up to 30A and maximum current of 42A to handle typical solar power cable loads safely.
• Equipped with UL 10AWG tin-plated copper wires featuring fire-rated PVC insulation to ensure safe and efficient conductivity.
• Operates reliably across a wide temperature range from -40°F to 185°F, making it suitable for varied climates.
• Includes MC4-compatible solar connectors certified for quality, simplifying integration with solar panels.

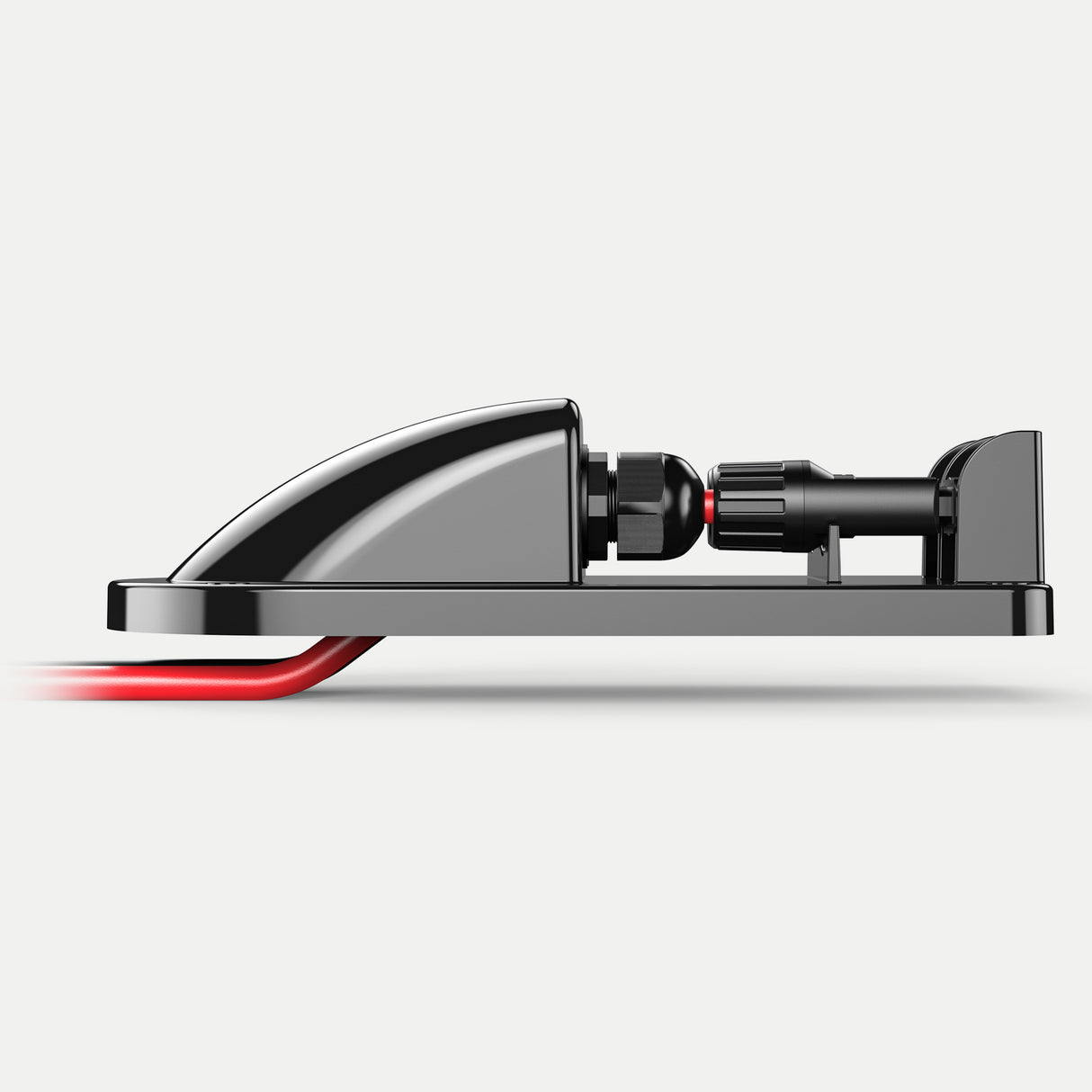

• Compact and lightweight design (7.2 x 3.8 x 2.0 inches, 0.34lbs) enables easy installation in confined system enclosures.

Specifications

General

• Model: RS-G02
• Product Size (L x W x H): 7.2 x 3.8 x 2.0 in
• Weight: 0.34lb
• Junction Box Material: Polypropylene (PP)
• Junction Box Flame Retardant: Yes
• Color: Black
• Operating Temperature Range: -40℃ to 85℃(-40°F t0 185°F)

Electrical Ratings

• Maximum Current: 42A
• Continuous Current: 30A
• Maximum Voltage: 600V (Wire Rating)
• Wire Standard: UL 1015 10AWG (Red/Black)
• Wire Conductor: Tin-Plated Copper
• Wire Insulation: PVC (VW-1 Fire Rated)
• Wire Temperature Range: -15°C to 105°C (5°F to 221°F)

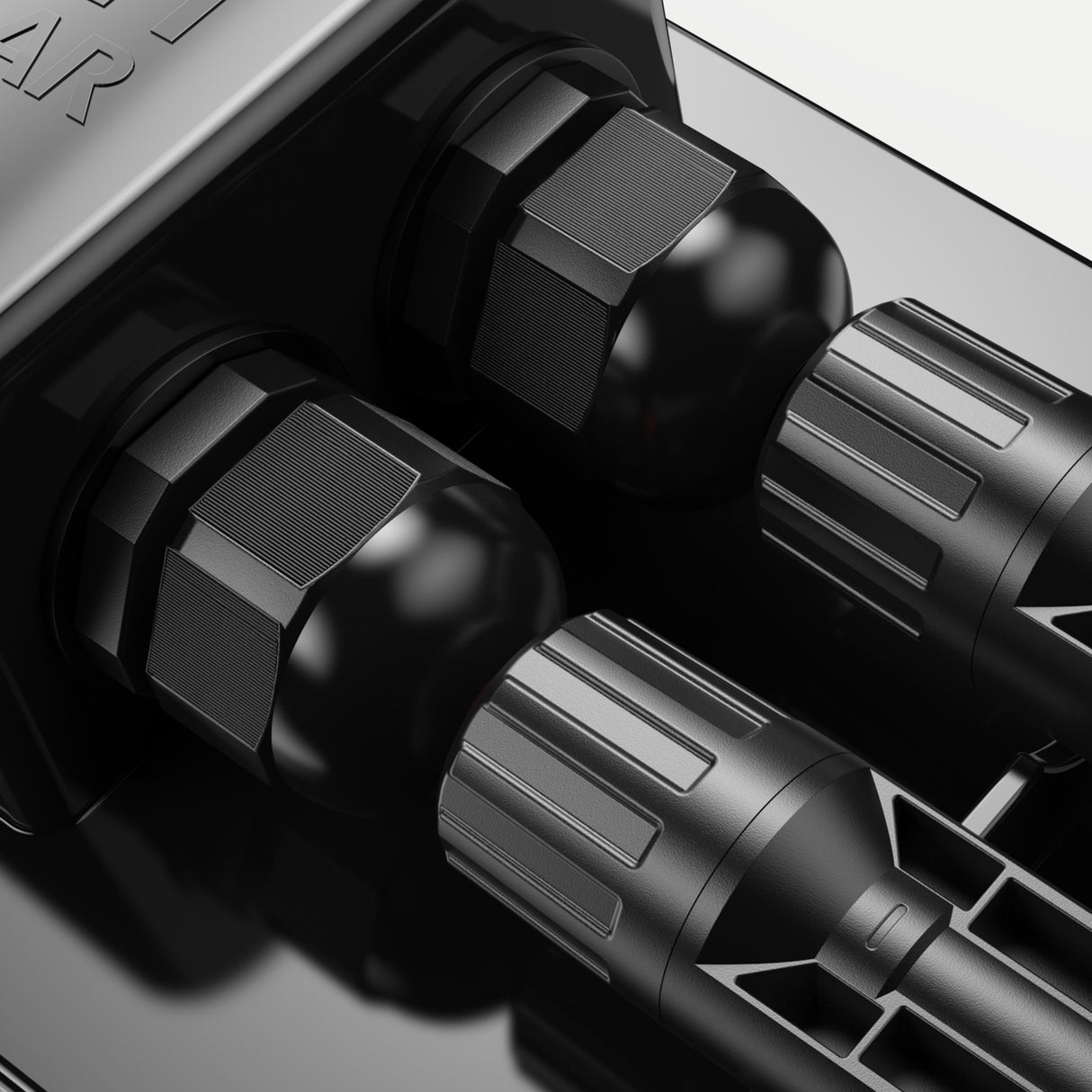

PG Head

• PG Head Specification: RNA-PG9
• PG Head Material: PA6
• PG Waterproof Rating: IP68
• PG Flame Retardant Rating: UL94V-2 Cerriffed
• Certification: CE

MC4 Connector

• Material: PC
• Certification: TUV
