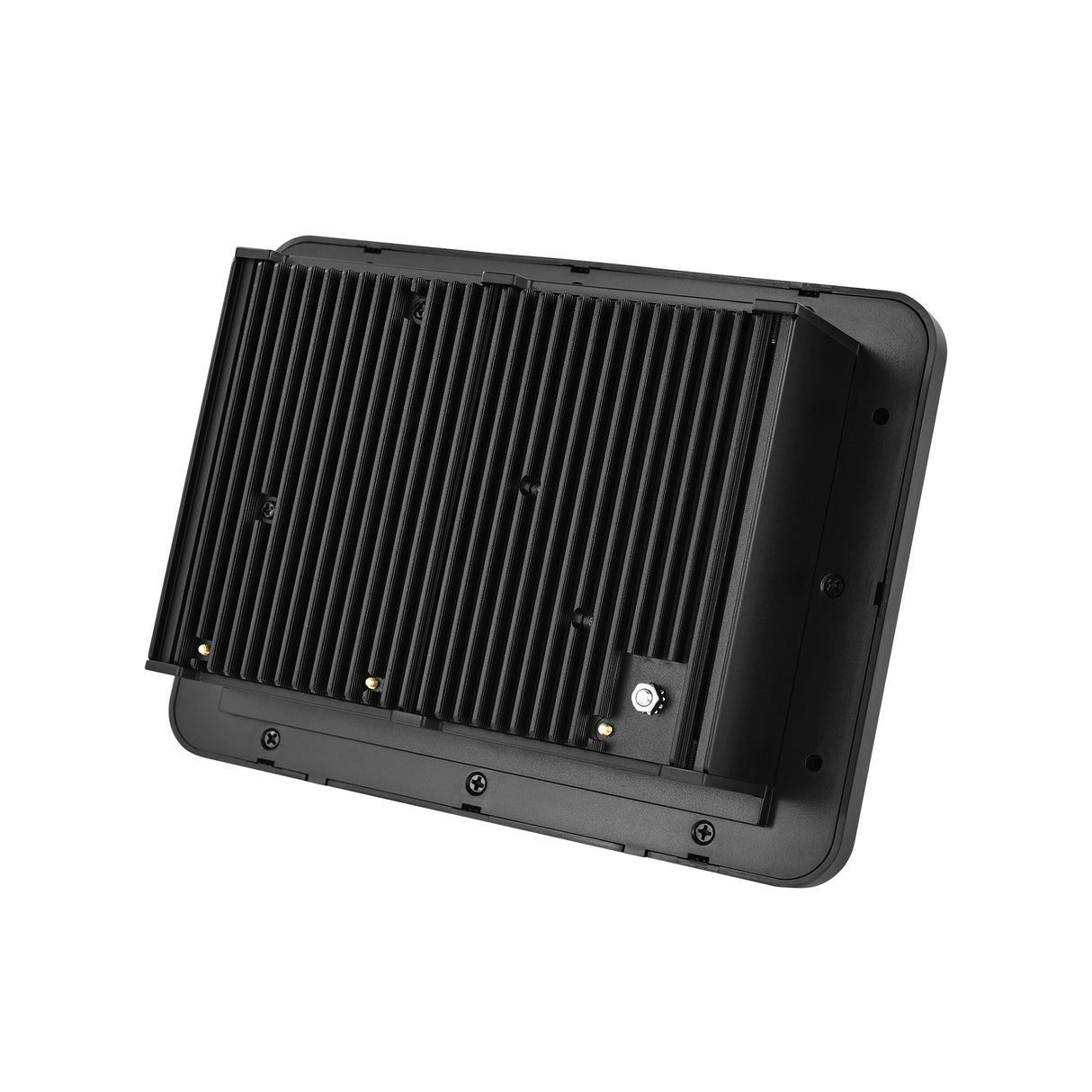

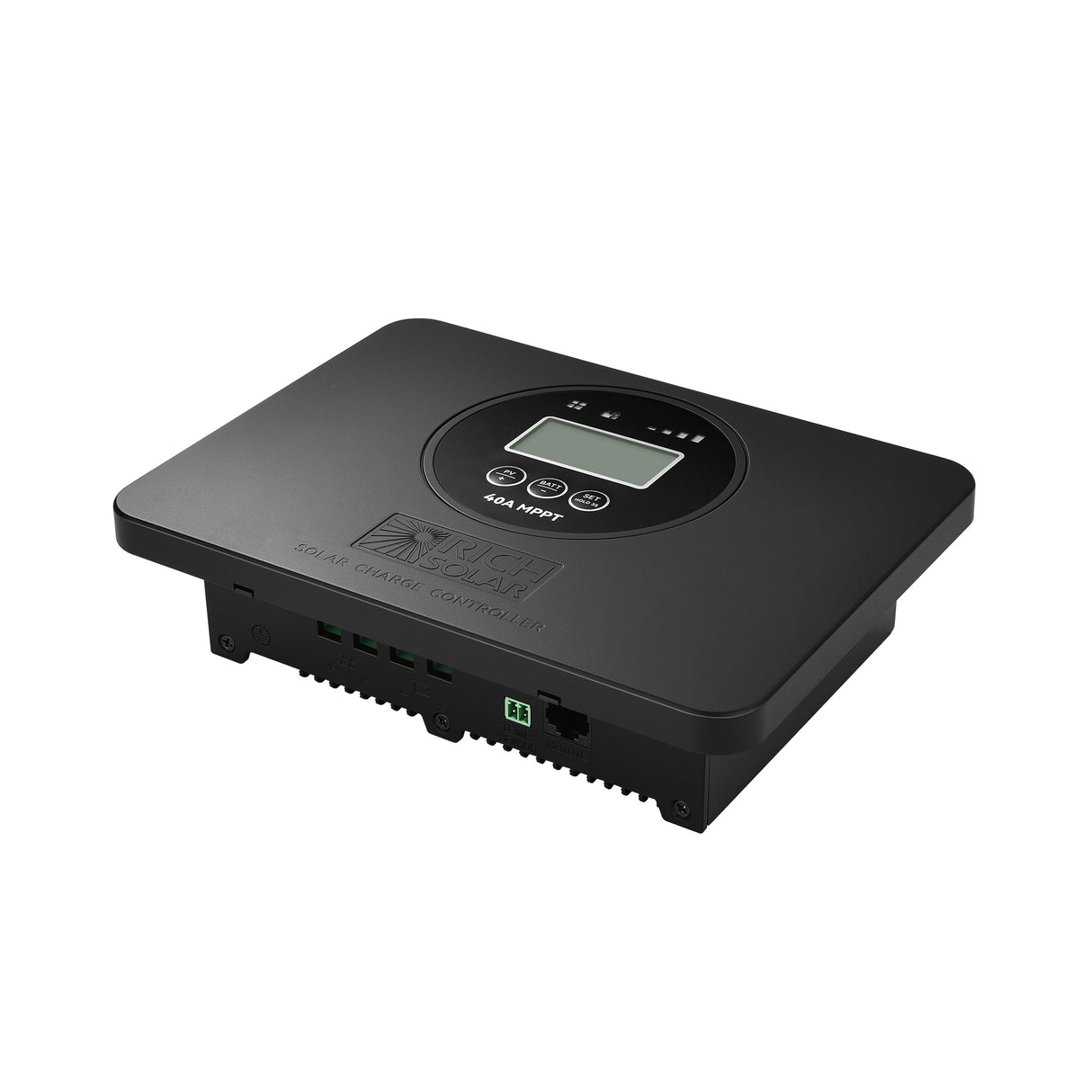

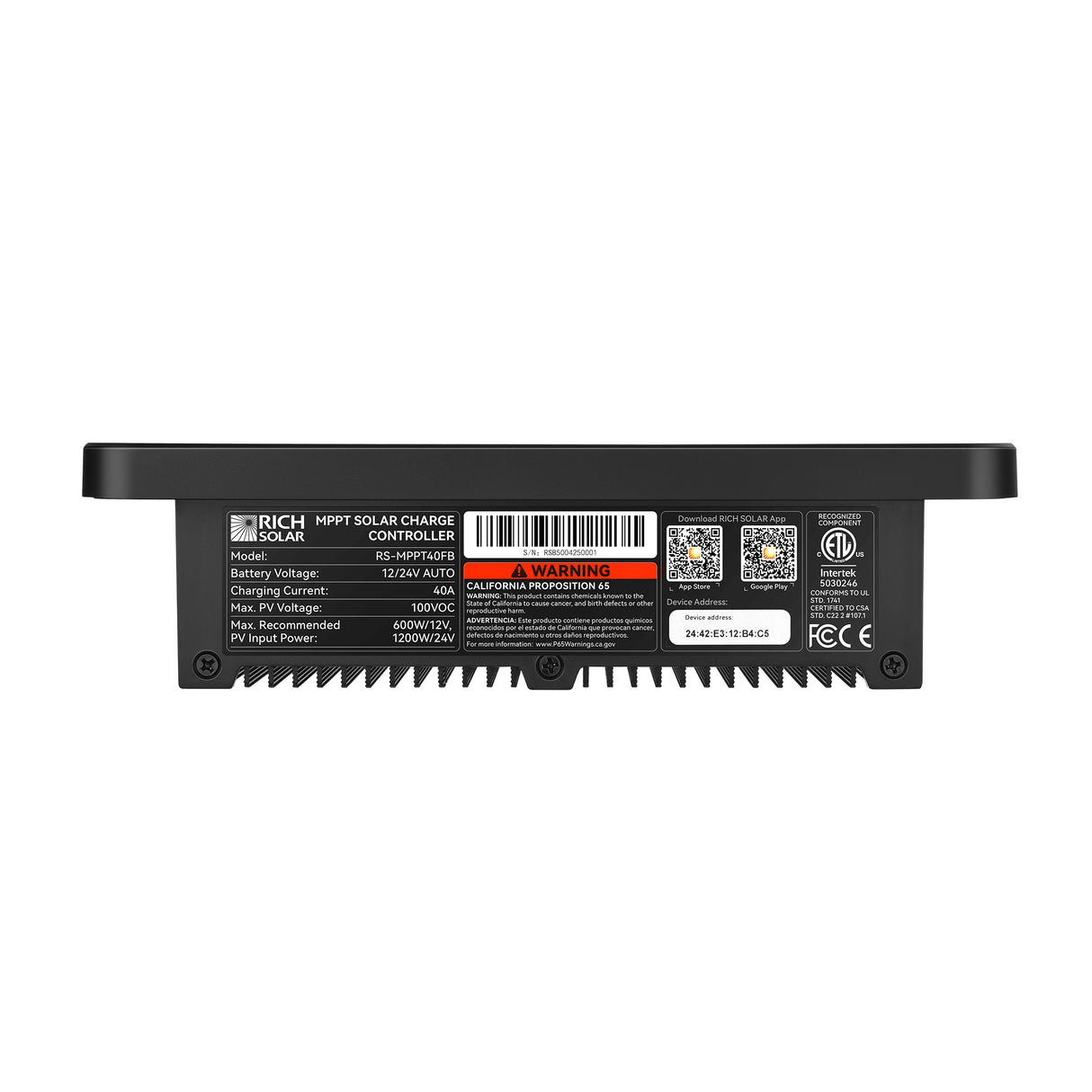

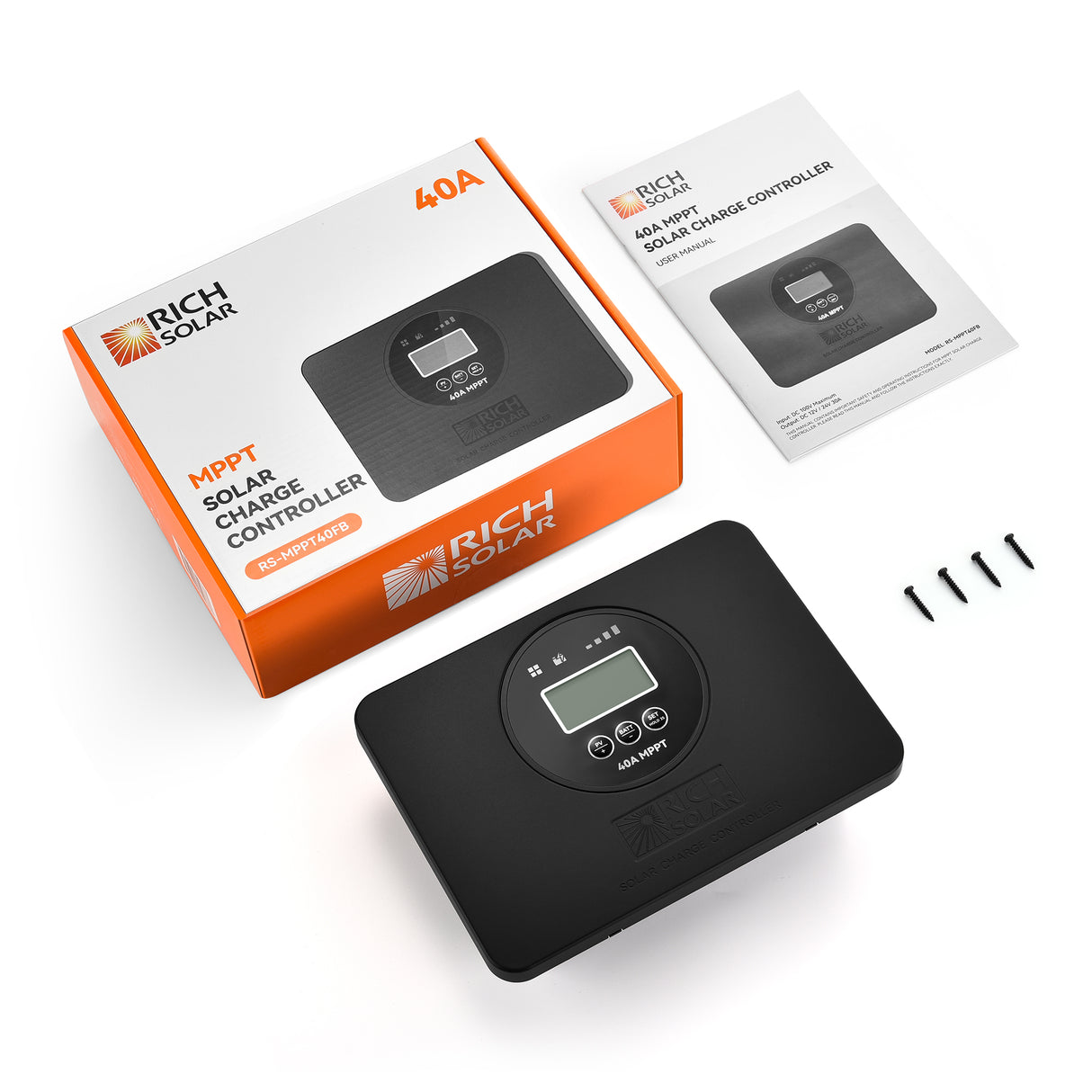

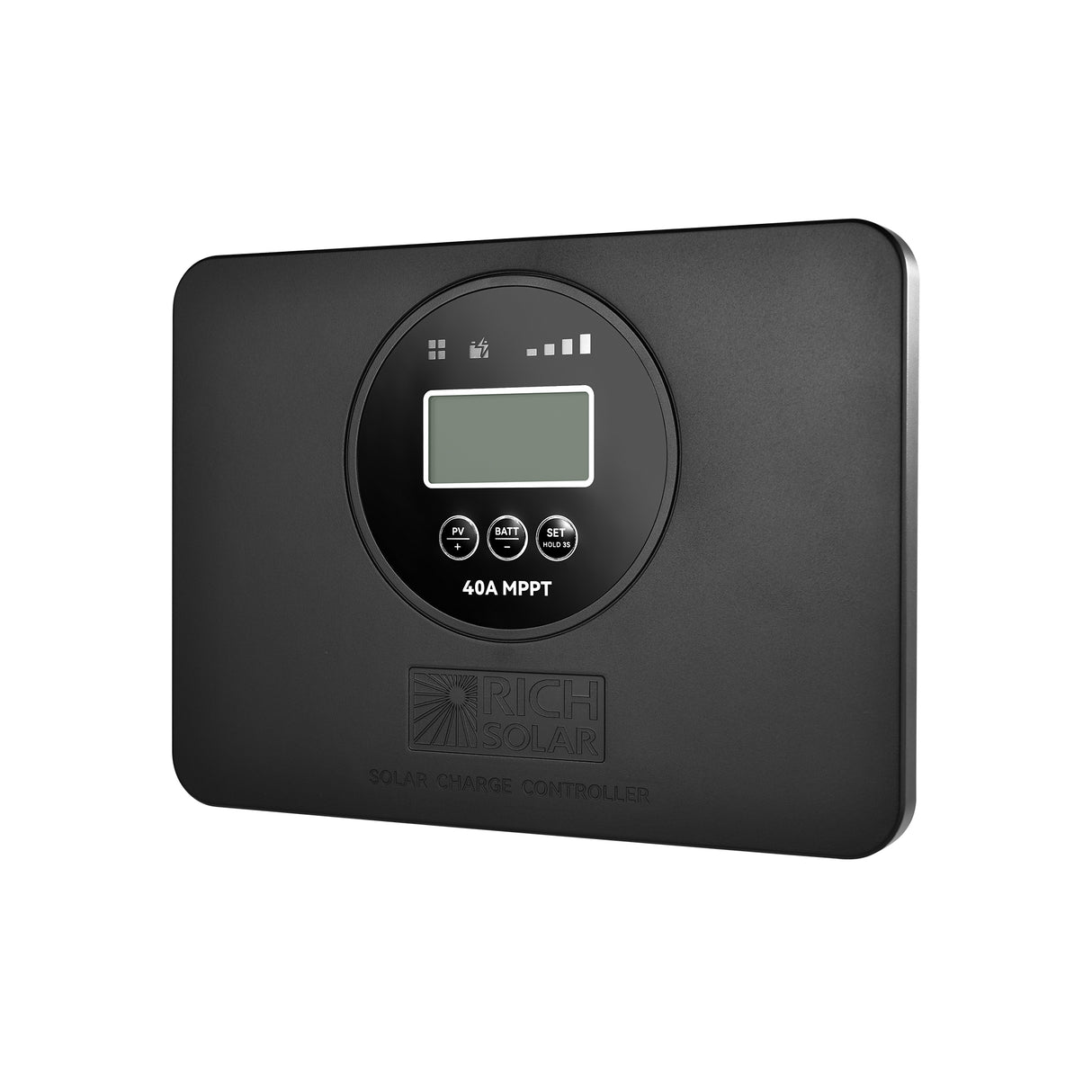

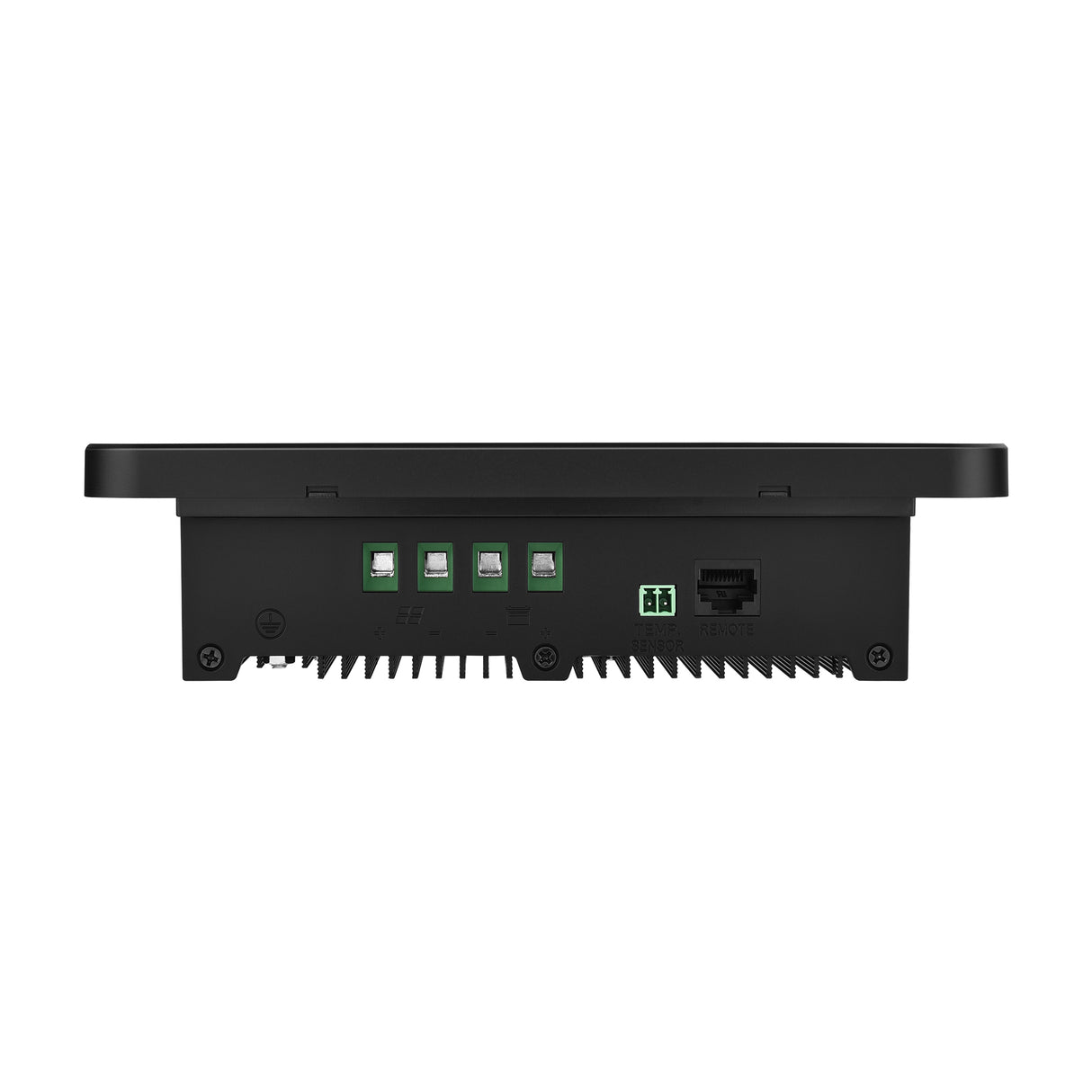

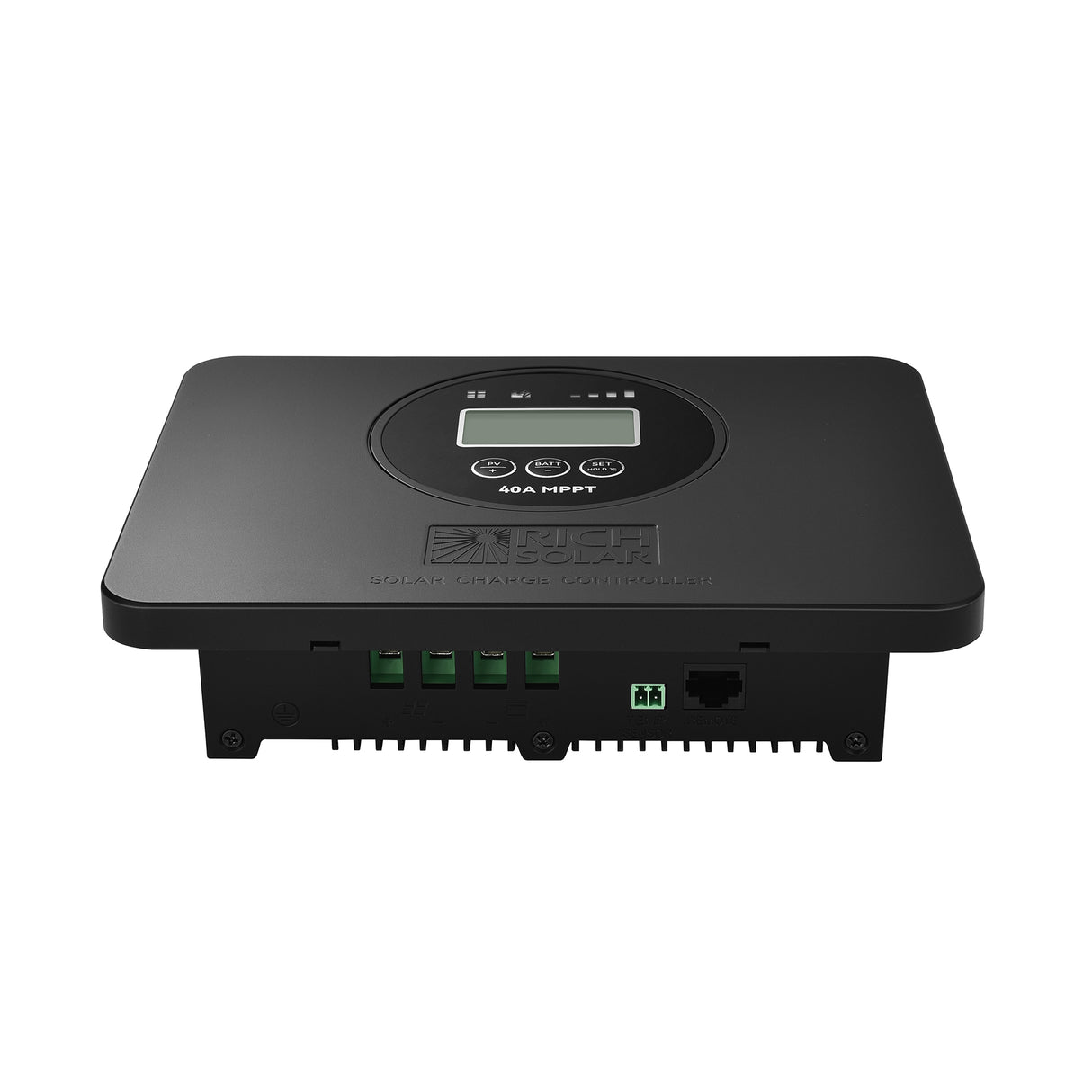

Rich Solar BRAVO PRO 40 | Premium 40A 12V/24V MPPT Flush Mount Solar Controller | With Bluetooth

Description

The Rich Solar BRAVO PRO 40 is a premium solar charge controller designed for RVs, boats, and off-grid setups requiring reliable power regulation. This controller features MPPT technology with a maximum charging current of 40A, optimizing solar energy harvest for 12V or 24V battery banks.

Built for those who need efficient and flexible charging, it supports a broad range of battery types and includes Bluetooth connectivity for convenient monitoring and control.

Features

• 40A maximum charging current supports robust solar input for medium-sized off-grid or mobile systems.
• MPPT charging technology with 99.5% efficiency maximizes energy conversion under varying sunlight conditions.
• Compatible with multiple battery chemistries including GEL, AGM, LFP, and customizable types for user flexibility.
• Bluetooth connectivity enables remote monitoring and system adjustments via smartphone apps.
• Supports 12V and 24V systems automatically to accommodate different battery bank configurations.
• IP43 rating ensures protection against dust and moisture in typical RV or outdoor environments.
• Optional external sensors and remote display expand capabilities for detailed battery management.

Specifications

• System Nominal Voltage: 12V/24V Auto
• Maximum Solar Input Current: 40A
• Maximum Charging Current: 40A
• Recommended Solar Input Power: 600W(12V)/1200W(24V)
• Solar Input Voltage Range: 8-100V
• Standby Current: 10mA
• Charging Technology: MPPT
• MPPT Voltage Tracking Range: 15-72VDC
• MPPT Efficiency: 99.5%
• Conversion Efficiency: 98%
• Battery Compatibility: GEL / AGM / WET / LFP / LTO / LCO / Crystal / Calcium / Customizable Battery
• IP Grade: IP43
• Operating Temperature: -13℉ ~ 122℉
• Bluetooth: Yes
• Options: External Battery Temperature Sensor; External Digital Remote Display
• Dimensions: 8.3 × 6.1 × 2.2 in
• Weight: 1.8 lb
• Certifications: ETL, CE, FCC, RoHS
