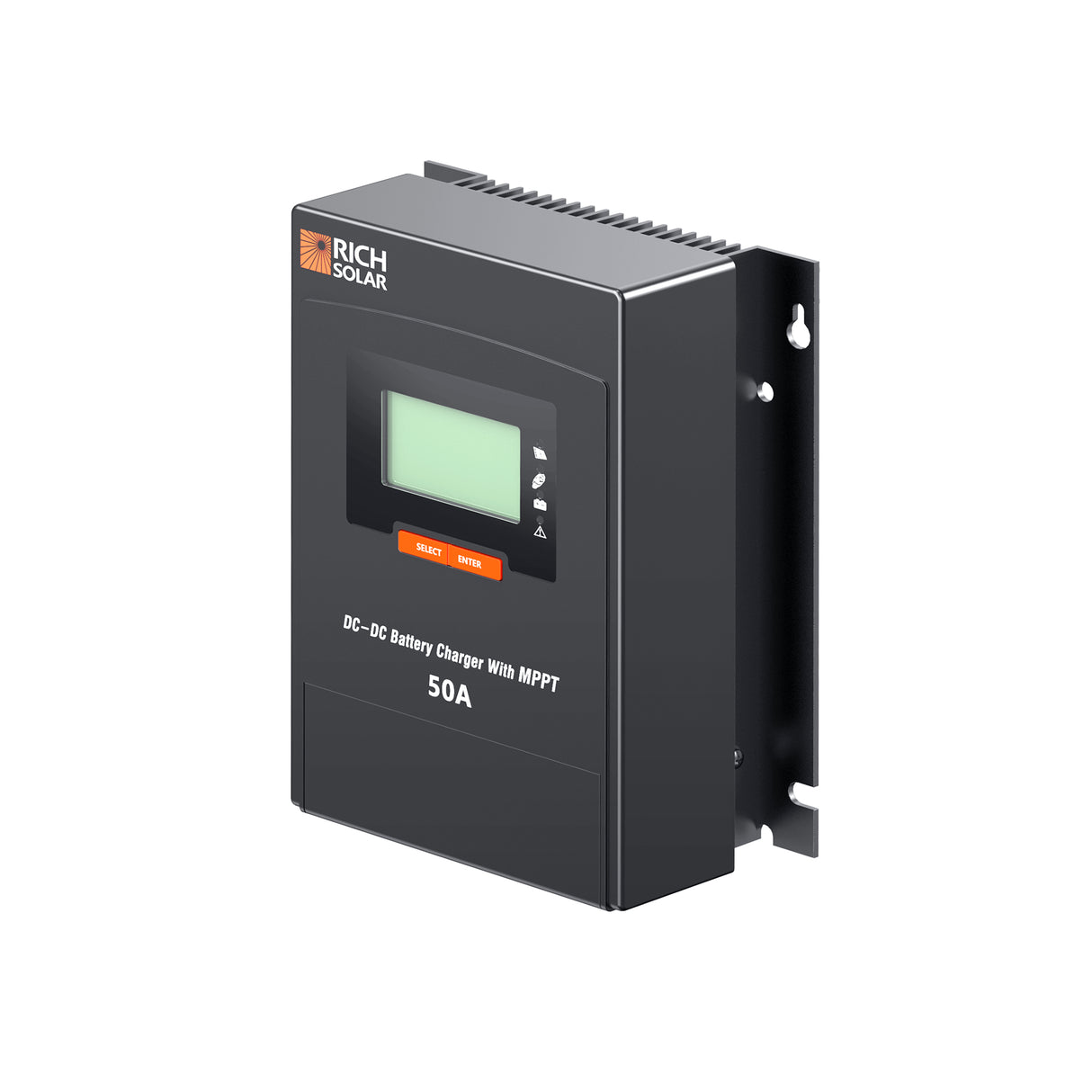

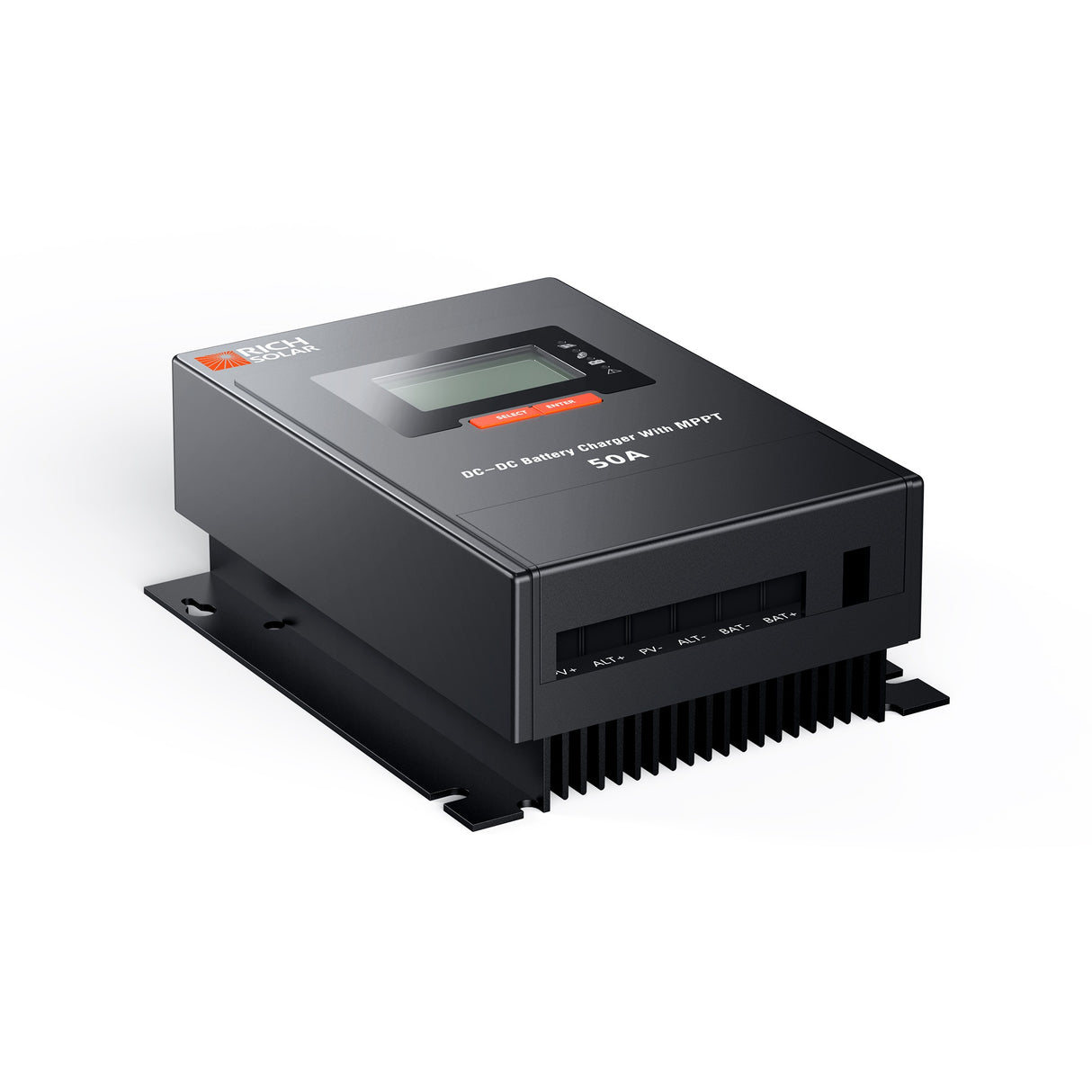

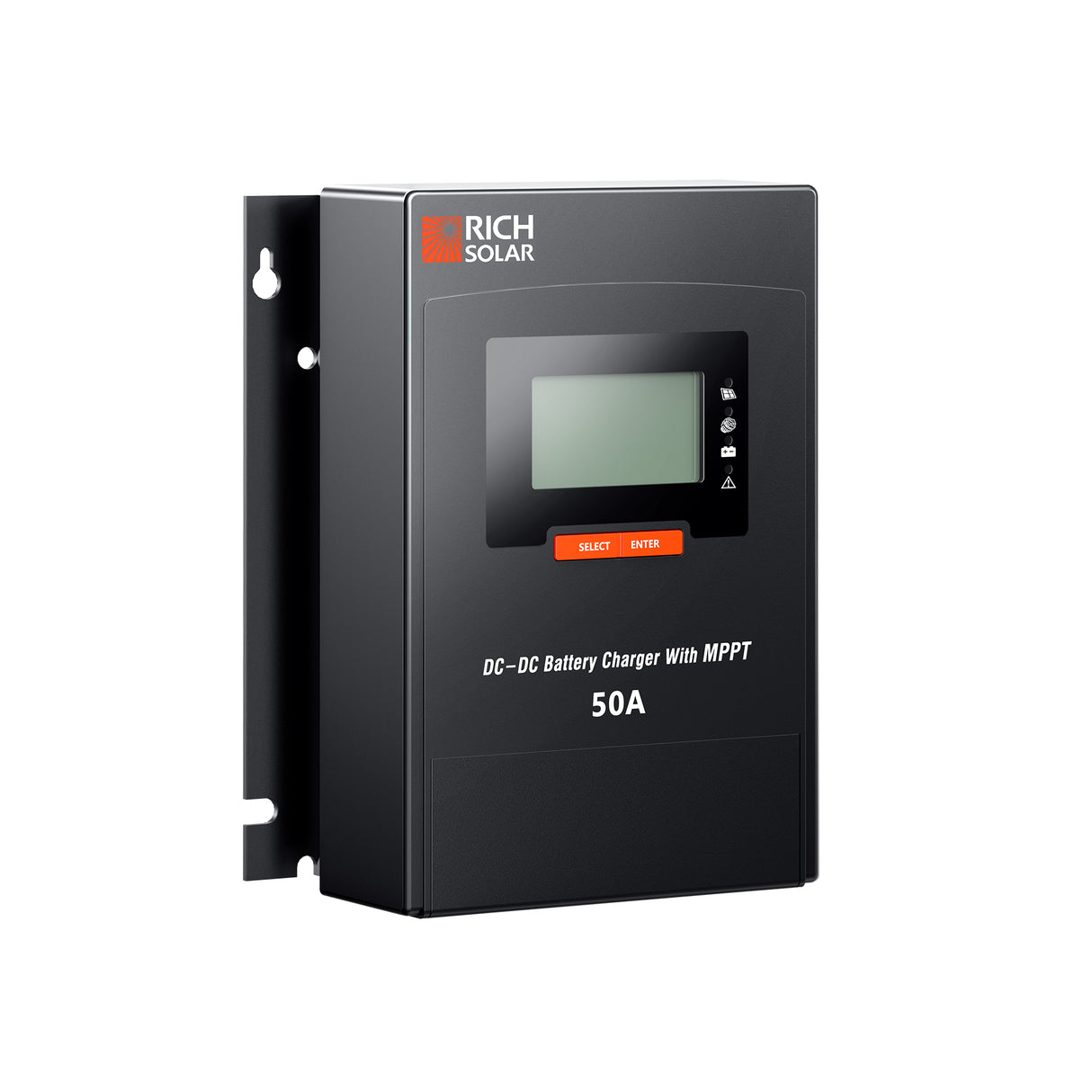

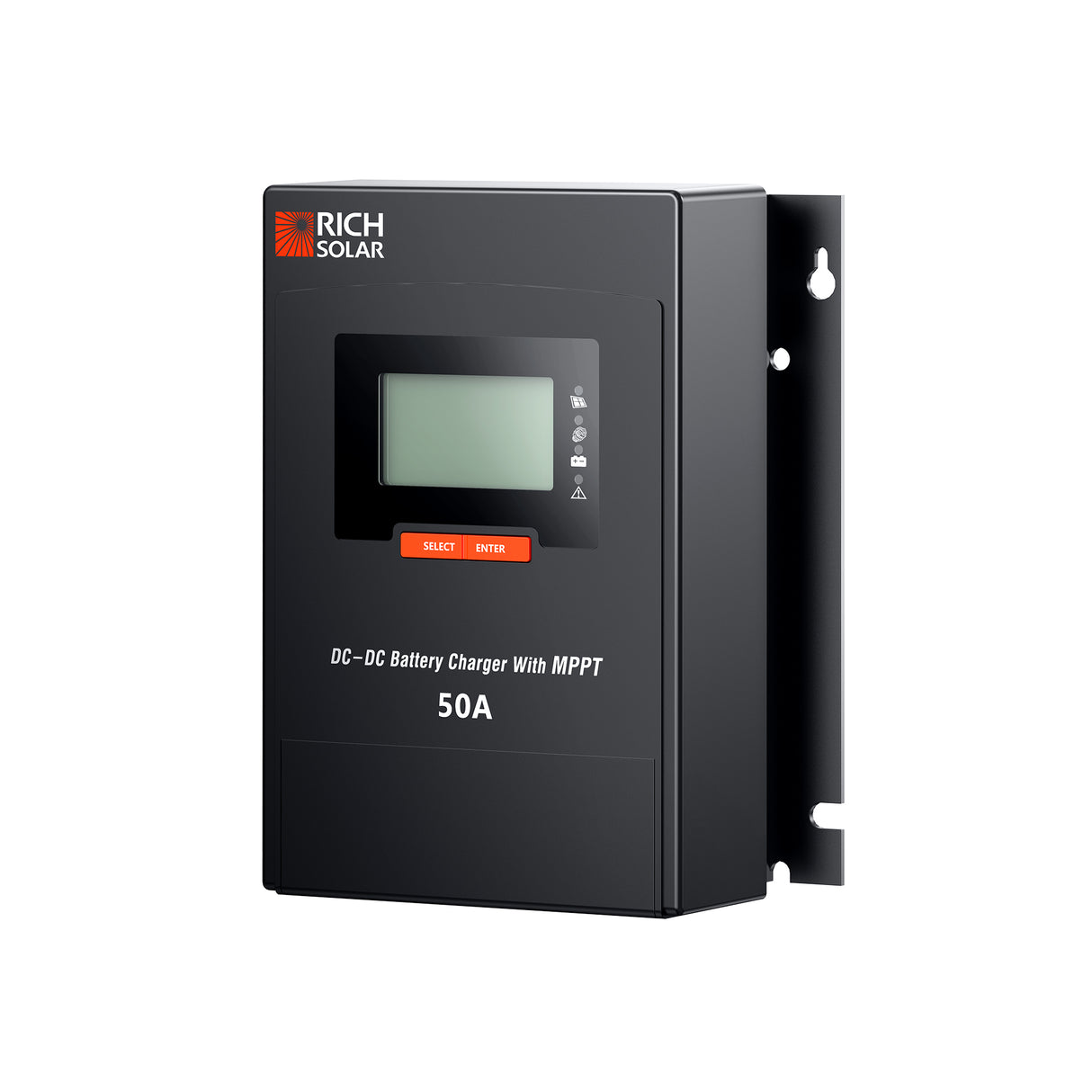

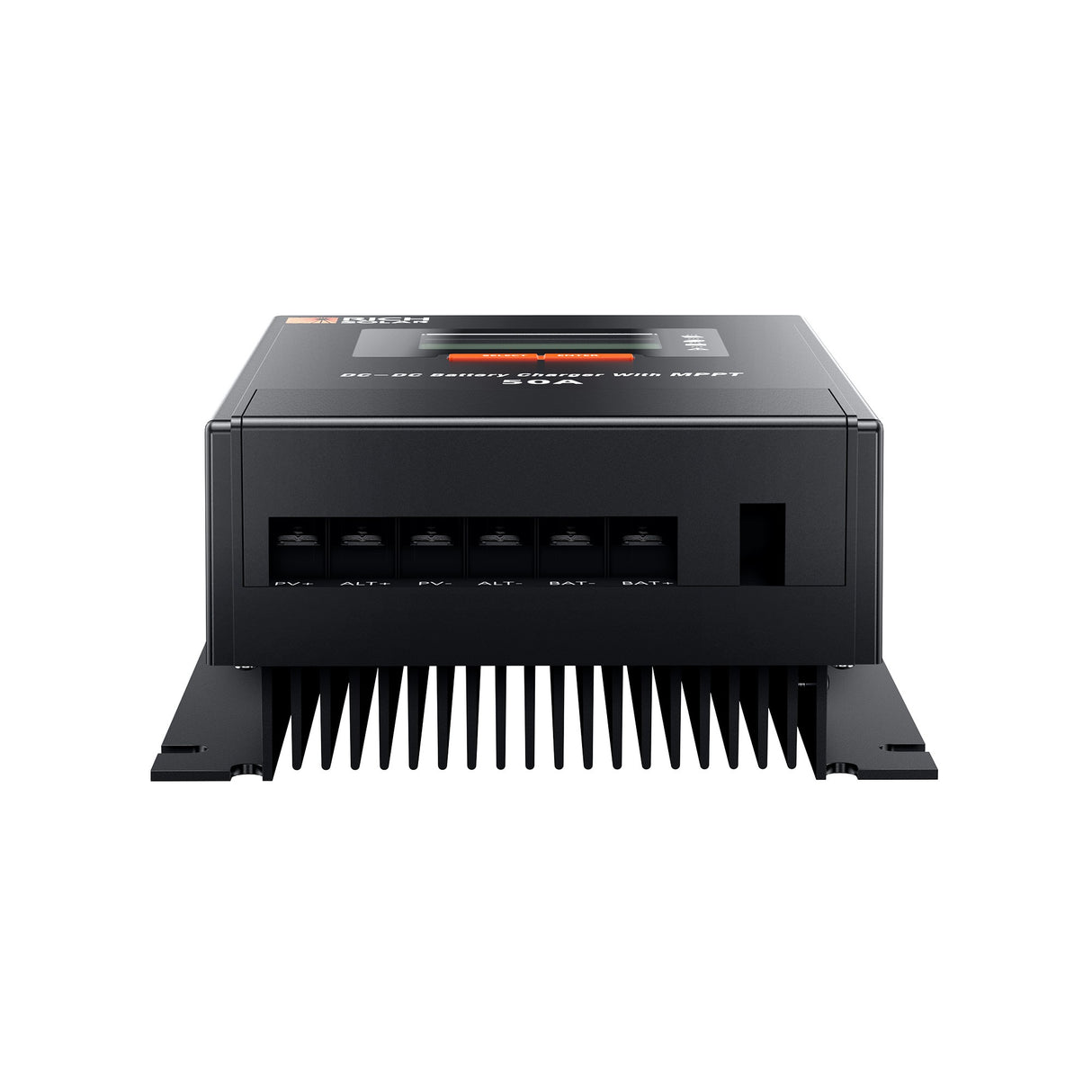

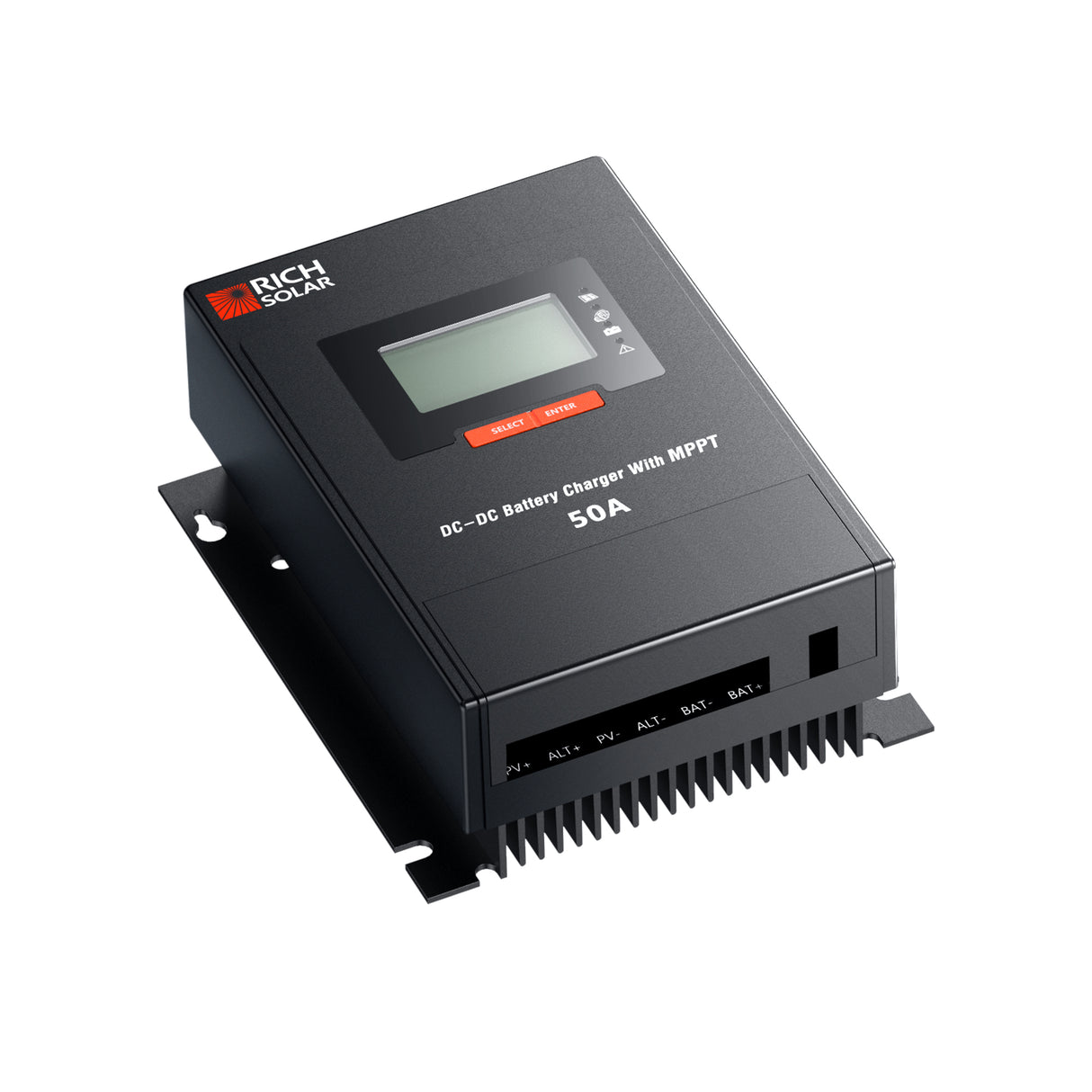

Rich Solar BRAVO 50 DC | 50 Amp DC-DC Solar Charge Controller with MPPT | Premium 50A 12V/24V DC-DC Solar Controller with MPPT

Description

The Rich Solar BRAVO 50 DC is a solar controller designed for efficient 12V battery charging in RVs, boats, and off-grid vehicles. It combines solar and alternator inputs with selectable charging priority to optimize energy harvest.

This controller is built for those who need reliable power management on the move, enabling seamless battery maintenance with its high charging current and broad operating temperature range.

Features

• 50A rated charging current delivers steady power to maintain 12V battery systems efficiently.
• Selectable charging priority between solar and alternator improves energy use based on conditions.
• MPPT efficiency over 99% maximizes solar energy capture for faster charging.
• Supports alternator input up to 65A on 12/24V systems, integrating well with vehicle charging.
• Comprehensive protections guard against overcharge, reverse polarity, overcurrent, and temperature.
• Bluetooth and multiple communication options enable monitoring and system integration.
• Operates reliably across a wide temperature range from -35°C to 65°C for varied environments.

Specifications

• Max. Solar Input: 55V DC / 50A / 800W (recommended)
• MPPT Voltage Range: 17–36V DC
• Alternator Input: 12/24V, 65A max
• Battery System Voltage: 12V (9–16V range)
• Rated Charging Current: 50A
• Efficiency: MPPT: >99%; Conversion: up to 96%
• Communication: Bluetooth, TTL, RS485, CAN (RV-C protocol)
• Protections: Overcharge/current/temperature, reverse polarity
• Operating Temperature: -35°C to +65°C (-31°F to +149°F)
• Dimensions (W×D×H): 221 × 175.8 × 92.4 mm (8.70 × 6.92 × 3.64 in)
• Weight: 2.34 kg (5.16 lb)
• IP Rating: IP32

Downloads

• Download Manual (PDF)
• Download Specification Sheet (PDF)
