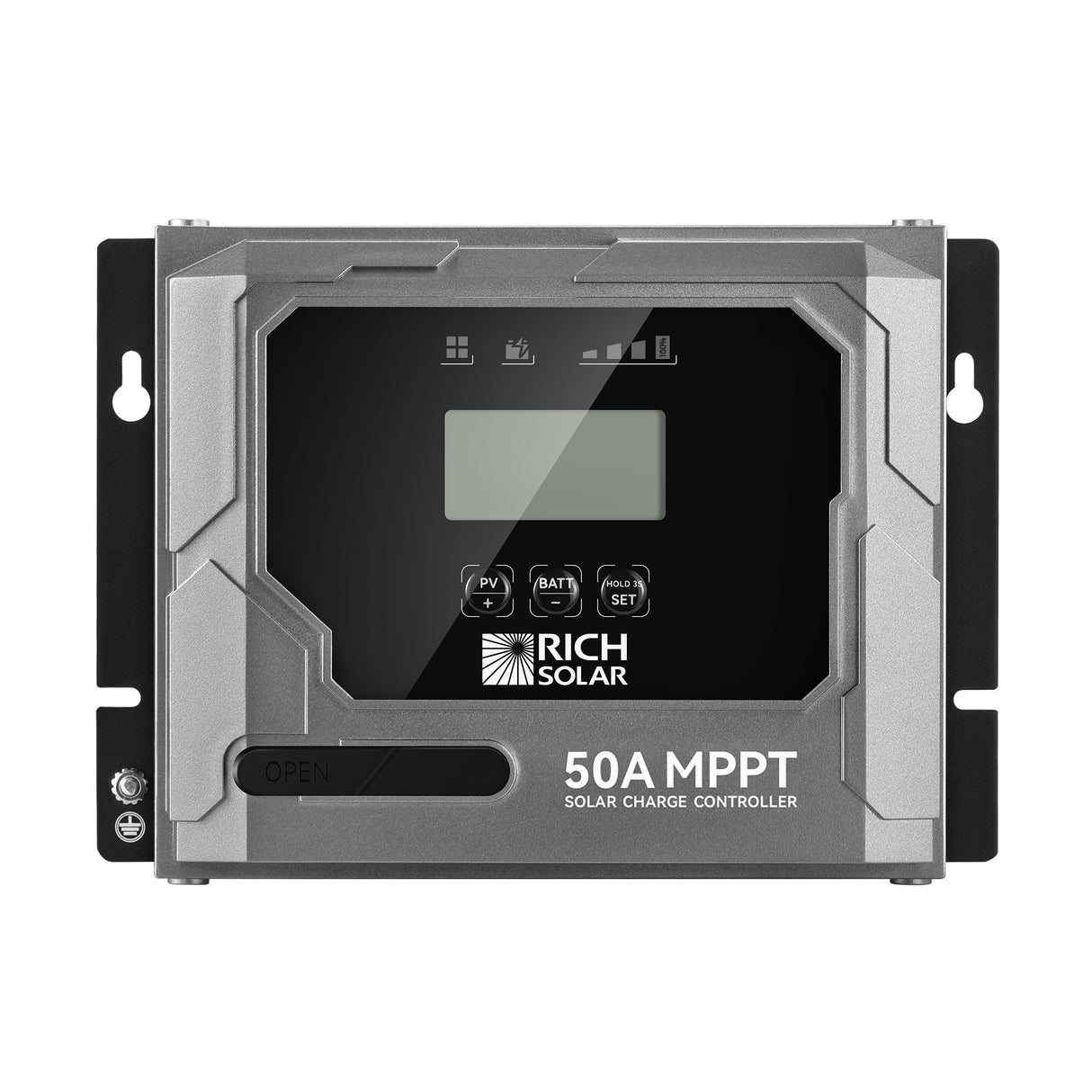

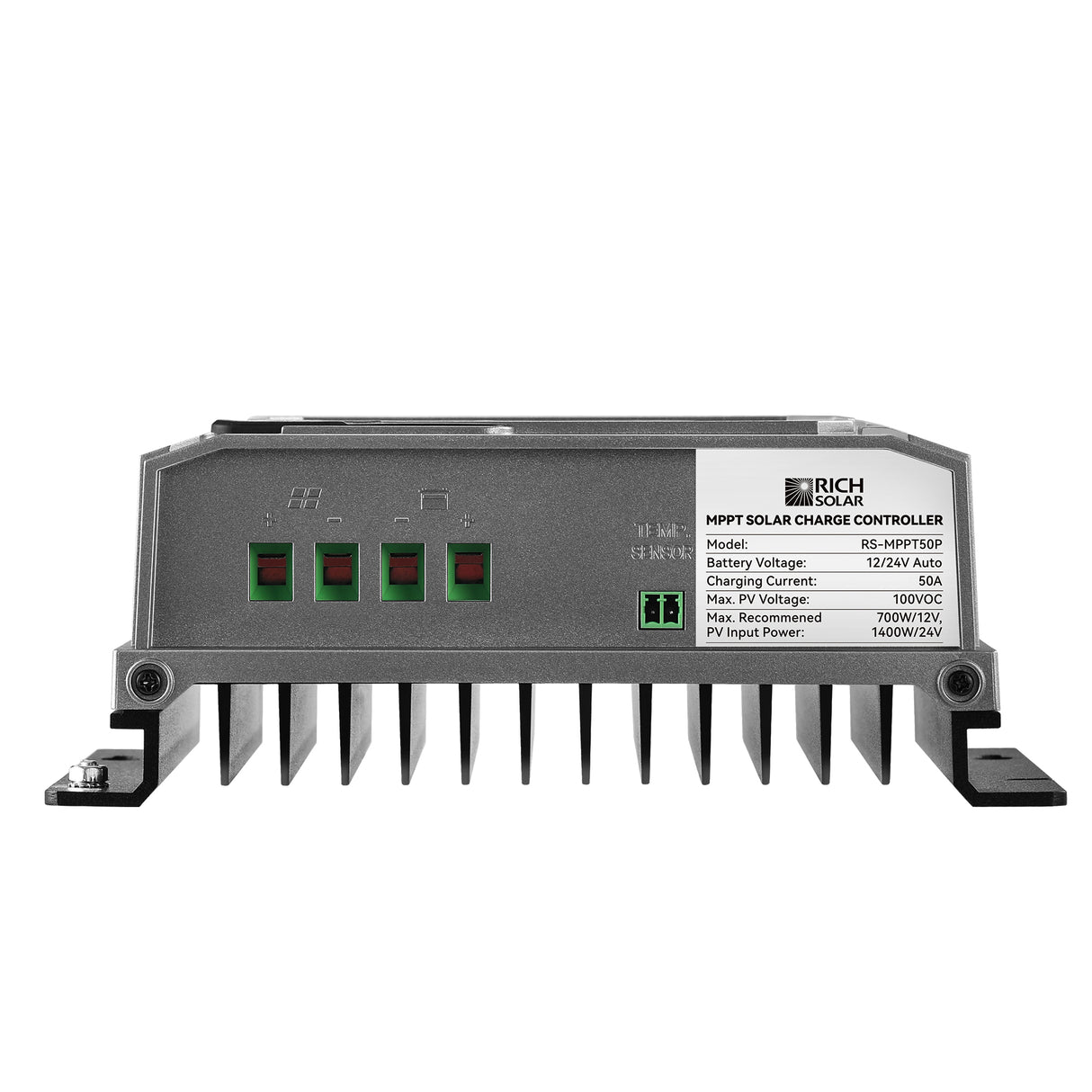

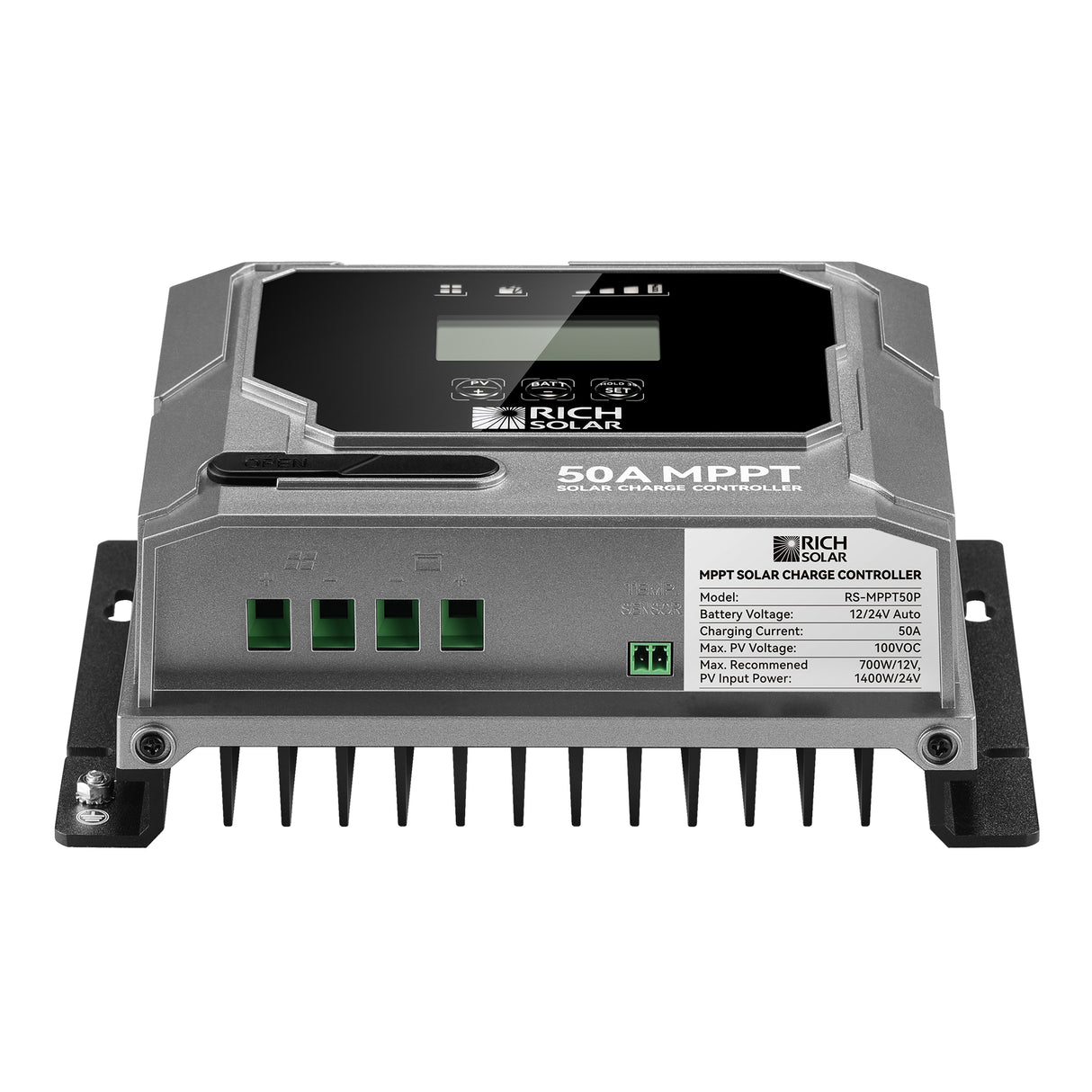

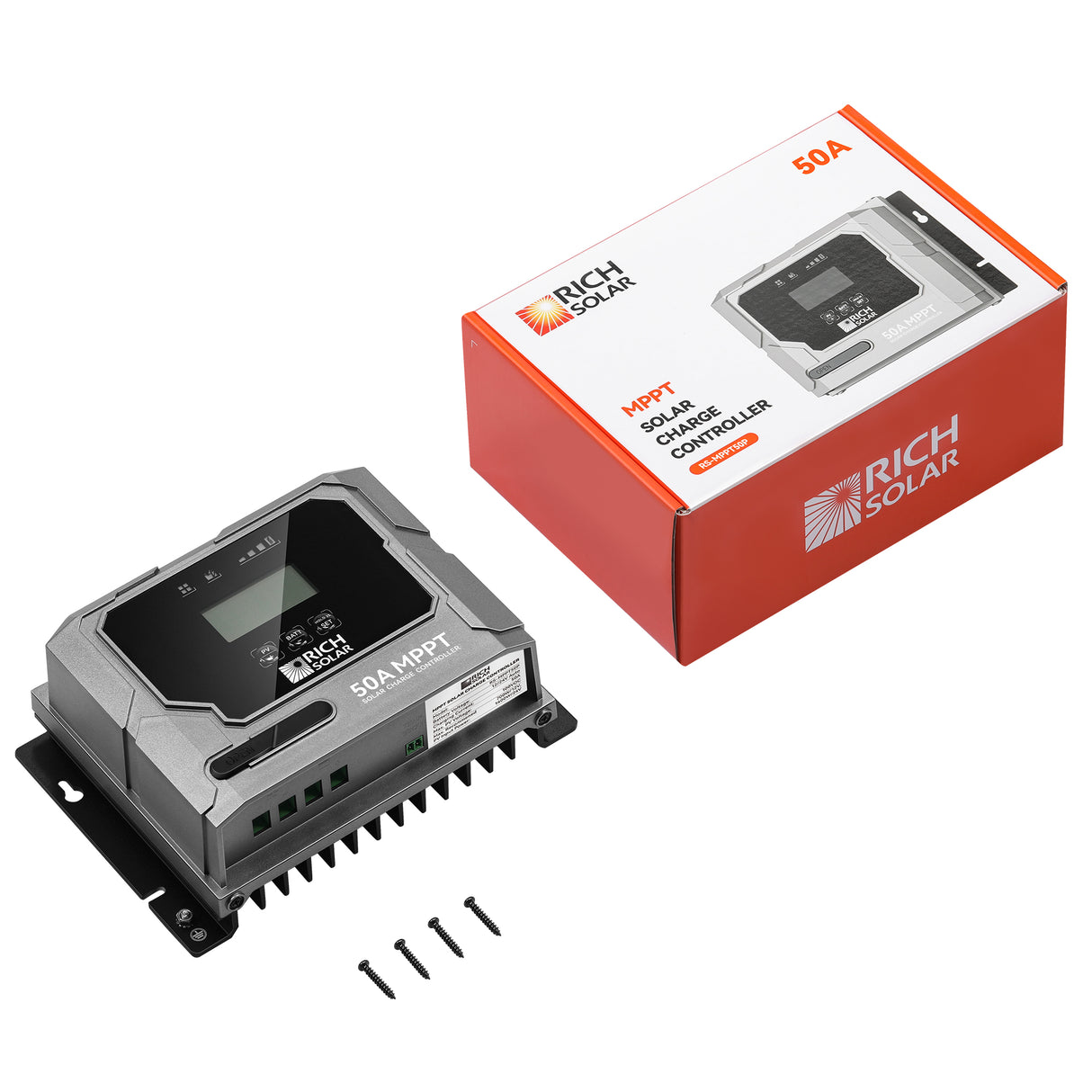

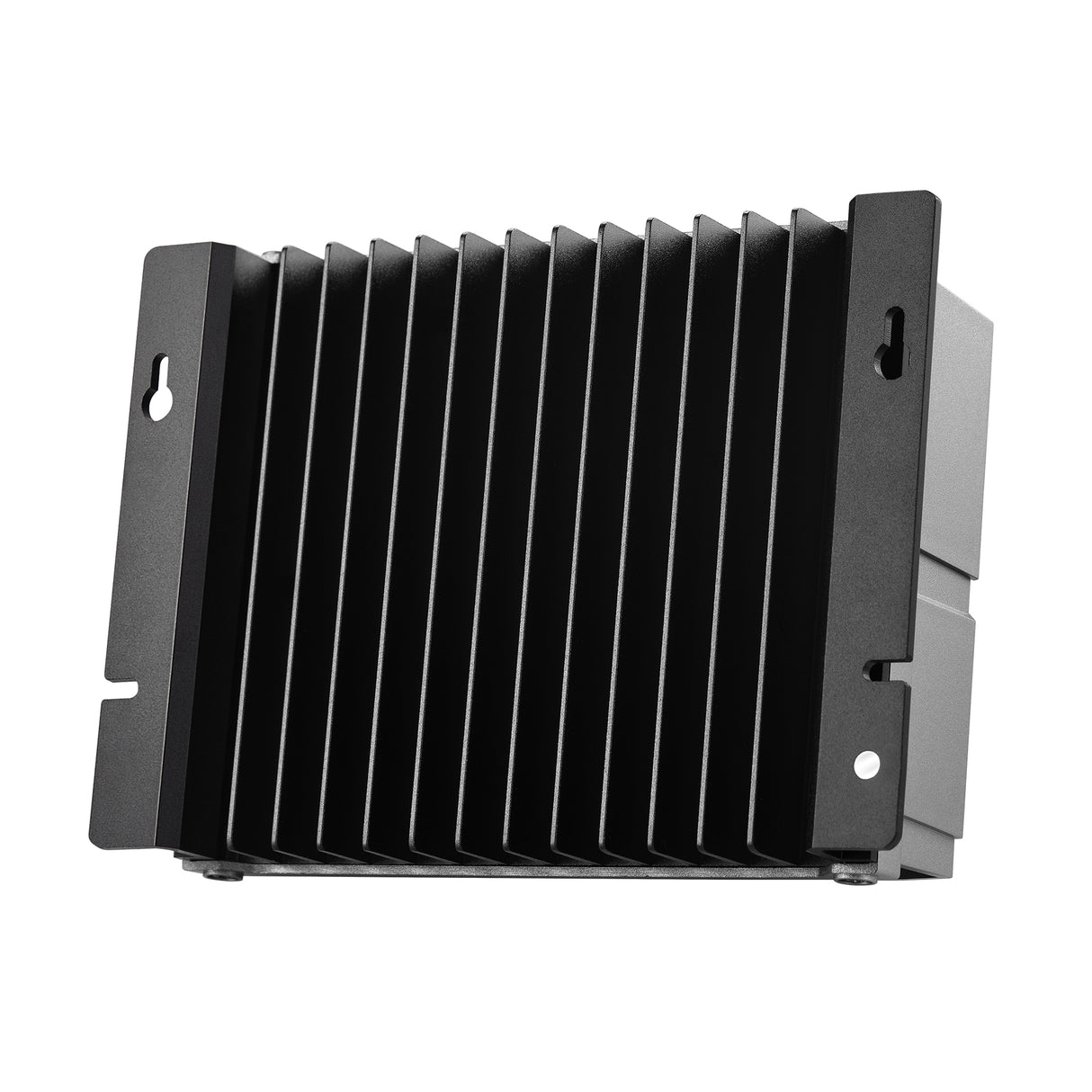

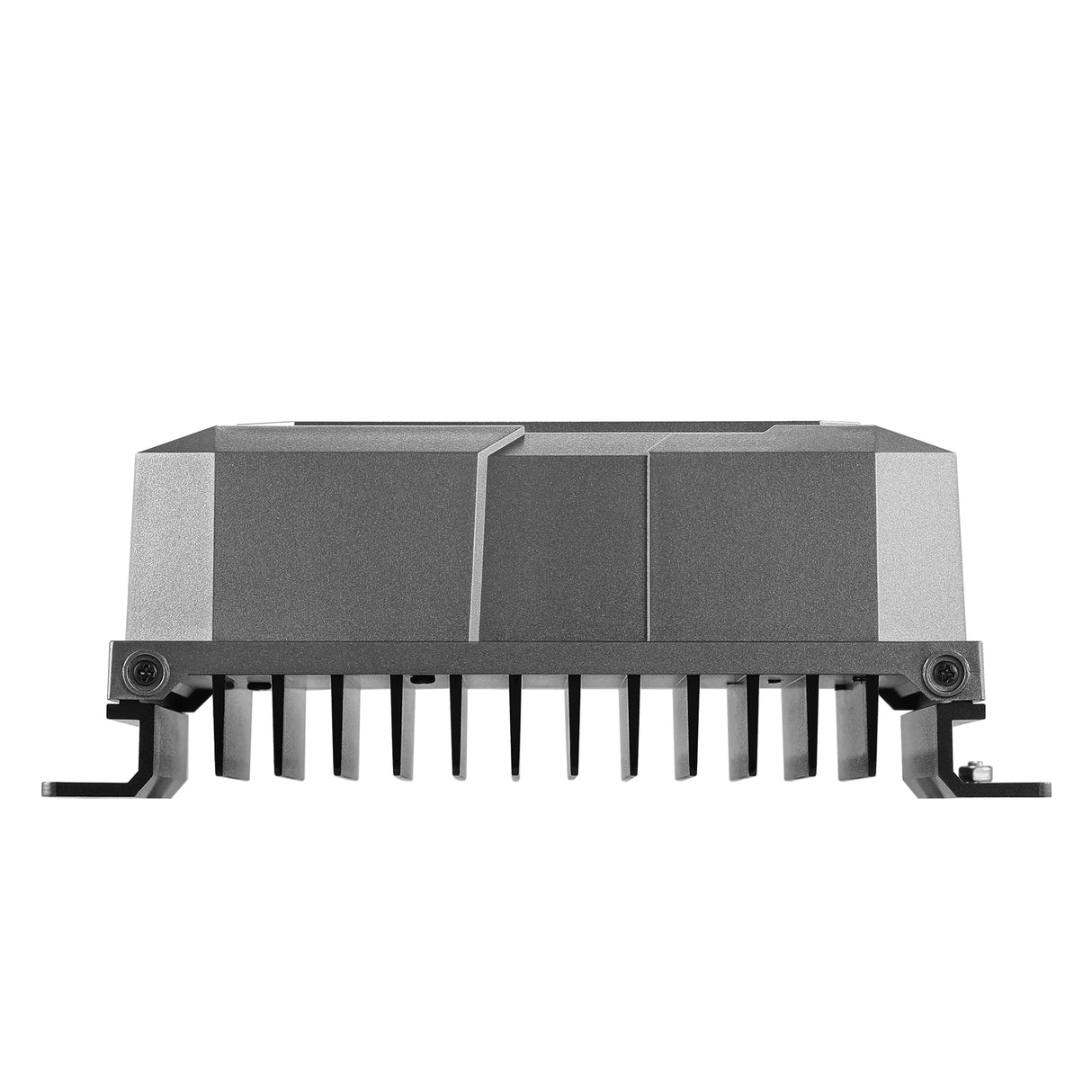

Rich Solar BRAVO 50 | 50 Amp MPPT Solar Charge Controller | Premier 50A 12V/24V MPPT Solar Controller

Description

Rich Solar BRAVO 50 is a high-efficiency MPPT solar charge controller designed for managing 12V and 24V battery systems. This controller features up to 50 amps max charging current and adapts automatically to system voltage, supporting a variety of battery chemistries for reliable off-grid charging.

Built for users who demand accuracy and safety, it enables safe, efficient solar charging whether outfitting RVs, trailers, or small off-grid installations, ensuring stable power delivery across multiple battery types.

Features

• True MPPT
• Tracking Efficiency Above 99.5%
• Charge Conversion Efficiency as High as 98%
• 12V / 24V DC System Self-Adaptation
• Reverse Discharge Protection
• Targeted for Accuracy
• Overvoltage Protection
• Common Negative Connection
• Charging Data Storage
• Conformal Coating for Inside Board
• In-house Design and Manufacture
• Extensive Internal Electronics, In-Circuit Protections, and Safety Protections
• Targeted for Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
• Targeted for Lithium Batteries: LiFePO4, LTO (Lithium Titanate Oxide), LCO Batteries Type Selections

Specifications

• System Nominal Voltage: 12/24V Auto
• Max PV Open Circuit Voltage: 100V DC
• Charging Technology: MPPT
• Max PV Charging Current: 50A
• Max. Recommended PV Input Power: 700 Watt (12V) / 1400 Watt (24V)
• Charge Conversion Efficiency: ≤98%
• MPPT Tracking Efficiency: >99.5%
• Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
• Housing Case Color: Black / Grey
• IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
• Net Weight: 1.40kg / 3.09lb
• Dimensions (L*W*H): 195*140*74 mm / 7.7*5.5*2.9 in

Downloads

• Download Specification Sheet (PDF)
