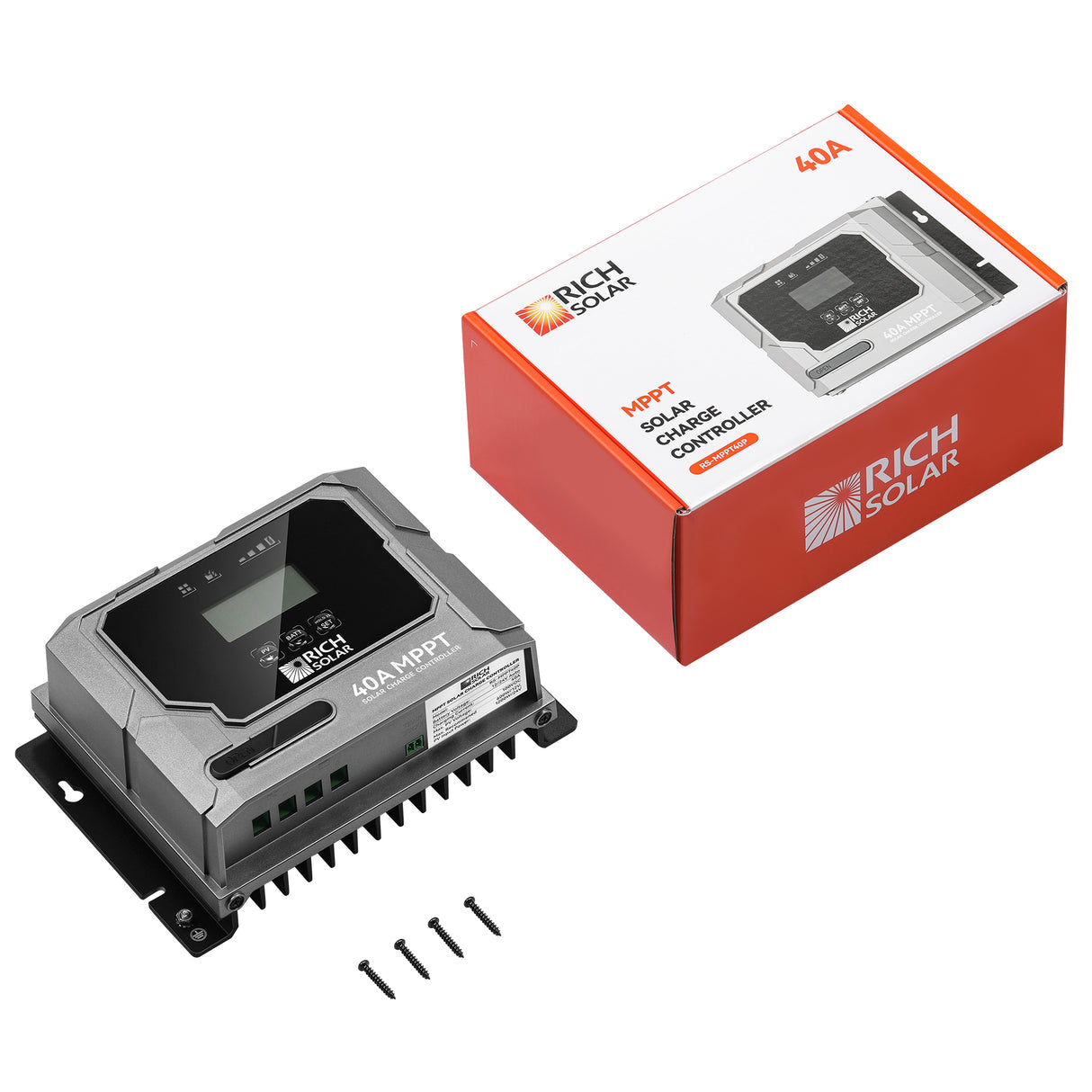

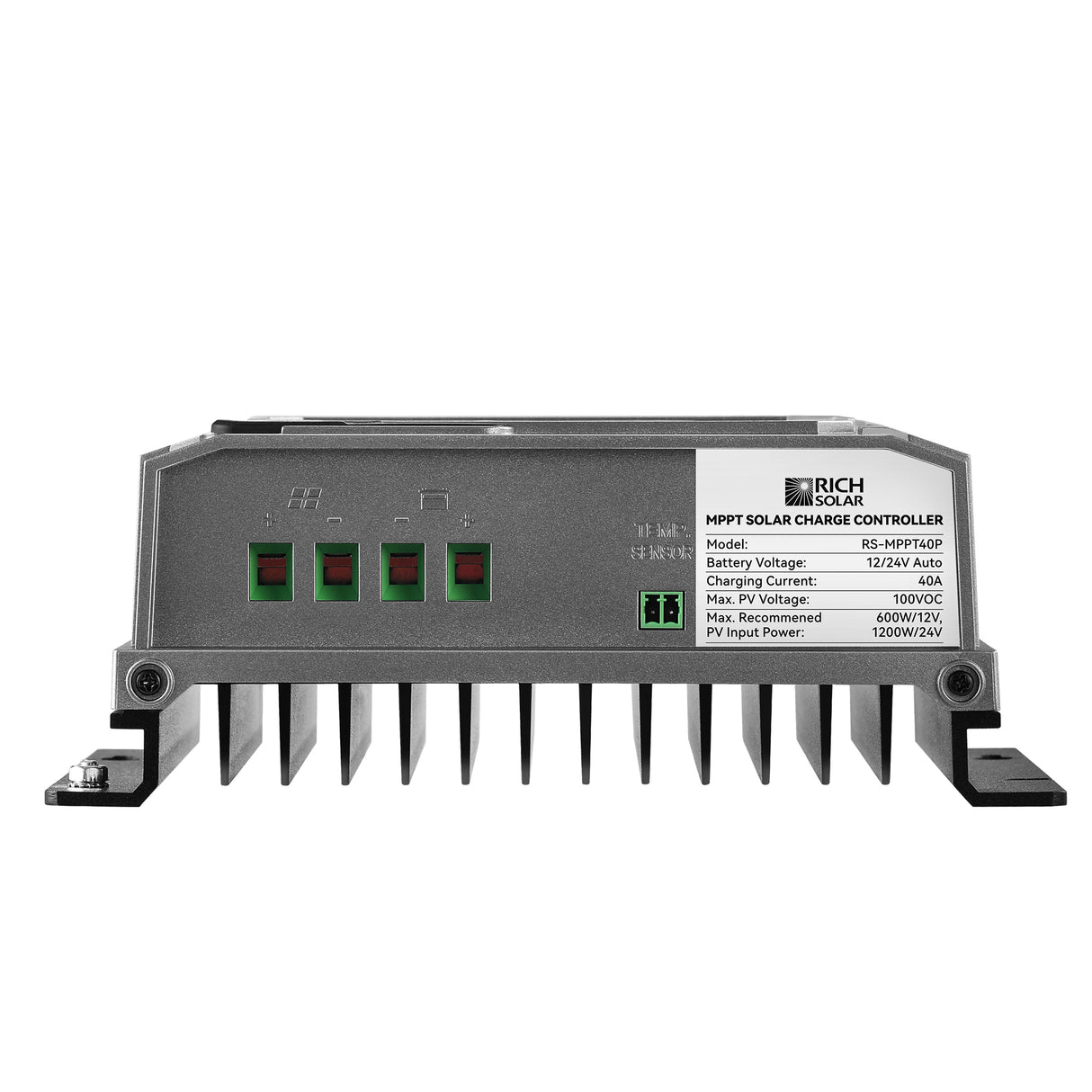

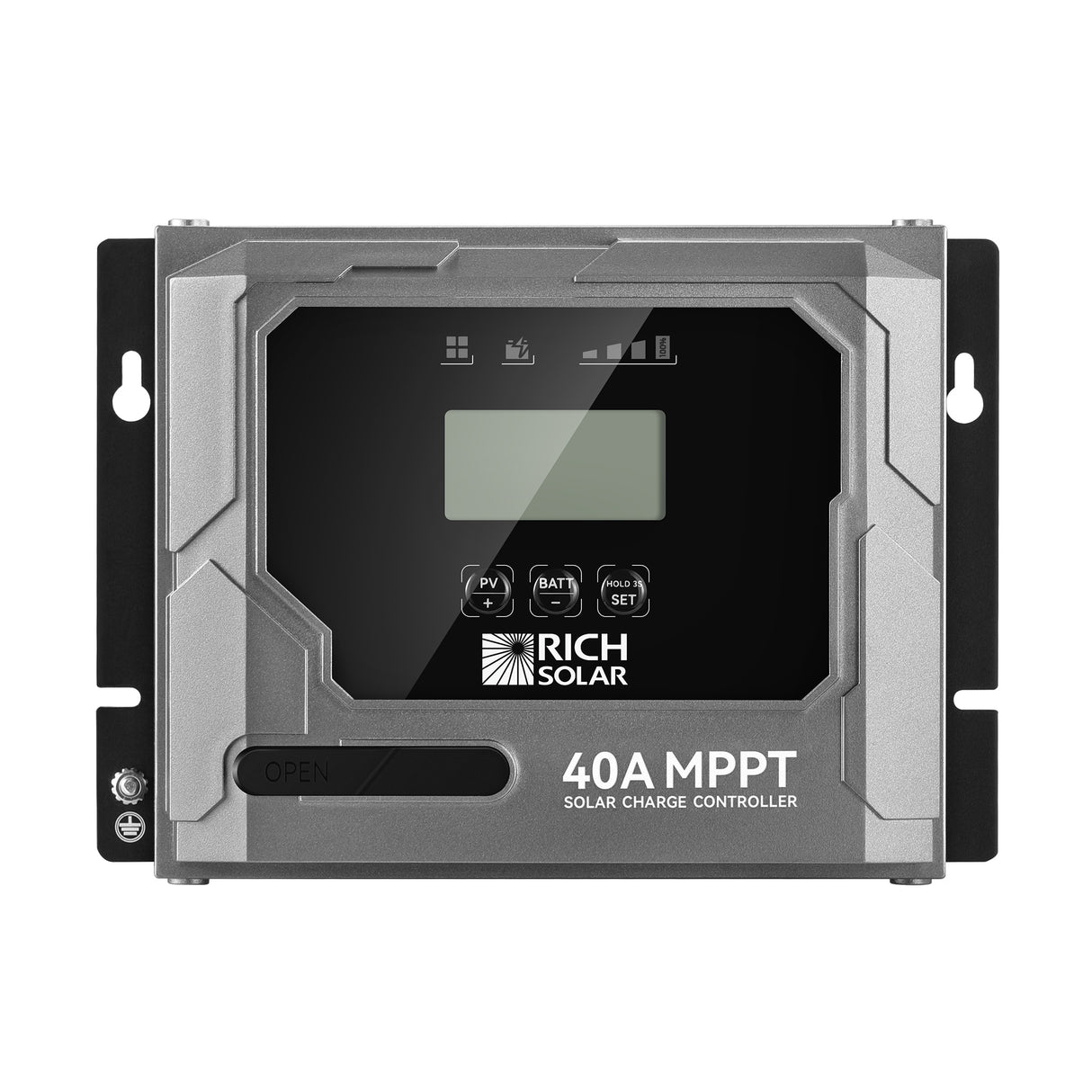

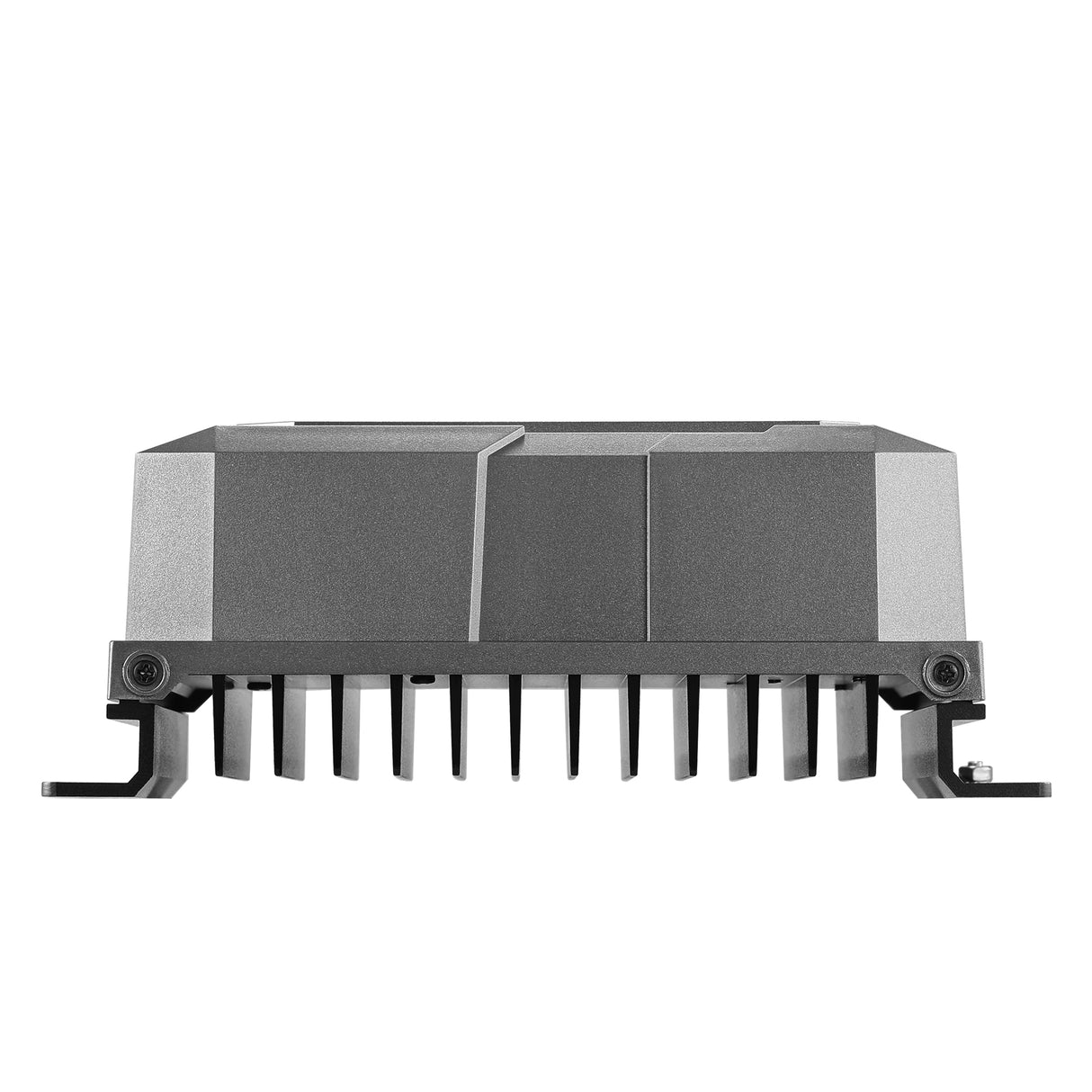

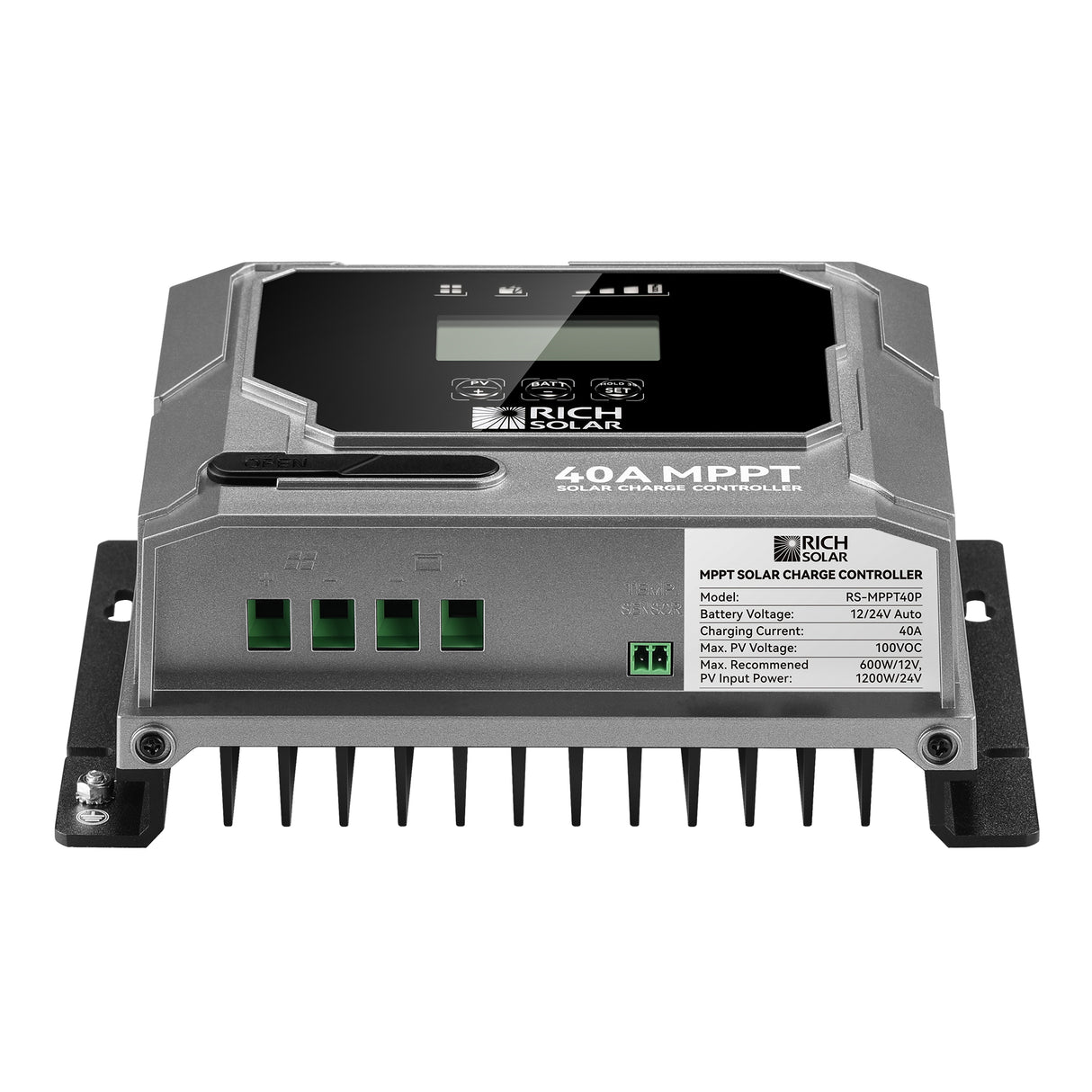

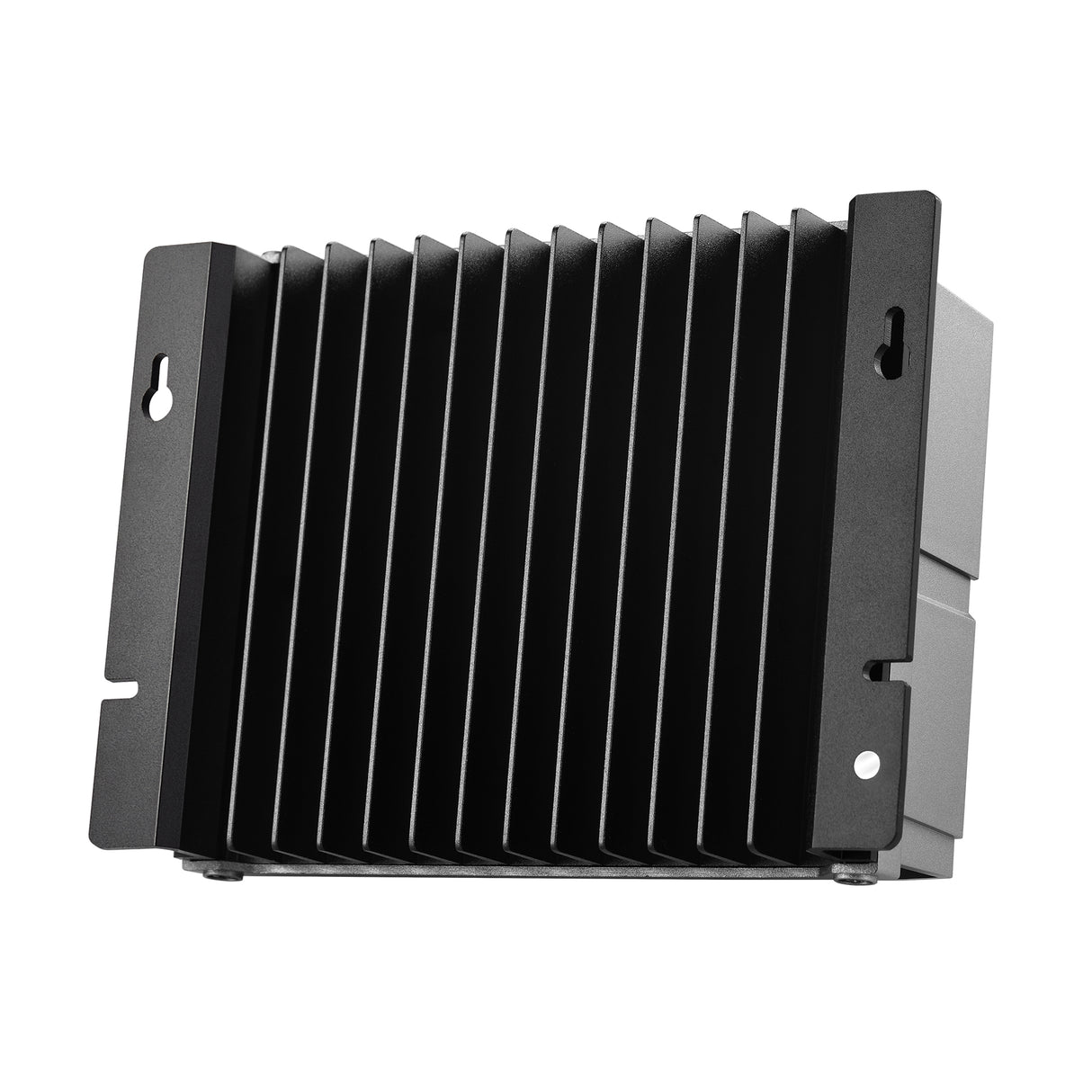

Rich Solar BRAVO 40 | 40 Amp MPPT Solar Charge Controller | Premium 40A 12V/24V MPPT Solar Controller

Description

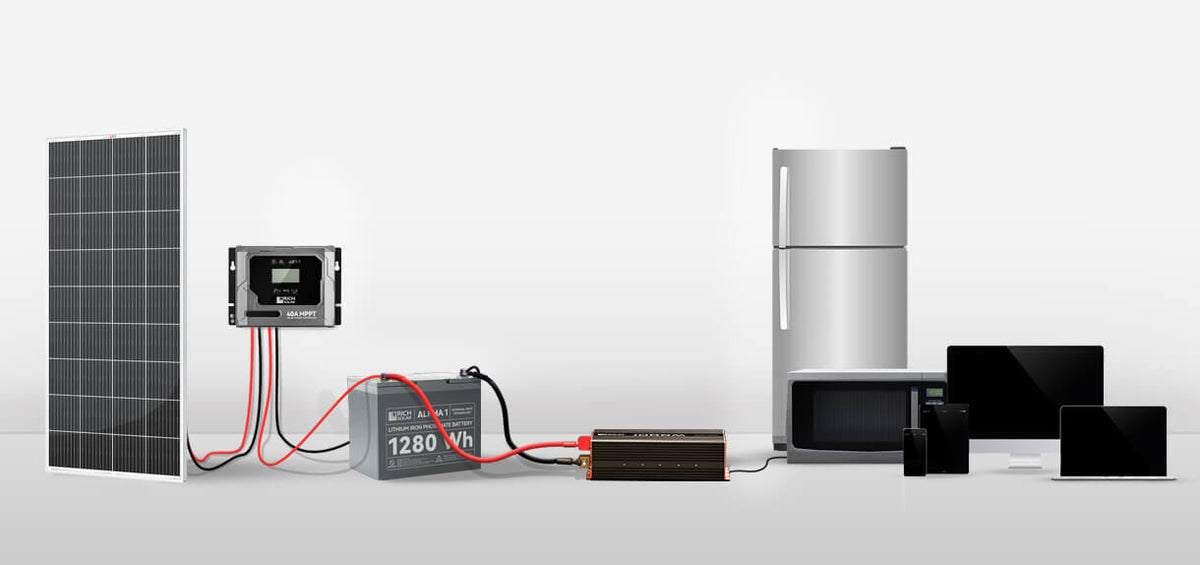

The Rich Solar BRAVO 40 is a controller designed to optimize solar charging for off-grid and mobile setups. Its MPPT technology and up to 40A charging current provide efficient management of 12V or 24V battery banks.

This controller supports multiple battery chemistries including lead acid and lithium types, making it a versatile choice for RVs, campers, boats, and trailers that require reliable and precise charging performance.

Features

• MPPT
• Tracking Efficiency Above 99.5%
• Charge Conversion Efficiency as high as 98%
• 12V/24V DC System Self-Adaptation
• Reverse Discharge Protection
• Targeted for Accuracy
• Overvoltage Protection
• Common Negative Connection
• Charging Data Storage
• Conformal Coating For Inside Board
• In-house Design And Manufacture
• Extensive Internal Electronics, In-Circuit Protections, And Safety Protections
• Targeted For Lead Acid Batteries: Gel, AGM, WET, CRYSTAL, CALCIUM Batteries Type Selections
• Targeted For Lithium Batteries: LiFePO4, LTO (Lithium Titanium Oxide), LCO Batteries Type Selections

Specifications

• System Nominal Voltage: 12/24V Auto
• Max. PV Open Circuit Voltage: 100V DC
• Charging Technology: MPPT
• Max PV Charging Current: 40A
• Max. Recommended PV Input Power: 600 Watt (12V) / 1200 Watt (24V)
• Charge Conversion Efficiency: ≤98%
• MPPT Tracking Efficiency: >99.5%
• Battery Type Preset: Crystal, Gel, AGM, WET, Calcium / LCO, LFP, LTO
• Housing Case Color: Black / Grey
• IP Grade: IP43 for Inside PCBA, IP22 for Connection Area
• Net Weight: 1.17kg / 2.58lb
• Dimensions (L*W*H): 195*142*74 mm / 7.7*5.5*2.9 in

Downloads

• Download Manual (PDF)
• Download Specification Sheet (PDF)
