Rich Solar 48 Volt Complete Offgrid Solar Kit (12.8kW)

Description

Rich Solar’s Complete Off-Grid Solar Kit combines 32 MEGA 400 watt solar panels with a robust battery bank and hybrid inverters tailored for independent power systems. This 13kW complete off grid solar kit offers a balanced design with high-efficiency panels and a 48VDC LiFePO4 battery setup for resilient energy storage.

Ideal for residential and commercial users seeking reliable battery backup and power independence, this system supports continuous loads and integrates easily with high-capacity inverters for versatile off-grid or backup applications.

Features

• 13kW total panel capacity maximizes renewable energy generation while minimizing installation space.
• Four 51.2V 100Ah LiFePO4 batteries provide durable, low-maintenance energy storage with a 10-year lifespan warranty.
• Dual 6.5kW pure sine wave hybrid inverters support clean power output and parallel operation for greater flexibility.
• MPPT solar charge controllers optimize energy harvest from solar input up to 8,000W, ensuring efficient battery charging.
• Robust panel construction with tempered glass and anodized aluminum withstands harsh environments for long-term reliability.
• Battery management system protects against overcharge, over-discharge, and short circuits to maintain system safety.
• Built-in Wi-Fi and multiple communication ports in inverters enable remote monitoring and easy system management.

Specifications

• 32 x MEGA 400 Watt Monocrystalline Solar Panel (RS-M400)

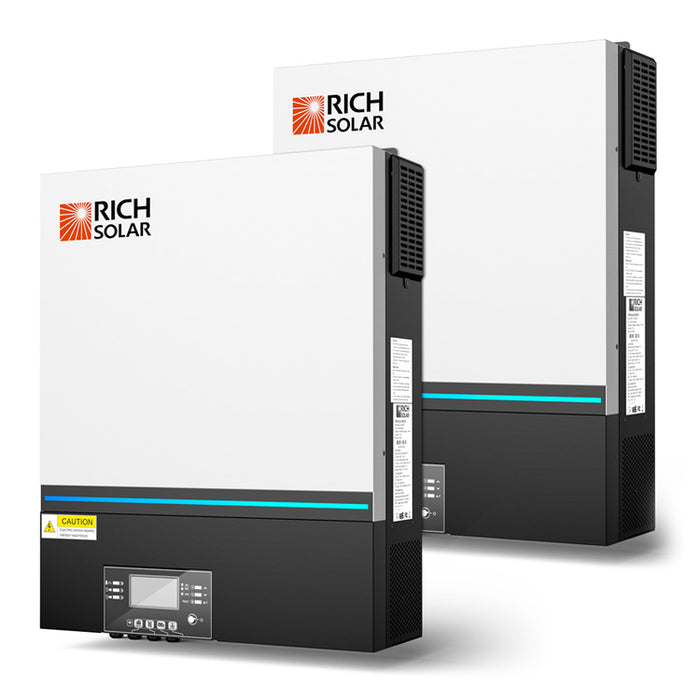

• 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)

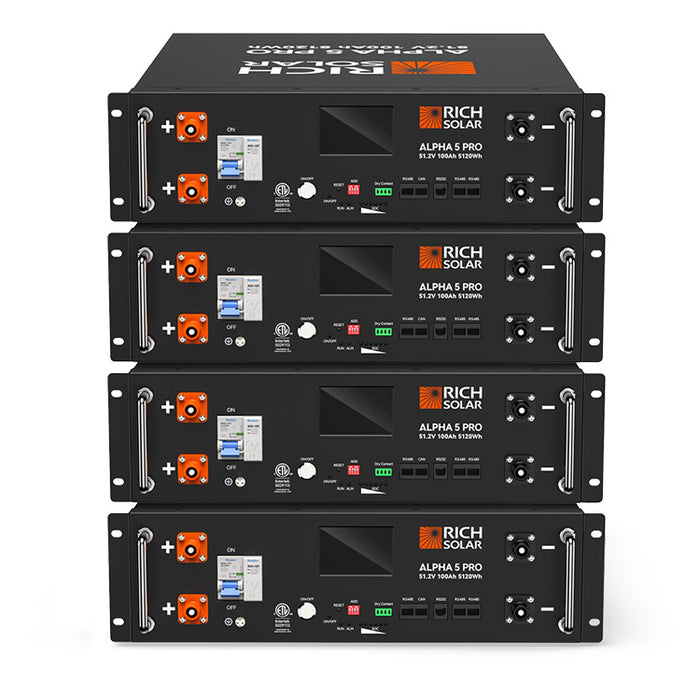

• 4 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P)
• 2 x Solar PV DC Quick Disconnect Switch (RS-i4)
• 2 x Busbar 600 AMP
• 4 x 4 Foot 2/0 Gauge AWG Wire Set 3/8"
• 8 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)
• 4 x 10 Gauge 30 Feet Solar Extension Cable (RS-30102-T2)
• 1 x Free Battery Rack

Downloads

• Download Manual (PDF)
• Download Specification Sheet (PDF)
