Rich Solar 48 Volt Complete Offgrid Solar Kit (12.3kW)

Description

Rich Solar's Complete Off-Grid Solar Kit delivers a 13kW complete off grid solar kit solution designed for reliable, long-term renewable power. This system integrates 30 high-efficiency MEGA 410 solar panels with advanced lithium iron phosphate batteries and dual 6.5kW off-grid hybrid inverters for 120/240V output.

Ideal for users seeking independence from the grid, this kit balances robust energy generation with flexible battery storage to power residential, agricultural, or commercial sites with sustained backup capability.

Features

• Thirty 410W mono PERC solar panels maximize power within a minimized footprint for efficient off-grid setups.
• Four ALPHA 5 PRO 51.2V 100Ah LiFePO4 batteries deliver low-maintenance, high-cycle life energy storage with advanced protections.
• Two 6.5kW pure sine wave off-grid hybrid inverters offer stable 120 VAC output and support parallel operation for system scalability.
• Integrated MPPT solar chargers optimize panel output and enable flexible energy management across varying conditions.
• Robust construction and wide temperature range ensure reliable performance in challenging environments.
• Advanced battery management system (BMS) safeguards against overcharge, over-discharge, and overcurrent scenarios.
• System components include accessories for streamlined installation and wireless monitoring for real-time system data.

Specifications

• 30 x MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)

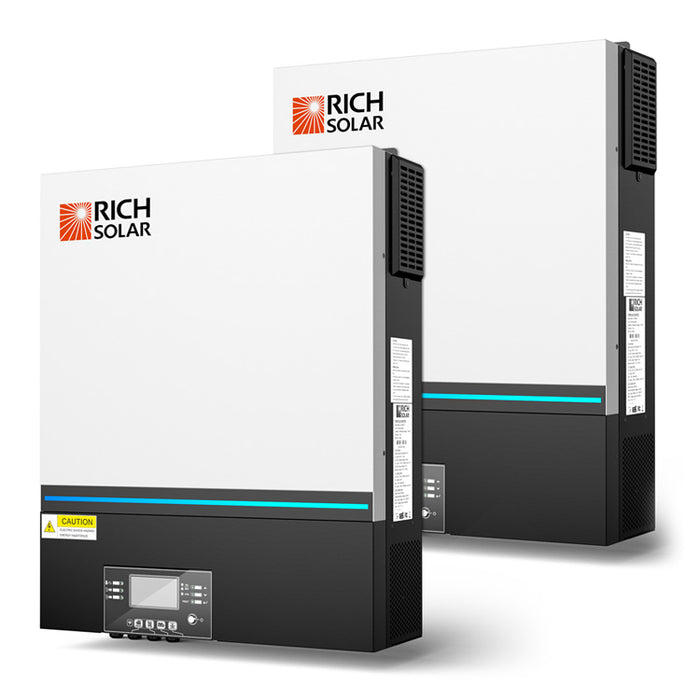

• 2 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)

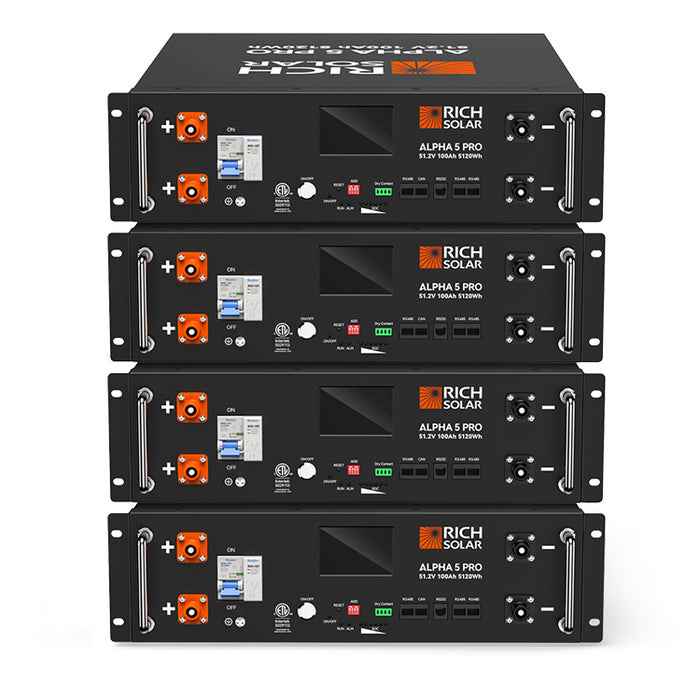

• 4 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P)
• 2 x Solar PV DC Quick Disconnect Switch (RS-i4)
• 2 x Busbar 600 AMP
• 4 x 4 Foot 2/0 Gauge AWG Wire Set 3/8"
• 8 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)
• 4 x 10 Gauge 30 Feet Solar Extension Cable (RS-30102-T2)
• 1 x Free Battery Rack

Downloads

• Download Manual (PDF)
• Download Specification Sheet (PDF)
