Description

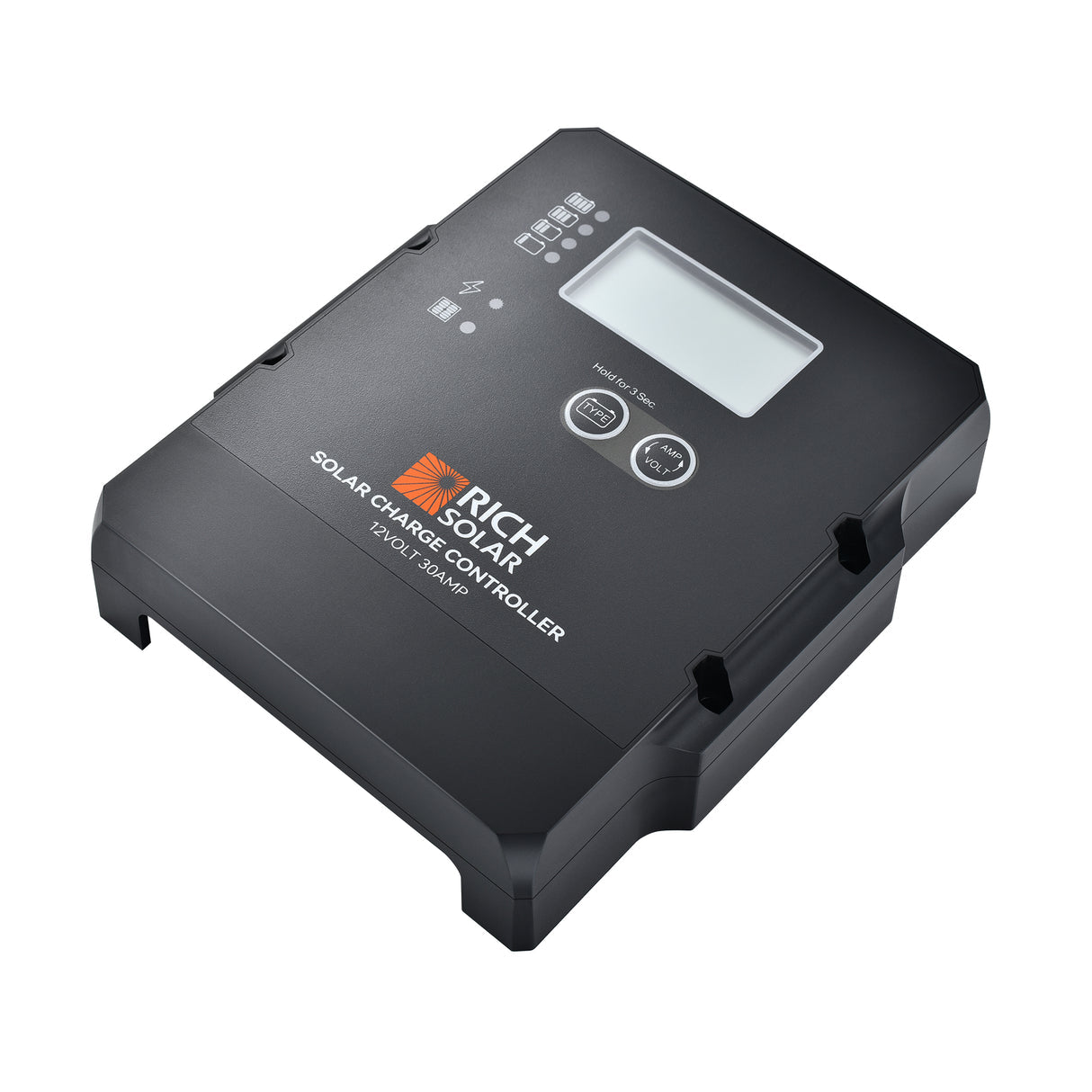

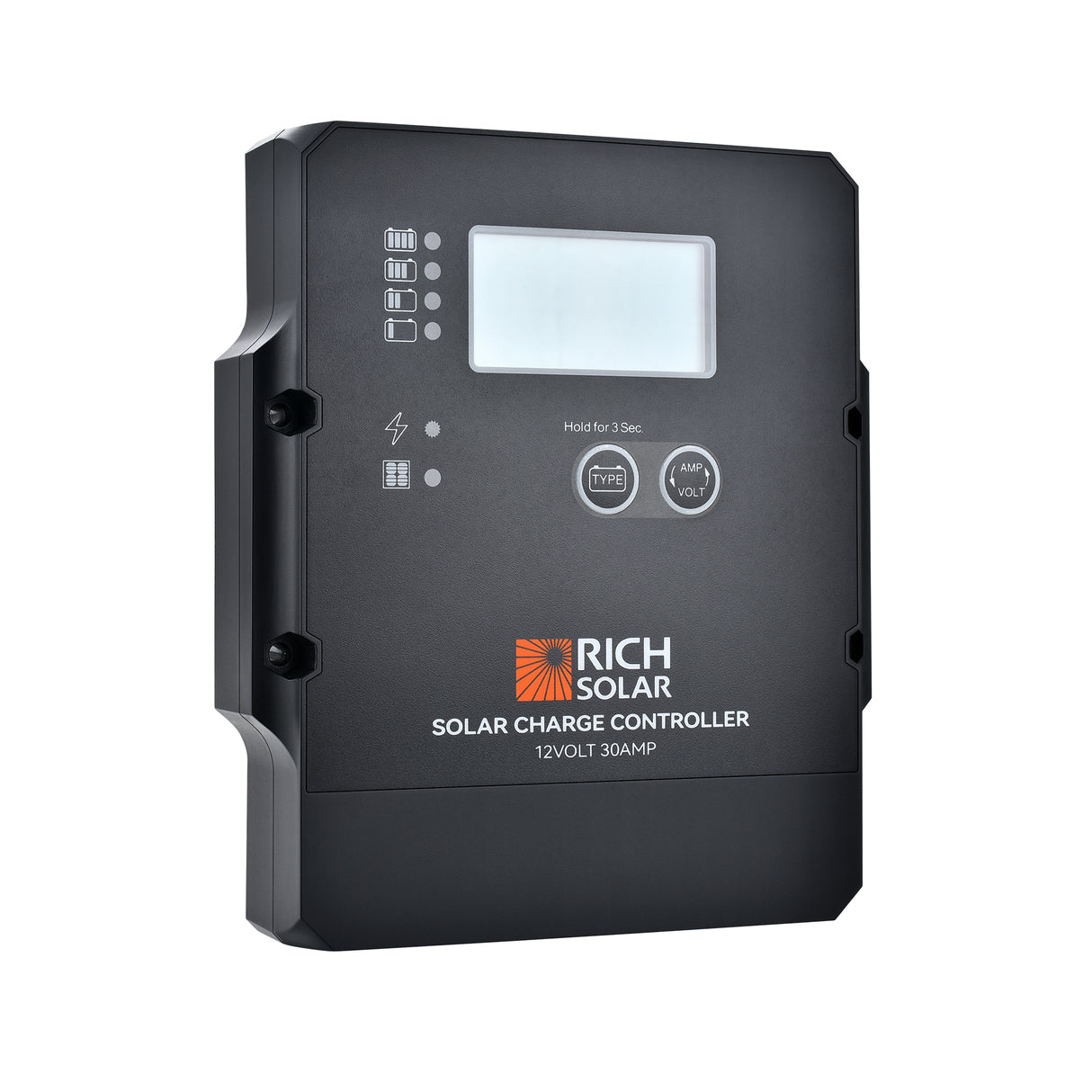

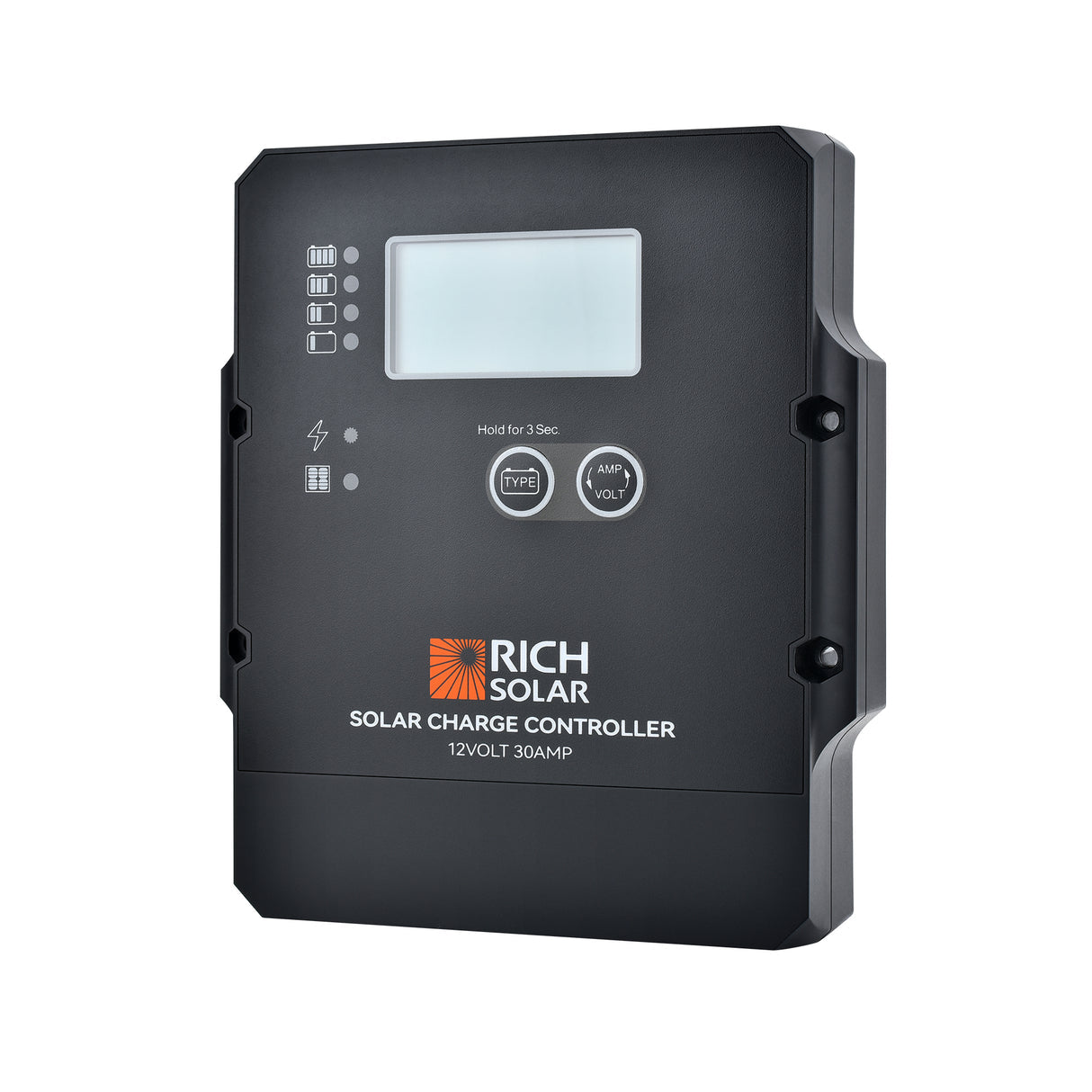

Rich Solar's 30 Amp PWM Solar Charge Controller is a reliable controller designed for off-grid and mobile applications. This controller focuses on efficient battery charging with a low power draw, supporting up to 30 amps of solar panel current.

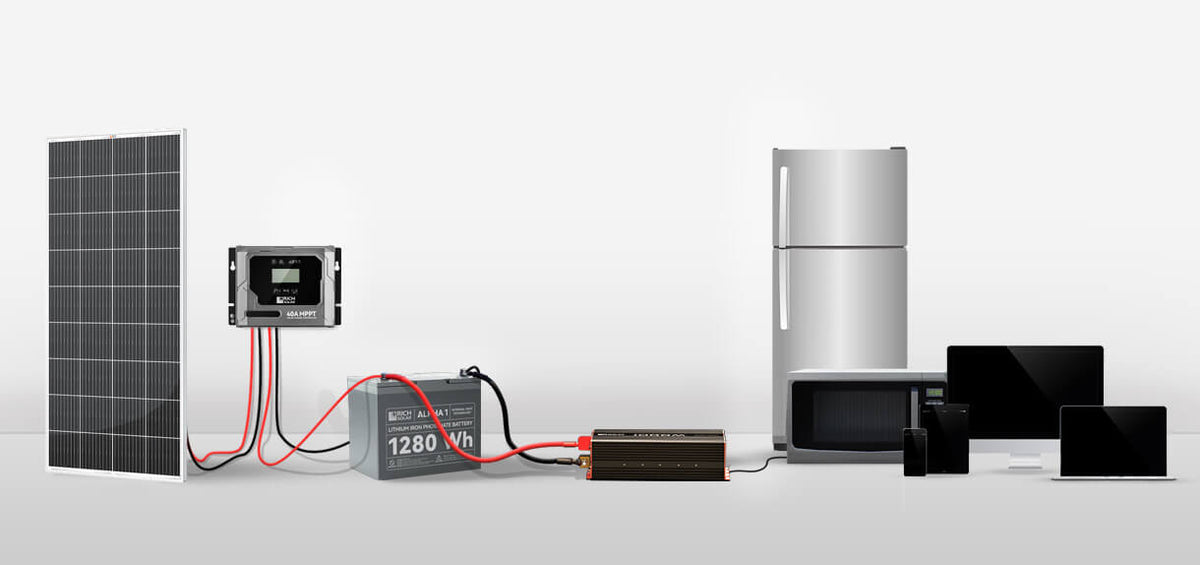

Engineered for RVs, campers, boats, and trailers, it offers controlled charging while protecting battery health and prolonging system life.
Features
- PWM technology, switching control by MOSFET
- Common positive grounding connection
- High efficiency and low power consumption
- Battery type setting and battery condition indication
- Smart charging control
- Charging time management
- LED indication for the battery condition and charging status
- Digital display charging parameters and battery settings
- Automatically activates Lithium battery against BMS protection
- Thermal protection
- Over voltage protection, short-circuit protection, reverse polarity protection
- No sparks
- The thinnest and most compact design
- Corrosion-resistant terminals and connectors
- Conformal coating supplied to the inside board against moisture
- Includes a port for external battery temperature sensor (BTS - optional)
- Compatible with most rechargeable lead acid
- batteries, including Flooded (WET), AGM, GEL, Calcium and Lithium batteries
- Designed to meet CE standards and comply with EMC and FCC regulations
Specifications
-
Electrical Parameters
- Rated Solar Panel Amps: Max. 30 AMP
- Normal Input Solar Cell Array Voltage: 15~22 VDC
- Maximum Solar Cell Array Voltage (output has no load): Max. 25 VDC
- The Controller Lowest Operating Voltage at Solar or Battery Side: Min. 8 VDC
- Standby Current Consumption at Night: Max. 5 mA
- Maximum Voltage Drop - Solar Panel to Battery: Max. 0.25 VDC
-
Physical Parameters
- Controller Material: Plastic, Standard ABS

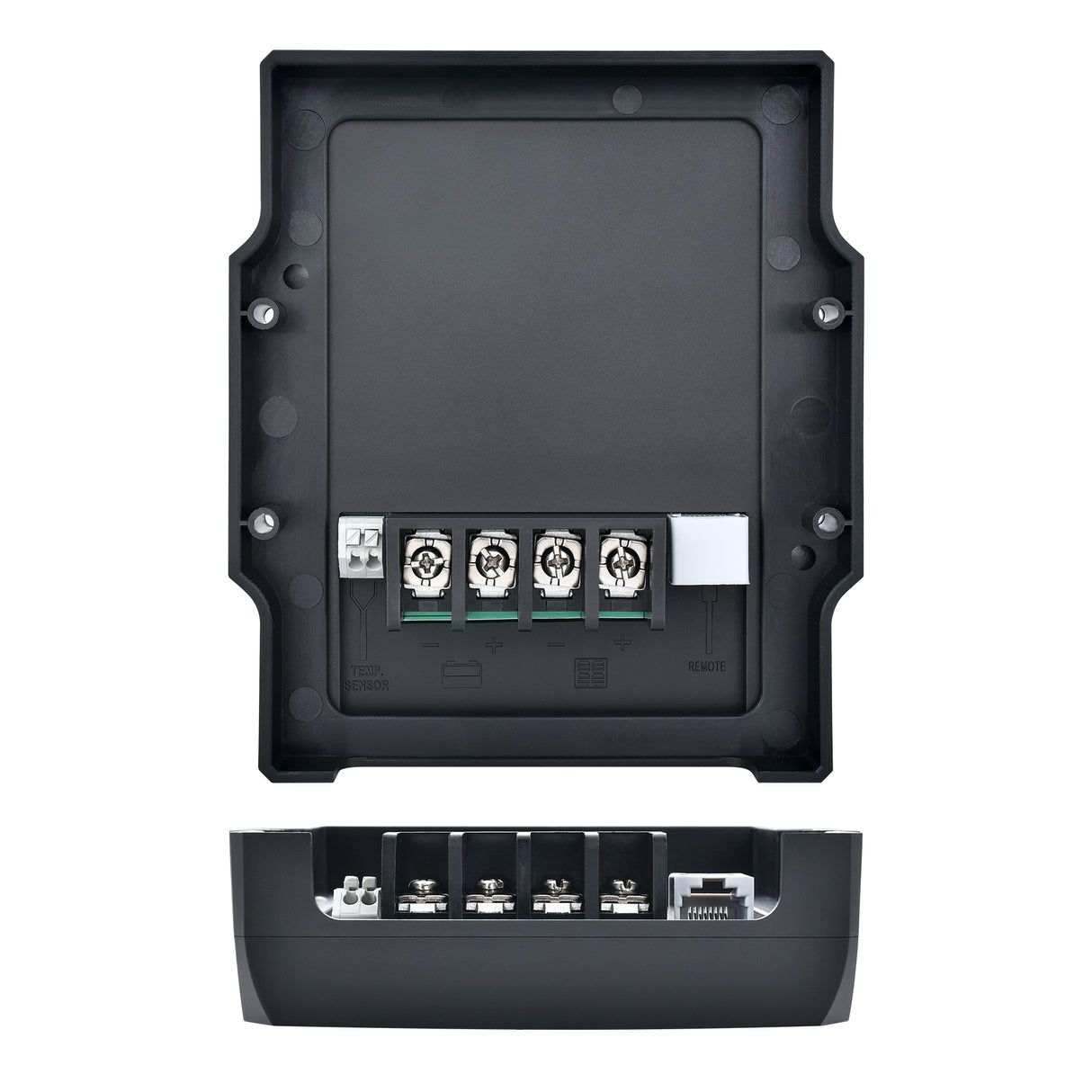

- Power Terminal Maximum Stranded Wire Size: #8 AWG stranded - 0.2in²
- Power Terminal Torque: Up to 17 in-lb (1.92 N·m)

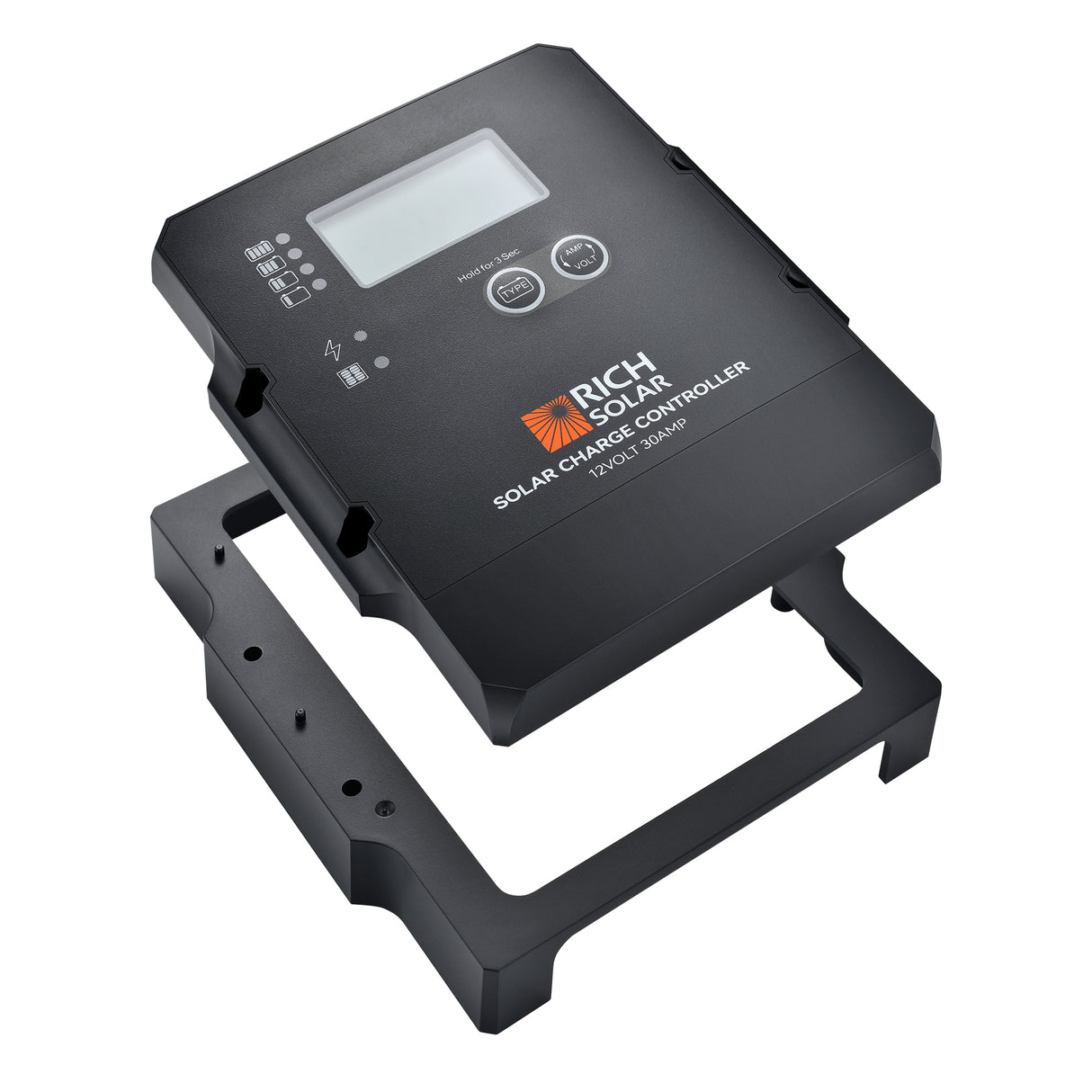

- Mounting: Vertical wall mounting
- IP Grade: IP22
- Net Weight: Approx. 10.6oz / 300g
