Rich Solar 30 Amp MPPT Solar Charge Controller
SKU: RS-MPPT30
AVAILABILITY:
In stock, ready to ship!
Estimated Delivery: Fri, Jun 12 to Wed, Jun 17
See a Lower Price?
Let us know and we’ll match it. Get the best price — Guaranteed!
Rich Solar 30 Amp MPPT Solar Charge Controller
Sale price$111.99
Regular price$139.99
Choose options
AVAILABILITY:
In stock, ready to ship!
Estimated Delivery: Fri, Jun 12 to Wed, Jun 17
See a Lower Price?
Let us know and we’ll match it. Get the best price — Guaranteed!
Description
The Rich Solar 30 Amp MPPT Solar Charge Controller is a reliable controller designed for efficient solar charging in off-grid and backup power setups. It supports 12V or 24V systems and uses advanced MPPT technology to maximize solar energy harvest.
Compatible with a variety of deep cycle batteries including sealed, gel, flooded, and lithium, this controller offers versatile use and precise charging control for improved battery longevity and system performance.
Features
- Automatically detects 12V or 24V DC system voltages.
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
- Features diverse load control; also capable of charging over-discharged lithium batteries.

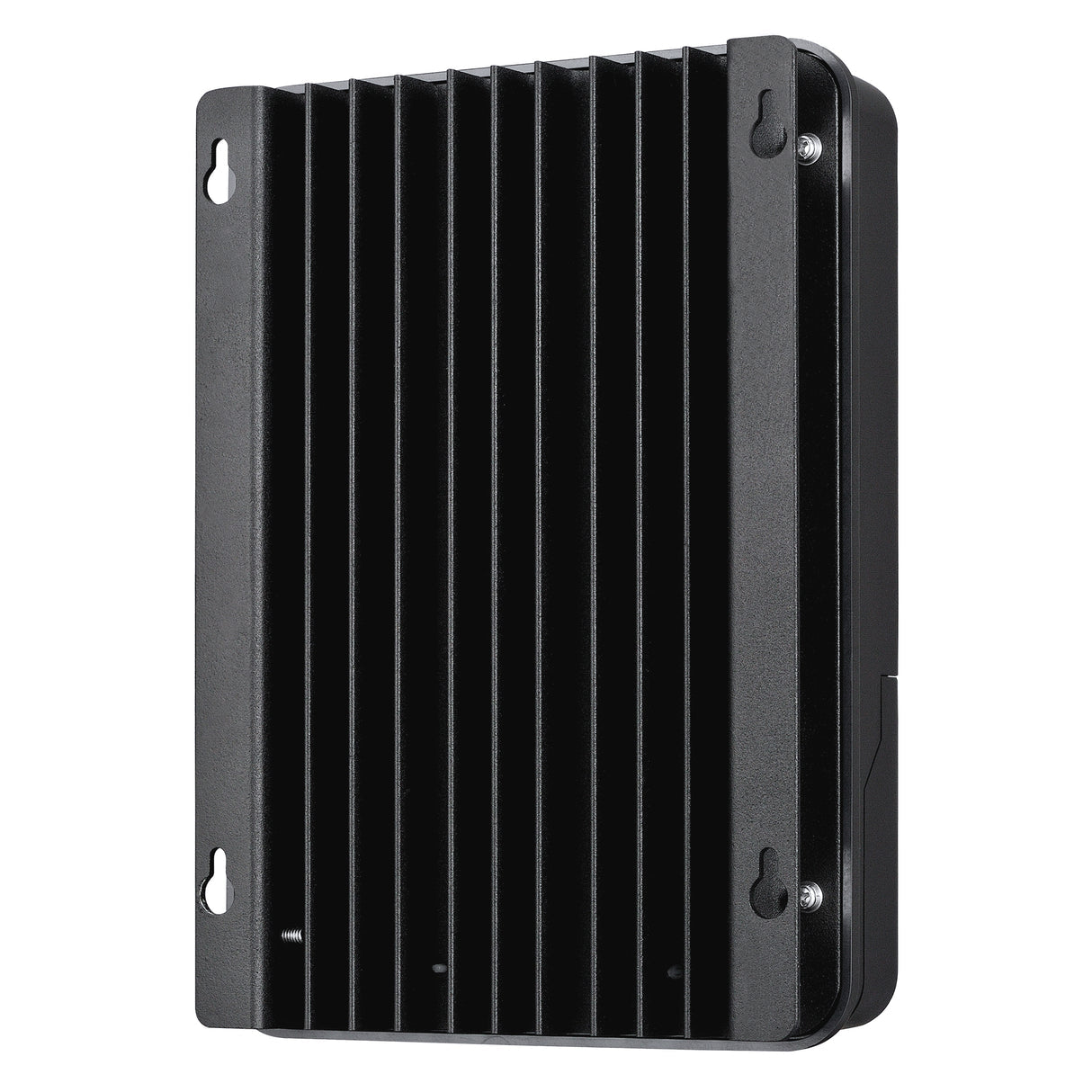

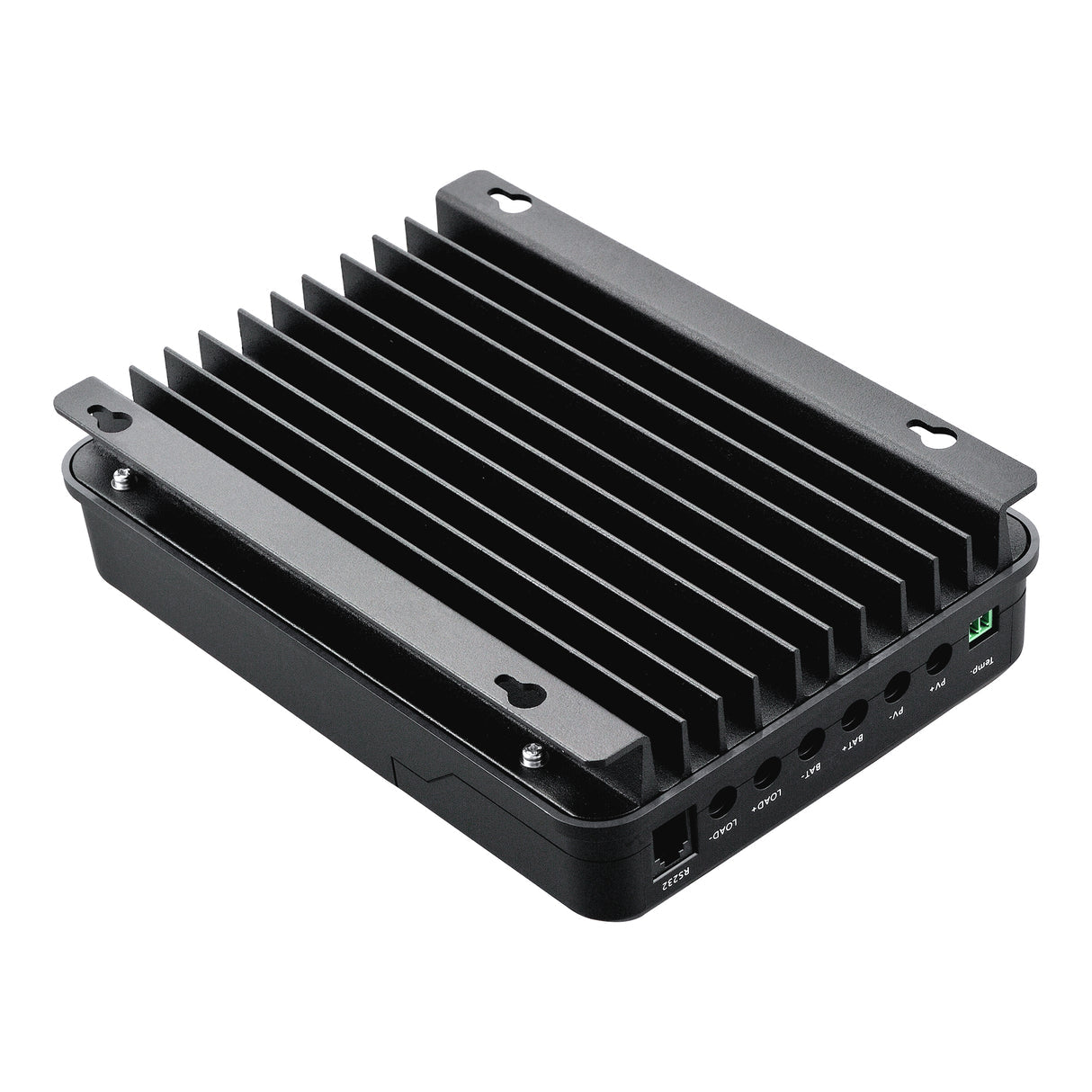

- Die-cast aluminum design allows for efficient heat dissipation.
- RS232 port to communicate with BT-1 Bluetooth module.
- Advanced maximum power point tracking algorithm can quickly locate the best working point in the l-V curve to significantly improve the system’s energy efficiency.
Specifications
- Nominal System Voltage: 12V/24V Auto
- Rated Charging Current: 30A
- Rated Load Current: 20A
- Max Solar Input Voltage: 100V(25℃), 90V(-25℃)
- Discharge Circuit Voltage drop: ≤0.15V
- Net Weight: 4.41lbs
- Overall Dimension: 9.37 x 6.81 x 2.85in
- Battery Wire Diameter: 6mm²
- Load Wire Diameter: 5mm²
- No-load Loss: 0.7W to 1.2W
- Battery Voltage: 9V to 35V
- Max. Power Point Voltage Range: Battery Voltage +2V to 75V
- Max. Photovoltaic System Input Power: 400W/12V, 800W/24V
- Conversion Efficiency: ≤98%
- MPPT Tracking Efficiency: >99%
- Temperature Compensation Factor: -3mv//2V Default
- Operating Temperature: -35°C to +45°C
- Protection Degree: IP32
- Communication Method: RS232
- Altitude: ≤3000m
- Max. Capacitive Load Capacity: 1000uF
