Description
The Rich Solar 30 Amp Flush Mount PWM Solar Charge Controller is a reliable controller designed for managing solar charging in RVs, trailers, and off-grid setups. Its flush mount design simplifies installation while delivering a consistent 30A charging current for 12V or 24V battery systems.
This controller is well suited for users who need straightforward, intelligent charging management compatible with multiple battery chemistries. It supports lead-acid and lithium batteries, providing essential temperature compensation to protect battery health in varying environments.
Features

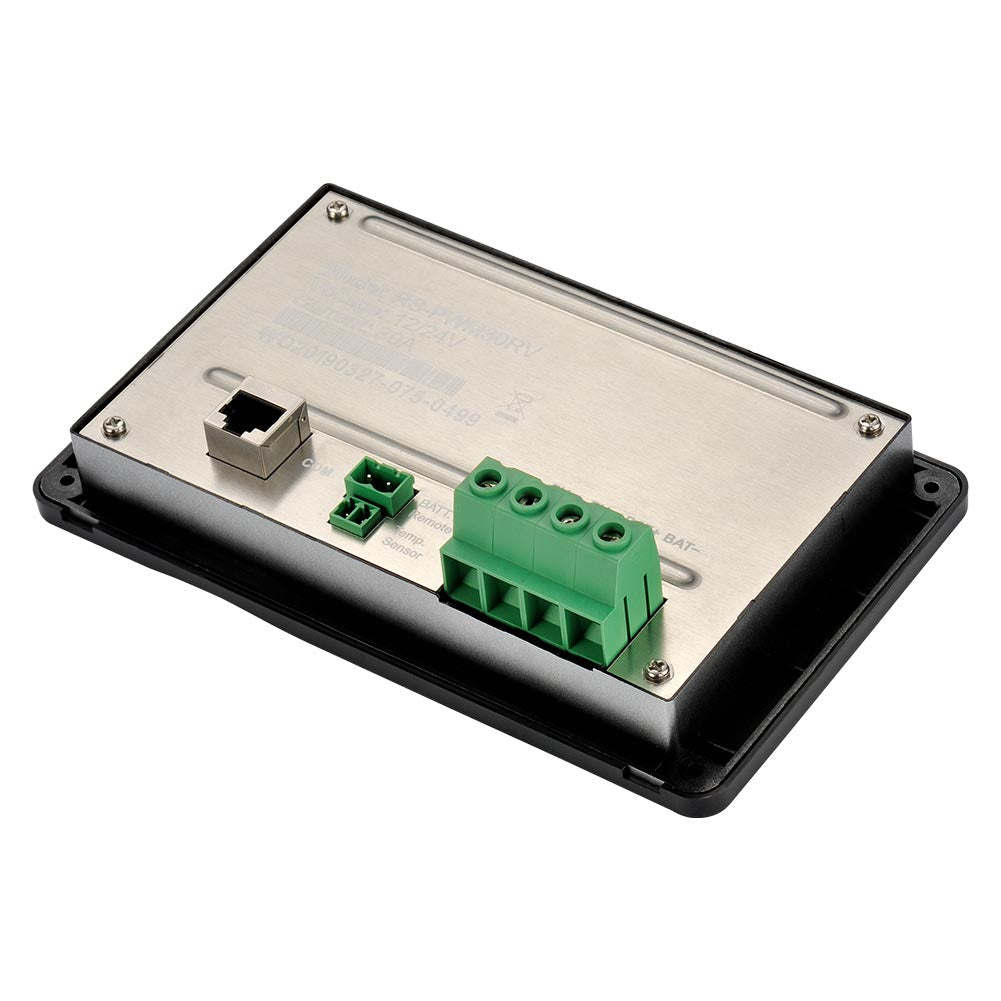

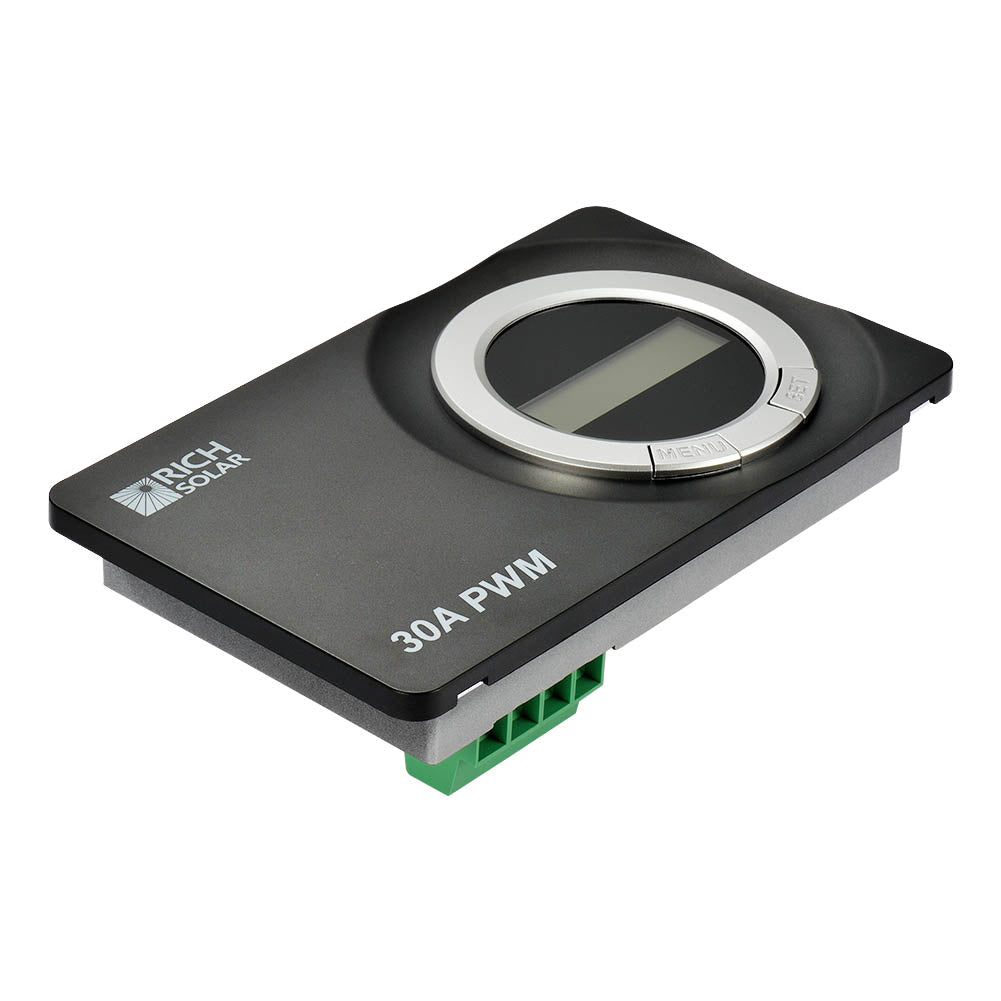

- Flush mounted and embedded installation design
- High quality and low failure rate components (ST/IR) to ensure the product lifetime
- 3-Stage intelligent PWM charging: Bulk, Boost/Equalize and Float
- Compatible with lead-acid and lithium batteries ①
- Real-time energy statistics feature

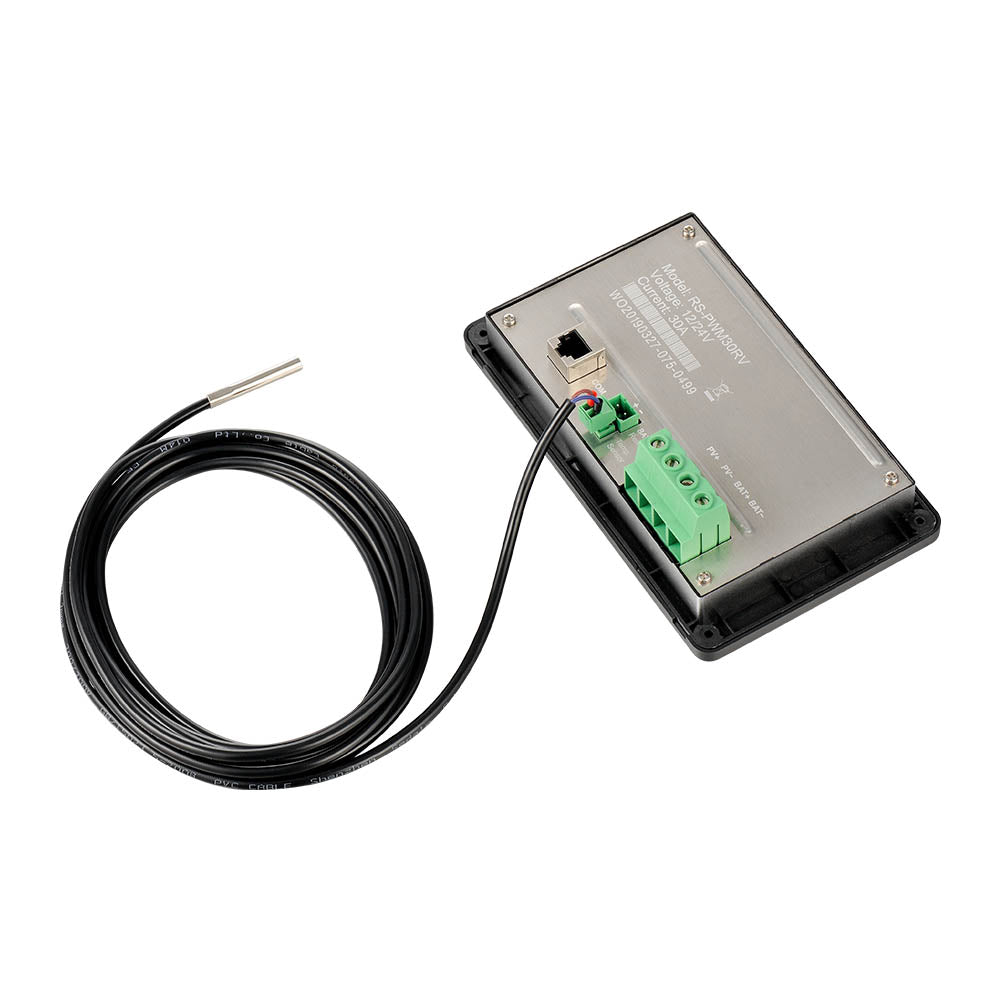

- Battery temperature compensation feature

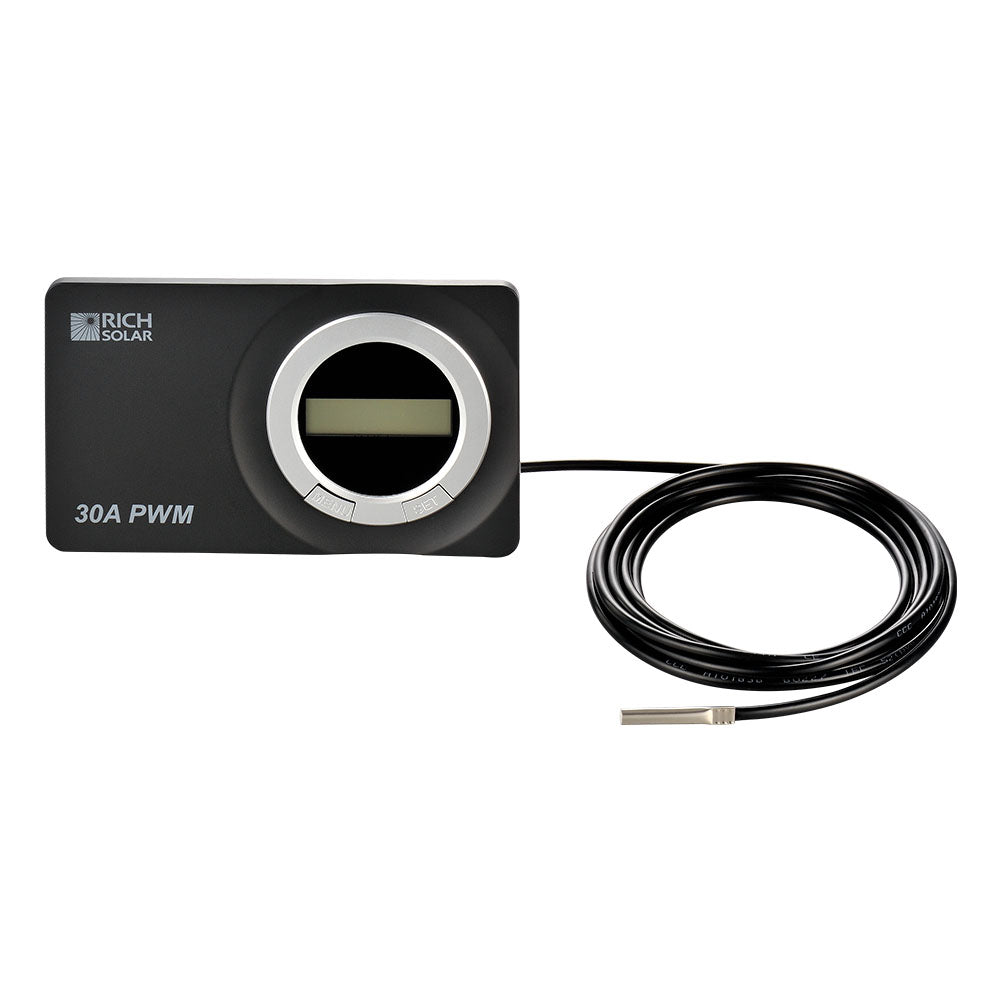

- Digital LCD monitor for informative display of operational parameters and fault messages
- Voltage drop and temperature compensation sampling interface design

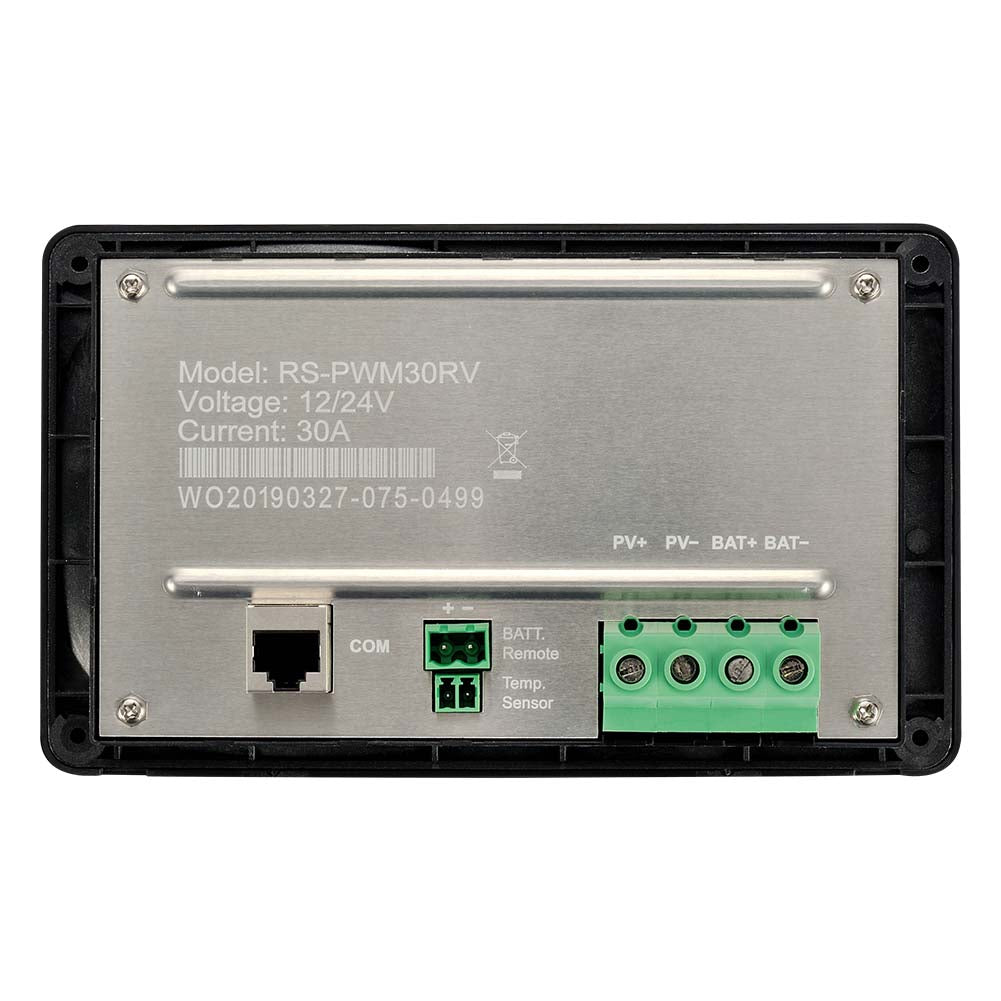

- RS485 communication port with Modbus protocol, and short circuit protection for 5V/200mA power supply
- Multiple communication peripherals
- Rated charging current at working temperature without de-rating
- Extensive electronic protections
- Monitor and set the parameters via PC software or APP
Specifications
-
Electrical Specifications
- Nominal Voltage: 12/24VDC or Auto
- Battery Input Voltage Range: 8V～32V
- Rated Charge Current: 30A
- Max. PV Short Circuit Current: 30A
- Max. PV Open Circuit Voltage: 50V
- Battery Type: Lead-acid battery: Sealed(default)/Gel/Flooded/User; Lithium battery: LiFePO4/Li-NiCoMn/User
- Self-consumption: ≤4.2mA/12V;≤2.6mA/24V
- Temperature Compensation Coefficient: -3mV/°C/2V(Default)
- Charge Circuit Voltage Drop: 0.21V
-
Environmental Parameters
- Storage Temperature Range: -35℃～+70℃
- Working Environment Temperature: -35℃～+55℃ (100% input and output)
- Relative Humidity: ≤95%, N.C.
- Enclosure: IP30
- Grounding: Common negative
-
Mechanical Parameters
- Dimension (L×W×H): 178.5×105.5×48.3mm
- Mounting Dimension: 166.5×93.5mm
- Mounting Hole Size: Φ5mm

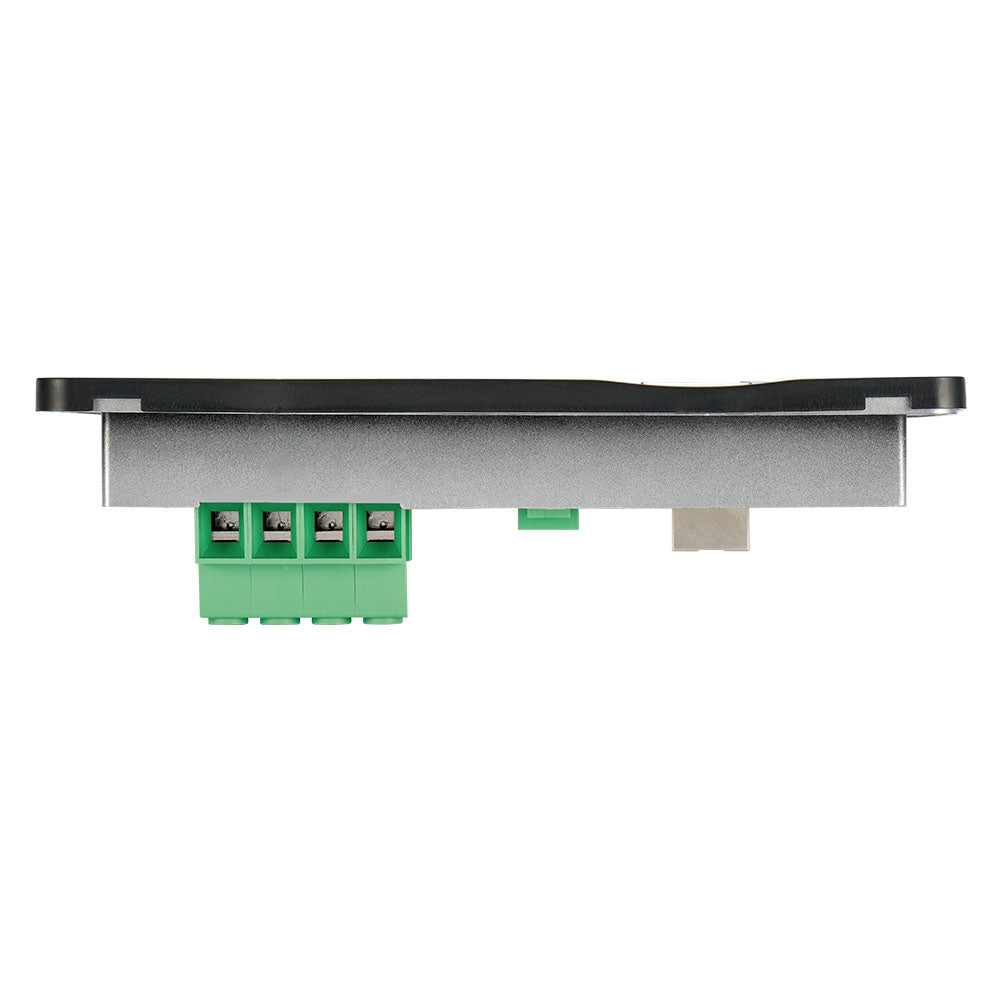

- Terminal: 16mm²/6AWG
- Recommended Cable: 10mm²/8AWG
- Net Weight: 0.31kg
