Product Description
Solar Panel Charging Basics
The Jackery SolarSaga 200W solar panel is designed to generate up to 200W of power under ideal sunlight conditions, typically measured at 25 °C and peak sun exposure. This electricity is used to charge solar batteries, powering homes, appliances, or small devices. However, real-world output can vary significantly depending on factors such as sunlight intensity, panel orientation, temperature, shading, and weather conditions.
Time for Different Battery Sizes
The time it takes to recharge a battery depends on its capacity and the power output of the solar panel. For a small 5 kWh battery, it may take roughly 25–35 hours of full sunlight from a single 200 W panel to reach full charge. Medium-sized batteries like 10–20 kWh could require 50–100 hours, while large, expandable systems with capacities of 30–60 kWh can take 150–300 hours to fully recharge under the same conditions.
Charging Options and Efficiency Tips

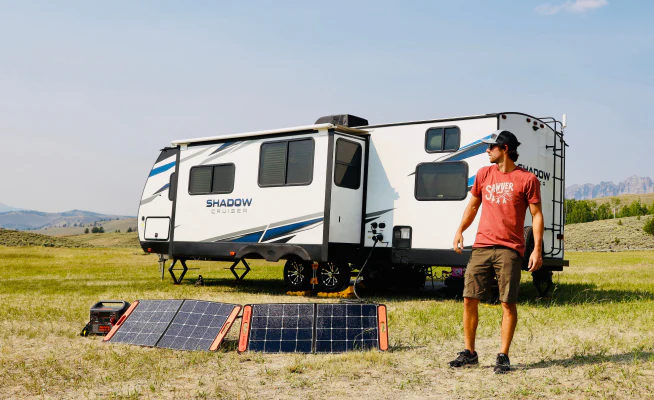

To reduce recharge times and make the system more practical, you can add multiple solar panels in parallel or series. For instance, a 1 kW solar array can recharge a 5 kWh battery in approximately 5 hours of peak sunlight. Using multiple panels also allows larger battery banks to recharge faster, ensuring consistent power supply for homes, RVs, or outdoor setups.
Features

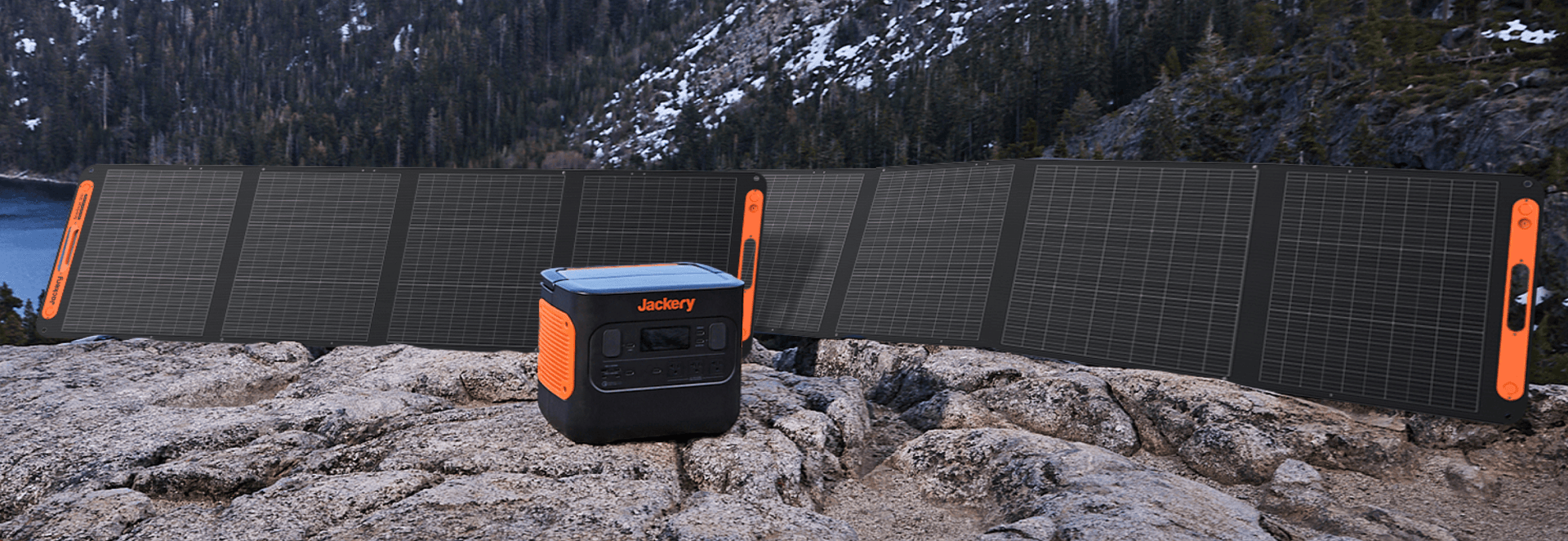

200W Peak Power Output
Provides full 200 W solar generation, making it one of Jackery’s fastest charging solar options for power stations and off-grid setups.

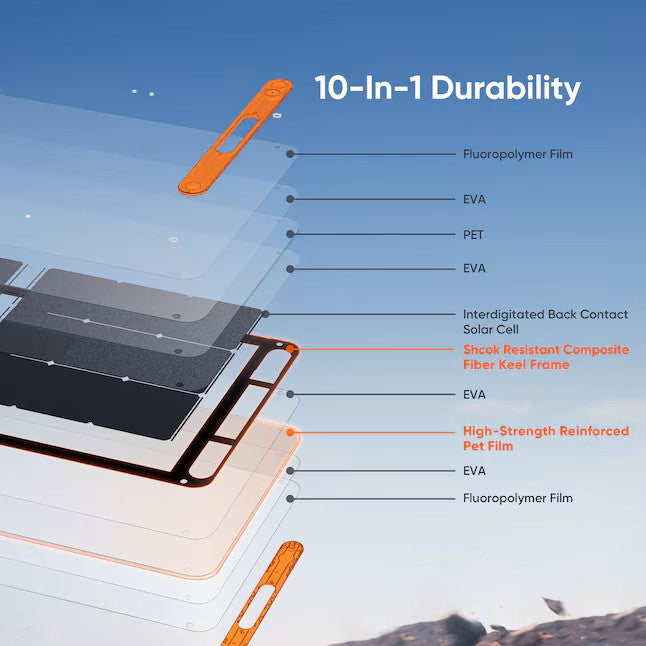

Efficient Monocrystalline Cells
Advanced solar cell design delivers high efficiency up to ~25 %, capturing more energy across varied light conditions
Specs & More
Specifications
- Rated Power: 200W high-efficiency solar output
- Operating Voltage (Vmp): ~20V
- Operating Current (Imp): ~10A
- Open Circuit Voltage (Voc): ~24.8V
- Short Circuit Current (Isc): ~11.2A
- Conversion Efficiency: Up to 25% (monocrystalline cells)
- Max System Voltage: 60V DC

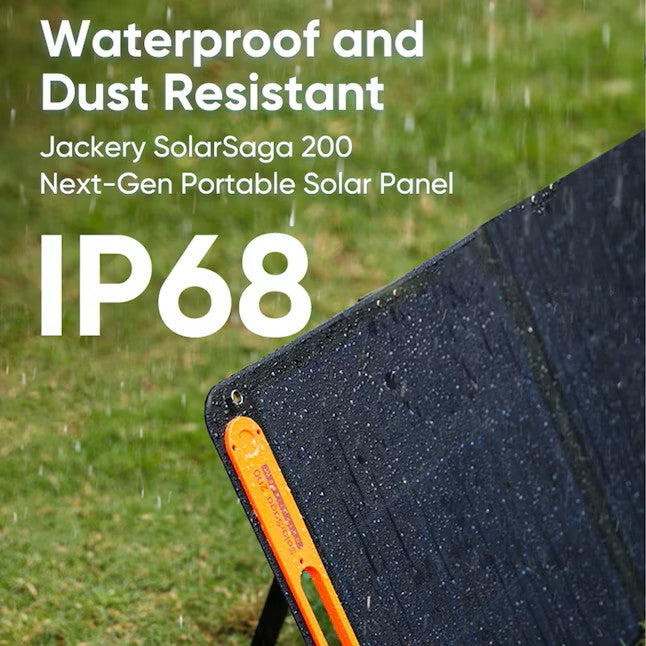

- Waterproof Rating: IP68 all-weather protection
- Operating Temperature: -20°C to 65°C

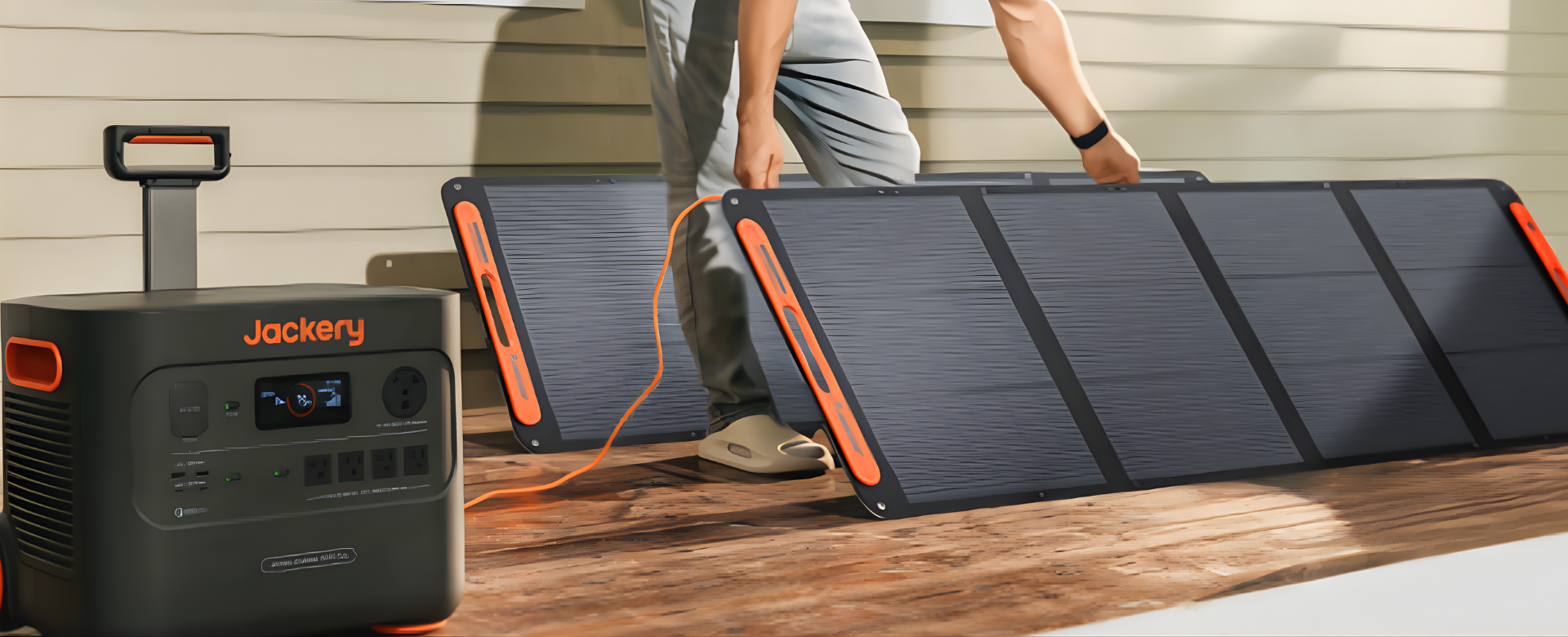

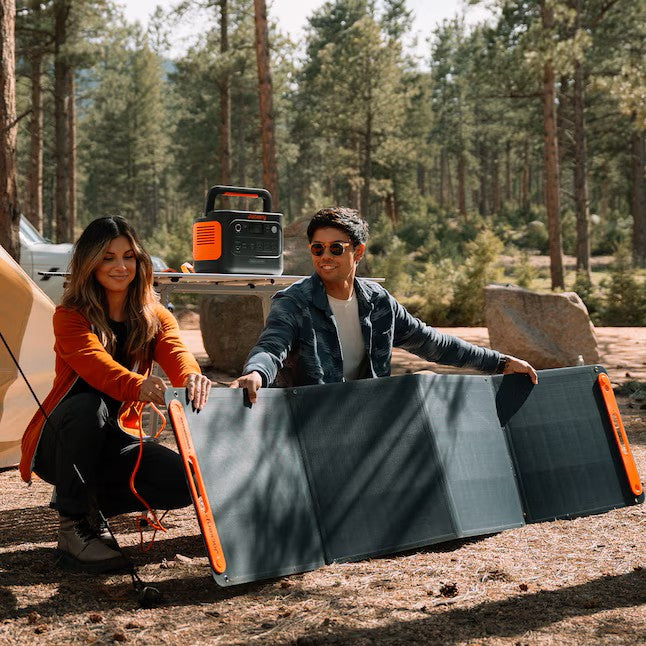

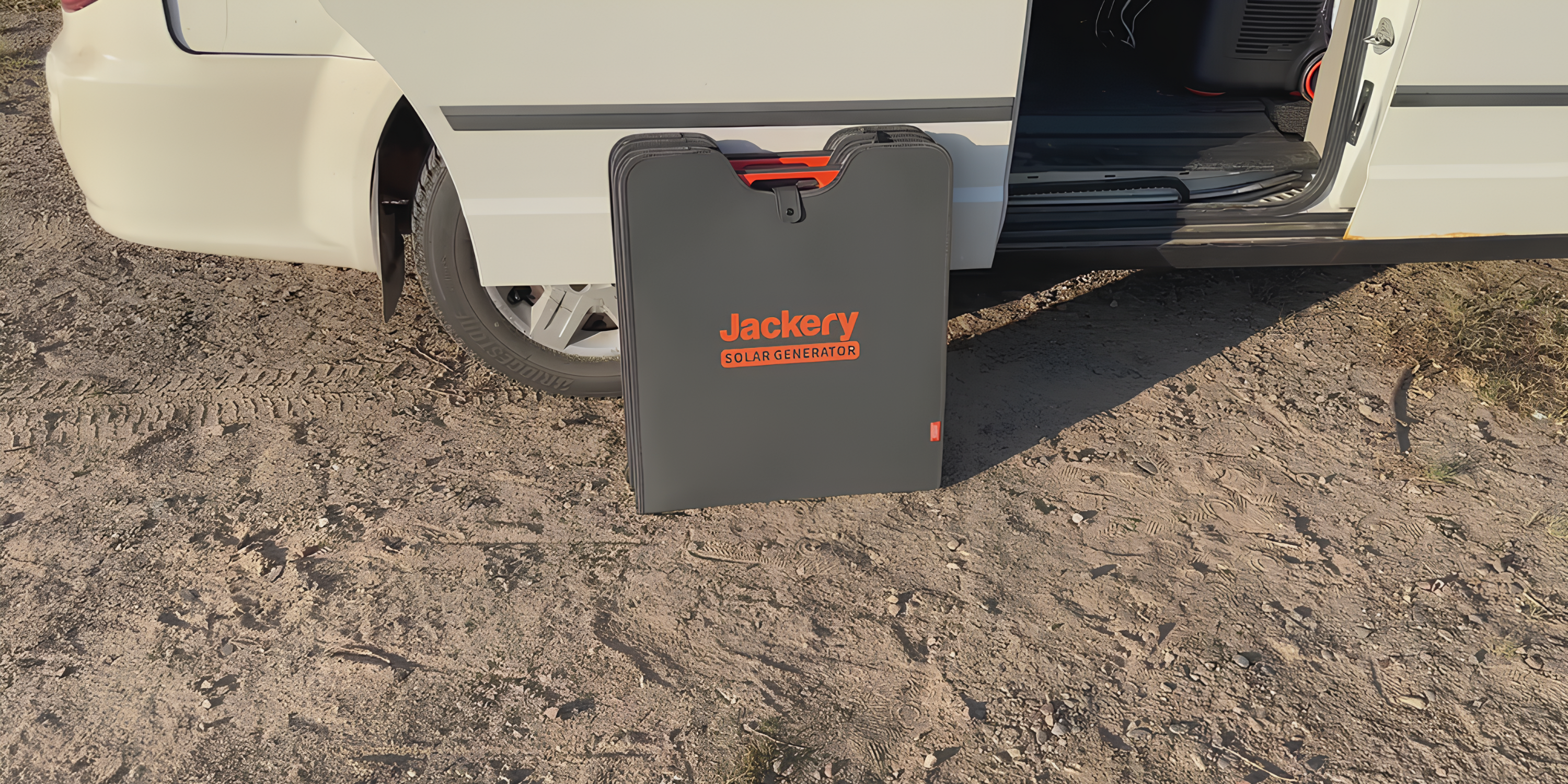

- Design: Foldable, portable solar panel
Components
- Solar Panel: Jackery SolarSaga 200W Solar Panel
- Cable: Integrated solar charging cable (~3m)
- Adapter: DC8020 to DC7909 adapter

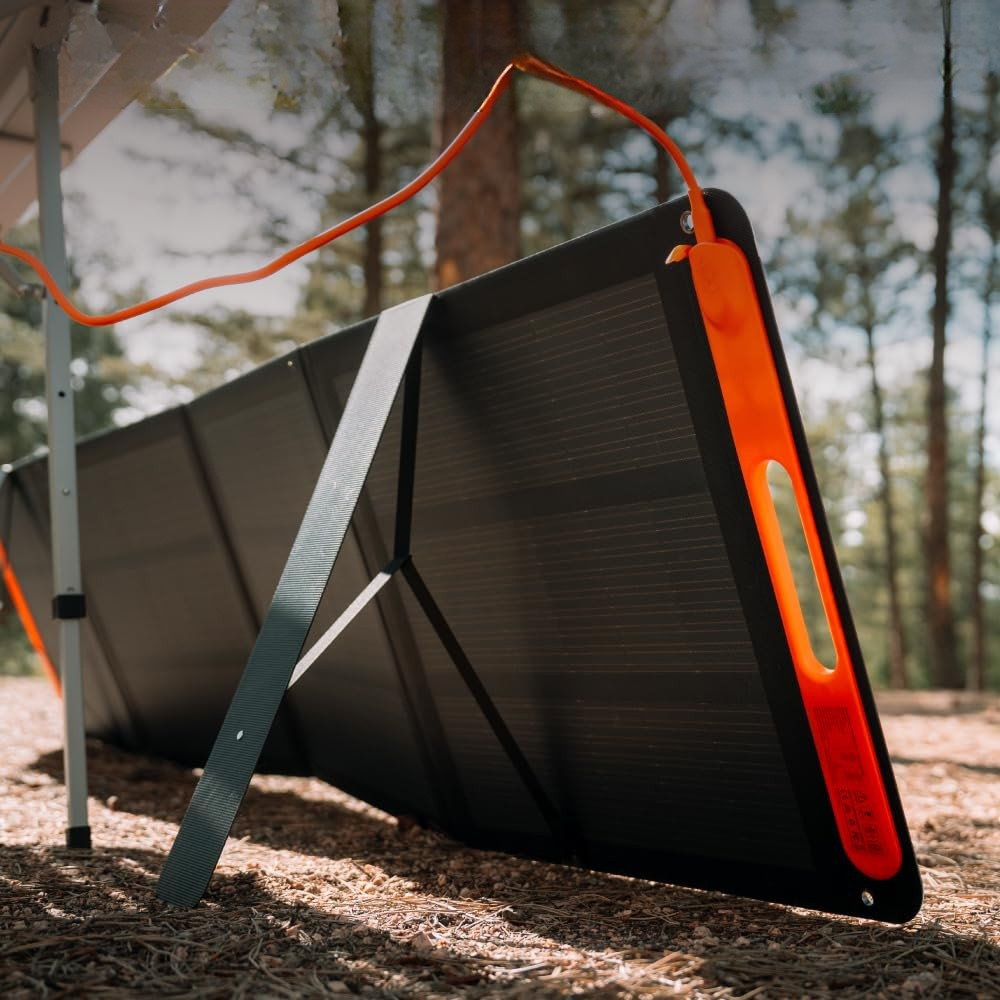

- Stand: Built-in kickstands for easy setup
- User Manual: Instruction guide included
