25.3 KWh Capacity With 10 Batteries
IP67 Dustproof & Waterproof UltraSeal
Off-Grid Ready Built to Perform
Stackable Designed for Expansion
1,200 W Solar With 6 Panels
Cycle Life 3,000 cycles to 80+% capacity

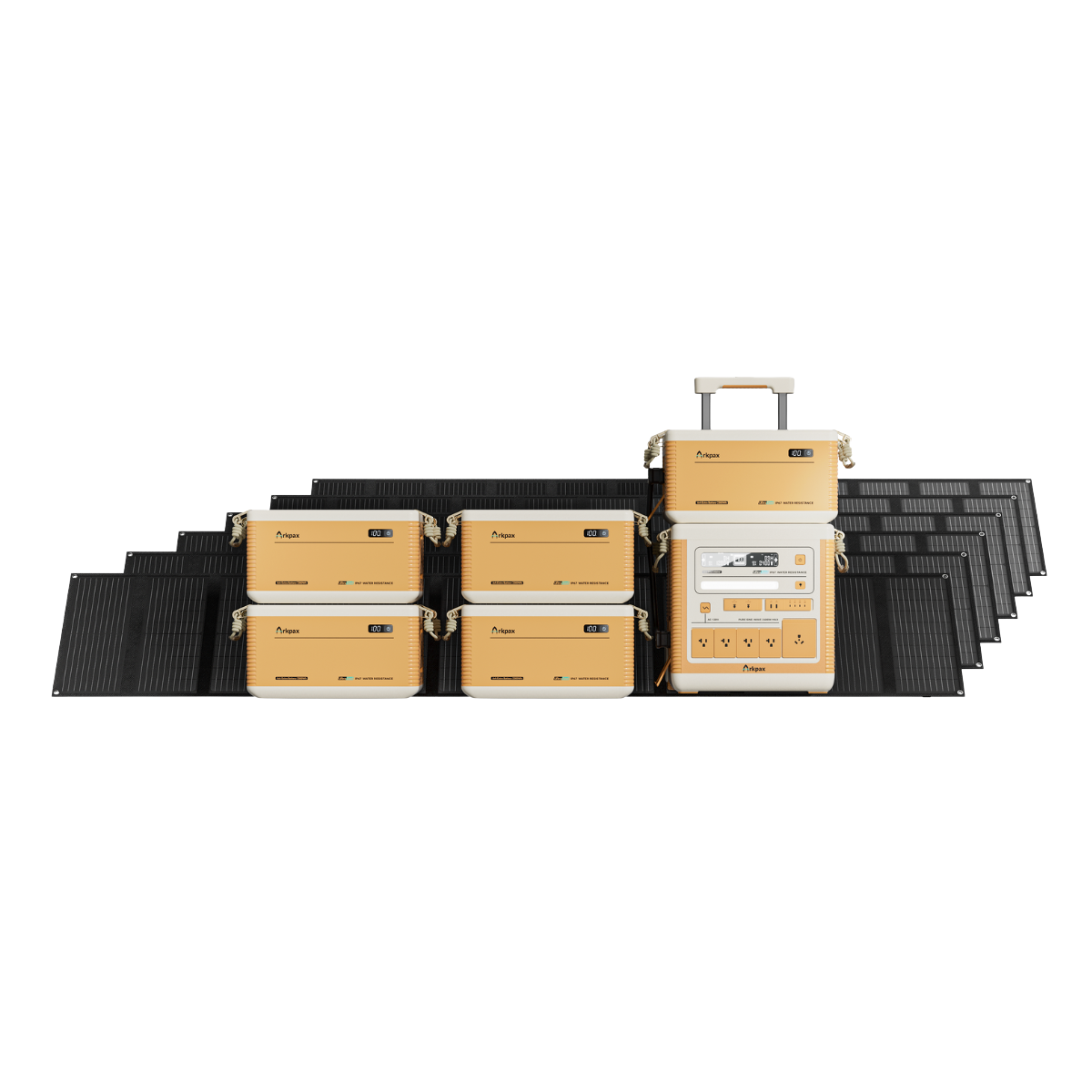

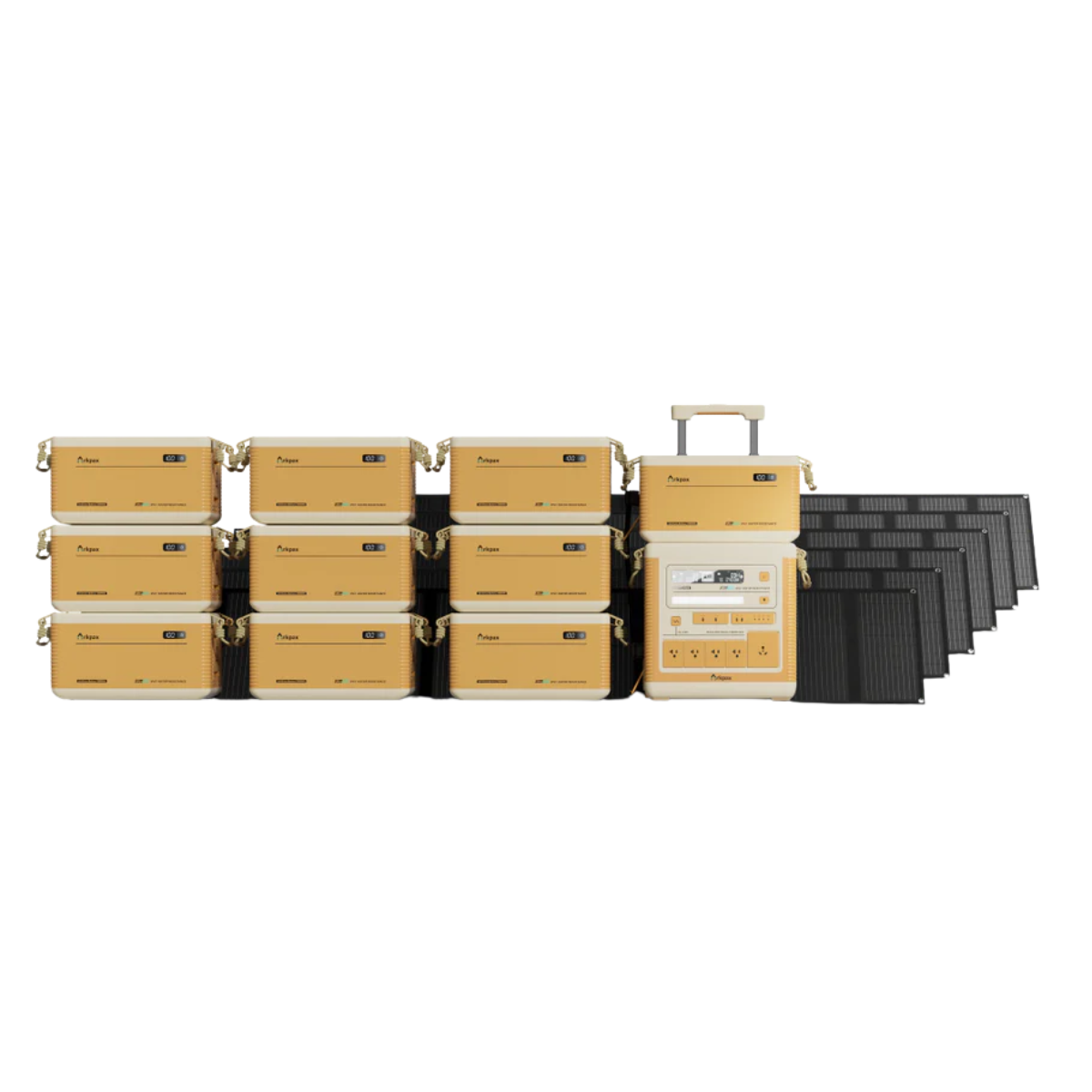

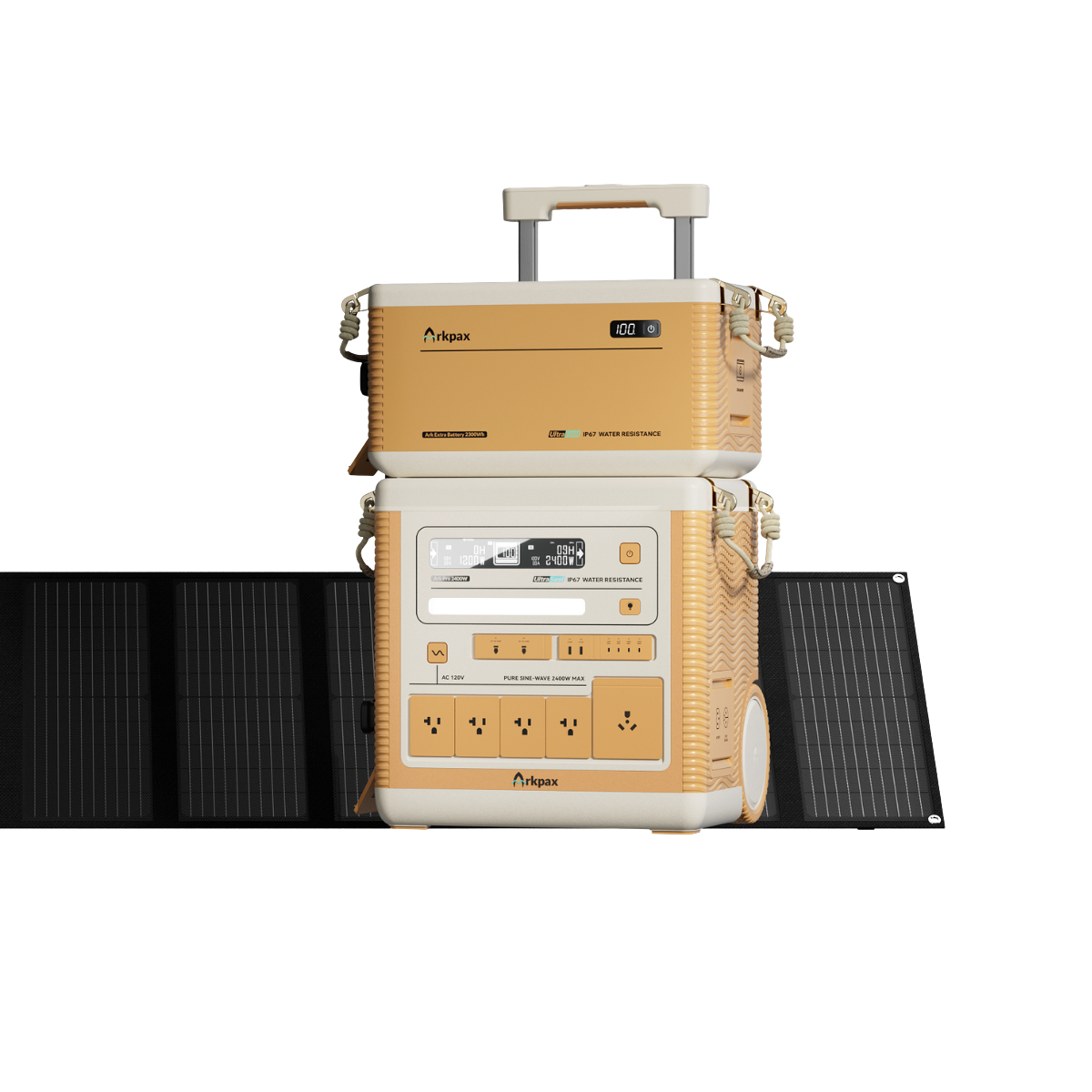

Arkpax Ark Pro Custom Package – IP67 Rated Waterproof Power Solution – Bundle and Save!
Choose options
Save when you bundle!
Product Description
Flexible, Waterproof, and Ready for Anything
This Arkpax bundle puts you in control. Start with the Ark Pro 2300Wh Power Station and build from there—add up to 6 high-efficiency solar panels for independent recharging and up to 10 Ark Pro Expansion Batteries for serious runtime. Everything is IP67-rated waterproof, so it’s just as ready for your garage as it is for the trail, boat, or cabin. Whether you’re preparing for outages, heading off-grid, or powering work in the field, this system gives you the flexibility to scale up, stay ready, and save more by bundling.
Power That Goes Anywhere
Waterproof, portable, and built to perform in the real world. Whether you’re deep in the woods or working through rain, Arkpax delivers energy without compromise.
Everyday Energy That Fits Your Life
Charge your EV, run your tools, or prep for emergencies—all from one waterproof system that moves with you. Clean power, no hardwiring required.

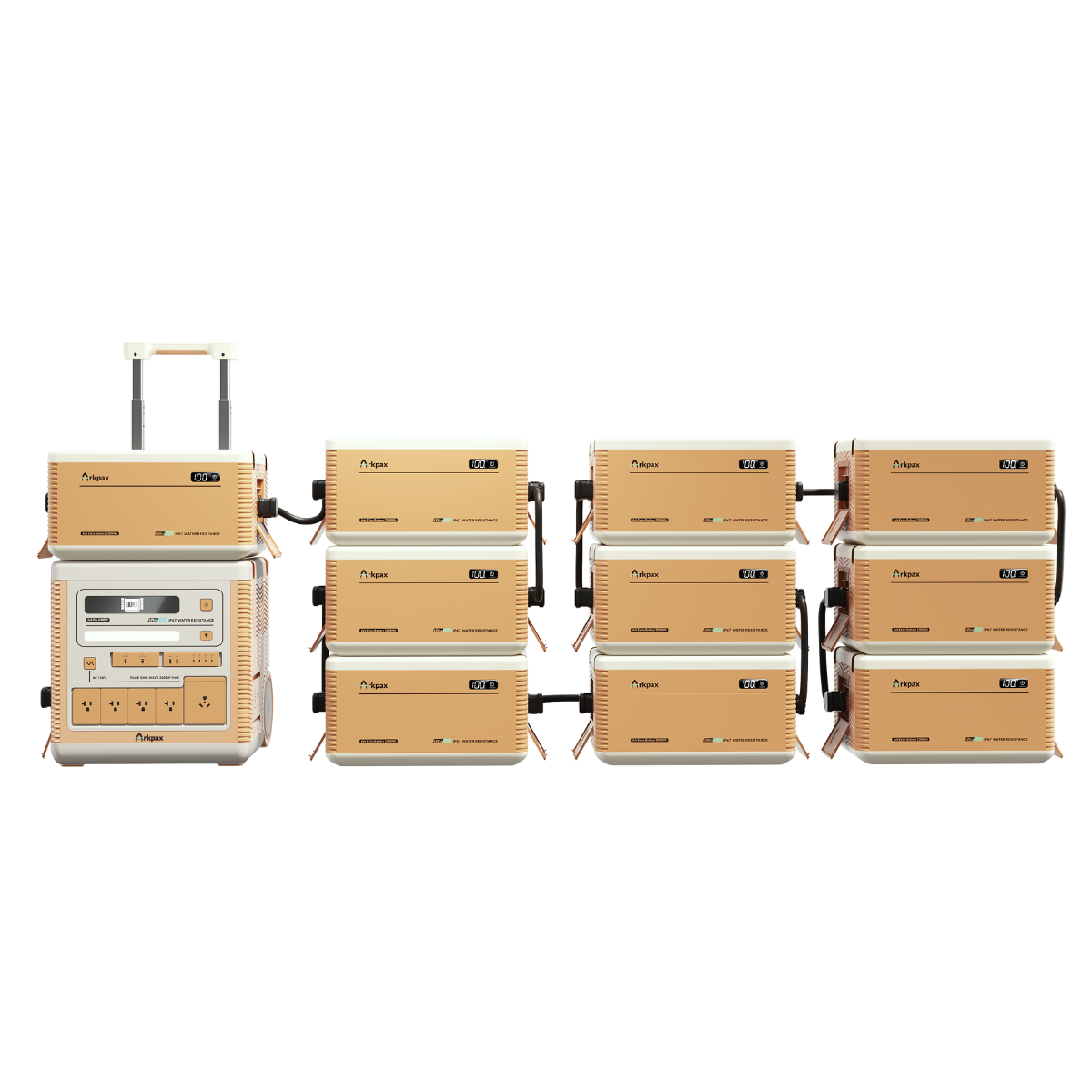

Expandable Storage That Grows With You
Add up to 23,000Wh of storage—no tools, no wiring. Power larger systems, stay off-grid longer, or build out a full home backup without overcommitting upfront.
Flexible Backup Power for the Home
Protect your home from outages with clean, expandable power—no permanent install, no fumes, no noise. Add panels and batteries as needed, and stay ready for whatever comes.
Video Courtesy of Arkpax
Manuals
Download Arkpax Solar Panel User Manual
Specifications
Ark Pro Power Station
| Model Name | U2400-US |
| Battery Chemistry | LFP (LiFePO4 battery) |
| Cycle Life | 3000 cycles to 80+% capacity |
| Capacity | 2300Wh |
| Expansion Capacity | Connect up of 10 extra batteries, capacity up to 25.3KWh |
| Output Ports | 13(AC*4, TT-30*1, DC*8) |
| Max Device(s) Power | 2860W |
| AC Output | 5 outlets, 2400W total (surge 4800W) |
| DC Output | Total 460W Max. |
| Car Power Output | 2 ports, 12V, 10A, 120W Max. |
| USB-A Output | 2 ports, 22.5W Max. |
| USB-C Output | 4 ports, 5/9/12/15/20V, 5A, 100W Max. |
| Recharging Time | 2 Hrs (1500W AC outlet) 3-6 Hrs (1200W solar panel) 12 Hrs (240W car outlet) |
| AC Input Voltage | 110~130V (50Hz/60Hz) |
| Solar Charging | 12-54V, 20A, 1200W Max. |
| Car Charging | Support 12V/24V battery, 10A |
| DC Input: (Adapter or Solar ) | 12~75V-20A Max. 1200W Max. with MPPT |
| UPS | 10ms |
| Operating Temperature | -10°C~40°C/14°F~104°F |
| Storage Temperature | -20°C~45°C/-4°F~113°F |
| Dimensions | 16.54 x 15.35 x 16.93 in/ 42 x 39 x 42.9 cm |
| Net Weight | 84.4lbs / 38.3kg |
Ark Pro Expansion Battery
| Model Name | BP2000 |
| Battery Chemistry | LFP (LiFePO4 battery) |
| Capacity | 2300Wh |
| Cycle Life | 3000 cycles to 80%+ capacity |
| DC Expansion Port | 2xDC expansion port input 57.6V Max., 45A Max. 2300W Max. output 40~57.6V, 85A Max. 4600W Max. |
| Charge Temperature | 0~45 ℃(32~113°F) |
| Discharge Temperature | -10~45 ℃(14~113°F) |
| Applicable Model | Ark Pro 2400W |
| Recharging Time | 2 hrs (1500W from Ark Pro) |
| Dimensions | 9.1x16.5x10.8 in/ 23.1 x 42 x 27.5 cm |
| Net Weight | 46.7lbs/ 21.2kg |

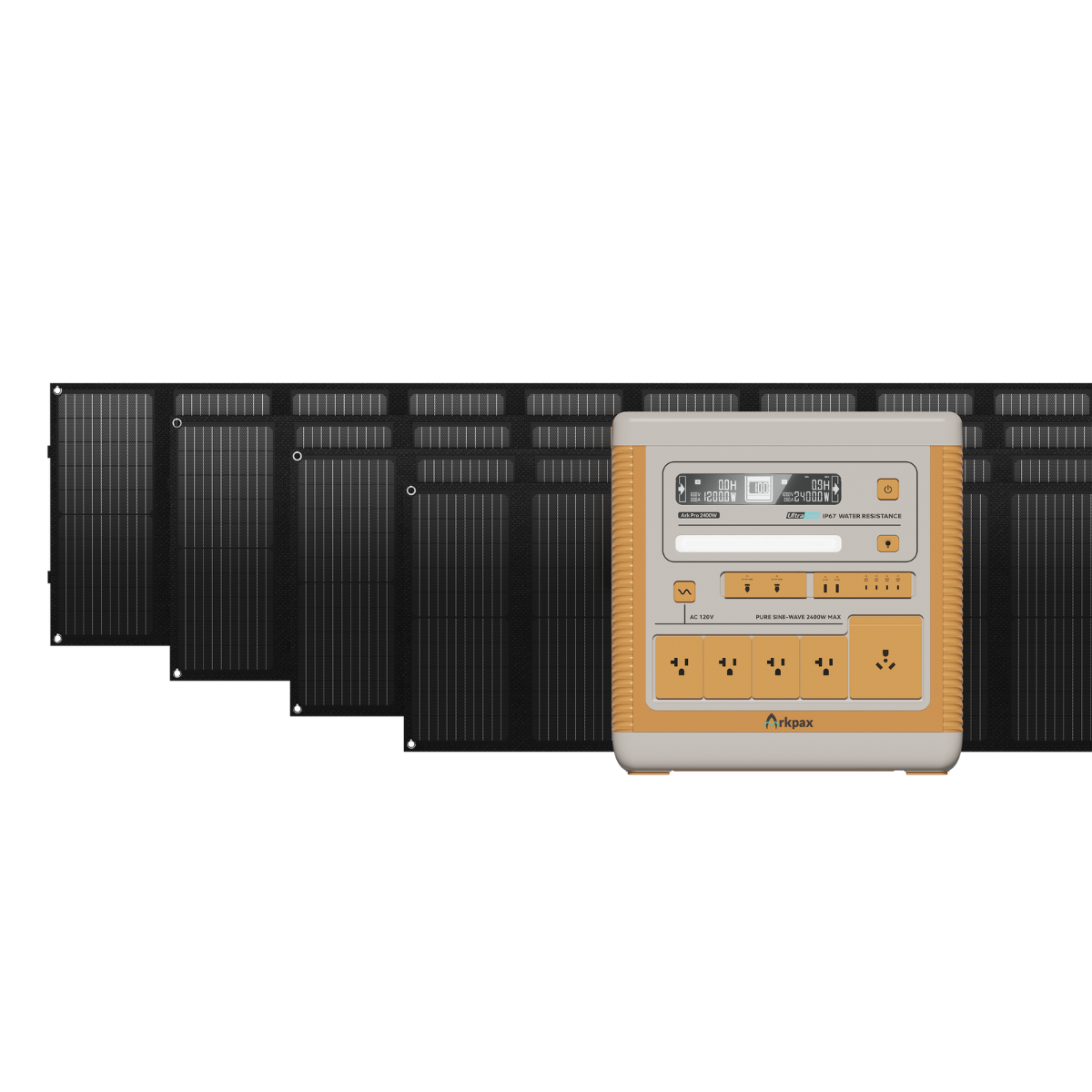

Ark 200W Solar Panel
| Model Name | SP200 |
| Rated Power | 200W |
| Rated Voltage | 22.4V |
| Rated Current | 8.9A |
| Open Circuit Voltage | 26.4V |
| Short Circuit Current | 9.3A |
| Solar Cell | Monocrystalline solar cell |
| Conversion Efficiency | 0.225 |
| Folds | 12 |
| Connector | XT60 |
| Accessories | XT60 to DC8022 cable x1 User manual x1 Hulk belt handle x1 |
| Front Plate Material | ETFE |
| Back Plate Material | PVC cloth |
| Folded Dimensions | 8.54 x 19.88 x 3.62 in / 21.7 x 50.5 x 9.2 cm |
| Extended Dimensions | 105.91 x 19.88 x 1.26 in / 269 x 50.5 x 3.2 cm |
| Operating Temperature | -20°C~60°C/-4°F~140°F |
| Storage Temperature | 10°C~35°C/50°F~95°F |
| Net Weight | 11.2lbs / 5.1kg |
