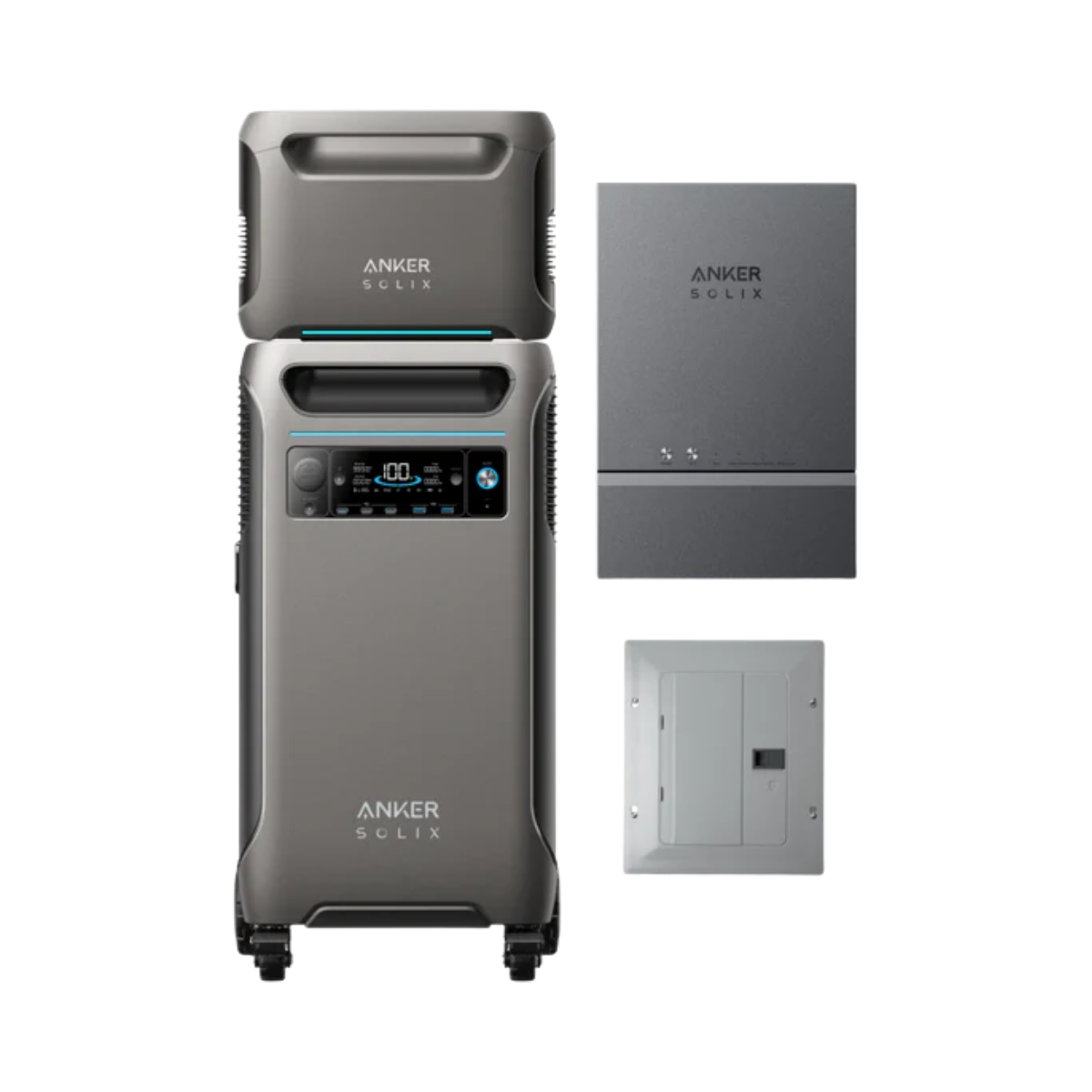

Anker SOLIX F3800 Power Station (3840Wh) + Expansion Battery (3840Wh) + Home Power Panel + Subpanel

Product Overview

Get total peace of mind with the Anker SOLIX F3800 Complete Home Power Bundle, featuring a 3840Wh Power Station, 3840Wh Expansion Battery, Home Power Panel with Subpanel. This turnkey solution is designed for homeowners who want seamless energy management, reliable backup power, and smart solar integration—all in one sleek, scalable system.

Whether you're preparing for extended blackouts, powering an RV or EV, or looking to reduce your energy bill through solar optimization, the F3800 bundle delivers unmatched performance, intelligent control, and lasting sustainability.

Features

High-Capacity Power & Scalability

• Total Storage: 7680Wh combined capacity, expandable up to 53.8kWh with up to 6 additional expansion batteries.

• 6000W AC Output (Split Phase 120V/240V): Power large appliances, HVAC systems, or electric vehicles with confidence.

• EV & RV Ready: Includes NEMA 14-50 and L14-30 outlets for direct 240V charging.

• UPS Protection: 20ms automatic switchover to keep essential devices powered during outages.

Smart Home Integration

• Home Power Panel & Subpanel: Easily connect the F3800 to your home’s circuits and solar panels. Powers up to 12 essential loads.

• Solar Optimization: Up to 2400W solar input and smart app modes (Self-Consumption, Time-of-Use, Backup Mode) help cut peak usage and maximize sustainability.

• App Connectivity: Monitor and manage usage from anywhere via Wi-Fi or Bluetooth using the Anker App.

Durable & Long-Lasting

• EV-Grade LiFePO₄ Batteries: Safe, efficient, and rated for 3,000 cycles—over 10 years of daily use.

• Impact-Resistant & Weather-Ready: Industrial-grade build quality, smart temperature control.

Technical Specifications

F3800 Power Station

• Capacity: 3840Wh

• AC Output: 6000W max, 9000W surge

• Voltage Support: 120V/240V split-phase

• Solar Input: 2400W (1200W × 2 MPPT channels)

• USB Ports: 2 × USB-A (12W), 3 × USB-C (100W)

• Car Output: 12V ⎓ 10A

• Charging Temps: 32°F – 104°F

• Discharging Temps: -4°F – 104°F

• Size: 27.6 × 15.3 × 15.6 in

• Weight: 132.3 lbs

• Warranty: 5 years

BP3800 Expansion Battery

• Capacity: 3840Wh

• Battery Type: LiFePO₄ (3000 cycles)

• Size: 392.7 × 354.7 × 262 mm

• Weight: 34.5 kg

• Warranty: 2 years

Home Power Panel & Subpanel

• Input/Output Voltage: 120/240V

• Max Power Output: 12,000W

• Circuits Supported: 12

• Max Battery Integration: 53.8kWh

• IP Code: IP31 (Indoor Use Only)

• Wi-Fi Enabled: Yes

• Warranty: 5 years

What’s in the Box

• 1 × Anker SOLIX F3800 Power Station (3840Wh)

• 1 × Anker SOLIX BP3800 Expansion Battery (3840Wh)

• 1 × Home Power Panel

• 1 × 12-Circuit Subpanel (Indoor Only)


• 1 × Anker SOLIX 100A/240V Breaker

• 1 × Anker SOLIX Ground Bar Kit

• 1 × AC Charging Cable

• 2 × MC4 3-Port Solar Charging Connectors

• 1 × User Manual
