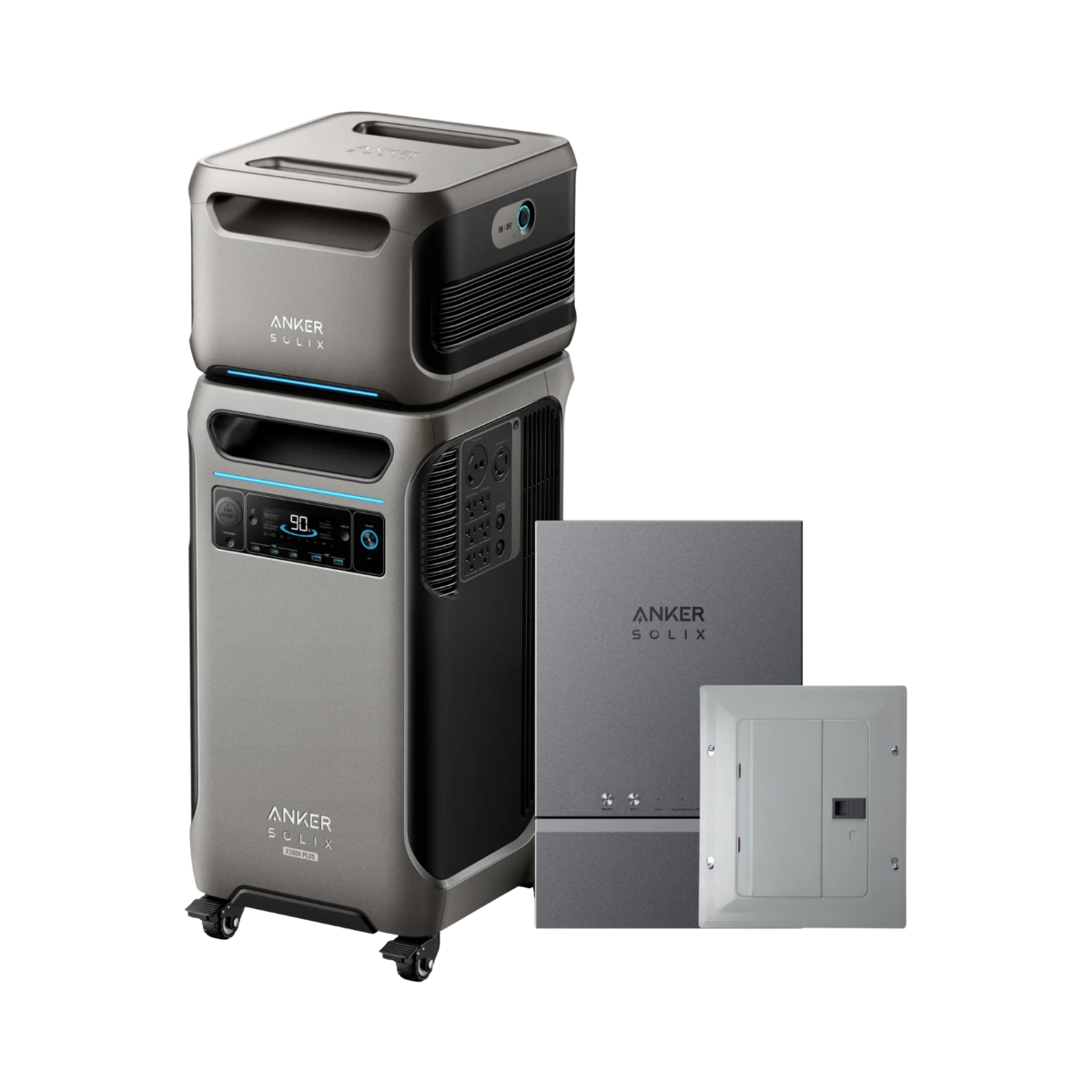

Anker SOLIX F3800 Plus Power Station (3840Wh) + Expansion Battery (3840Wh) + Home Power Panel + Subpanel

Product Overview

Power your home with confidence using the Anker SOLIX F3800 Plus Power Station + Expansion Battery + Smart Home Power Kit, a complete energy backup system offering 7,680Wh of capacity and 6,000W dual-voltage output. This bundle includes the F3800 Plus power station, a 3,840Wh expansion battery, and a Smart Home Power Kit with a 12-circuit subpanel for seamless home integration.

Perfect for power outages, EV/RV charging, or reducing your utility bill, the F3800 Plus system is equipped with advanced MPPT solar input (up to 3,200W), clean LFP battery technology, and remote control via the Anker app. Whether you’re off-grid, grid-connected, or preparing for emergencies, this setup ensures your essential appliances stay powered and your energy is always optimized.

With its rugged wheels, weather-resistant protective cover, and scalable battery expansion up to 53.8kWh, this is the most accessible whole-home backup solution available—reliable, smart, and future-ready.

Key Features

Complete Whole-Home Power Solution

• Total Capacity: 7,680Wh with included expansion battery

• Output: 6,000W AC output at 120V/240V; powers HVAC, ovens, pumps, and more

• Smart Home Power Panel + Subpanel: Seamlessly integrates into your breaker box for automated, circuit-specific backup

High-Speed Solar & Grid Charging

• Dual MPPT Solar Inputs: Supports up to 3,200W from solar panels (11–165V)

• AC Charging: Up to 1,800W via standard outlet

• Gas Generator Compatibility: Supports 240V fuel generator input with 6,000W bypass

Smart Monitoring & Control

• Manage energy usage, solar input, and battery status from anywhere using the Anker app via Wi-Fi/Bluetooth

• Features storm guard functionality that charges the system automatically before severe weather hits

Durable, Safe & Expandable

• LiFePO₄ batteries rated for 3,000+ cycles (10+ years of use)

• Expandable up to 53.8kWh with additional batteries and second power station

• EV & RV Ready: Directly charge using NEMA TT-30P and L14-30 ports

• Includes Free Protective Cover for enhanced durability and outdoor readiness

Technical Specifications

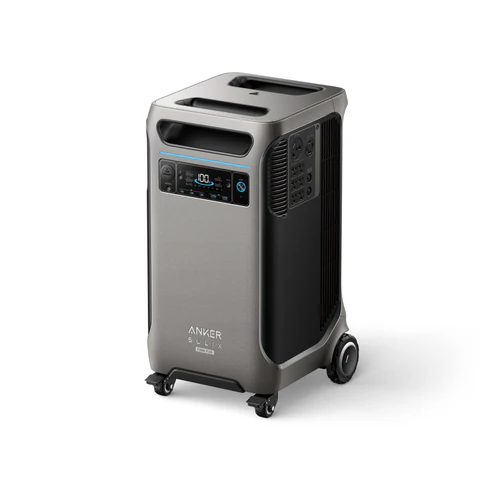

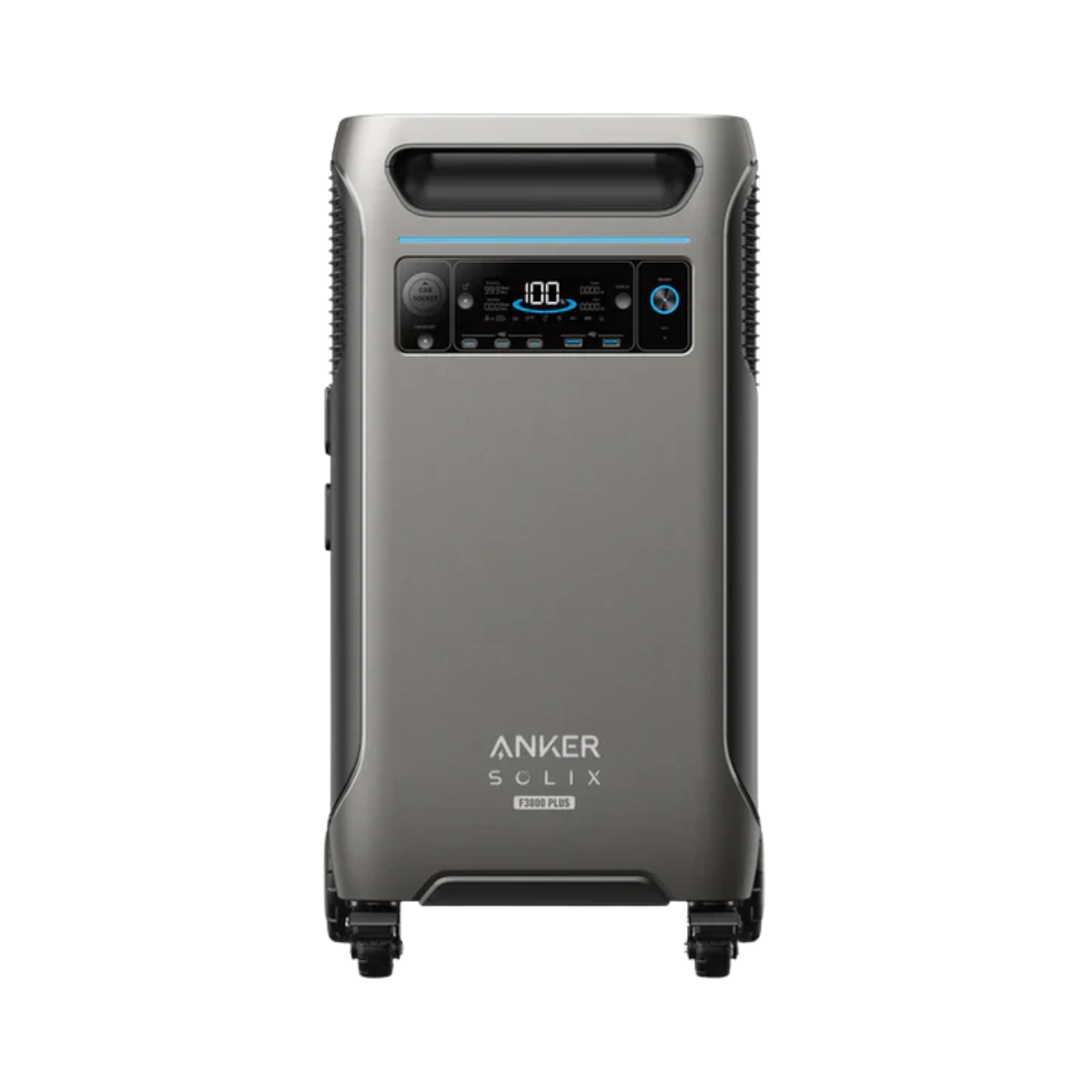

F3800 Plus Power Station

• Battery Type: LiFePO₄

• Capacity: 3,840Wh (per unit)

• Solar Input: Dual MPPT, 11–165V ⎓ 17A Max, 1,600W each (3,200W total)

• AC Input Power: 1,800W Max

• AC Output Power: 6,000W Max

• Output Voltage: 120V/240V Split Phase

• USB Outputs:

  • 2x USB-A (5V/2.4A, 12W Max)

  • 3x USB-C (up to 100W each)

• EV Charging Support: NEMA TT-30R, L14-30 (6,000W/240V)

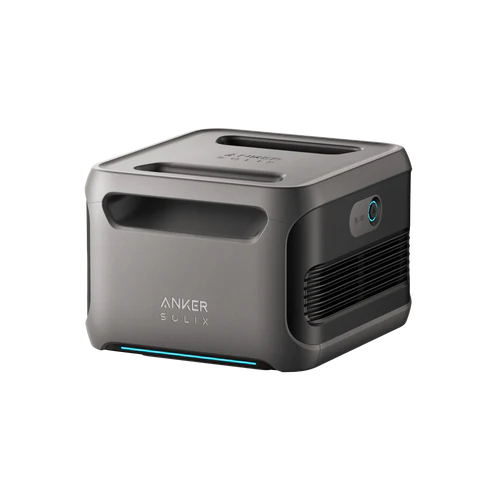

BP3800 Expansion Battery

• Capacity: 3,840Wh

• Battery Chemistry: LiFePO₄

• Cycles: 3,000+ to 80% capacity

• Weight: 72.8 lbs

• Dimensions: 15.5" x 14.0" x 10.3"

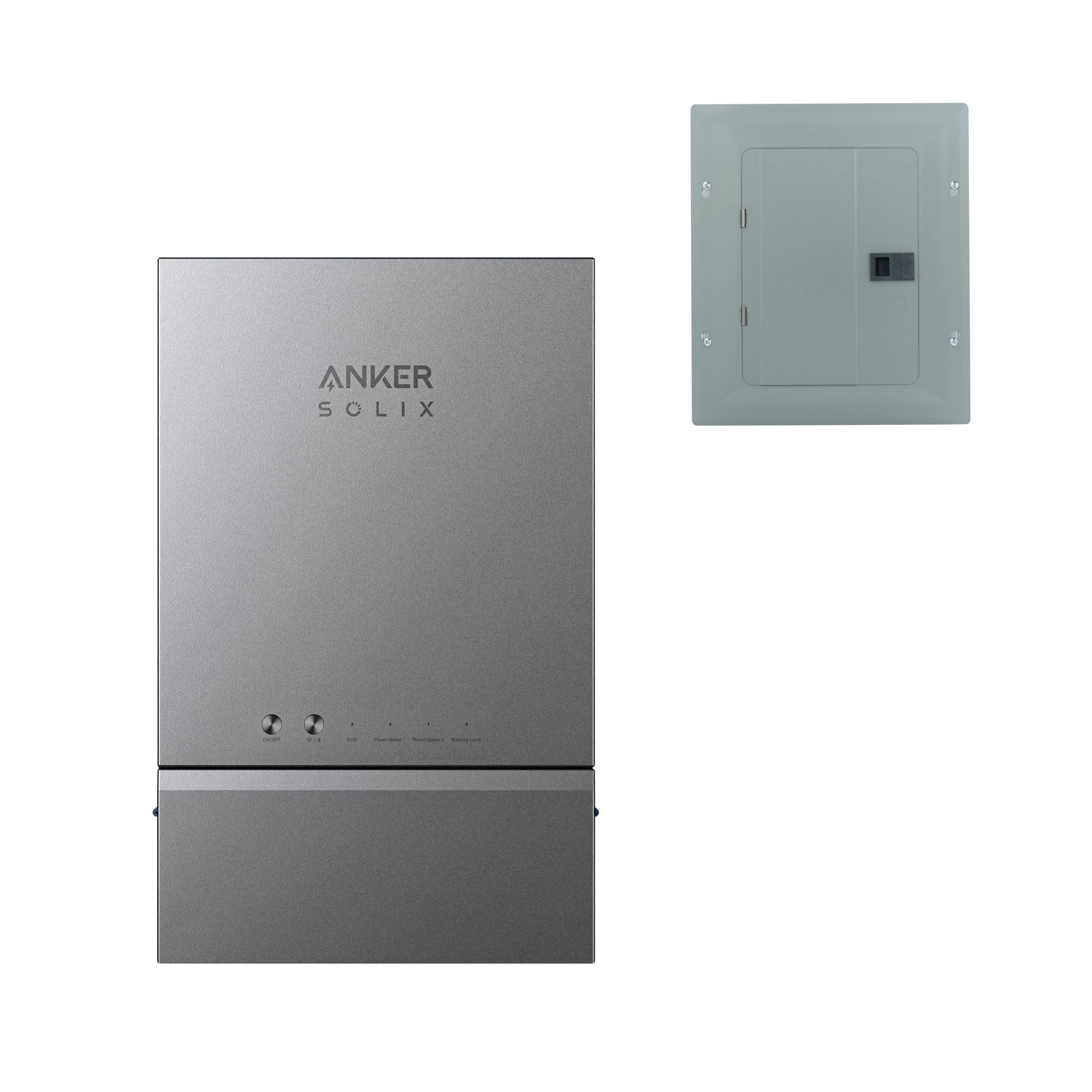

Smart Home Power Panel Kit

• 12-Circuit Backup Load Center

• AC Output (Home Panel Port): 6,000W Max

• Breaker Type: 100A Included

• Accessories Included: 200A/100A current transformers, cables, brackets, ground bar kit, and hardware

What’s in the Box

• (1) Anker SOLIX F3800 Plus Portable Power Station (3840Wh)

• (1) Anker SOLIX BP3800 Expansion Battery (3840Wh)

• (1) Home Power Panel + 12-Circuit Backup Subpanel

• (1) AC Charging Cable

• (2) MC4 Solar Charging Cables

• (1) Battery-to-Host Cable

• (1) Set of Wall/Backplate Mounting Brackets

• (1) Set of Current Transformers

• (1) Ground Bar Kit

• (1) User Manual

• (1) FREE Protective Cover
