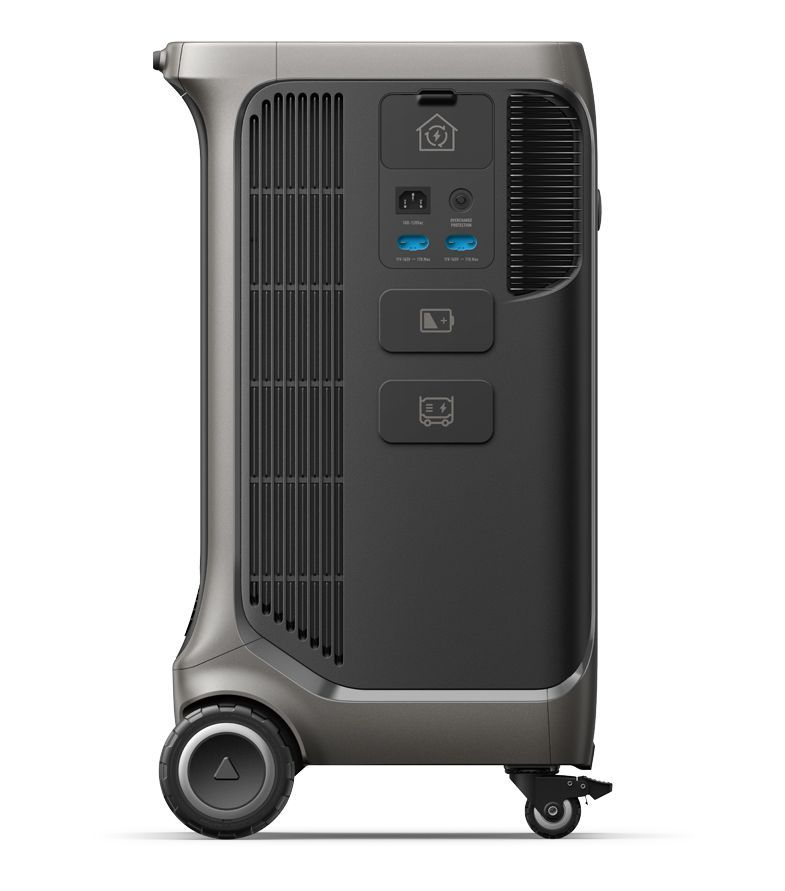

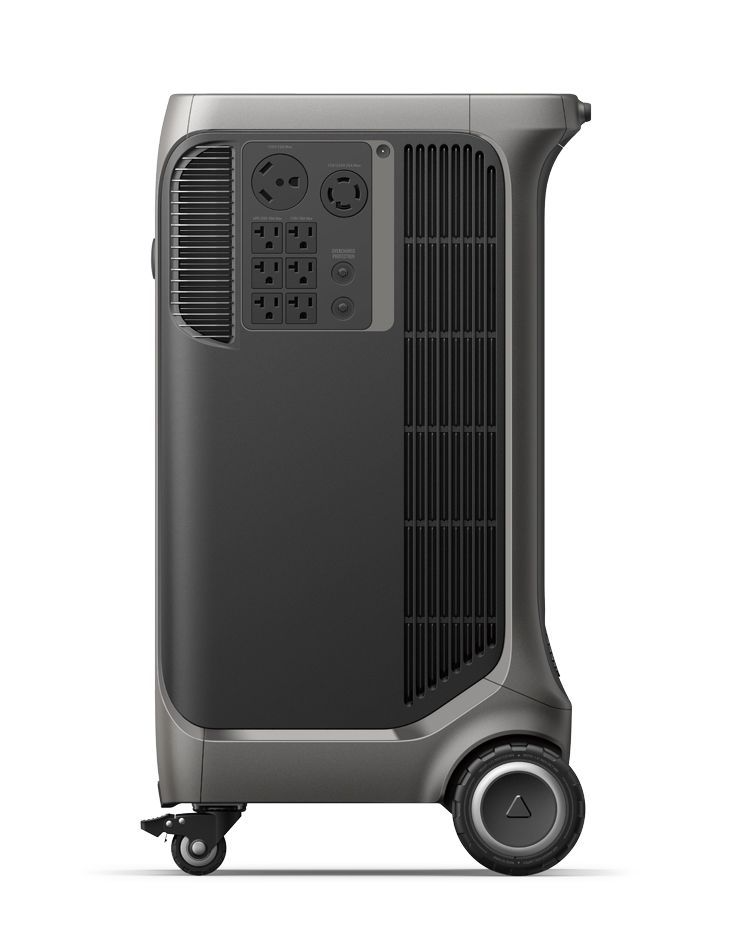

Anker SOLIX F3800 Plus Power Station 2-Pack (7680Wh) + Home Power Panel + Subpanel

Product Overview

Power your entire home with the Anker SOLIX F3800 Plus Power Station 2-Pack (7680Wh) + Home Power Panel + Subpanel, a complete energy solution for blackout protection, solar efficiency, and grid savings. With a massive 7,680Wh total capacity and 12,000W of dual-voltage output using the included Home Power Panel and Subpanel, this bundle delivers unmatched whole-home power independence.

Engineered for both emergency backup and everyday energy management, this smart system features rapid solar charging, gas generator compatibility, and seamless automatic switching during outages. Use the Anker app to remotely control and monitor your power use, ensuring you stay connected, efficient, and in control.

Key Features

• Massive 12,000W Dual-Voltage Output
  Combine two 6,000W units to deliver 120V/240V output to power lights, HVAC, refrigerators, ovens, and more.

• 7,680Wh Total Capacity
  Run your home’s essential appliances for hours or even days with expandable capacity up to 53.8kWh.

• Smart Energy Management
  Use the Home Power Panel and app to schedule, monitor, and switch between battery, solar, and grid power.

• Ultra-Fast Solar Recharging
  Recharges in just 1.5 hours with up to 3,200W solar input via dual MPPT controllers.

• Gas Generator Ready
  Supports 240V generator input with 6,000W bypass for added power security during long outages.

• Automated Outage Response
  Auto-switches to battery backup during grid failures with UPS switchover in less than 20ms.

• Cleaner, Quieter Power
  Unlike gas generators, the SOLIX F3800 Plus operates silently with zero emissions.

Technical Specifications

Battery System

• Battery Type: LiFePO4 (LFP), EV-grade

• Total Capacity: 2 x 3840Wh = 7680Wh

• Cycles: 3,000+ (to 80% capacity)

• Warranty: 5 Years

Input

• AC Input: 120V~15A Max / 1800W Max

• Bypass Mode: 1440W Max

• Solar Input (2x): 11–165V ⎓ 17A (1600W Max Each)

• DC Port: 60V Max, 120A Max

• Car Charger Input: 12V - 10A

Output

• Combined AC Output: 12,000W Max (2x 6000W)

• AC Output (L14-30R): 120V/240V~ 25A Max, 6000W Max

• Standard AC Outlets: 2 x 120V~ 20A Max

• USB-A: 2 x 5V⎓2.4A (12W Max Each)

• USB-C: 3 x 100W Max

• UPS Switch Time: <20ms

Environment & Build

• Operating Temp: -4°F to 104°F

• Charging Temp: 32°F to 104°F

• Dimensions (Each Unit): 27.6 × 15.3 × 15.6 in

• Weight (Each Unit): 136.7 lbs

• Estimated Total Weight (Bundle): ~295–305 lbs

What’s in the Box

• 2 × Anker SOLIX F3800 Plus (3840Wh each)

• 1 × FREE Protective Cover Bag

• 2 × AC Charging Cables

• 2 × MC4 3-Port Solar Charging Connectors

• 1 × Anker Home Power Panel

• 1 × 12-Circuit Subpanel

• 1 × User Manual
